Arrow Foxbody Wheel Picture Thread

Post any and all pics of Fox body Mustangs with any kind of wheels. Please state any applicable info, such as; wheel make, model, size, all tire sizes (front/rear), backspacing, where to buy them, etc, etc.


Thanks everyone,
C. Focker


its an LX
Cool Focker is offline
Sponsored Links
Advertisement

post #2 of 7494 Old 05-15-2003, 06:34 PM
Registered User

duddor's Avatar

Trader Feedback: (11)
Join Date: Oct 2002
Location: Holden,LA
Posts: 2,450
http://www.mustangworld.com/ourpics/...38/kevins1.JPG

91 Lx Coupe,17x8 98 cobras w/ 245-45-17 nittos 555's,cobra front brakes,rear drum conversion soon to be disc


91 LX Coupe Light crystal blue/black interior
AFR/FTI Combo BBS wheels Cobra brakes, etc
93 Cobra Teal/grey leather All original 23k miles
duddor is offline
post #3 of 7494 Old 05-21-2003, 11:36 PM
Registered User

Trader Feedback: (5)
Join Date: Jan 2002
Location: Des Moines, Iowa
Posts: 657
Here is link to my site. I have Roh snyper 17x9 wheels on my gt.

http://mywebpage.netscape.com/chevyh.../carpage1.html

92 GT-- 358W, F1R 20lbs, Art Carr AOD, 3800 stall

69 Mustang S-code Coupe -- 351c, astro t-5, 3.89 9", tcp front coilover conversion and billet ps rack
BlownGT92 is offline
Sponsored Links
Advertisement

post #4 of 7494 Old 05-30-2003, 10:15 AM
Turbo Wizard

snipe656's Avatar

Trader Feedback: (1)
Join Date: Jul 2001
Location: Houston, Tx, USA
Posts: 4,289
I do not think the wheels on either of my cars are made any longer, but here you go.

My LX with 17x8.5 fronts(255/45s) and 17x9.5 rears(275/40s), chromed ROH ZR6 wheels(center caps off in the picture). I had to trim my front fenders when I went to the Griggs front suspension and had to roll the rear fenders some to clear those tires, a 265 tire would have required no rolling.

http://www.happyhacker.com/images/Pi...tang_Dside.jpg

My Saleen with 17x8 fronts(235/45s) and 17x9 rears(245/45s), Stern wheels. My rear fenders have been rolled a ton and I still get some tire rub on hard bumps, car has a Cobra IRS in it so I think that might be wider than the 8.8 that was originally in there with Mark VII brakes. I probably am going to change these wheels out with something, just not sure what since I am unsure what will fit all around on it.

http://www.happyhacker.com/images/Pi...leen_Dside.jpg

--Admiral Aaron

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
snipe656 is offline
post #5 of 7494 Old 08-06-2003, 08:28 PM
Registered User

duddor's Avatar

Trader Feedback: (11)
Join Date: Oct 2002
Location: Holden,LA
Posts: 2,450

91 LX Coupe Light crystal blue/black interior
AFR/FTI Combo BBS wheels Cobra brakes, etc
93 Cobra Teal/grey leather All original 23k miles
duddor is offline
post #6 of 7494 Old 08-19-2003, 09:45 AM
Registered User

Trader Feedback: (0)
Join Date: Aug 2000
Location: Plano, TX
Posts: 219
Quote:
Originally posted by 93FIVEOH
One more thing, those rims have the same bolt pattern with that Ford brake kit, but just SN-95 spacing?
From what I researched and found online, the Moda wheel line is made by Radius in Italy, as it is cast on the wheel inside and came with both sets of center caps. Here is the Radius site, there is a .pdf you can download with all the models, offsets, and sizes:

http://www.radius-autotech.com/

Or look at tirerack.com for the Moda series.

The bolt pattern is 5 on 114.3 mm (= to 5 on 4.5" if you convert mm to "s), same as M2300k brake and the SN95. Spacing happened to work well on the Fox, but of course the SN95 has tons more room for wheels. I find the perfect set up for Fox w/ m2300 k is 8 wide w/ about 5.75 b/s and 9 wide w/ about 6.75 b/s. (perfect for me means looks wide and filled up but does not rub on turns or bumps - sure you can go wider but it gets to be a hassle in my opinion)

1956 Ford Thunderbird, 1988 Ford Mustang LX 5.8L,
1961 Ford Econoline Pickup
1963 Ford Falcon Sprint - Sold 2/10
http://www.hubgarage.com/mygarage/AndrewnTX

Last edited by 88lx5.8; 08-19-2003 at 09:47 AM.
88lx5.8 is offline
post #7 of 7494 Old 08-24-2003, 12:32 PM
Formerly known as lxnogt

Fiveofeen's Avatar

Trader Feedback: (2)
Join Date: Apr 2002
Location: Oceanside, CA
Posts: 524

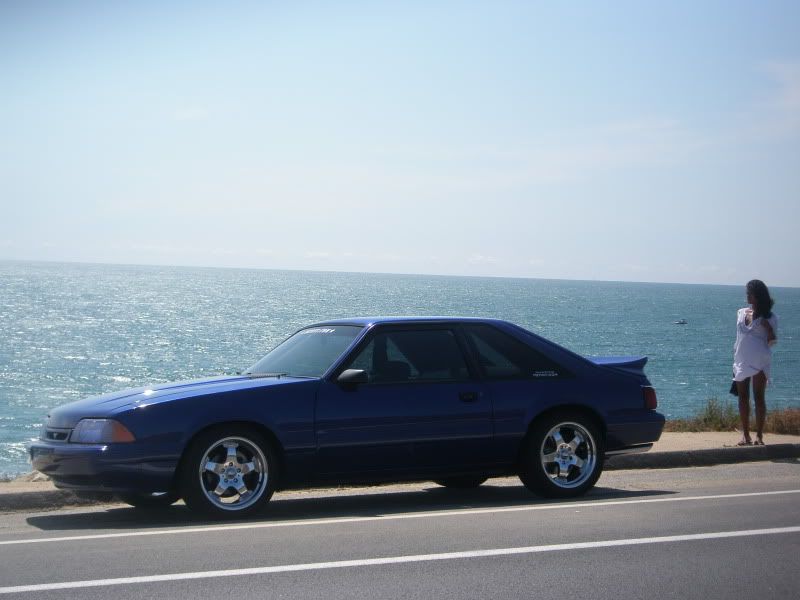

Edit: Here is what I ended up doing to it. 17x9's all around with 245's and 275's for tires. (Its been done a long time, dont worry it didnt take six years to pull it off!)



1990 LX Hatchback Sonic Blue

All the rad mods and a few lame ones

Last edited by Fiveofeen; 07-21-2012 at 01:30 PM.
Fiveofeen is offline
post #8 of 7494 Old 08-24-2003, 12:40 PM
Registered User

WhiteLX's Avatar

Trader Feedback: (4)
Join Date: Nov 1999
Location: Riverside, CA
Posts: 1,626
Quote:
Originally posted by lxnogt
16" cobra r's 5 lug. these are temp wheels while the car gets painted. then its sonic blue paint, and 17x8 & 17x10.5 bullets w/ 245' up front 275' or 315 out back.
How are you going to fit 10.5s in the back?

1992 5.0 coupe - TTI single turbo
1986 Merkur XR4Ti - 2.3L turbo
WhiteLX is offline
post #9 of 7494 Old 08-25-2003, 03:49 PM
Registered User

Lickmstickmman's Avatar

Trader Feedback: (2)
Join Date: Aug 2003
Location: Waldorf, MD
Posts: 36
LXNOGT, hope that combo works for you... I have 17x8 bullits on a 93gt with Kumho 255/50-17s and they rub the inside and the quad shock. I made a poor tire size choice for the back, should have went with 245/50-17 like the front! But I wanted to fill the wheel well better, now it's too much...live and learn!

Here is a link to mine and a buddies fox bodies with the new bullets on, mine is the red one.

http://f1.pg.photos.yahoo.com/ph/lic...rl.jpg&.view=t
Lickmstickmman is offline
post #10 of 7494 Old 08-26-2003, 01:45 AM
Formerly known as lxnogt

Fiveofeen's Avatar

Trader Feedback: (2)
Join Date: Apr 2002
Location: Oceanside, CA
Posts: 524
lickm - your running the wrong size tires all around. your stock tire's overall diamter is 25.7" a 245/45-17 is the same o.d and thats what is suggested to be used. i know your sayin its the width of the tire thats hittin the quads but still the tire hieght is too large.

its gonna be a tight squeeze those 10.5's but i am runnin no quad, stock track, and rolled fender lips. i sell wheels an tires so i will be able to test fit before i purchase. fortunatly a good customer just got some 10.5' bullets w/ 275's on them and they look good. so i will test fit those and see how it goes. other wise its the 9" bullet an 275s. but i gotta do something nuts. an i wanna stay 17 cause i have so many tires sitting around. 315's 275's 245's


1990 LX Hatchback Sonic Blue

All the rad mods and a few lame ones

Last edited by Fiveofeen; 08-26-2003 at 01:48 AM.
Fiveofeen is offline
post #11 of 7494 Old 08-26-2003, 01:53 AM
Registered User

phillie356's Avatar

Trader Feedback: (23)
Join Date: Jan 2003
Location: illinois.....land of communism
Posts: 4,361
i am about to buy a rear set of weld 15x8 draglites
with 4.5 back spacing but everyone has them with 5.5 backspacing
what is the diference?

1993 electric red notch back. FORD STROKERS R-363.
FORD STROKERS #1 in customer service and customer satisfaction!
phillie356 is offline
post #12 of 7494 Old 08-26-2003, 01:57 AM
Registered User

WhiteLX's Avatar

Trader Feedback: (4)
Join Date: Nov 1999
Location: Riverside, CA
Posts: 1,626
Quote:
Originally posted by phillie356
i am about to buy a rear set of weld 15x8 draglites
with 4.5 back spacing but everyone has them with 5.5 backspacing
what is the diference?
A 15x8 with a 4.5" backspacing will sit out 1" farther than a 15x8 with a 5.5" backspacing. That is the measurement from the outermost edge on the backside to the back of the mounting pad.

Eric

1992 5.0 coupe - TTI single turbo
1986 Merkur XR4Ti - 2.3L turbo
WhiteLX is offline
post #13 of 7494 Old 08-28-2003, 01:42 AM
Formerly known as lxnogt

Fiveofeen's Avatar

Trader Feedback: (2)
Join Date: Apr 2002
Location: Oceanside, CA
Posts: 524
i wouldnt run a 315 on a 9" rim. no way. good luck test fitting the wheels, a 275 works on the 10.5 rim, but the point of that size wheel is to run a 315! know what i mean. anyways, i got stock offset 5L setup, we are rolling the fender lips before paint an we will make as much room as poss. and i have no quads and stinkin C rates sit so high. so i'm hopin it works out. if it does its gonna be sick

1990 LX Hatchback Sonic Blue

All the rad mods and a few lame ones
Fiveofeen is offline
post #14 of 7494 Old 08-31-2003, 08:07 PM
Registered User

jcm3's Avatar

Trader Feedback: (0)
Join Date: Mar 2003
Location: Orange County, CA
Posts: 2,244
I'm running Cobra-R's on mine, regular 17x9's with 255/40 -17's all the way around.

They rub on tight turns, but not bad at all. They do not rub on the rear.



92 GT Vert, Keith Craft 306, SQ-Trim w/Power Cooler, Edelbrock 6037's/Performer intake, FTI cam, 60's, Walbro GSS340, T-56 6-speed, Spec Stage Three, Baer Brakes, Griggs Suspension, 3.55's. Best time - 11.56 @ 121.75, 1.78 60' on ET Streets (7.48 @ 95.69 1/8th) - with E-303 cam, 500 rwhp/463 rwtq
jcm3 is offline
post #15 of 7494 Old 09-01-2003, 04:27 PM
Registered User

Trader Feedback: (11)
Join Date: Nov 1999
Location: Where the Navy sends me...
Posts: 4,116
Quote:
Originally posted by Oktavius
Does anyone have photos of a fox with SN95 length axles and 17X9 rims? If so, could I see some photos and know the offset/backspacing? Thanx.
Tim,

I'm running '95 Cobra Rs, R58s up front on Baer/SN95 brakes, M179s in the rear on SN95 length axles. The fronts are 5.95" backspacing (about +24mm offset) and the rears are 6.42" backspacing (about +36mm offset). I'm running 275/40-17s in the rear with the fender lips rolled. They'll still rub the fender lip if I hit a nasty bump mid-corner, but it doesn't cut the tire or anything like that so I don't worry about it.

Here's a shot that shows how the rears match up to the fender:


Here's another, more "picturesque" picture:


Lots of changes since that shot was taken - the car looks more like jcm3's. Rollbar, MM and Griggs suspension, Cobra rear valence, etc. No new pics yet, need to get it painted.

Edit: I've been planning to keep the silver ground effects, but after seeing jcm3's pictures.... hmmmmm..... decisions, decisions!

'89 GT convertible, N/A 357W, MM front susp w/425# coil-overs and Koni D/As, MM TA/PB rear setup (Koni Yellows, 390-430# springs), Stoptech 332mm / 12" Baers, MM 6 point rollbar, Maier 1.5" flared fenders & quarters, 18x9.5" front/18x10.5" rear Enkei RPF-1s (street), 18x10" CCW C-10s (track), etc...
Patrick Olsen is offline
post #16 of 7494 Old 09-03-2003, 10:24 PM
Registered User

Trader Feedback: (0)
Join Date: Feb 2002
Location: AUSTIN/TX
Posts: 262

Too many projects not enough time
PROCHARGER is offline
post #17 of 7494 Old 09-05-2003, 12:05 AM
Registered User

jcm3's Avatar

Trader Feedback: (0)
Join Date: Mar 2003
Location: Orange County, CA
Posts: 2,244
Quote:
Originally posted by PROCHARGER
Different wheels and color, but our cars look a little bit similar.


92 GT Vert, Keith Craft 306, SQ-Trim w/Power Cooler, Edelbrock 6037's/Performer intake, FTI cam, 60's, Walbro GSS340, T-56 6-speed, Spec Stage Three, Baer Brakes, Griggs Suspension, 3.55's. Best time - 11.56 @ 121.75, 1.78 60' on ET Streets (7.48 @ 95.69 1/8th) - with E-303 cam, 500 rwhp/463 rwtq
jcm3 is offline
post #18 of 7494 Old 09-05-2003, 01:42 PM
Registered User

Trader Feedback: (0)
Join Date: Feb 2002
Location: AUSTIN/TX
Posts: 262

It used to be primer but I had to funk it out

Too many projects not enough time
PROCHARGER is offline
post #19 of 7494 Old 09-06-2003, 01:10 AM
Registered User

Trader Feedback: (9)
Join Date: Aug 2002
Location: St. Petersburg, FL
Posts: 2,259
http://www.stangonline.com/news/10thwheels.htm

93 Coupe w/2012 Boss 302 Swap, Maximum Motorsports, Forgeline, Magnum.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
93coupe com

68 Coupe w/rust
01 Cobra w/wife
stangonline is offline
post #20 of 7494 Old 09-06-2003, 11:04 PM
Registered User

duddor's Avatar

Trader Feedback: (11)
Join Date: Oct 2002
Location: Holden,LA
Posts: 2,450
Can you photochop some fr500's on your coupe since ours are just about the same. I may get some if I like em. I've seen one black coupe at ffw in baytown and I liked them but would like to see them on a silver coupe. Thanks, btw that coupe will be hot w/ those rims.

91 LX Coupe Light crystal blue/black interior
AFR/FTI Combo BBS wheels Cobra brakes, etc
93 Cobra Teal/grey leather All original 23k miles
duddor is offline
post #21 of 7494 Old 09-08-2003, 11:56 PM
Registered User

Trader Feedback: (0)
Join Date: May 2003
Location: Central, NJ
Posts: 169
http://community.webshots.com/photo/...89558231EgmpIZ

For Sale!- 88 gt, cobra rear bumper, cobra grill,comes with turbines and ponies, all have good tires, flowmaster cat back all welded with polished tailpipes, k&n air filter,King cobra clutch, new - waterpump ,alternator, battery,starter, grant steering wheel, guages in the center vents, it's black..pretty clean, everything done in the past 18 months..92k miles, $3,000
Email me for pics,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


00 Gt- silver- pro 5.0 shifter
SVTCobrar58 is offline
post #22 of 7494 Old 09-09-2003, 10:14 AM
Registered User

Trader Feedback: (9)
Join Date: Aug 2002
Location: St. Petersburg, FL
Posts: 2,259
Duddor, post a pic of some fr500s from the side?

Here are a couple more that I did. Prochargers car and my car, merged. I kinda like my coupe with cobra ground effects.





Rush job, but you get the idea. Tried some other wheels on it too.

93 Coupe w/2012 Boss 302 Swap, Maximum Motorsports, Forgeline, Magnum.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
93coupe com

68 Coupe w/rust
01 Cobra w/wife
stangonline is offline
post #23 of 7494 Old 09-12-2003, 03:33 PM
Registered User

MotleyDrew's Avatar

Trader Feedback: (0)
Join Date: Sep 2003
Location: Ottawa Canada
Posts: 313
Smile

These are the old school zr 6 ROH 17 X 8.5 rims.

255/40/17 - 275/40/17

[IMG]c:\drew.jpg[/IMG]

Rock N Roll
11.633 @ 119.003 mph 1.657 60ft

1993 coupe Blown

2001 Z06 Blown
MotleyDrew is offline
post #24 of 7494 Old 09-12-2003, 03:58 PM
Registered User

ShortThrow5.0's Avatar

Trader Feedback: (0)
Join Date: Jul 2003
Location: Irvine, CA
Posts: 351
Quote:
Originally posted by MotleyDrew
[IMG]c:\drew.jpg[/IMG]
Gotta upload the pic on the net before u can post it...

-LJ

Luke

'93 MUSTANG 5.0 LX
(Mod list to come..)
ShortThrow5.0 is offline
post #25 of 7494 Old 09-12-2003, 11:16 PM
Registered User

fox racer's Avatar

Trader Feedback: (5)
Join Date: Jul 2003
Location: NYC
Posts: 346
Quote:
Originally posted by jcm3
I'm running Cobra-R's on mine, regular 17x9's with 255/40 -17's all the way around.

They rub on tight turns, but not bad at all. They do not rub on the rear.



hey, that first pic you have posted up on mustang works somewhere right? i remember seeing it a WHILE ago, i remember it b/c it is such a nice car, i like it lol

WTB: Terminator steering rack. Will pay a premium.
fox racer is offline
post #26 of 7494 Old 09-15-2003, 08:07 AM
Registered User

Trader Feedback: (9)
Join Date: Aug 2002
Location: St. Petersburg, FL
Posts: 2,259
One of the few verts that I really like - way nice

93 Coupe w/2012 Boss 302 Swap, Maximum Motorsports, Forgeline, Magnum.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
93coupe com

68 Coupe w/rust
01 Cobra w/wife
stangonline is offline
post #27 of 7494 Old 09-15-2003, 12:19 PM
Registered User

Trader Feedback: (0)
Join Date: Mar 2002
Location: nj
Posts: 539
91 LX 10 sec. daily driver with 16" silver cobra r's, 17" chrome cobra r's + welds












ALL OUT AUTOMOTIVE: Support Your Local Speed ShopVORTECH Top Tier Dealer/Installer *True Street 8sec Club*Dealer for trick flow, upr, summit, moser, keystone,mickey T Onsite Chassis DYNO !
www.facebook.com/AllOutAutomotive
93TRANSAM is offline
post #28 of 7494 Old 09-15-2003, 03:35 PM
Registered User

ShortThrow5.0's Avatar

Trader Feedback: (0)
Join Date: Jul 2003
Location: Irvine, CA
Posts: 351
Nice daily driver!!

-LJ

Luke

'93 MUSTANG 5.0 LX
(Mod list to come..)
ShortThrow5.0 is offline
post #29 of 7494 Old 09-15-2003, 07:34 PM
Registered User

Trader Feedback: (1)
Join Date: Sep 2003
Location: Almost Philly
Posts: 1,800
Exclamation Token 1995 Cobra R wheels.


XBL - ReefBlue

Built on 8-18-1993 exterior-PD, interior-D6. 1 of 1,316.
ReefBlue is offline
post #30 of 7494 Old 09-16-2003, 11:33 AM
Registered User

jonnyk's Avatar

Trader Feedback: (0)
Join Date: May 2000
Location: Alberta, Canada
Posts: 692
ROH ZR6 17x8.5, 245/45ZR17 Avon ZZ1's all around. Wheels aren't made any more. I have new tires for them but haven't put them on yet.





To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Novi 2000 blown 331
jonnyk is offline
post #31 of 7494 Old 09-16-2003, 09:46 PM
Registered User

WhiteLX's Avatar

Trader Feedback: (4)
Join Date: Nov 1999
Location: Riverside, CA
Posts: 1,626
Quote:
Originally posted by jonnyk
ROH ZR6 17x8.5, 245/45ZR17 Avon ZZ1's all around. Wheels aren't made any more. I have new tires for them but haven't put them on yet.



I've always liked those wheels. Too bad they aren't made anymore.

Eric

1992 5.0 coupe - TTI single turbo
1986 Merkur XR4Ti - 2.3L turbo
WhiteLX is offline
post #32 of 7494 Old 09-17-2003, 02:17 PM
Registered User

ShortThrow5.0's Avatar

Trader Feedback: (0)
Join Date: Jul 2003
Location: Irvine, CA
Posts: 351
Quote:
Originally posted by WhiteLX
I've always liked those wheels. Too bad they aren't made anymore.
They're discontinued, but you can still find them for sale online..

-LJ

Luke

'93 MUSTANG 5.0 LX
(Mod list to come..)
ShortThrow5.0 is offline
post #33 of 7494 Old 09-17-2003, 09:31 PM
Registered User

WhiteLX's Avatar

Trader Feedback: (4)
Join Date: Nov 1999
Location: Riverside, CA
Posts: 1,626
I am going with the Konig Villains for now since I can get them very cheap and quick. I might be doing my 5 lug conversion as soon as next weekend.

1992 5.0 coupe - TTI single turbo
1986 Merkur XR4Ti - 2.3L turbo
WhiteLX is offline
post #34 of 7494 Old 09-18-2003, 10:37 AM
Registered User

heathers5_0's Avatar

Trader Feedback: (0)
Join Date: Apr 2003
Location: Lakeland, FL
Posts: 513


These wheels are off the car right now. I cant decide if i want bullit wheels or the 98 GT wheels on stangbangers car (WOW) that is a beautiful pic. My husband is gonna paint my car in a couple of months and i am going back and forth on color and wheels- such a hard decision.

~Heather
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Past Mustang: 90GT DSS306, Vic JR Heads. Procharger P1200BR. 550 HP+

Current: 91 SSP Notch H/C/I Tremec. Basically stock DD. 8.33 1/8th
heathers5_0 is offline
post #35 of 7494 Old 09-18-2003, 02:26 PM
Registered User

slowcpe's Avatar

Trader Feedback: (0)
Join Date: May 2001
Location: Evansville/Indy
Posts: 745
here's my old combo: 17x9 chrome 4lug Cobra R's w/245s



my current combo: 15x8.5/4s w/26x10.5 ET Streets and 165s up front.



Currently I'm looking into converting to 5 lug 4 wheel disc with either 17s or 18s. I don't like the wide n' skinnies for pleasure driving as I thought I would.

Notch
Tahoe
Sea Ray
slowcpe is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
