Blow-Thru setup questions

Had a couple questions about my build for a blow thru set up.

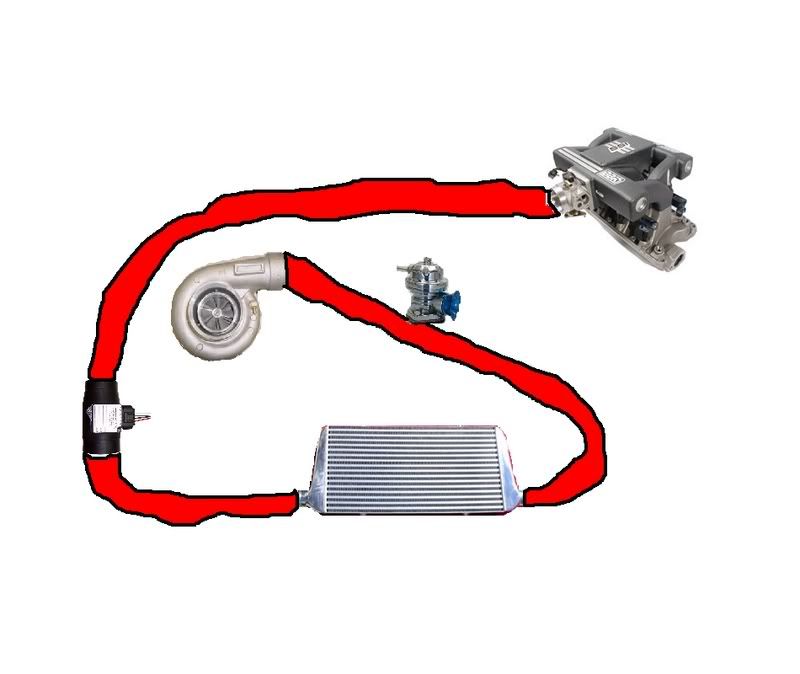

1. the bov has to go before the maf correct? (pic to show setup)
2. 4 inch of straight pipe before and after the maf should be enough currect?

Notes. i know the pipe before and after the maf has to be the same size as the actual maf in order to get a proper reading. any imput welcome. thanks in advance.



boooost94 is offline
Sponsored Links
Advertisement

post #2 of 21 Old 02-04-2007, 03:18 PM
Registered User

Trader Feedback: (30)
Join Date: Jul 2005
Location: Bellflower, CA
Posts: 1,154
Hahaha, nice picture. Setup is fine, I think you'll have better luck with a bit more pipe before the MAF to have a better reading.


-'90 Mustang LX Coupe 5.0 SSP. 83 DSO US Gov't Issue. H/C/I Track toy
93Krwy is offline
post #3 of 21 Old 02-04-2007, 04:11 PM
Registered User

red89coupe's Avatar

Trader Feedback: (31)
Join Date: Feb 2003
Location: Ohio
Posts: 3,318
Quote:
Originally Posted by 93Krwy View Post
Hahaha, nice picture. Setup is fine, I think you'll have better luck with a bit more pipe before the MAF to have a better reading.

I agree, prolly atleat 12 in of stright pipe before and after the MAF. Well thats what I was told by the person doing the chip/tune on my car. He also asked me to use SCT MAF over the PMAS. Ask the person who is going to tune it what they prefer.
red89coupe is offline
Sponsored Links
Advertisement

post #4 of 21 Old 02-05-2007, 07:39 AM
Registered User

Erich's Avatar

Trader Feedback: (20)
Join Date: Jan 2000
Location: MD
Posts: 5,957
12 inch before the maf would be great. 4 inch is too little. I try and use 7 or more. Good idea too to see what the tuner prefers on the maf. Another choice would be to adapt a lightning maf.
Erich

97 Laser Red GT-248A Wingless model, Built Lincoln Mark VIII motor-Procharger D1SC, 3 core IC
2012 Black GT-Saddle, 3.73s, Brembos, Shaker1000
Erich is offline
post #5 of 21 Old 02-05-2007, 07:59 AM
Registered User

Trader Feedback: (4)
Join Date: Aug 2000
Location: Ontario,Canada
Posts: 581
I only got 4-5" of straight pipe before my 3"pmass and it works flawlessly.

89'LX 306,T.W.heads,perf.intake,36's,stock cam/1.7's,70mmT.B.,T-56,3.27's,Twin 60/63 T3's intercooled,14psi,Evolution WG's, Meth inj.
579.2rwhp 658.6rwtq,[email protected] kicked off track
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
MOOVS is offline
post #6 of 21 Old 02-05-2007, 06:17 PM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
thanks guys!
boooost94 is offline
post #7 of 21 Old 02-05-2007, 06:54 PM
Registered User

Trader Feedback: (9)
Join Date: Feb 2006
Location: Austin Tx
Posts: 408
Thats how I have my turbo set up. I have 5 inch (roughly) of straight pipe and works great. Bov position is fine as well. Happy boosting.

65 Mustang
68 Barracuda 440
boostdidfox is offline
post #8 of 21 Old 02-05-2007, 10:40 PM
Registered User

Blackfive0's Avatar

Trader Feedback: (62)
Join Date: Oct 2004
Location: Midlothian,VA
Posts: 2,108
I would say at least 5 or more I had about 4 on mine and it make tuning a pain.

Big Bore Boss 347 FTI 225cc High Port, FTI Cam, Box R Intake under stock hood, T-56 Magnum, 4.30 gears.
Blackfive0 is offline
post #9 of 21 Old 02-07-2007, 11:35 PM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
ok, i've been doing some reading, and i know that you must have the same size intake piping before and after the maf. how close must it be? i mean here the the inch to mm convertion, the closest i could get the a lmaf, 90mm.......3.5000 88.9000 is that close enough as far as the piping size goes?
boooost94 is offline
post #10 of 21 Old 02-08-2007, 02:19 AM
Registered User

Trader Feedback: (30)
Join Date: Jul 2005
Location: Bellflower, CA
Posts: 1,154
With using a blow-thru setup it isn't necessary to use a huge mass air meter like it is running a draw-thru setup. A 3" or 3.5" blow-thru Pmas would be better in my opinion. Like with my PT-67 P-trim setup on my fox, i'll be using a PMAS 3" blow thru since that is the same size as the tubing from the turbo/ intercooler.


-'90 Mustang LX Coupe 5.0 SSP. 83 DSO US Gov't Issue. H/C/I Track toy
93Krwy is offline
post #11 of 21 Old 02-08-2007, 06:08 AM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
o alright, i have a pro m race maf. does anybody happen to know if that can be used in a blow through set up?
boooost94 is offline
post #12 of 21 Old 02-08-2007, 09:07 AM
Registered User

Trader Feedback: (7)
Join Date: Feb 2002
Location: Fountain Valley, CA
Posts: 2,722
I had somewhat of the same concerns. I had an 80mm LMAF and used 3" cold side piping. My biggest concern was actually getting the metal adapter flange to seal against the mass air meter. I slathered it with Ultra Copper but I still don't like the look of it.

Ended up buying a 12" long piece of 3" aluminum and an aluminum MAF adapter so I can still use the LMAF sensor. That way I know it'll seal and the cold side piping is 3" all the way through.
mustanggreg is offline
post #13 of 21 Old 02-08-2007, 12:15 PM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
so u just took the sensor out and installed it into the 3inch pipe? i didnt relise you could do that. any more info on this?
boooost94 is offline
post #14 of 21 Old 02-08-2007, 12:23 PM
Registered User

botlrokit93's Avatar

Trader Feedback: (26)
Join Date: Aug 2003
Location: roanoke, virginia
Posts: 1,667
MAF setup

Hey guys, not to hijack here, but I didn'y know you needed a length of straight pipe AFTER the MAF. How critical is this, and can you tune around it? I might have to break out the welder again! Here is a pic of my setup. thanks!


AARON
_______
botlrokit93 is offline
post #15 of 21 Old 02-08-2007, 12:30 PM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
how close is that pipe to the size of the maf? just wondering how close it needs to be. i mean, is within .1 of the mm size good enough? that seems to be the closest i could find. 3.5 inch pipe is like 88.9 mm. close enough to 90 right? or will it throw it off
boooost94 is offline
post #16 of 21 Old 02-08-2007, 12:33 PM
Authorized corral.net Advertiser

awdgsx's Avatar

Trader Feedback: (0)
Join Date: Apr 2005
Location: Lansing, MI
Posts: 200
Quote:
Originally Posted by botlrokit93 View Post
Hey guys, not to hijack here, but I didn'y know you needed a length of straight pipe AFTER the MAF. How critical is this, and can you tune around it? I might have to break out the welder again! Here is a pic of my setup. thanks!

You can do pretty much anything you want after the maf..
awdgsx is offline
post #17 of 21 Old 02-08-2007, 12:36 PM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
ya i agree. since you have a pretty straight shot before the maf, i doubt you will have any trouble, if anything it will peg out a little sooner
boooost94 is offline
post #18 of 21 Old 02-08-2007, 06:03 PM
Registered User

botlrokit93's Avatar

Trader Feedback: (26)
Join Date: Aug 2003
Location: roanoke, virginia
Posts: 1,667
thanks guys! i was a little concerned.

AARON
_______
botlrokit93 is offline
post #19 of 21 Old 02-08-2007, 08:07 PM
Registered User

Trader Feedback: (7)
Join Date: Feb 2002
Location: Fountain Valley, CA
Posts: 2,722
Quote:
Originally Posted by boooost94 View Post
so u just took the sensor out and installed it into the 3inch pipe? i didnt relise you could do that. any more info on this?
I bought one of these:

http://www.vmptuning.com/store/index...d=34&parent=31

and a piece of aluminum piping. It'll be welded to it and the sensor bolts right to it.
mustanggreg is offline
post #20 of 21 Old 02-09-2007, 10:43 AM
Registered User

SeriousSN95's Avatar

Trader Feedback: (25)
Join Date: Feb 2006
Location: Daytona
Posts: 457
get a univer and itll solve any problem u have with blowthru trust me i went through all the nonsense already lol

95 Rio Red5.0- Twin Turbo sold
90 notch- 400w 14.1-glide' gutted traded
2000 gt SOHC pump gas 11.50s on NUTS
2001 terminator clone,4v teksid,tr3650,irs,turbo
SeriousSN95 is offline
post #21 of 21 Old 02-09-2007, 04:42 PM Thread Starter

Trader Feedback: (2)
Join Date: May 2006
Posts: 182
thats what im trying to figure out. i have a pro m race, can that be used in both blow through and draw through?
boooost94 is offline
