On3 cold side issues

Hey guys having a hell of a time getting my cold side to line up. Does the first charge pipe off the turbo go on top of the lower rad hose or below it jammed up against the crossover pipe?

shannonmcb is offline
Sponsored Links
Advertisement

post #2 of 12 Old 05-04-2017, 08:15 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,755
Quote:
Originally Posted by shannonmcb View Post
Hey guys having a hell of a time getting my cold side to line up. Does the first charge pipe off the turbo go on top of the lower rad hose or below it jammed up against the crossover pipe?
Jammed. Lol wrap the crossover and let them play together.

5.0thunder is offline
post #3 of 12 Old 05-04-2017, 08:17 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,755
Post a pic or 2 so we can help you verify
5.0thunder is offline
Sponsored Links
Advertisement

post #4 of 12 Old 05-04-2017, 08:36 AM
Registered User

Trader Feedback: (21)
Join Date: Sep 2015
Location: Midwestern Illinois
Posts: 1,328
KIMG0432_zpsyj1gqdhg.jpg Photo by boostup89 | Photobucket

For everything that is worthwhile, there is a counterfeit.
boostup89 is offline
post #5 of 12 Old 05-04-2017, 10:10 AM Thread Starter
Registered User

shannonmcb's Avatar

Trader Feedback: (5)
Join Date: Jun 2013
Location: north east
Posts: 125
Some pics
Attached Images
File Type: png Screenshot_20170504-110704_1493906916717.png (1.21 MB, 50 views)
File Type: png Screenshot_20170504-110659_1493906937223.png (1.13 MB, 45 views)
File Type: png Screenshot_20170504-110654_1493906966292.png (1.82 MB, 44 views)
shannonmcb is offline
post #6 of 12 Old 05-04-2017, 10:11 AM Thread Starter
Registered User

shannonmcb's Avatar

Trader Feedback: (5)
Join Date: Jun 2013
Location: north east
Posts: 125
More pics
Attached Images
File Type: jpg Screenshot_20170504-110650_1493907023644.jpg (83.2 KB, 34 views)
File Type: png Screenshot_20170504-110635_1493907052365.png (1.16 MB, 34 views)
File Type: jpg Screenshot_20170504-110645_1493907071722.jpg (79.0 KB, 31 views)
shannonmcb is offline
post #7 of 12 Old 05-05-2017, 09:19 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,755
yeah, looks right to me.
5.0thunder is offline
post #8 of 12 Old 05-05-2017, 09:54 AM
Registered User

Trader Feedback: (6)
Join Date: Mar 2005
Location: Twin Cities, Minneapolis
Posts: 629

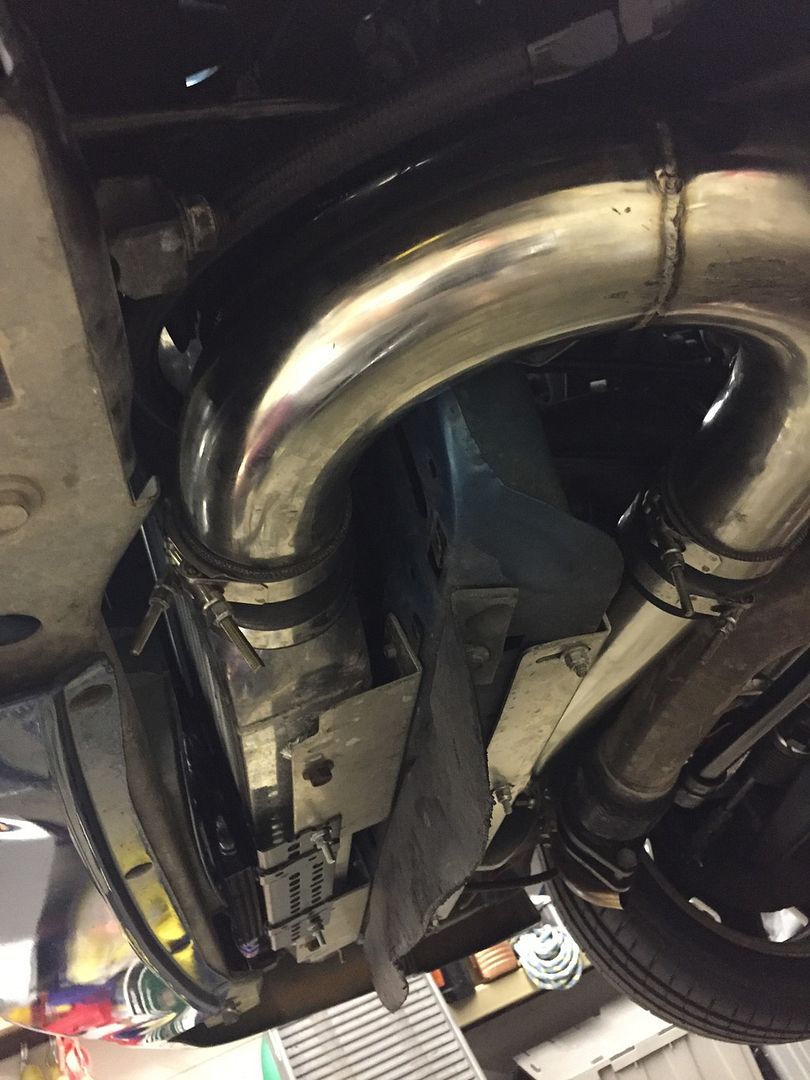

I cut 1" of the U-bend from the pipe in your picture to the input into the intercooler.
Pulled that cold side pipe nicely away from the cross over.
Not a great picture, but you see what's going on.


1993 Teal Cobra #2531 1 of 452, 347, Precision 7675, The entire kitchen sink....maybe 2 kitchen sinks at this point!
Meegs is offline
post #9 of 12 Old 05-05-2017, 09:58 AM
Registered User

Trader Feedback: (0)
Join Date: Oct 2001
Location: OKC, OK. U.S.
Posts: 77
If you can try to raise the intercooler to a level just below the bumper. That will close your gap on the MAF tube and should allow you to rotate the charge pipe forward slightly. I just finished a kit on a 93' cobra. There were not many tubes that I didn't end up modifying to get the fit I wanted.

93' Cobra #2224
Incon 800tti
93' Cobra #2133
Rd #2 93' Cobra #2224
Svt 2224 is offline
post #10 of 12 Old 05-05-2017, 10:25 AM
Registered User

Trader Feedback: (0)
Join Date: Oct 2001
Location: OKC, OK. U.S.
Posts: 77
If you can try to raise the intercooler to a level just below the bumper. That will close your gap on the MAF tube and should allow you to rotate the charge pipe forward slightly. I just finished a kit on a 93' cobra. There were not many tubes that I didn't end up modifying to get the fit I wanted.


93' Cobra #2224
Incon 800tti
93' Cobra #2133
Rd #2 93' Cobra #2224
Svt 2224 is offline
post #11 of 12 Old 05-10-2017, 06:23 AM Thread Starter
Registered User

shannonmcb's Avatar

Trader Feedback: (5)
Join Date: Jun 2013
Location: north east
Posts: 125
Thanks guys ended up raising the intercooler just about level with the rad support and cut 2" off the intercooler side of the pipe with the MAF in it. the last pipe that goes into the 90 to the throttle body is still a little wonky but I can live with it for now.
shannonmcb is offline
post #12 of 12 Old 05-16-2017, 07:37 PM
Registered User

flashman's Avatar

Trader Feedback: (5)
Join Date: Apr 2005
Location: florida
Posts: 579
All these years later and still these dont fit worth a ####. Geez
