I test fitted my TT setup..

Everything fits real good. It will be easy to finish the exhaust. I'll use the tail pipes for a stock look.

The Turbos are in a good spot, so I think I can fab up some Rod End type supports with some round tubing. One on top and one on the bottom somewhere to triangulate them to the motor and relieve the weight on the Headers. Still need to do that!







midnightlaundry is offline
Sponsored Links
Advertisement

post #2 of 100 Old 03-05-2017, 12:42 AM
Registered User

Trader Feedback: (21)
Join Date: Sep 2015
Location: Midwestern Illinois
Posts: 1,326
CX hotside?

boostup89 is offline
post #3 of 100 Old 03-05-2017, 05:28 AM
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
I'm interested in more details on the kit and turbos also.

Dart 348ci, Ed Curtis cam/valvetrain, Precision 76mm, Holley Dominator EFI, CNP ignition, tons of Holler EFI small parts, 4"dp, 4R70W w/T-brake, new suspension coming soon.

Little 750rwhp at 6,000rpms and only 10lbs of boost before we just got tired of playing with clutches. New 4R70W and we are turning it up. Expecting 1,000rwhp.
kbscobravert is offline
Sponsored Links
Advertisement

post #4 of 100 Old 03-05-2017, 09:36 AM
Registered User

Trader Feedback: (2)
Join Date: Dec 2007
Location: St. Louis
Posts: 389
Looks like a CX. I've heard some good about their latest kits. Weld quality was good and figment was good as well.
HLD-TYT is offline
post #5 of 100 Old 03-05-2017, 10:32 AM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Yes, It's CX. They have a new Single kit out with Dual Gates that looks cool. That would be way easier to work out. I might have done that if it was out at the time I bought, but the cool factor of TT's is hard to beat. Plus, I the car is intended for Street, so 2 smaller Turbos will get up on the Boost faster then 1 big hog.

One thing to mention is the Oil Drainback parts included are too narrow. I eBay'ed some larger -10 parts without to much trouble or extra expense. I'm working out the details now before I get the motor in the car so I don't have to deal with these problems latter. But so far, things are going good.





Here's some links for you guys.

Turbo Header Manifold Intercooler Kit For 79-93 Ford Mustang V8 5.0 NA-T T76

GT35 Twin Turbo Intercooler Kit For 79-93 Ford FoxBody Mustang 5.0L Dual 900 HP
midnightlaundry is offline
post #6 of 100 Old 03-05-2017, 11:22 AM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141

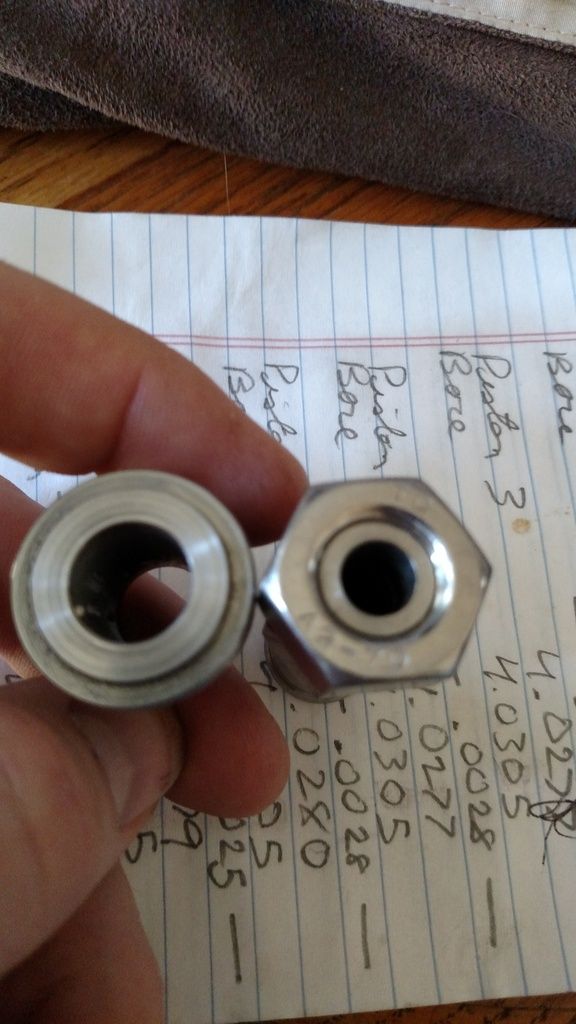

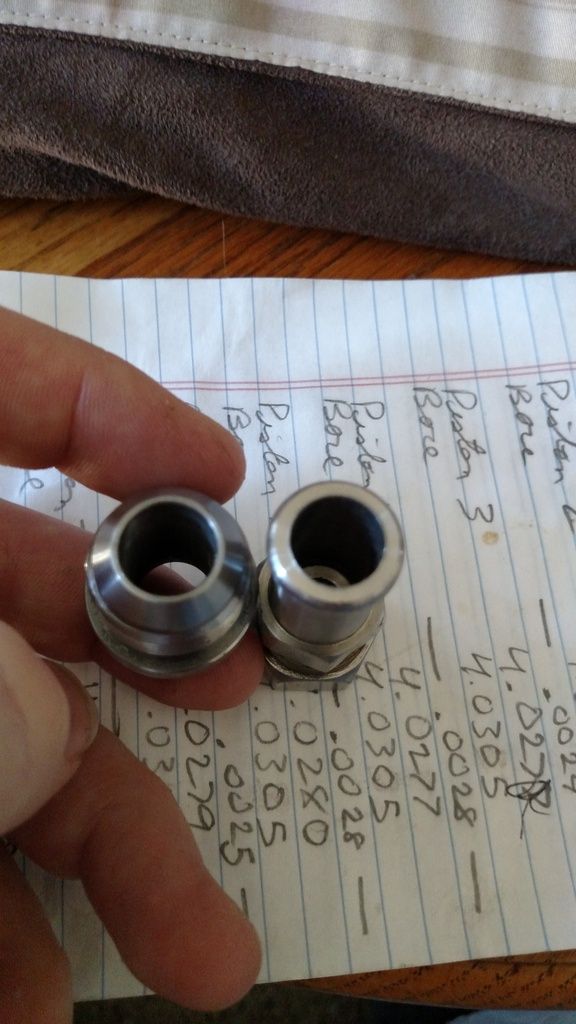

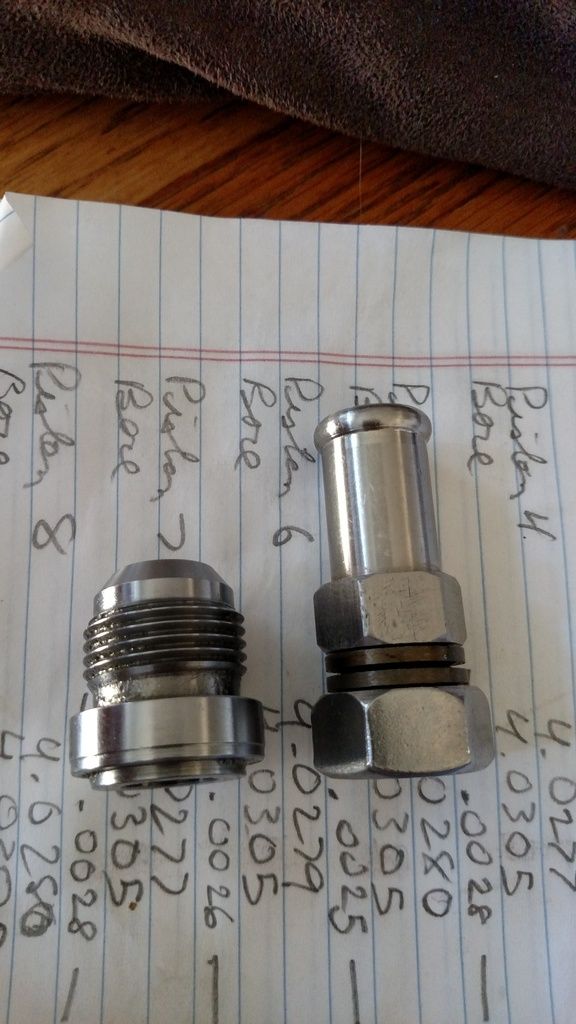

Here's the Bulkhead style pan fitting that came with the kit compared to a real -10 weld in Bung.. No smokin' Turbos for me..





midnightlaundry is offline
post #7 of 100 Old 03-05-2017, 11:26 AM
Registered User

Trader Feedback: (21)
Join Date: Sep 2015
Location: Midwestern Illinois
Posts: 1,326
Here's the single turbo hotside from CX racing. I have seen this header kit on two other cars, and both had been beat on like most race parts are. After several years they were both in great shape. For $385 to my door, I can't begin to build for that.
boostup89 is offline
post #8 of 100 Old 03-05-2017, 08:40 PM
Registered User

Trader Feedback: (21)
Join Date: Sep 2015
Location: Midwestern Illinois
Posts: 1,326
I almost pulled the trigger on the TT kit, I'll have to sit and anxiously watch yours come together.
boostup89 is offline
post #9 of 100 Old 03-06-2017, 12:46 AM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141

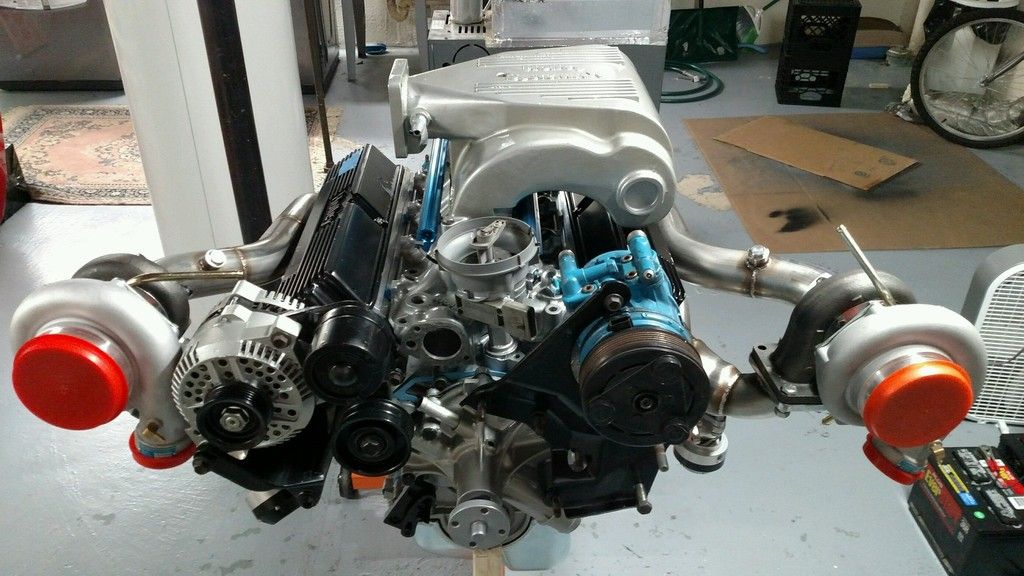

I put some front dress on, and am happy to say that the 3G Alternator clears! However, these Fuel Rails I have clear the Distributor on the right side, and that's all I can say at this time..lol.. Really tho, I think I can work it out. I'll need to open up the bottom Distributor shell and seal it up somehow to make room for the 180 degree fittings I plan on running back to the Regulator I bought..

Don't worry, I'm going with Silver on the AC Compressor because the Blue looks like crap.. I used to like it. Now I don't. I'll go silver on the Valve Covers as well. I want the motor to POP when you look at it..

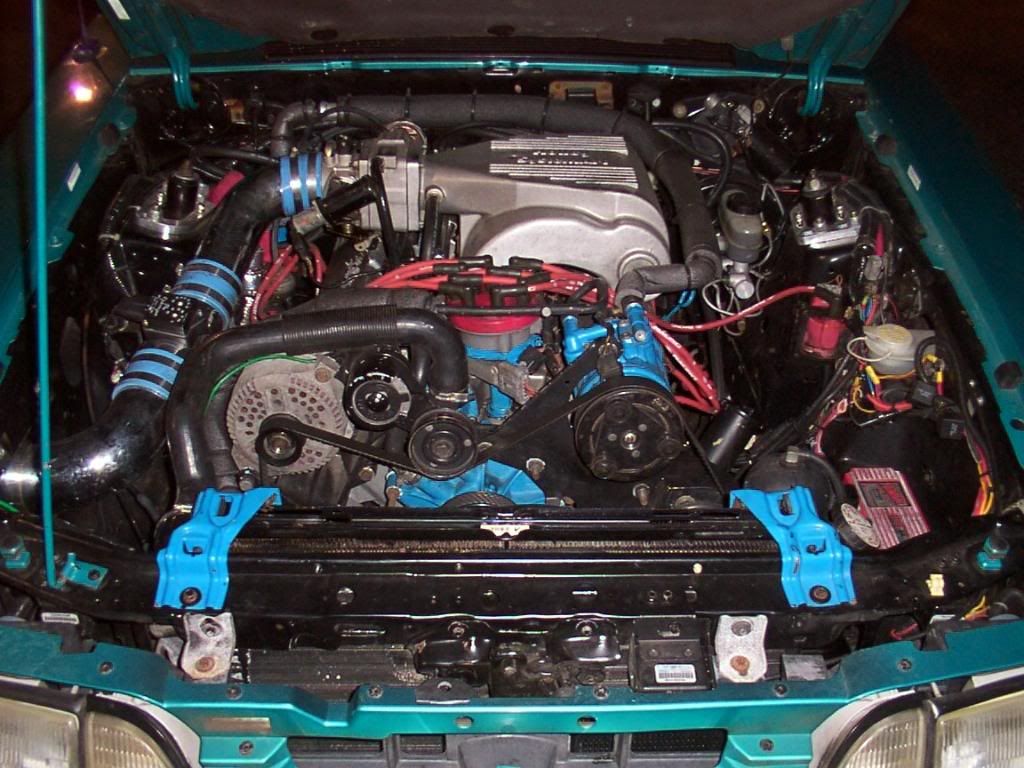

Here's the old motor.



I need to work out the plumbing for the Water Cooled Jackets on the Turbos.. There's no way I'm not running them.. But the way they the Banjo Tubes are bent, I can't seem to get a good angle on then to the center of the motor. I think I could chop them where they are bent and just weld on AN fittings if I can find them in steel. This would make it cake to plumb into the Heater Core lines.. Lots to do..

kbscobravert likes this.
midnightlaundry is offline
post #10 of 100 Old 03-06-2017, 07:38 AM
Registered User

97stanger97's Avatar

Trader Feedback: (19)
Join Date: Oct 2006
Location: NJ
Posts: 2,962
Looks great man. What are your goals for the car?


1997 Mustang GT
1997 Mustang GT
10:1, TF heads, Turbo cams, 7675, E85, 4R70W, Holley EFI
97stanger97 is offline
post #11 of 100 Old 03-06-2017, 08:15 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
Sweet. How hard will it be to access Spark plug #1 and 2?
5.0thunder is offline
post #12 of 100 Old 03-06-2017, 08:27 AM
Registered User

Trader Feedback: (21)
Join Date: Sep 2015
Location: Midwestern Illinois
Posts: 1,326
Where/how do you run the turbo coolant lines?
boostup89 is offline
post #13 of 100 Old 03-06-2017, 05:08 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Quote:
Originally Posted by 97stanger97 View Post
Looks great man. What are your goals for the car?
Quiet and reliable sleeper Street Car. Corvette Killer..
midnightlaundry is offline
post #14 of 100 Old 03-06-2017, 05:19 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Quote:
Originally Posted by 5.0thunder View Post
Sweet. How hard will it be to access Spark plug #1 and 2?
It's not happening on either side.. The Down Tube needs to be moved. But it seems like you can just removed the bolts from the Turbine and rotate it out of the way after loosening the V-Band Clamp.

It shouldn't be a big deal. I should be able to just position the Clamp so I can reach it with an extension under the car without having to jack it up. That is the plan anyway..
5.0thunder likes this.
midnightlaundry is offline
post #15 of 100 Old 03-06-2017, 05:26 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Garrett has an informative article on the subject..

https://www.turbobygarrett.com/turbo...er_Cooling.pdf
midnightlaundry is offline
post #16 of 100 Old 03-07-2017, 08:15 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
Quote:
Originally Posted by midnightlaundry View Post
It's not happening on either side.. The Down Tube needs to be moved. But it seems like you can just removed the bolts from the Turbine and rotate it out of the way after loosening the V-Band Clamp.

It shouldn't be a big deal. I should be able to just position the Clamp so I can reach it with an extension under the car without having to jack it up. That is the plan anyway..
Are you tuning the car? Will it be on gas? I went through like 3-4 sets of plugs getting a decent tune on gas. Had to pull them all the time with hardly any miles on them. It becomes a big pain if they're not real easy to get to. Hopefully you have good luck
midnightlaundry likes this.
5.0thunder is offline
post #17 of 100 Old 03-07-2017, 12:35 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Yep, Pump Gas car. it is what it is.. I'm all in at this point so there's no turning back..lol
midnightlaundry is offline
post #18 of 100 Old 03-07-2017, 01:26 PM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
Quote:
Originally Posted by midnightlaundry View Post
Yep, Pump Gas car. it is what it is.. I'm all in at this point so there's no turning back..lol
Lol let's just hope it's dead on from the get go.............
5.0thunder is offline
post #19 of 100 Old 03-07-2017, 02:00 PM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
build thread?
5.0thunder is offline
post #20 of 100 Old 03-07-2017, 11:41 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
No Build Thread yet. I'll wait until I have the motor in the car. That won't be for another month or so while I work out these little details, and the weather warms up a bit!
midnightlaundry is offline
post #21 of 100 Old 03-08-2017, 08:12 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
Quote:
Originally Posted by midnightlaundry View Post
No Build Thread yet. I'll wait until I have the motor in the car. That won't be for another month or so while I work out these little details, and the weather warms up a bit!
How dare you tease with mockup pics
5.0thunder is offline
post #22 of 100 Old 03-08-2017, 12:13 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141

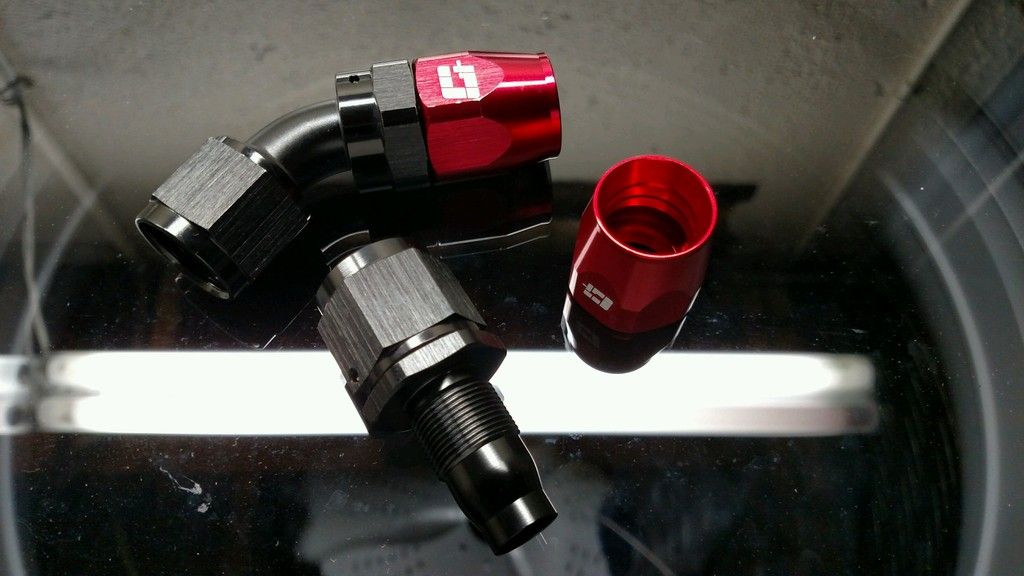

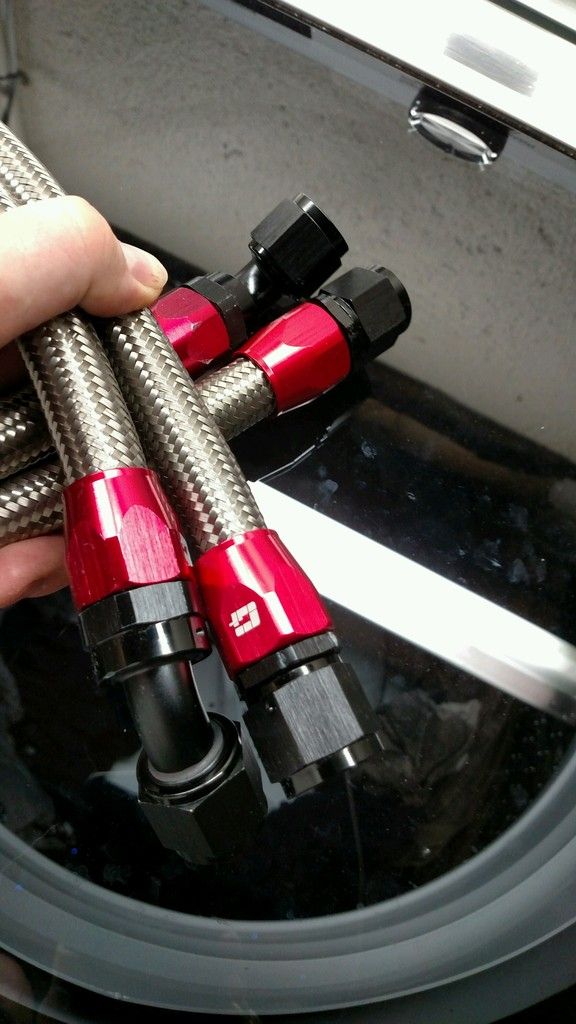

I just ordered all my AN Fittings and Hoses so I can plumb everything. It will probably take a couple weeks to get them, so there's not much to see at this point.

After that tho, I'll get some car shots and get things moving on this build.
midnightlaundry is offline
post #23 of 100 Old 03-08-2017, 07:31 PM
Registered User

t32265's Avatar

Trader Feedback: (16)
Join Date: Oct 2012
Location: Casselberry Florida
Posts: 485
Garage

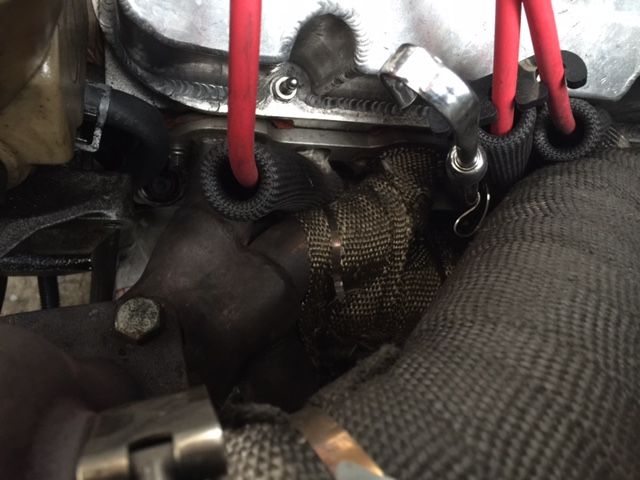

installed their twin headers on my SN95, the sparkplugs are near impossible to change, and am having issues melting plug wires, I did cut the t3 flanges and installed t4 flanges. I am running 70mm turbos with turbosmart 38mm racegates. I will be removing the cx racing headers and putting ponydown on within a month. A few header bolts a real hard to get at but I am also running 3" downpipes. I have thought about just adding an inch to each pipe by flanges but easier to buy new stuff.

t32265 is offline
post #24 of 100 Old 03-08-2017, 10:15 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Sorry to hear that. I'm not sure how different an SN95 is tho..

Did you wrap your Downtubes?
midnightlaundry is offline
post #25 of 100 Old 03-09-2017, 03:04 PM
Registered User

t32265's Avatar

Trader Feedback: (16)
Join Date: Oct 2012
Location: Casselberry Florida
Posts: 485
Garage
Yes wrapped everything, just headers are so tight to the block there is no room for plugwires and to change plugs, you may be alright but at my power levels not being able to change my sparkplugs or even reading the plugs is not acceptable. i can text you pictures if you would like. 3862168593
t32265 is offline
post #26 of 100 Old 03-10-2017, 02:46 PM Thread Starter
Registered User

midnightlaundry's Avatar

Trader Feedback: (3)
Join Date: May 2004
Location: Westland, MI.
Posts: 2,141
Post em in this thread so we can see what's doin..
midnightlaundry is offline
post #27 of 100 Old 03-12-2017, 07:31 PM
Registered User

t32265's Avatar

Trader Feedback: (16)
Join Date: Oct 2012
Location: Casselberry Florida
Posts: 485
Garage
Wont allow attachments, or I would have already.
t32265 is offline
post #28 of 100 Old 03-12-2017, 07:51 PM
Registered User

t32265's Avatar

Trader Feedback: (16)
Join Date: Oct 2012
Location: Casselberry Florida
Posts: 485
Garage
t32265 is offline
post #29 of 100 Old 03-14-2017, 11:13 AM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
Here you go man

5.0thunder is offline
post #30 of 100 Old 03-14-2017, 08:13 PM
Registered User

Trader Feedback: (21)
Join Date: Sep 2015
Location: Midwestern Illinois
Posts: 1,326
Quote:
Originally Posted by 5.0thunder View Post
Here you go man

That looks like a sack full of F-bombs to change those plugs.
boostup89 is offline
post #31 of 100 Old 03-14-2017, 08:50 PM
Registered User

t32265's Avatar

Trader Feedback: (16)
Join Date: Oct 2012
Location: Casselberry Florida
Posts: 485
Garage
Thank you can see the issue with plugs.
t32265 is offline
post #32 of 100 Old 03-14-2017, 10:19 PM
Registered User

Trader Feedback: (4)
Join Date: Dec 2010
Location: Dallas/Houston
Posts: 1,754
Lol yeah best thing i can think of is a ratcheting wrench. otherwise that plug would never get changed on my car. hah
5.0thunder is offline
post #33 of 100 Old 03-15-2017, 10:20 AM
Registered User

Trader Feedback: (6)
Join Date: Mar 2005
Location: Twin Cities, Minneapolis
Posts: 628
I see what you've saying about the plugs/ wires.
You going to go single in your new pony down setup?

Reason I ask is I'm thinking about switching to twins to help me reach my goals.
But honestly my single spools so fast now, plugs are easy, gravity oil drain...I'm just not fully committed to change from single to twins.


Quote:
Originally Posted by t32265 View Post
installed their twin headers on my SN95, the sparkplugs are near impossible to change, and am having issues melting plug wires, I did cut the t3 flanges and installed t4 flanges. I am running 70mm turbos with turbosmart 38mm racegates. I will be removing the cx racing headers and putting ponydown on within a month. A few header bolts a real hard to get at but I am also running 3" downpipes. I have thought about just adding an inch to each pipe by flanges but easier to buy new stuff.

1993 Teal Cobra #2531 1 of 452, 347, Precision 7675, The entire kitchen sink....maybe 2 kitchen sinks at this point!
Meegs is offline
post #34 of 100 Old 03-15-2017, 02:11 PM
Registered User

Trader Feedback: (2)
Join Date: Dec 2007
Location: St. Louis
Posts: 389
I always run all plug wires from the bottom. I drop them down behind the AC and alternator then down along the engine to their respected spot. I also put on the Heat boots. No issues....
HLD-TYT is offline
post #35 of 100 Old 03-15-2017, 08:46 PM
Registered User

t32265's Avatar

Trader Feedback: (16)
Join Date: Oct 2012
Location: Casselberry Florida
Posts: 485
Garage
Quote:
Originally Posted by Meegs View Post
I see what you've saying about the plugs/ wires.
You going to go single in your new pony down setup?

Reason I ask is I'm thinking about switching to twins to help me reach my goals.
But honestly my single spools so fast now, plugs are easy, gravity oil drain...I'm just not fully committed to change from single to twins.
No, I am staying with twins, and in future will be using PTE 67/66 and pony down stage 3 headers. I love that the turbos don't have to work hard and that keeps the IAT down, and I have also tried to run the wires underneath but there is no room for that, I have always ran them underneath with my single turbo set ups prior to this incarnation.
t32265 is offline
