5.4 DOHC TURBO!! PICS INSIDE

Here is the start of my build. Pics will be posted as I get them uploaded.


5.4 DOHC
Built shortblock mahler flat tops, Manley h beams With arp 2000 rod bolts, forged crank, h bearings, all arp hardware. Navigator heads cleaned up and gone through with Sean hyland dual race valve springs and retainers with 03/04 Cobra Cams
Sullivan Intake single blade accufab
Electric water pump
Sfi balancer
New tensioner and idler pulley
All brand new sensors and timing equipment
Moroso 7 qt aluminum pan
All covers powdercoated red, black (timing cover)
Fluidyne Radiator
SPAL electric fan

Brakes

Phils abs delete block
Aerospace engineering manual booster
New rotors and pads all the way around with painted red calipers

Suspension

Qa1 tubular k member
Eibach drag springs
QA1 adjustables in front
Qa1 adjustables out back
Full length sub frame connectors
UPR pro series suspension (double adjustables) with anti roll bar
No sway bars

Steering

Flaming River Manual Rack with Manual Steering Shaft

Wheels/tires

Matte Black Bullitts 315/35/17s out back

Transmission

PA supercomp C4
Sfi bell and flex
TCI pro x converter flashes at 4000 on the brake
Aluminum driveshaft with safety loop
Deep trans pan
Locking dipstick
Ratchet shifter underneath stock boot

Interior

Rear seat delete
SOS gauge pod
Electric oil pressure fuel pressure and trans temp, boost
AEM wideband

Exterior

3 inch cowl hood
Tinted
03/04 Cobra Front

Rear end

3.73 gears
31 spline strange axles with c clip eliminators
31 spline eaton trak-lok
Ta rear girdle

Fuel

Magnafuel Fuel Pump
80 lb injectors
Sullivan Rails
Return line system

Turbo Setup

Precision HP76GTS Billet Wheel 1.00 a/r
Tial 50mm BOV
Precision 46mm Wastegate
31 x 13 x 4 CX Racing Intercooler

Going for 1000 rwhp!

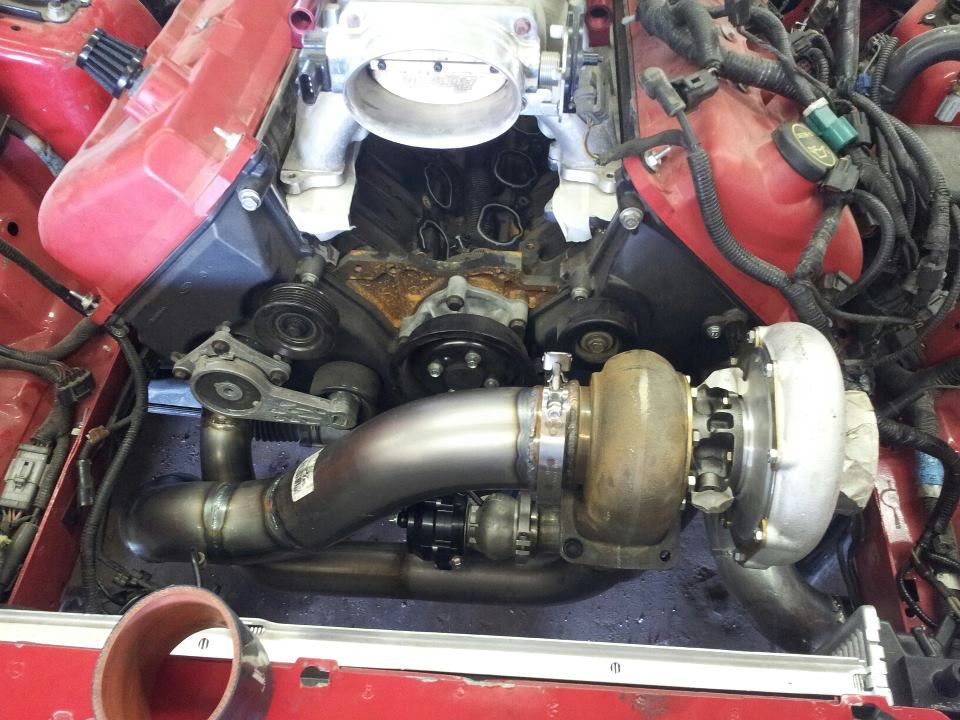

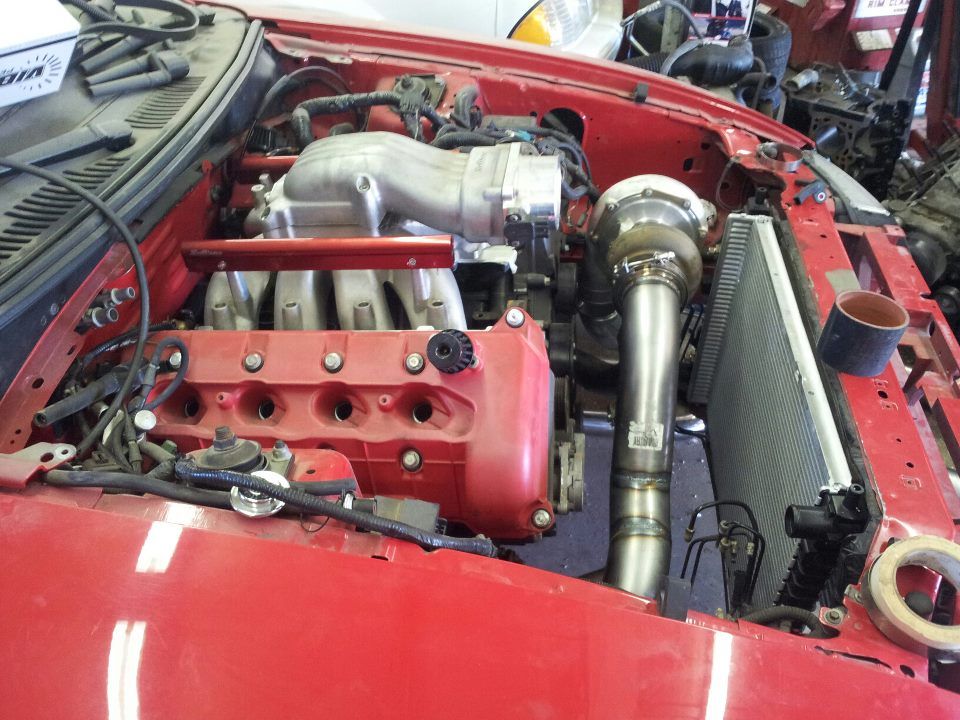

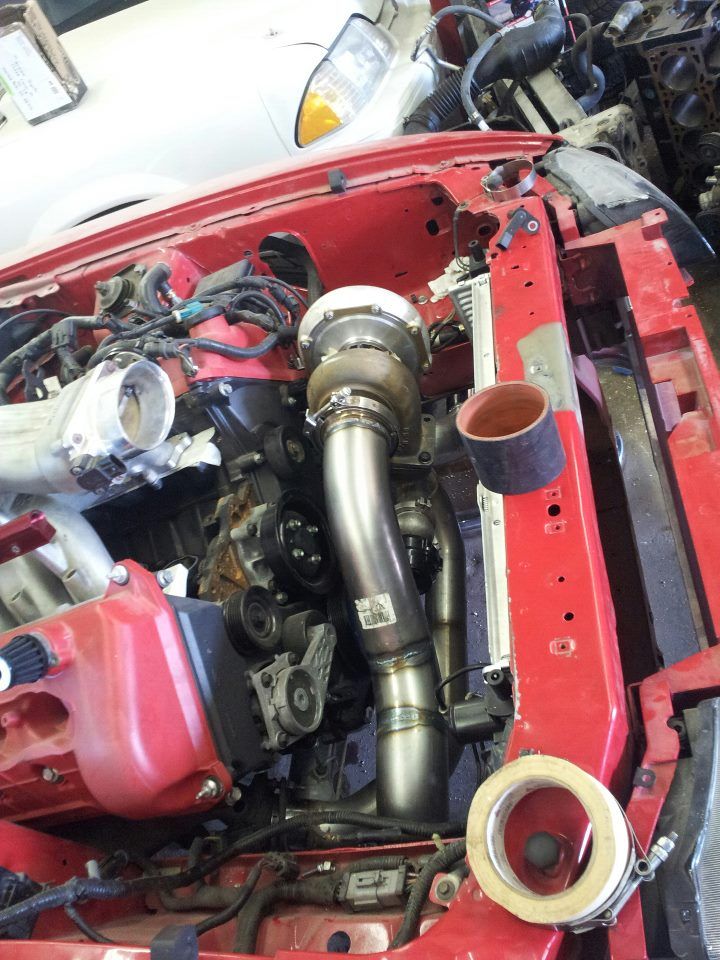

PICS AS PROMISED....

Complete Custom Kit made by Executive Performance in Merriam Kansas












Last edited by 2L8WIN2; 11-03-2012 at 10:50 AM.
2L8WIN2 is offline
Sponsored Links
Advertisement

post #2 of 19 Old 11-01-2012, 07:35 AM
Registered User

Trader Feedback: (21)
Join Date: Jul 2010
Location: va
Posts: 932
Your wastegate looks like it is mounted vertical . I have 50mm progate and the instruction said that was worst ways to install because of exhaust flow.


02 Roush, Livernois stage 1 cams, eaton posi, qa1 kmember, highly modified on3 turbo kit
Turbo numbers 415 rwhp 458 rwtq
Stupidity is a sexually transmitted disease
CG hot side T6 turbo under way
sonic 02 is offline
post #3 of 19 Old 11-01-2012, 08:23 AM
Corral Elite Member

89BlackGtVert's Avatar

Trader Feedback: (6)
Join Date: Jan 2012
Location: PA
Posts: 1,535
Blog Entries: 1
Love it. Good work..

Sent from my PI86100 using Board Express

1989 GT Vert.. Major Changes for 2013 Wish me luck
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Old setup from 2012 On3 Turbo, Trick Flow 170 Heads, Edelbrock RPM upper & Lower, Trick Flow Stg 2 cam, UPR K-member and control arms and Strang front and rear coil over, and UPR upper and lower rear control arms, MM frame connectors Fully Built AOD, 512whp
89BlackGtVert is offline
Sponsored Links
Advertisement

post #4 of 19 Old 11-01-2012, 09:20 AM Thread Starter
Registered User

Trader Feedback: (5)
Join Date: Feb 2010
Location: west
Posts: 383
The guy building it has 20 years of building turbo cars and the wastegate is horizontal actually with the dump tube facing the back of the hotside. Its a pretty trick setup.


Quote:
Originally Posted by sonic 02 View Post
Your wastegate looks like it is mounted vertical . I have 50mm progate and the instruction said that was worst ways to install because of exhaust flow.
2L8WIN2 is offline
post #5 of 19 Old 11-01-2012, 02:59 PM
Registered User

TWNWHR's Avatar

Trader Feedback: (16)
Join Date: Sep 2009
Location: Western MA
Posts: 520
Thats pretty sweet. I think with all the air that engine can flow, that 76 is going to tap out pretty quick. Probably reach your power goal tho

Keep diggin!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
GOOD FRIENDS DON'T LET YOU DO STUPID THINGS, ALONE
90 Trunkback 140k+ miles stock short block, Holley heads & Intake, stock cam, Faceplated 600, MS1, 72mm, Its ALIIIVE.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

89 Notch 427W, PMS, some nitrous, a parachute, getting boost someday
67 Coupe, soapbox derby car
TWNWHR is offline
post #6 of 19 Old 11-01-2012, 03:44 PM Thread Starter
Registered User

Trader Feedback: (5)
Join Date: Feb 2010
Location: west
Posts: 383
Yeah it may. I am going to upgrade to an 88 next year along with a TH400 and cams but wanting to get it together by the end of the month and try to enjoy it before it starts snowing. Progress is being made.
2L8WIN2 is offline
post #7 of 19 Old 11-01-2012, 04:19 PM
Registered User

jarryd2018's Avatar

Trader Feedback: (14)
Join Date: Oct 2005
Location: Bowling Green, Kentucky
Posts: 1,971
Quote:
Originally Posted by TWNWHR View Post
Thats pretty sweet. I think with all the air that engine can flow, that 76 is going to tap out pretty quick. Probably reach your power goal tho

Keep diggin!
There are guys running 5.4s with smaller turbos than that. They aren't making 1000 hp, but they're putting up decent numbers. I plan to use a 76 to reach my goal of 700 hp. My longblock is almost identical to this one except I'm using I beams so I don't know that I'll be able to push it as hard as others are doing. I'll use H beams next time and up the boost.

2000 GT with o/r X, magnaflow catback, xcal 2, MGW shifter
4.6= dead
my 5.4 swap project https://forums.corral.net/forums/showthread.php?t=1220542
jarryd2018 is offline
post #8 of 19 Old 11-01-2012, 05:35 PM
Registered User

Trader Feedback: (3)
Join Date: Oct 2012
Location: 40342
Posts: 210
Awesome....that 76 looks tiny next to that motor should be pretty nasty indeed.
ashJ is offline
post #9 of 19 Old 11-01-2012, 07:07 PM Thread Starter
Registered User

Trader Feedback: (5)
Join Date: Feb 2010
Location: west
Posts: 383
As long as you have Billet I beams your going to hold more boost. None of my hard parts are going to break under the boost Im running. Turbo cars out of all types of boost are the easiest on hard parts.
2L8WIN2 is offline
post #10 of 19 Old 11-01-2012, 08:39 PM
Registered User

jarryd2018's Avatar

Trader Feedback: (14)
Join Date: Oct 2005
Location: Bowling Green, Kentucky
Posts: 1,971
Quote:
Originally Posted by 2L8WIN2 View Post
As long as you have Billet I beams your going to hold more boost. None of my hard parts are going to break under the boost Im running. Turbo cars out of all types of boost are the easiest on hard parts.
I'm just afraid the I beams won't be as durable as H. They're also just forged not billet. The 4.6 version is rated for 500 hp, but I could get that without boost if I wanted so I don't know how hard I can push them. I'm sure I'll find out. Next block will be a 351 big bore with more head work and bigger cams.

To get the most out of this one I'm going to run e85 or meth injection to keep temps down.


2000 GT with o/r X, magnaflow catback, xcal 2, MGW shifter
4.6= dead
my 5.4 swap project https://forums.corral.net/forums/showthread.php?t=1220542

Last edited by jarryd2018; 11-01-2012 at 08:54 PM.
jarryd2018 is offline
post #11 of 19 Old 11-02-2012, 12:49 AM
Registered User

Trader Feedback: (3)
Join Date: Jan 2002
Location: Houston, TX
Posts: 2,852
Manley Billet I Beams? They are 1500hp rated.


Quote:
Originally Posted by jarryd2018 View Post
There are guys running 5.4s with smaller turbos than that. They aren't making 1000 hp, but they're putting up decent numbers. I plan to use a 76 to reach my goal of 700 hp. My longblock is almost identical to this one except I'm using I beams so I don't know that I'll be able to push it as hard as others are doing. I'll use H beams next time and up the boost.

1999 Mustang Cobra MMR 1500 5.4 DOHC
898/779rwtq 14psi 17deg timing E85
Z06KILLR is offline
post #12 of 19 Old 11-02-2012, 07:54 AM
Registered User

jarryd2018's Avatar

Trader Feedback: (14)
Join Date: Oct 2005
Location: Bowling Green, Kentucky
Posts: 1,971
Quote:
Originally Posted by Z06KILLR View Post
Manley Billet I Beams? They are 1500hp rated.
I just went with the forged ones. I wasn't originally planning on boost. I'll have it back out again at some point and I can upgrade.


Sent from my iPhone using Autoguide.com Free App

2000 GT with o/r X, magnaflow catback, xcal 2, MGW shifter
4.6= dead
my 5.4 swap project https://forums.corral.net/forums/showthread.php?t=1220542
jarryd2018 is offline
post #13 of 19 Old 11-05-2012, 10:39 PM
Registered User

Trader Feedback: (0)
Join Date: Nov 2010
Location: CaneTuck N.C.
Posts: 43
I'm building a pretty similar setup now. Keep the thread updated, I book marked it. Lol. I have a 5.4 4v, P&P Navi heads, Sullivan intake, 96 Cobra cams, and doing a single 76mm as well. Waiting on pistons now.
SuperDan is offline
post #14 of 19 Old 01-23-2013, 04:27 AM
Registered User

JOESBOSS's Avatar

Trader Feedback: (0)
Join Date: Jun 2012
Location: Australia
Posts: 43
I'm jealous of you yanks, our 5.4 falcons only have like 4 inches between our fan shroud and water pump pulley, so not turbo routing for us there. we got next to transmission of behind the headlights with battery relocation like this one
JOESBOSS is offline
post #15 of 19 Old 01-23-2013, 05:15 AM
Corral Elite Member

89BlackGtVert's Avatar

Trader Feedback: (6)
Join Date: Jan 2012
Location: PA
Posts: 1,535
Blog Entries: 1
Any update? This build looks amazing!!

1989 GT Vert.. Major Changes for 2013 Wish me luck
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Old setup from 2012 On3 Turbo, Trick Flow 170 Heads, Edelbrock RPM upper & Lower, Trick Flow Stg 2 cam, UPR K-member and control arms and Strang front and rear coil over, and UPR upper and lower rear control arms, MM frame connectors Fully Built AOD, 512whp
89BlackGtVert is offline
post #16 of 19 Old 03-14-2013, 02:33 PM Thread Starter
Registered User

Trader Feedback: (5)
Join Date: Feb 2010
Location: west
Posts: 383

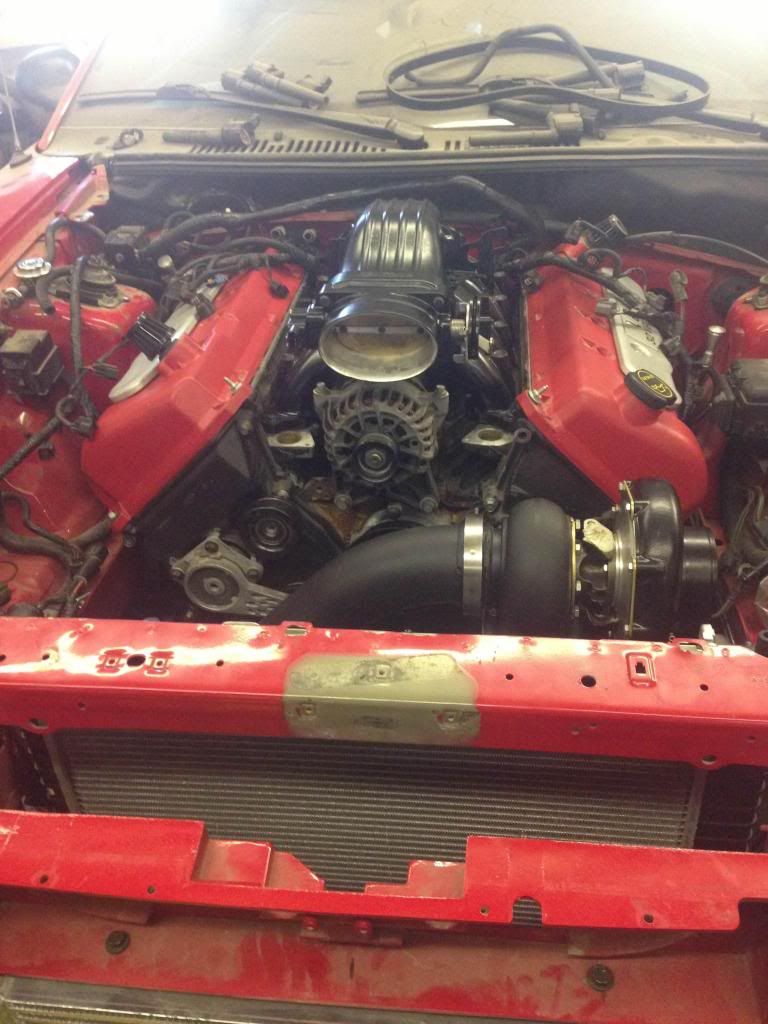

New PICS







Had to modify the y pipe as there were issues with the exhaust manifolds. Everything is coated. The valve covers are going out to get gloss torch red paint thrown on them.
2L8WIN2 is offline
post #17 of 19 Old 03-14-2013, 03:22 PM
Registered User

NightStalker's Avatar

Trader Feedback: (1)
Join Date: Oct 2005
Location: Illinois, Jacksonville
Posts: 343
Garage
5.4 DOHC TURBO!! PICS INSIDE

Are you using stock manifold that are flipped or custom headers?

2002 Torch Red Mustang, V-6 turned 5.4L DOHC 307RWHP, Viper-spec 6-speed.
2003 Black Cobra, 2.8 pulley, JLT CAI, Flowmasters, Diablo tune, Daily Driver.
NightStalker is offline
post #18 of 19 Old 03-14-2013, 03:57 PM
Registered User

Gearhead559's Avatar

Trader Feedback: (0)
Join Date: Feb 2006
Location: columbus,ohio
Posts: 873
i wanna see pics of the hydro boost clearance

I am on3 dealer. message me for some killer deals
Gearhead559 is offline
post #19 of 19 Old 03-14-2013, 07:34 PM Thread Starter
Registered User

Trader Feedback: (5)
Join Date: Feb 2010
Location: west
Posts: 383
It's a navigator drivers side and cobra passenger side manifold.

The car doesn't have hydro boost. It's an aerospace engineering manual booster.
2L8WIN2 is offline
