On3 5.0 turbo bracing I made for fun

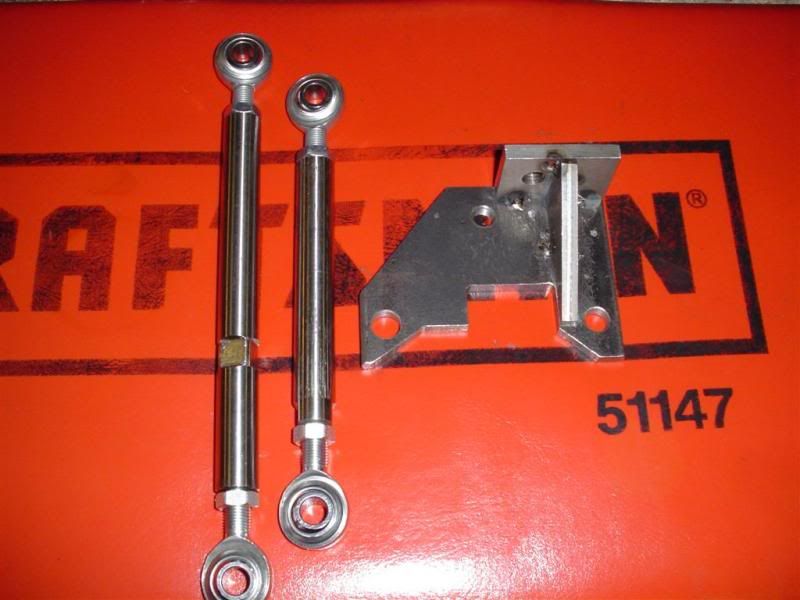

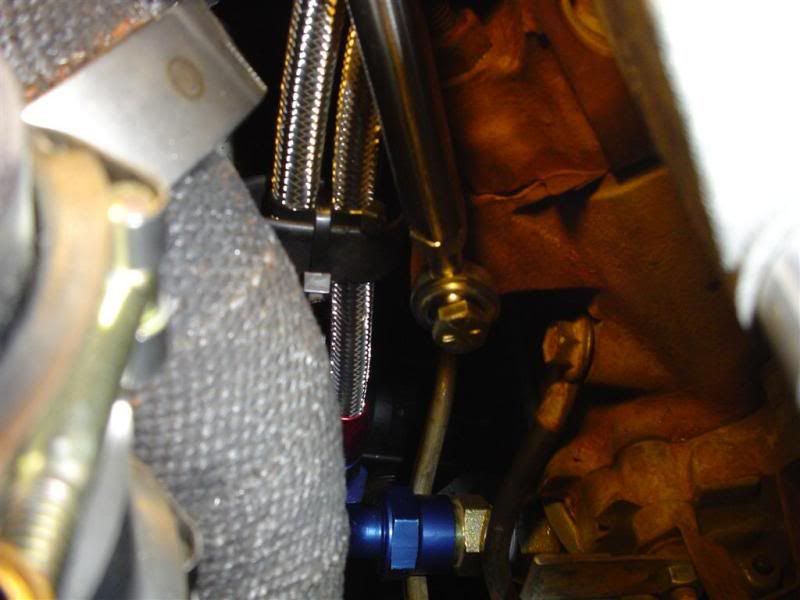

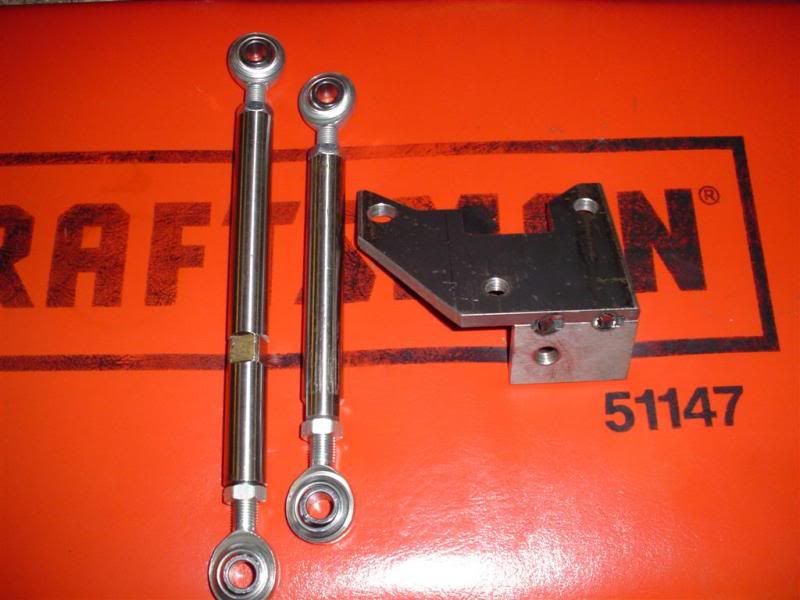

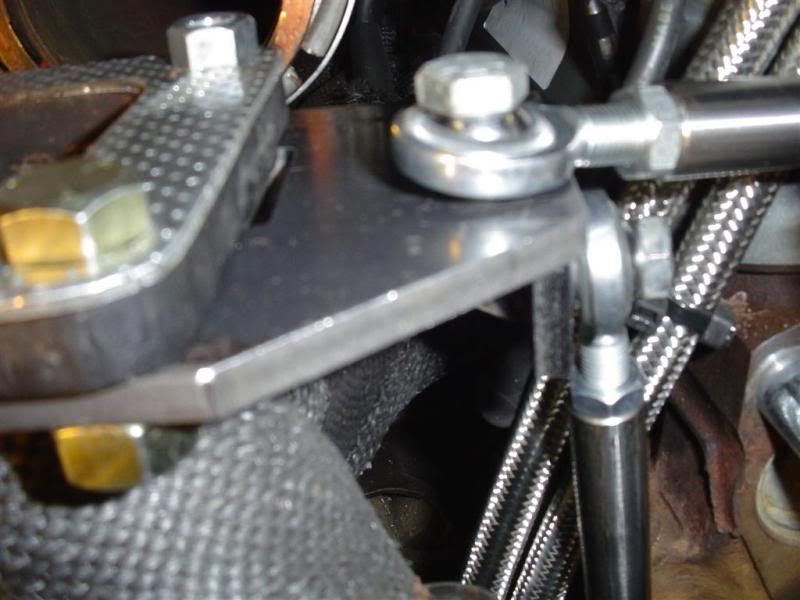

So I have been installing this kit over the last couple 2 or 3 months off and on. Upgrading a few things and changing/adding others. But here is my lastest brainstorming episode. The mild steel headers are made from some pretty heavy material so I dont know if it really needs extra bracing or not but I made up something anyway, may be overkill but oh well. I havent ran this setup yet so.. I still need to finish welding out the bracket as its just tacked together for mock up.














'91 Ranger, 306, 270HR14, Tri-y, RamAir, T5, 3.73, Aeromotive Sys, QH, LM2, Tunerview II, A9L, BE & EA
'89 Mustang coupe, 5.0, AOD, HO cam, 70mm Turbo, 60lb inj, 340lph, 3.27, QH, LC-1, A9P, Tunerview II
'98 Ranger 2WD 5.0, GT40, HO cam, 4R70W, 3.73, QH, SLL4
MdntRanger50 is offline
Sponsored Links
Advertisement

post #2 of 7 Old 09-22-2012, 12:01 AM
Registered User

2stangcoupes's Avatar

Trader Feedback: (43)
Join Date: Mar 2008
Location: central indiana
Posts: 3,780
nice work bud


Quote:
Originally Posted by Wicked03GT View Post
The internals may support 800HP, but that block will spilt faster than a virgin on prom night!
2stangcoupes is offline
post #3 of 7 Old 09-22-2012, 12:03 AM
Registered User

Trader Feedback: (17)
Join Date: Jan 2007
Location: Louisville, KY
Posts: 2,772
Looks good, definately needs all the bracing it can get with all the weight on that header it can fatigue.

2002 GT 4V swapped
2008 G8 GT Stock
CamFox is offline
Sponsored Links
Advertisement

post #4 of 7 Old 09-24-2012, 06:11 AM Thread Starter
Registered User

MdntRanger50's Avatar

Trader Feedback: (50)
Join Date: Mar 2006
Location: Cenla, Louisiana
Posts: 813
Thanks! I didnt get time to put it all together with the turbo this weekend as i was gone to Texas to the NHRA fall nationals, was a great event

'91 Ranger, 306, 270HR14, Tri-y, RamAir, T5, 3.73, Aeromotive Sys, QH, LM2, Tunerview II, A9L, BE & EA
'89 Mustang coupe, 5.0, AOD, HO cam, 70mm Turbo, 60lb inj, 340lph, 3.27, QH, LC-1, A9P, Tunerview II
'98 Ranger 2WD 5.0, GT40, HO cam, 4R70W, 3.73, QH, SLL4
MdntRanger50 is offline
post #5 of 7 Old 09-24-2012, 04:04 PM
Registered User

g3mustang's Avatar

Trader Feedback: (18)
Join Date: Apr 2010
Location: Spingfield, mo
Posts: 1,378
where do you get the rods for the hime joints

afr 185 heads, dss 331
Turbo build
g3mustang is offline
post #6 of 7 Old 09-25-2012, 09:55 PM Thread Starter
Registered User

MdntRanger50's Avatar

Trader Feedback: (50)
Join Date: Mar 2006
Location: Cenla, Louisiana
Posts: 813
Quote:
Originally Posted by g3mustang View Post
where do you get the rods for the hime joints
I made them from .625 diameter air cylinder rod stock. The heim joints are 3/8 size.

'91 Ranger, 306, 270HR14, Tri-y, RamAir, T5, 3.73, Aeromotive Sys, QH, LM2, Tunerview II, A9L, BE & EA
'89 Mustang coupe, 5.0, AOD, HO cam, 70mm Turbo, 60lb inj, 340lph, 3.27, QH, LC-1, A9P, Tunerview II
'98 Ranger 2WD 5.0, GT40, HO cam, 4R70W, 3.73, QH, SLL4
MdntRanger50 is offline
post #7 of 7 Old 09-27-2012, 11:16 PM Thread Starter
Registered User

MdntRanger50's Avatar

Trader Feedback: (50)
Join Date: Mar 2006
Location: Cenla, Louisiana
Posts: 813

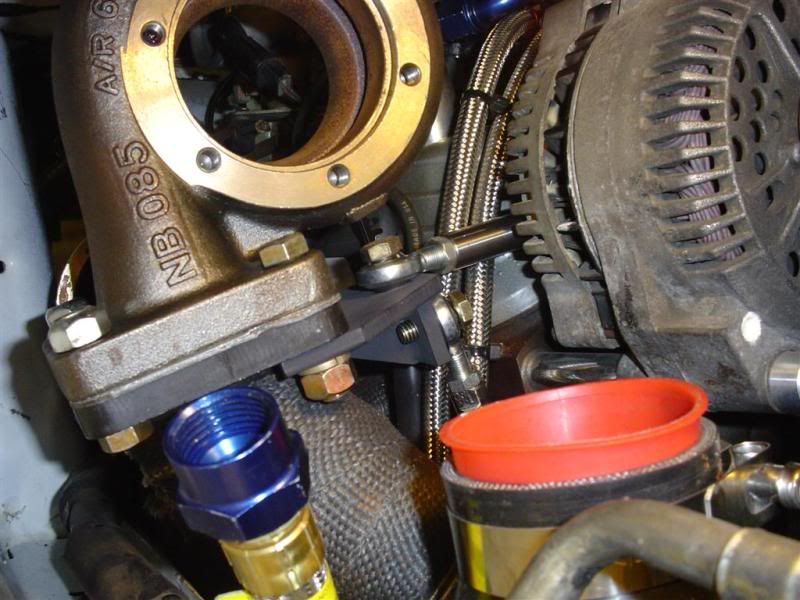

Finished the bracket out and got the turbine housing on. Turned out good, I like it. After everything else is installed and the header has its static weight load on it, Im not sure if I should just adjust the rods to where it sits at static weight or if I should put a little bit of preload on it to lessen the static load.
