Lets see your Modified front bumper to get more air to intercooler..

I,m doing a twin turbo 93 coupe and would like to see modified front bumpers that let more air to the intercooler.


1993 LX Coupe
A Little of this and that!
mustangsrule is offline
Sponsored Links
Advertisement

post #2 of 25 Old 07-22-2012, 11:21 PM
Turbo Wizard

snipe656's Avatar

Trader Feedback: (1)
Join Date: Jul 2001
Location: Houston, Tx, USA
Posts: 4,289
Have you considered a DECH front cover? They are long out of business but I think someone makes a knock off.


Sent from my iPad Nano


--Admiral Aaron

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
snipe656 is offline
post #3 of 25 Old 07-23-2012, 09:51 AM
Registered User

Trader Feedback: (32)
Join Date: Aug 2004
Location: W.P.B., FL
Posts: 529
[/IMG]

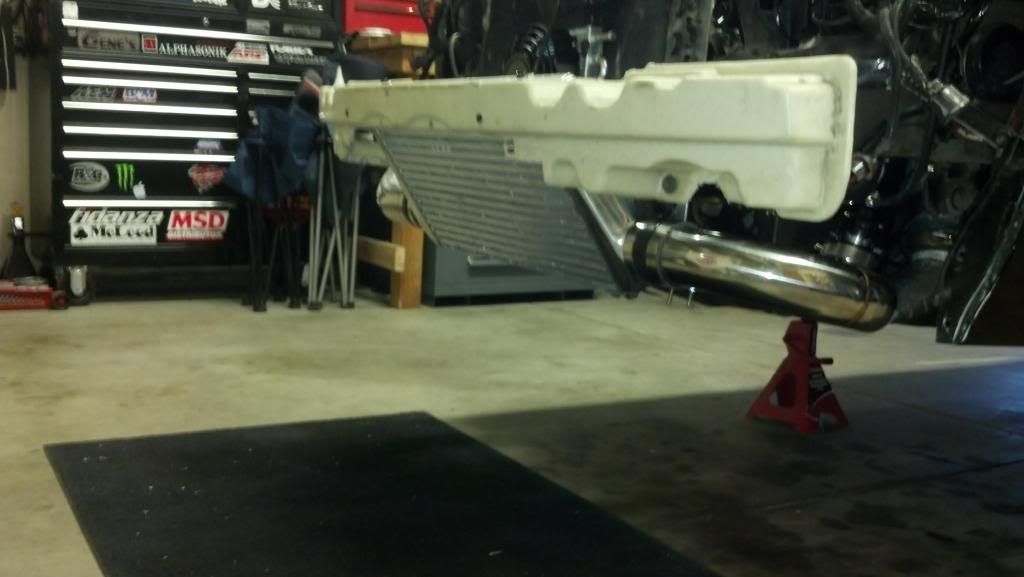

Here's one of mine. I/C measures 3"x11"x26.5"

'13 GT, A6, VMP Gen 2, Tuned by Ken B. of Lund Racing, 602/547.
466Roller is offline
Sponsored Links
Advertisement

post #4 of 25 Old 07-23-2012, 11:22 AM
Registered User

Trader Feedback: (11)
Join Date: Jun 2001
Location: Meridian, Idaho,U.S.A.
Posts: 994

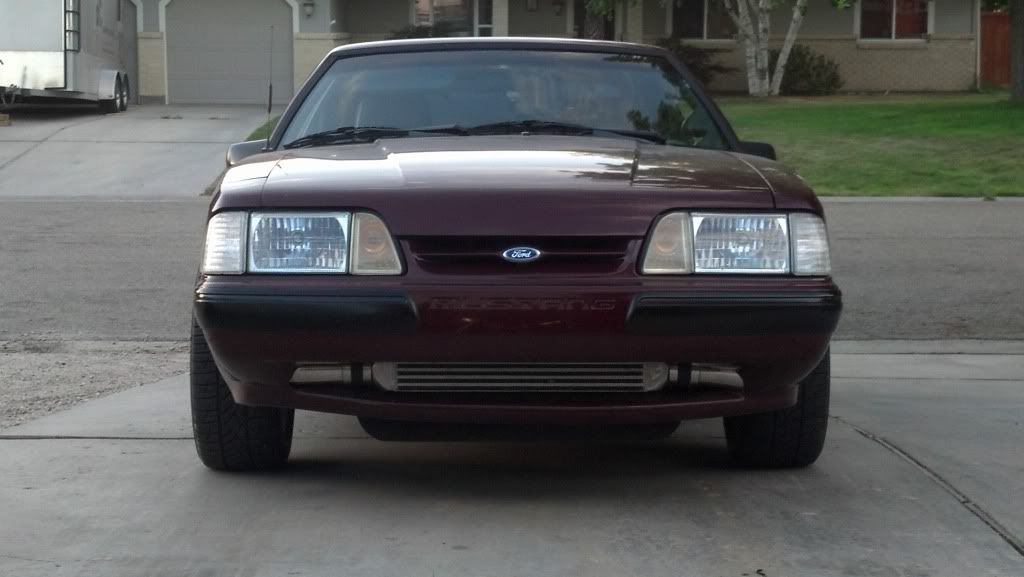

All I did on mine was take some self tapping screws and run them through the cover up into the bumper beam.


1989 5.0 T5 LX Hatch - Explorer Short Block with an FMS F-303 cam, TFS TW170 heads, Tmoss Ported Cobra Intake, an On3 Turbo Kit with a 67mm Ceramic Ball Bearing Turbo, and backed by a T56 Magnum 6spd with 3.55's
MYSTICSVT is offline
post #5 of 25 Old 07-23-2012, 01:42 PM
Registered User

g3mustang's Avatar

Trader Feedback: (18)
Join Date: Apr 2010
Location: Spingfield, mo
Posts: 1,378
like ^^^

afr 185 heads, dss 331
Turbo build
g3mustang is offline
post #6 of 25 Old 07-23-2012, 02:15 PM
Registered User

91BlueGT's Avatar

Trader Feedback: (2)
Join Date: Jan 2002
Location: Oklahoma City, Ok
Posts: 521


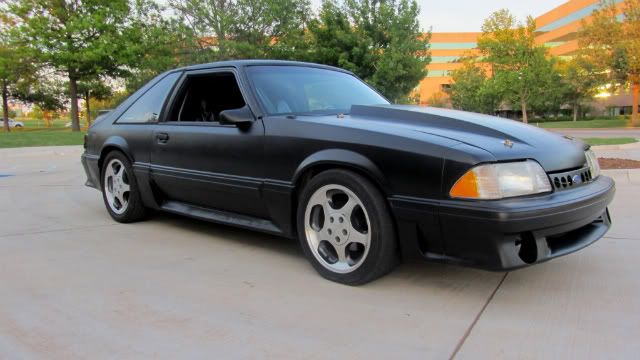

just bought this car off a friend

mech engineer - OKLAHOMA STATE
88 gt hb - 347 all forged, canfield 195cc's, xr282, holley 750, vic jr

89 gt hb - 306, windsor jr's, 70mm turbo, FAST efi, 10pt, vic 5.0, 60lb inj, front wheels off the ground
91BlueGT is offline
post #7 of 25 Old 07-23-2012, 04:45 PM
Registered User

Trader Feedback: (5)
Join Date: Dec 2006
Location: Houston
Posts: 1,517
Here ya go

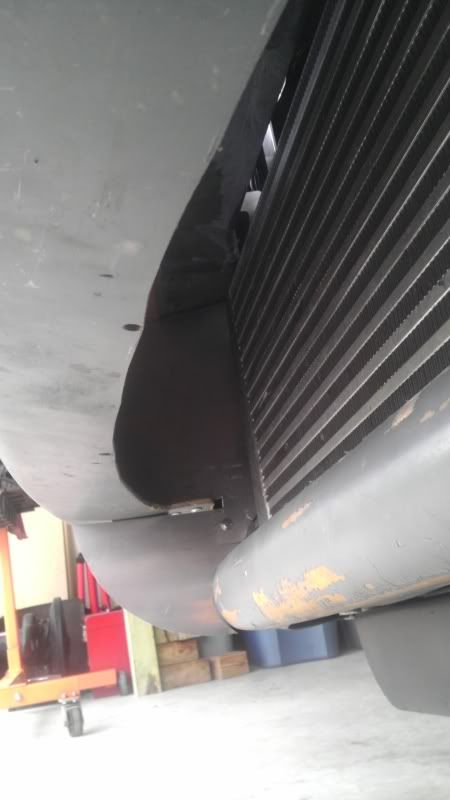

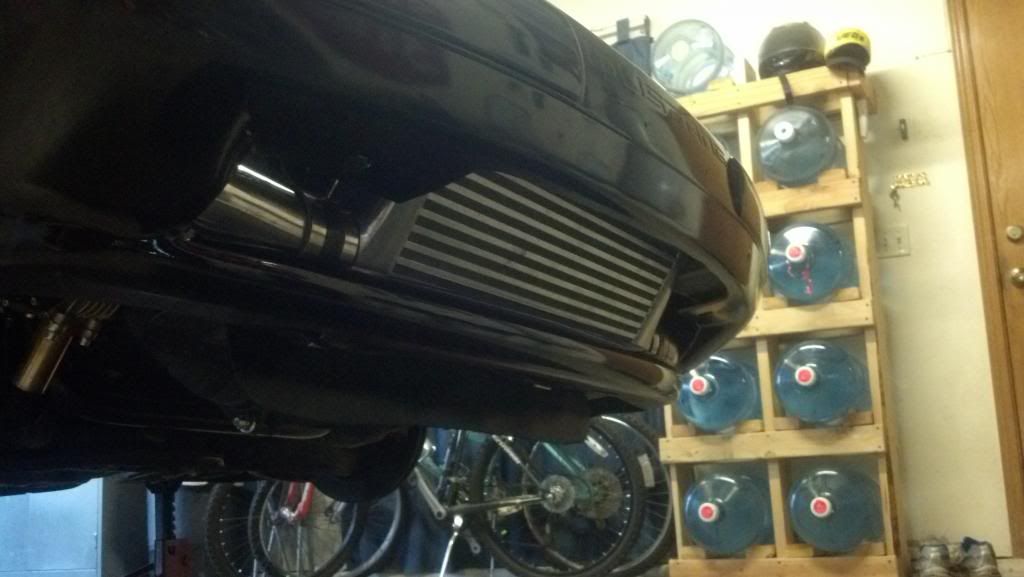

Looking up at the passenger side

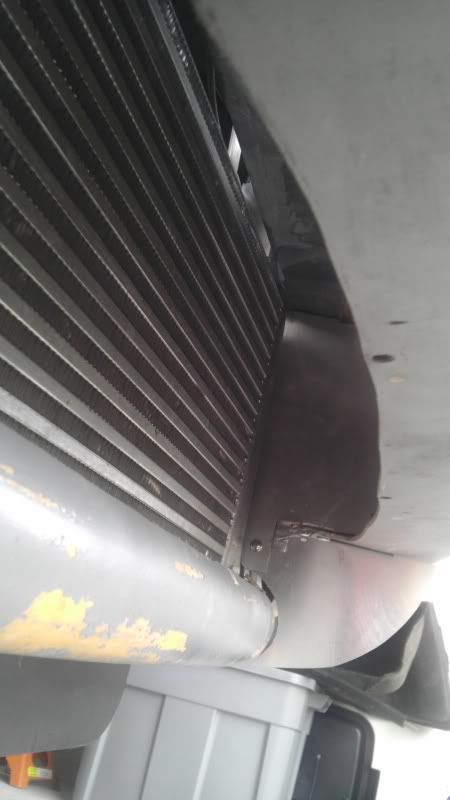

Looking up at the driver side

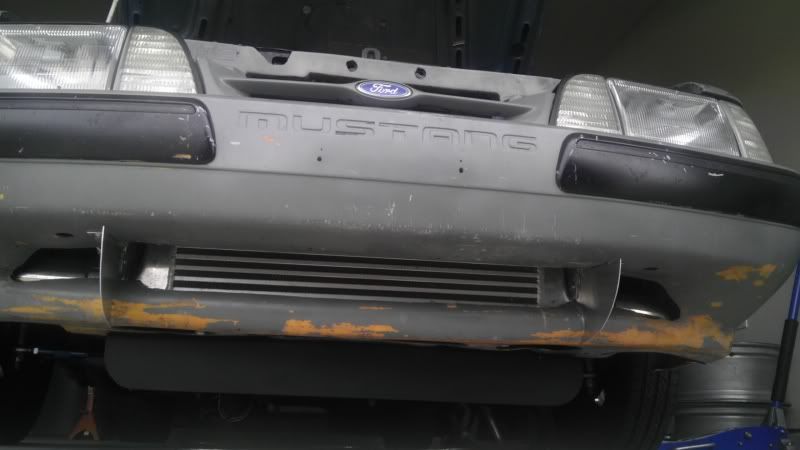

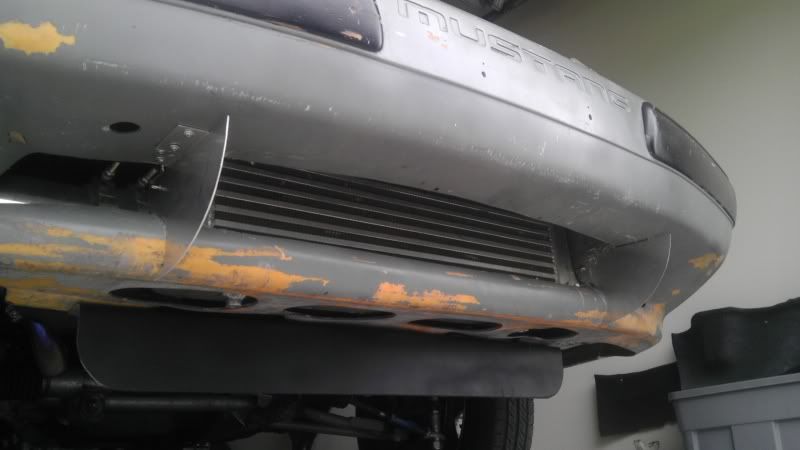

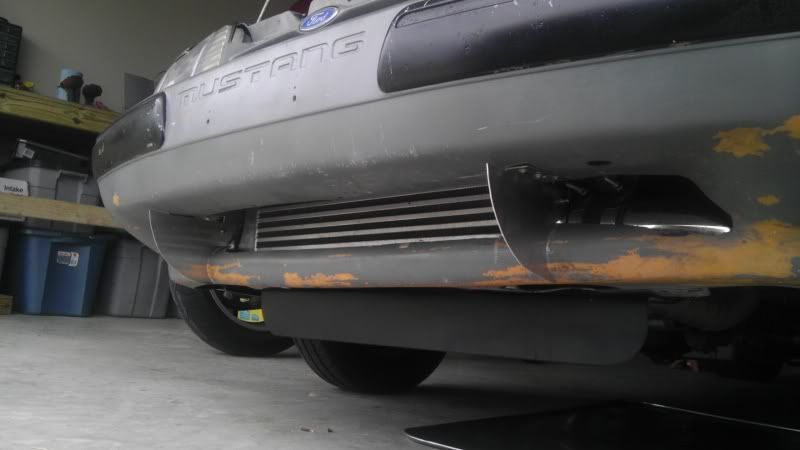

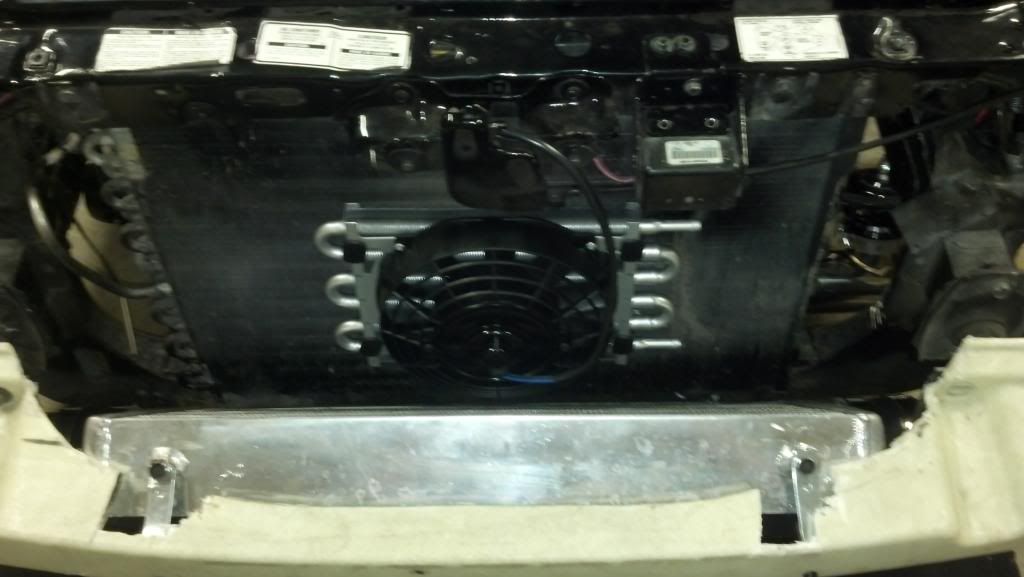

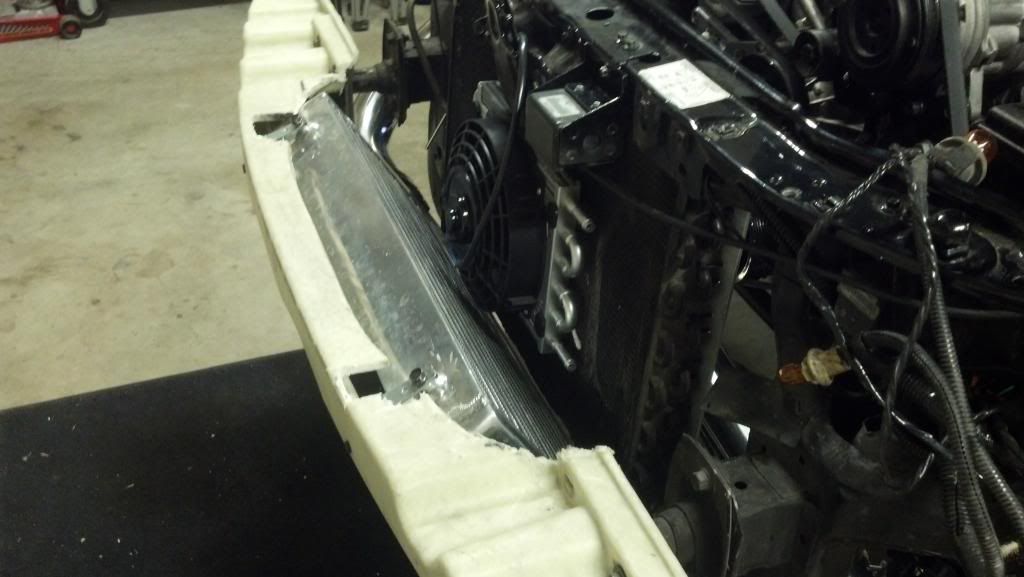

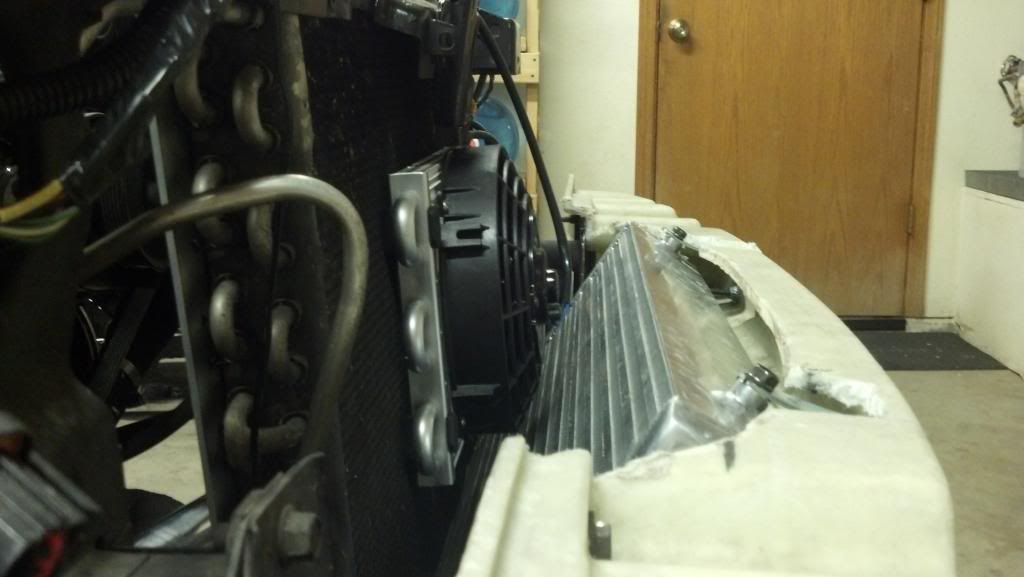

These are the "Fangs" i added to help direct air into the intercooler/radiator



89 Coupe: 362CI, 227cc HP Heads, Super Vic EFI, 80mm Turbo, C4, and MS2 Extra
9.89 @ 142mph on 16psi
slo895.0 is offline
post #8 of 25 Old 07-26-2012, 08:01 AM
Registered User

Trader Feedback: (1)
Join Date: May 2003
Location: Atlanta, GA
Posts: 153
I like that. I imagine sealing around the bumper to intercooler area helps a good bit. Is anyone seeing any engine cooling issues from having the intercooler in front of the radiator on the street?
crashtke is offline
post #9 of 25 Old 07-26-2012, 09:48 AM
Registered User

Trader Feedback: (11)
Join Date: Jun 2001
Location: Meridian, Idaho,U.S.A.
Posts: 994
Quote:
Originally Posted by crashtke View Post
I like that. I imagine sealing around the bumper to intercooler area helps a good bit. Is anyone seeing any engine cooling issues from having the intercooler in front of the radiator on the street?

Mine definitely runs a little warmer than it did when it was N/A.

FWIW, my intake air temps actually go down, after cruising, when I get into boost. Which tells me my current airflow situation is just fine.

1989 5.0 T5 LX Hatch - Explorer Short Block with an FMS F-303 cam, TFS TW170 heads, Tmoss Ported Cobra Intake, an On3 Turbo Kit with a 67mm Ceramic Ball Bearing Turbo, and backed by a T56 Magnum 6spd with 3.55's
MYSTICSVT is offline
post #10 of 25 Old 07-26-2012, 06:03 PM
Registered User

Trader Feedback: (11)
Join Date: Nov 2005
Location: plainfield in
Posts: 419

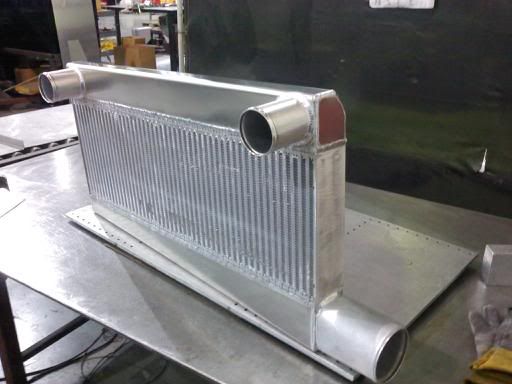

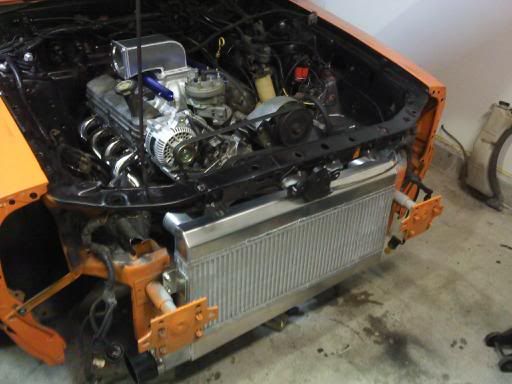

this is the intercooler i made for my twin setup. its a 30x10x3 It takes up the entire opening in the front bumber so I cut it to fit like. similar to the ones above. I have had no cooling problems and I run a small radiator.



davidz is offline
post #11 of 25 Old 07-26-2012, 10:55 PM
Registered User

pkstang's Avatar

Trader Feedback: (162)
Join Date: Feb 2000
Location: Marlborough, MA
Posts: 7,503
if you search my username in this forum you will find a cooling thread where i replied with pics and details of what i did to keep my car cool. pk

'90 notch w/an "old school" cartech outlaw kit
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


When The Results Disagree With The Theory: Believe The Results And Invent A New Theory
pkstang is offline
post #12 of 25 Old 07-27-2012, 01:07 PM Thread Starter
Registered User

mustangsrule's Avatar

Trader Feedback: (67)
Join Date: Feb 2002
Location: Cartersville, GA
Posts: 1,201
Bumper

PKStang
Nice information.
Thanks

1993 LX Coupe
A Little of this and that!
mustangsrule is offline
post #13 of 25 Old 08-07-2012, 12:32 AM
Registered User

Trader Feedback: (5)
Join Date: Dec 2008
Location: Columbus, OH
Posts: 208
bump... looking for gt bumper mods
ramsey is offline
post #14 of 25 Old 12-30-2012, 08:37 PM
Registered User

blownholley50's Avatar

Trader Feedback: (28)
Join Date: May 2001
Location: Odessa, TX
Posts: 1,113
bring this back to life-- anyone else w lx bumpers got any ideas? i got to ge tmore air ove rmy intercooler but dont want to hack the bumper alot--- anyone build a air damn etc kinda like the red car on glenns perf website??

WestTexasMeanStreet-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
93 LX Hatch F1A-94 ,363, Freezy, XFI-/[email protected]/[email protected] 5000'DA
Harlow Sammons,Southwest Perf. & Machine
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
YouTube Page- www.youtube.com/user/blownholley50
blownholley50 is offline
post #15 of 25 Old 01-02-2013, 01:06 AM
Registered User

93BLKNotch's Avatar

Trader Feedback: (6)
Join Date: May 2008
Location: Puyallup, Wa
Posts: 538



93 notch t67 forged 15#s built aod enough said

07 cummins fast as f$ck
93BLKNotch is offline
post #16 of 25 Old 01-06-2013, 03:37 PM
Registered User

pkstang's Avatar

Trader Feedback: (162)
Join Date: Feb 2000
Location: Marlborough, MA
Posts: 7,503
Quote:
Originally Posted by mustangsrule View Post
PKStang
Nice information.
Thanks
thanks

here's the link as i've had few pm's asking me about it

https://forums.corral.net/forums/turb...continues.html

'90 notch w/an "old school" cartech outlaw kit
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


When The Results Disagree With The Theory: Believe The Results And Invent A New Theory
pkstang is offline
post #17 of 25 Old 01-13-2013, 10:52 AM
Registered User

breakdown's Avatar

Trader Feedback: (0)
Join Date: Dec 2007
Location: Wilmington,NC
Posts: 317
hers mine. i could have done a better job, but i was in a hurry.


2001 Ford Lightning-stock
1992 Ford Mustang-bolt ons+turbo. 11.8 @115. 1.64 60ft
breakdown is offline
post #18 of 25 Old 01-14-2013, 11:14 AM
Registered User

BradleyRJ's Avatar

Trader Feedback: (25)
Join Date: Jul 2002
Location: Myrtle Beach
Posts: 4,370

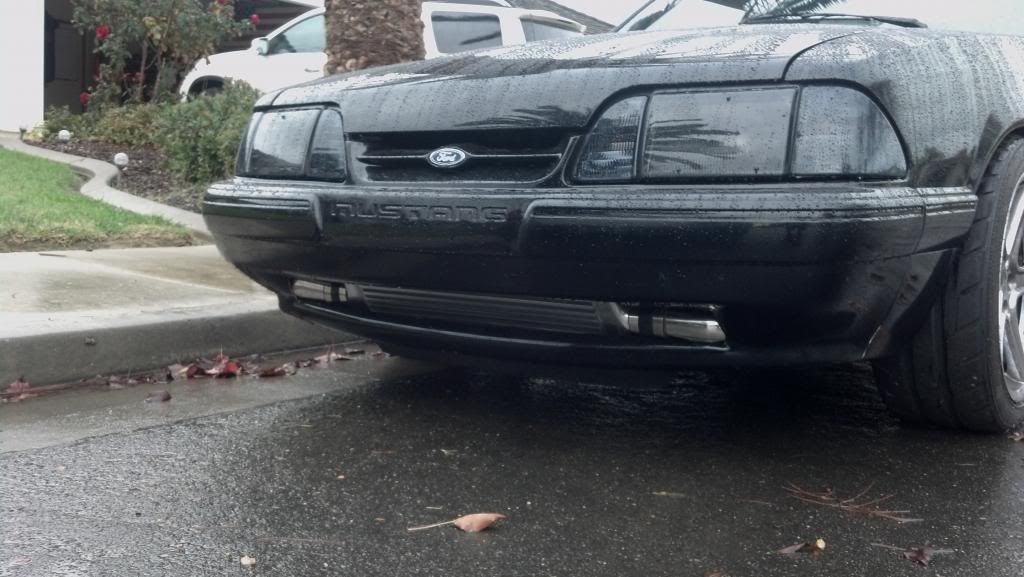

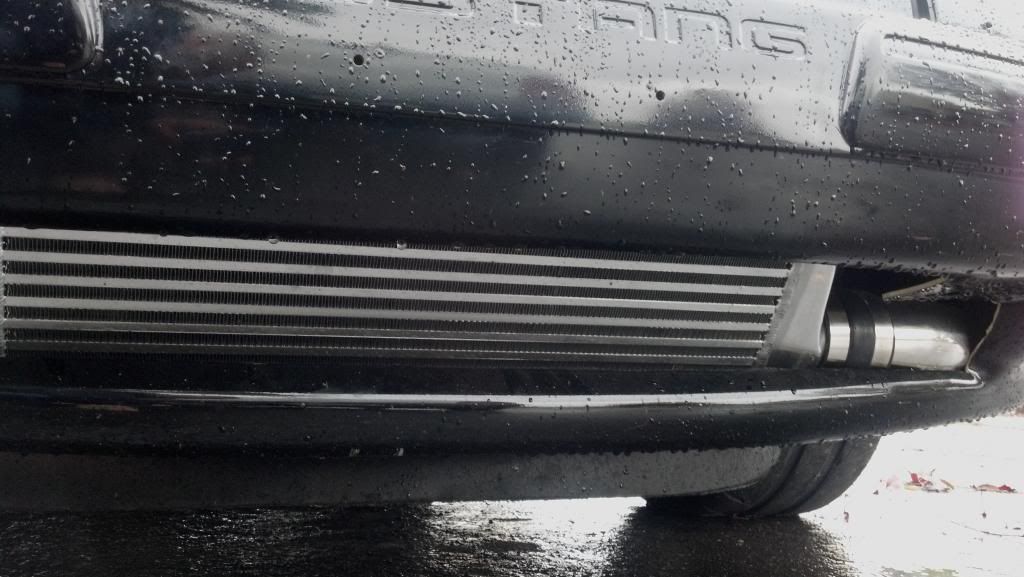

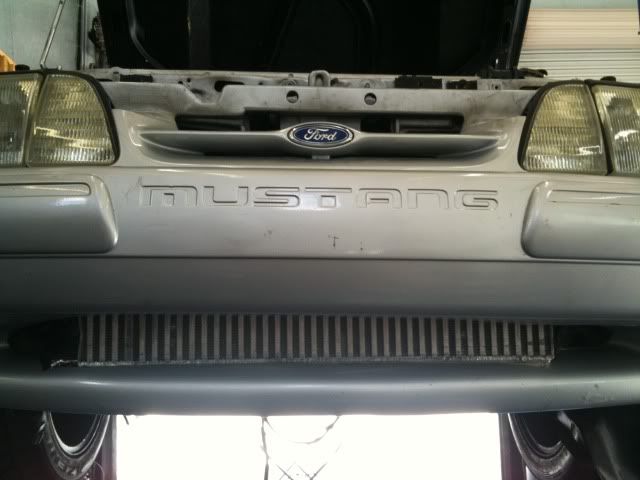

Heres mine. I dont recommend doing it this way though. I also cut the fiberglass bumper completely out between the mounts to allow the air that goes through the holes in the cover to get to the I/C.



They say what goes up must come down but I ain't reached my cruising altitude.
Take a look at what I did but can you imagine what I'm about to do.
BradleyRJ is offline
post #19 of 25 Old 01-20-2013, 11:11 PM
Registered User

Trader Feedback: (9)
Join Date: Feb 2009
Location: Bellwood, PA
Posts: 129


Uploaded with ImageShack.us

stock shortblock TW /F-cam/ victor 5.0/ TKO On3performance turbo kit. [email protected]
Leeseyoo27 is offline
post #20 of 25 Old 01-21-2013, 02:25 PM
Registered User

Madspeed's Avatar

Trader Feedback: (20)
Join Date: Mar 2000
Location: Montoursville Pa
Posts: 2,937
Re: Lets see your Modified front bumper to get more air to intercooler..

any more fox GT's?

Shameless plug.... My Business

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Use coupon code MADSPEED for a 20% discount!!
Madspeed is offline
post #21 of 25 Old 01-28-2013, 04:12 AM
Registered User

Trader Feedback: (13)
Join Date: Jan 2011
Location: Hanford, CA
Posts: 161

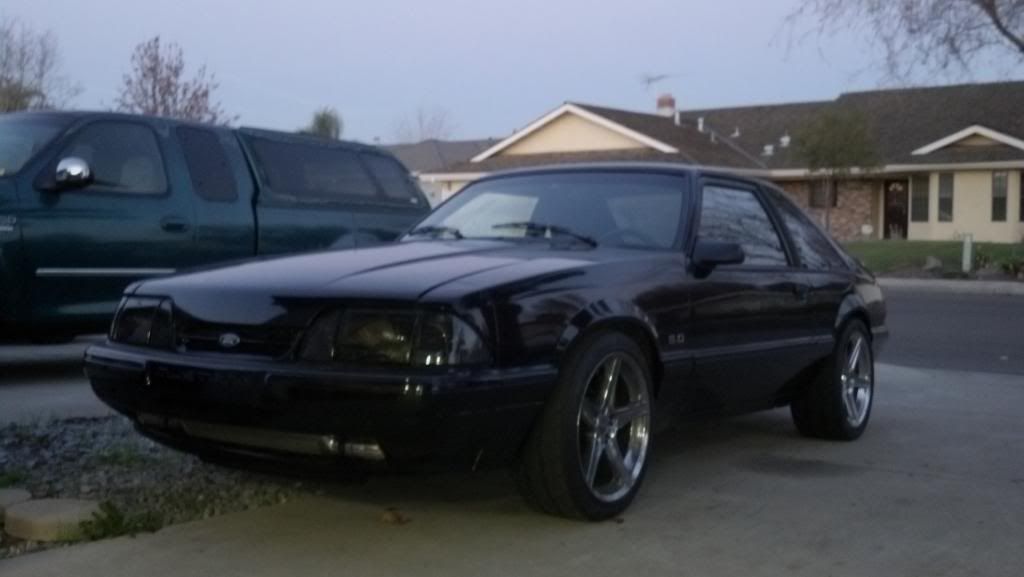

Try this for an LX.

Instead of the typical mounting position I angled my intercooler forward at a 45 deg angle. It fit great and airflow is great. Also the bottom lip of the bumper does not sag at all as I secured it to the bottom of the intercooler mounting brackets. In 105 deg weather after a hard run down the highway engine temps reach 185 - 190 MAX. I do run a 180 deg thermostat with a MKVII fan. Here are a few pictures.

Last edited by Goingbyebye; 01-28-2013 at 04:23 AM.
Goingbyebye is offline
post #22 of 25 Old 01-28-2013, 05:25 AM
Registered User

Trader Feedback: (0)
Join Date: Mar 2007
Location: Omaha,NE
Posts: 299
My intercooler is also slightly tilted forward like the one above just not as much of an angle and the opening to the bumper slightly opened more.


88lx Conv. 200K mile stock longblock. Trickflow intake, 42lb inj, Pmas protube,TKO500, 3:27, pypes muffs, Pa Racing tubluar K-member, DIY single turbo setup. Summit aluminum rad, Crane Hi-fire ign, subfames, 17" sc saleen's, Saleen ground effects, SCT tune by Dynosport. 380HP 435ftbs.

Last edited by 71swing; 01-28-2013 at 05:27 AM.
71swing is offline
post #23 of 25 Old 01-28-2013, 01:38 PM
Corral Elite Member

M88handles's Avatar

Trader Feedback: (115)
Join Date: Jan 2008
Location: BROOKLYN, NY..11223
Posts: 1,547
Quote:
Originally Posted by 71swing View Post
My intercooler is also slightly tilted forward like the one above just not as much of an angle and the opening to the bumper slightly opened more.

How much room behind those air inlets left/right? enough for a Trans cooler?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
91 Dove Grey coupe, Tennessee Transmissions Built AOD, 3.73's, BBS RK's, Full Team Z Suspension, H/C/I. V3-SCI, r134 AC/PS/PW/CC
[email protected] 1.70 60' foot braking 2300rpm.........................SOLD
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


"If your broke...or enjoy lowballing and wasting time, your likely on the wrong post"
M88handles is offline
post #24 of 25 Old 01-28-2013, 10:57 PM
Registered User

Trader Feedback: (20)
Join Date: Jul 2008
Location: sturgis,MI
Posts: 1,074
I have the roush stage 3 bumper on my car I hope with the big openings on the front will let lots of air in

1999 auto turbo buld! Precision PT7675 CEA
MMR 4.75 se stroker bullet oil pump 9:1 compression notched pistions MMR stage 3 turbo cams, livernois stage 3 heads ARP everything cricle D triple disk 3800 stall 6pt cage full adj suspension just a street car
xbox: mcraven420
Lookin for 9's
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
cravens02 is offline
post #25 of 25 Old 01-29-2013, 12:28 AM
Registered User

Trader Feedback: (0)
Join Date: Mar 2007
Location: Omaha,NE
Posts: 299
Quote:
Originally Posted by M88handles View Post
How much room behind those air inlets left/right? enough for a Trans cooler?
As it sits right now the inlet and outlet pipes are right behind the side openings. Coming in on the driver and exiting out the passenger side. I run a 5speed so im not concerned with a trans cooler. But it think your idea could be done. It would just take a little effort to move things around. You can easily trim off some inside material if need for more room without effecting the the bumpers appearance.

88lx Conv. 200K mile stock longblock. Trickflow intake, 42lb inj, Pmas protube,TKO500, 3:27, pypes muffs, Pa Racing tubluar K-member, DIY single turbo setup. Summit aluminum rad, Crane Hi-fire ign, subfames, 17" sc saleen's, Saleen ground effects, SCT tune by Dynosport. 380HP 435ftbs.
71swing is offline
