B&M Ratchet Shifter and E-Boost 2 Boost By Gear Bracket

So I felt antsy today and decided to make a microswitch bracket that uses the pin on the right side of the shift lever on the B&M Ratchet to engage (close) 2 switches for the E-Boost 2's Sequential Switching Function B (SSB). You GND the GREEN wire (forward switch) to move up 1 SP (set point) and you GND the ORANGE wire (rearward switch) to move down 1 SP.

I have a 4R70W in a Forward shift pattern....PRN321...Full manual VB with 1st gear being closest the the driver seated. Set your E-Boost to SSB and make it have only 3 SPs. The E-Boost will only switch up to the maximum number of SP, which in this case is 3. On the B&M Ratchet shifter, when in 1st gear (all the way back), to engage 2nd, you simply push the shift lever forward all the way and release. The same goes for the 2nd to 3rd shift.

So lets say your heading out for a drive, start your ride, and pull the shifter all the way back (you'll be pulling the shift lever back 5 times to get to 1st) the pin on shift lever will hit the rearward microswitch (ORANGE wire) 5 times also. If your E-Boost is set up correctly, you will be in SP1. As you move off and shift to 2nd, you will hit the forward microswitch (GREEN wire) and will now be in SP2. As you shift into 3rd, you will again hit the forward microswitch and now be in SP3. No matter how many times you hit the forward switch after this point, the E-Boost will not select another SP value because you set it up to ONLY have 3 SPs.

You can probably guess how the downshifts will work....from 3rd gear, pull back on the lever for 2nd and you'll hit the rearward microswitch (ORANGE wire) and the E-Boost will move down 1 SP value to SP2. Same process for shifting into 1st and then you'll be at SP1.

There you have it! Boost By Gear. Set you SP values in the single boost mode so you know how much boost you'll be making for each SP value and then set up the SSB Function. This will definitely help keep the tires from getting to loose when you're driving spiritedly!

PICS....

Started off by making a plate based on the shifter boot rubber seal plate.






Threw some paint on it and sticky foam to seal it up from the elements.






Shifter in place.

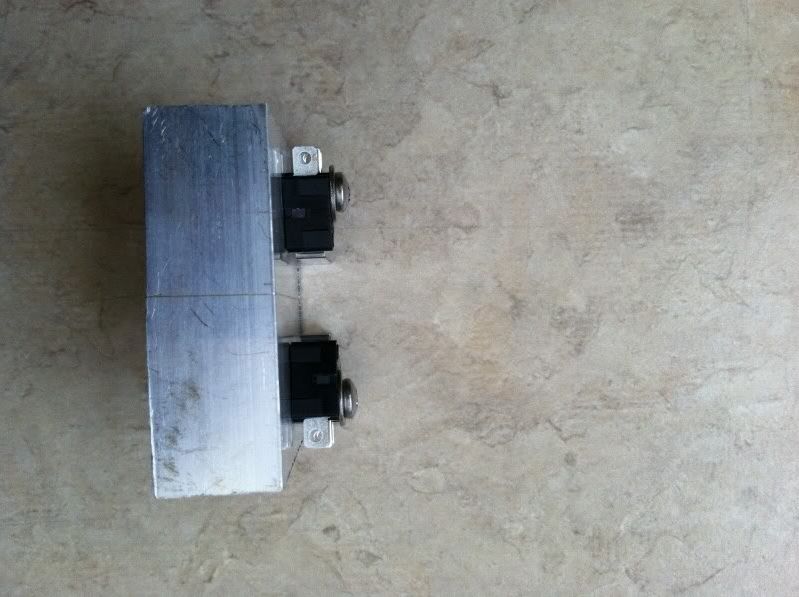

E-Boost 2 Boost By Gear Bracket.











************
FRANZ aka THA JAMAICAN
2002 BLACK FORD MUSTANG GT (TURBO)!!
Yaadman_GT is offline
Sponsored Links
Advertisement

post #2 of 9 Old 07-14-2012, 10:31 PM Thread Starter
Registered User

Yaadman_GT's Avatar

Trader Feedback: (5)
Join Date: Apr 2009
Location: Bellevue, NE
Posts: 298
Version 1 was good but the heads of the screws that hold the switches in place make contact with the lever so when the bracket is tightened down, the spring load on the lever is sticky.....I don't like it. I'm gonna see if I can slightly countersink the holes on the switches (without damaging them) and see if that does it.


************
FRANZ aka THA JAMAICAN
2002 BLACK FORD MUSTANG GT (TURBO)!!
Yaadman_GT is offline
post #3 of 9 Old 07-15-2012, 12:01 PM
Registered User

Mike@TF's Avatar

Trader Feedback: (3)
Join Date: Apr 2008
Location: beaumont,tx
Posts: 584
nice...seems pointless for a auto car if you just dont know how to controll your foot lol....or just take those low pro tires off and put some meet back there
Sponsored Links
Advertisement

post #4 of 9 Old 07-16-2012, 12:35 PM
Registered User

Trader Feedback: (14)
Join Date: Jun 2005
Location: Woodland, CA....Nor Cal
Posts: 2,530
Nice idea but for me...boost by gear = FULL BOOST every gear

'18 Charger Hellcat
95 Cobra - Comp Billet PT8047 DIY Turbo and 340CI A4 Car
Palm Beach Dyno tuned - juuuuuuuust a little over 385RWHP....
RIP - Jerry"BabyLove" Glover ....1952 to 2012...
chinopsu is offline
post #5 of 9 Old 07-16-2012, 12:51 PM
Registered User

Mike@TF's Avatar

Trader Feedback: (3)
Join Date: Apr 2008
Location: beaumont,tx
Posts: 584
Quote:
Originally Posted by chinopsu View Post
Nice idea but for me...boost by gear = FULL BOOST every gear
bingo!!!!!!! lol
post #6 of 9 Old 07-23-2012, 12:50 AM
Registered User

Trader Feedback: (1)
Join Date: Dec 2008
Location: NYC
Posts: 295
when u run real power to hook up on the street it is helpful auto or not.
nyctony is offline
post #7 of 9 Old 07-23-2012, 06:06 PM
Registered User

Trader Feedback: (14)
Join Date: Jun 2005
Location: Woodland, CA....Nor Cal
Posts: 2,530
Quote:
Originally Posted by nyctony View Post
when u run real power to hook up on the street it is helpful auto or not.


understandable but what do you consider "real" power??

...I make more than enough with my Comp HP7679 and 336ci with the right suspension + tires and can hook on the street with my Hoosier 295/50/16 Drag radials....

'18 Charger Hellcat
95 Cobra - Comp Billet PT8047 DIY Turbo and 340CI A4 Car
Palm Beach Dyno tuned - juuuuuuuust a little over 385RWHP....
RIP - Jerry"BabyLove" Glover ....1952 to 2012...
chinopsu is offline
post #8 of 9 Old 07-23-2012, 08:46 PM
Registered User

Trader Feedback: (1)
Join Date: Dec 2008
Location: NYC
Posts: 295
Over a 1000

Sent from my PG86100 using Tapatalk 2
nyctony is offline
post #9 of 9 Old 07-23-2012, 10:12 PM
Registered User

billyNOTnice's Avatar

Trader Feedback: (80)
Join Date: Feb 2005
Location: Huntingdon, 16652 Pennsylvania
Posts: 2,048
nice writeup man

----------Dart 363 Turbo 93 Cobra #3193----------
--------------Magnum T56--------------
billyNOTnice is offline
