On3 Dyno Thread. Post your dyno chart and combo here:

Please follow this format:

Car
Year
Trans
Engine/combo
Turbo
PSI
RWHP
RWTQ
Type of dyno

Post your chart if you have it.

Post your time slips or ET/speed.


92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress

Last edited by fmyth; 04-19-2011 at 10:05 PM.
fmyth is offline
Sponsored Links
Advertisement

post #2 of 37 Old 04-19-2011, 09:54 PM Thread Starter
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
I'll get this started:

Car Mustang LX Hatch
Year 1992
Trans T56
Engine/combo 331 Stock Block/TFS 190 heads/FCam/Victor EFI/42lb injectors
Turbo MP 70
PSI 4.6
RWHP 497
RWTQ 441
Type of Dyno (will find out) Tuned by PSR

Dyno chart:



Time/ET Ran (1) 12.70 at 117 and split the block (hit the rev limiter in 4th w my 3.73 gears at the 1000 ft mark)


92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress

Last edited by fmyth; 04-19-2011 at 10:03 PM.
fmyth is offline
post #3 of 37 Old 04-20-2011, 12:16 AM
Registered User

90fiveoh's Avatar

Trader Feedback: (13)
Join Date: Mar 2008
Location: Michigan
Posts: 546

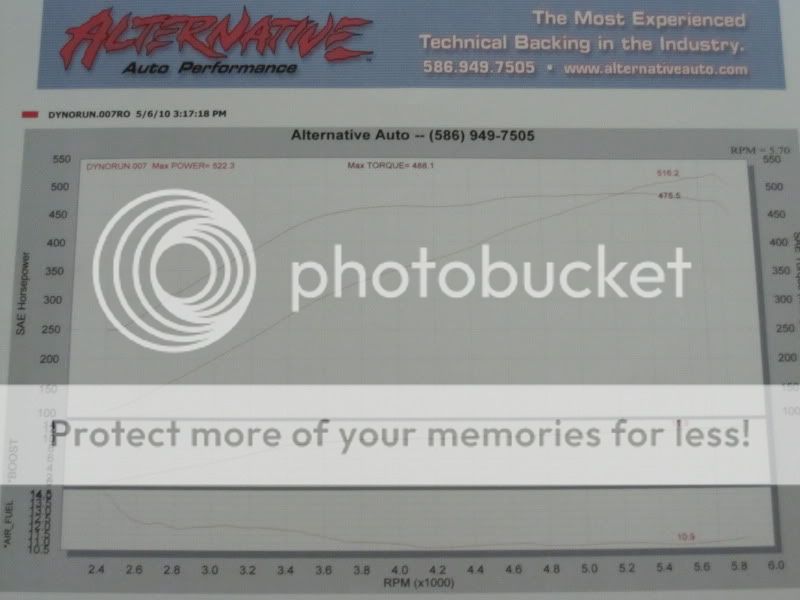

Car - Mustang GT
Year - 1990
Trans - T-5 on the dyno, Recently swapped to AOD
Engine/combo - Stock bottom end, GT40X heads, B303 Cam, Victor 5.0 Intake
Turbo - On3 70mm .68 exhaust housing
PSI - 12
RWHP - 522
RWTQ - 488
Type of dyno - Dynojet
Best Et - With the hurt T-5 it went [email protected]



Vid
YouTube - Turbo Mustang 5.0 On3 70mm Dyno pull

90 Turbo GT

Last edited by 90fiveoh; 04-20-2011 at 12:27 AM.
90fiveoh is offline
Sponsored Links
Advertisement

post #4 of 37 Old 04-20-2011, 12:30 AM
Registered User

conbread's Avatar

Trader Feedback: (60)
Join Date: Jun 2005
Location: kannapolis NC
Posts: 1,942
here's my old one..

Car- Hatch
Year-89
Trans-C4 with Ultimate converter
Engine/combo-stock explorer motor
Turbo- TC78mm from turbonetics
PSI-13
RWHP-469
RWTQ-Pete never hooks it up.
Type of dyno- Dynojet


Dyno video
ok012.mp4 video by ripnitup - Photobucket

track video.. went a best of 6.65 at 106mph, no boost controler..
cornbread004.mp4 video by ripnitup - Photobucket

89 Hatch 6.65 @ 106...
conbread is offline
post #5 of 37 Old 04-20-2011, 12:34 AM
Registered User

Swagger31's Avatar

Trader Feedback: (0)
Join Date: Jan 2010
Location: Chicago
Posts: 608
Any idea what more (street friendly) intake would be like besides that victor. Like a cobra or track heat? I wonder if you'd see 8-10 lbs closer to 3k? Any ideas out there gents?
Swagger31 is offline
post #6 of 37 Old 04-20-2011, 12:42 AM Thread Starter
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
Quote:
Originally Posted by Swagger31 View Post
Any idea what more (street friendly) intake would be like besides that victor. Like a cobra or track heat? I wonder if you'd see 8-10 lbs closer to 3k? Any ideas out there gents?
I'm sure the mid range torque would be much higher and the hp would nose over sooner. Mine will spool to whatever I set the boost controller to by 3k. For me too much torque is already a problem. I am changing from 3.73 gears to 3.27's and swapping the T56 for a built c4.

92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress
fmyth is offline
post #7 of 37 Old 04-20-2011, 12:52 AM
Registered User

2002mustanggt's Avatar

Trader Feedback: (13)
Join Date: Jul 2007
Location: Las Vegas
Posts: 2,012
Car Mustang Gt
Year 2002
Trans stock TR3650
Engine/combo 5.0l storoker with turbo cams stock heads
Turbo Master Power T70 with .96 housing
PSI 20 psi
RWHP 687rwhp
RWTQ 677 torque
Type of dyno Dynojet


Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
post #8 of 37 Old 04-20-2011, 11:08 AM
Registered User

Trader Feedback: (11)
Join Date: Jun 2009
Location: Orlando, Fl
Posts: 854
Quote:
Originally Posted by Swagger31 View Post
Any idea what more (street friendly) intake would be like besides that victor. Like a cobra or track heat? I wonder if you'd see 8-10 lbs closer to 3k? Any ideas out there gents?
Street friendly? Tell me your not a member of the crew that beleives bigger intakes and heads on a 302 make it hard to drive on the street lulzzzz.
19935.slow is offline
post #9 of 37 Old 04-20-2011, 01:05 PM
Registered User

Cansogo's Avatar

Trader Feedback: (5)
Join Date: Nov 2009
Location: Medicine Hat
Posts: 279
Exploder Short
TFS Heads
E-cam
JAP 70
10 PSI
C4 3K converter
Now 3.27's DR's
HP TBA
TQ....Boatloads!

Late 30's not so fat anymore white guy drivin a Turbo 5.0.....15 years TOO late
09' G8 GT tune & 100 shot 12.2's
67 Nova LS1 MS3 150 shot...11.2's
2003 pink Barbie jeep....Cause the girls LUV it!
Cansogo is offline
post #10 of 37 Old 04-20-2011, 08:26 PM
Registered User

Swagger31's Avatar

Trader Feedback: (0)
Join Date: Jan 2010
Location: Chicago
Posts: 608
Quote:
Originally Posted by 19935.slow View Post
Street friendly? Tell me your not a member of the crew that beleives bigger intakes and heads on a 302 make it hard to drive on the street lulzzzz.
No, Im a member of corral asking a question. This guy^? And if u read alot of dyno graphs on intake comparisons you would know that the power does come on in diff RPM ranges. Also I used street as a term to describe a type of intake. Never implied it was hard to drive on the street.

Fmyth- I didn't even notice u were running the victor also, I was looking at the other combo. Seems your curves are some what similar.

Swagger31 is offline
post #11 of 37 Old 04-20-2011, 10:41 PM Thread Starter
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
Quote:
Originally Posted by Swagger31 View Post
No, Im a member of corral asking a question. This guy^? And if u read alot of dyno graphs on intake comparisons you would know that the power does come on in diff RPM ranges. Also I used street as a term to describe a type of intake. Never implied it was hard to drive on the street.

Fmyth- I didn't even notice u were running the victor also, I was looking at the other combo. Seems your curves are some what similar.
It's a fair question. If you are talking about an NA car or a Centri SC car then yes you may like running a longer runner intake like a Cobra or an Exploder for a street car. If you have a turbo it does'nt make a whole lot of difference. Even at 4.6 psi the torque is sufficient to overwhelm the drag radials in first, second or third gear by 3,500 rpms.

I have or have had the Explorer, the Cobra, Performer, Systemax and the Victor EFI on my cars and cant tell much of a difference on the street with the turbo.

You can make enough power with any EFI intake and a turbo to break your block.

92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress
fmyth is offline
post #12 of 37 Old 04-28-2012, 11:52 AM
Registered User

firemanwill28's Avatar

Trader Feedback: (11)
Join Date: Jan 2009
Location: Seattle
Posts: 711
Car Coupe
Year 1990
Trans AOD
Engine/combo Stock cam/block AFR 165's, 70mm TB, PP intake
Turbo 70mm stock On3
PSI 8
RWHP
RWTQ
Type of dyno 1/4 mile

Post your chart if you have it.

Post your time slips or ET/speed. 11.44 @ 122

1990 Coupe, 302/AOD, stock cam/short block, AFR 165's, 3.55's. Working on a N/A stroker build.
firemanwill28 is offline
post #13 of 37 Old 04-28-2012, 12:20 PM
Registered User

Trader Feedback: (16)
Join Date: Aug 2011
Location: Indiana
Posts: 372
Car: Cobra
Year: 1994
Trans: stock t5
Engine/combo: Stock except for F cam
Turbo: on3 70mm
PSI: 9lbs
RWHP: 393
RWTQ: 452
Type of dyno: Mustang Dyno


94 Rio Red Cobra, Trickflow 170s, F cam, T-moss ported lower, Fox intake swap, 3.73s
AJs94cobra is offline
post #14 of 37 Old 04-28-2012, 03:25 PM
Registered User

mkrantz1106's Avatar

Trader Feedback: (0)
Join Date: Sep 2010
Location: frederick, MD
Posts: 260
Garage
93 Lx
Stock bottom end ported E7 heads Fcam gt40 intake
Base On3 kit on 12psi
477rwhp 502tq through a t5
11.22 1.85 60ft with a c4 and a 4000 stall converter faster times to come

93 reef blue ported stock heads f-cam gt40 intake On3 performance 70mm turbo 12psi and a c4 and 3.55 gears 11.22
mkrantz1106 is offline
post #15 of 37 Old 05-03-2012, 06:27 PM
Registered User

2Guard's Avatar

Trader Feedback: (8)
Join Date: May 2010
Location: AZ
Posts: 459
Car: mustang hatcback
Year:1992
Trans: Art Carr AOD (3500) stall
Engine/combo: stock block, stock cam, TF170 Heads, TFR intake, 70mm TB.
Turbo: ON3
PSI: 6 &10
RWHP:363 & 468
RWTQ:437 & 525
Type of dyno: dyno jet

[email protected] on 9psi. Off the trans brake.

Car/92 5.0/ Engine stock block/ and bolt-ons.. [email protected] (sold)

97 Cobra All stock for now...
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by 2Guard; 02-27-2013 at 10:11 PM.
2Guard is offline
post #16 of 37 Old 05-03-2012, 06:30 PM Thread Starter
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
Car coupe
Year 87
Trans c4
Engine/combo 347, TF190, F cam, Vic EFI, 70mm TB 42lb Ing
Turbo 70mm MP
PSI 4.5
RWHP
RWTQ
Type of dyno

Post your chart if you have it.

Post your time slips or ET/speed. Heading the the track for the 1st time Sat. Will update.

92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress
fmyth is offline
post #17 of 37 Old 05-03-2012, 06:54 PM
Registered User

2Guard's Avatar

Trader Feedback: (8)
Join Date: May 2010
Location: AZ
Posts: 459
Frank you going to firebird or speedworld on saturday?

Car/92 5.0/ Engine stock block/ and bolt-ons.. [email protected] (sold)

97 Cobra All stock for now...
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
2Guard is offline
post #18 of 37 Old 05-04-2012, 12:16 AM
Registered User

bwaite's Avatar

Trader Feedback: (19)
Join Date: Feb 2009
Location: Gettysburg, Pa
Posts: 1,195
Car coupe
Year 04
Trans stock 3650
Engine/combo mmr 4.75 900/ stock heads w/bronze guides,springs
Turbo on3 70
PSI 10psi----18psi
RWHP 474-----??
RWTQ 512------??

Post your time slips or ET/speed. (10psi) 11.9 @ 119 1.89 60ft

new dyno tune for 18lbs coming soon.

2004 Mustang Sonic Blue - turbo- - MMR 4.75 900
bwaite is offline
post #19 of 37 Old 05-05-2012, 12:22 AM Thread Starter
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
.

92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress

Last edited by fmyth; 05-07-2012 at 11:11 PM.
fmyth is offline
post #20 of 37 Old 05-05-2012, 10:56 AM
Registered User

2Guard's Avatar

Trader Feedback: (8)
Join Date: May 2010
Location: AZ
Posts: 459
Think i might just do that..

Car/92 5.0/ Engine stock block/ and bolt-ons.. [email protected] (sold)

97 Cobra All stock for now...
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
2Guard is offline
post #21 of 37 Old 05-06-2012, 04:59 PM
Registered User

2Guard's Avatar

Trader Feedback: (8)
Join Date: May 2010
Location: AZ
Posts: 459
Frank how did you do... i didnt get a chance to get out there to see you.

Car/92 5.0/ Engine stock block/ and bolt-ons.. [email protected] (sold)

97 Cobra All stock for now...
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
2Guard is offline
post #22 of 37 Old 05-07-2012, 07:49 PM
Registered User

Thunder5.0's Avatar

Trader Feedback: (0)
Join Date: Nov 2002
Location: NEW YORK
Posts: 1,503
Garage
Stock block h/c and GT-40 intake with c4 T62 and 11 psi. Best 11.38 @ 118.
Thunder5.0 is offline
post #23 of 37 Old 05-11-2012, 07:06 PM
Registered User

Gearhead559's Avatar

Trader Feedback: (0)
Join Date: Feb 2006
Location: columbus,ohio
Posts: 873
Car mustang vert
Year 1988
Trans tko500 28 splined front 1/2
Engine/combo : late model resto short block, e7 heads untouched, f cam trick flow springs gt40 lower, custom upper 70mm tb
Turbo pt6768
PSI randow guessing game with waste gate location
RWHP
RWTQ
Type of dyno dyno jet

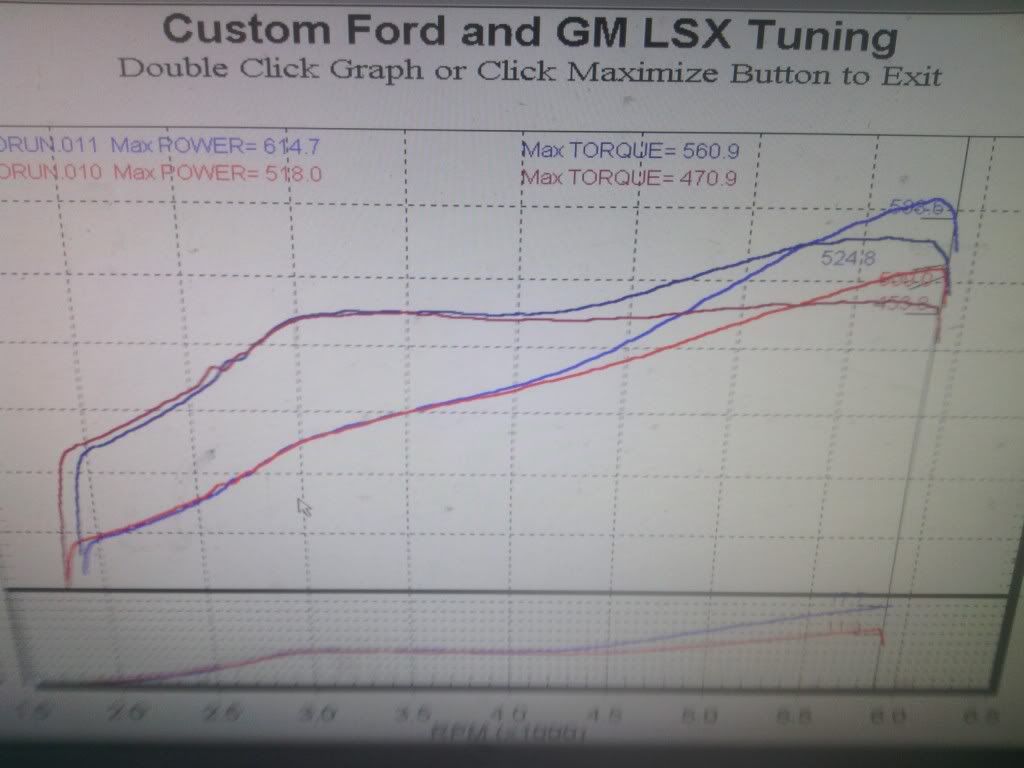

Post your chart if you have it. this is cut open vs closed guys.. and yes, its a hyper piston motor! on e85!


Post your time slips or ET/speed. none yet

I am on3 dealer. message me for some killer deals
Gearhead559 is offline
post #24 of 37 Old 05-11-2012, 07:10 PM Thread Starter
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
Quote:
Originally Posted by Gearhead559 View Post
Car mustang vert
Year 1988
Trans tko500 28 splined front 1/2
Engine/combo : late model resto short block, e7 heads untouched, f cam trick flow springs gt40 lower, custom upper 70mm tb
Turbo pt6768
PSI randow guessing game with waste gate location
RWHP
RWTQ
Type of dyno dyno jet

Post your chart if you have it. this is cut open vs closed guys.. and yes, its a hyper piston motor! on e85!


Post your time slips or ET/speed. none yet
Wow! Great numbers for an E7 head car. What injectors and supporting fuel system? Give us an estimate on the psi?

92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress
fmyth is offline
post #25 of 37 Old 05-11-2012, 08:13 PM
Registered User

Gearhead559's Avatar

Trader Feedback: (0)
Join Date: Feb 2006
Location: columbus,ohio
Posts: 873
Quote:
Originally Posted by fmyth View Post
Wow! Great numbers for an E7 head car. What injectors and supporting fuel system? Give us an estimate on the psi?
sumped stock tank, a1000 pump 60lb injectors and matched maf (was running out of fuel on the big pull) and 11 peak closed, 17 plus with the cutout open... i have a tial gate on it, but it needs a better location to control boost

I am on3 dealer. message me for some killer deals
Gearhead559 is offline
post #26 of 37 Old 02-26-2013, 03:26 AM
Registered User

Trader Feedback: (0)
Join Date: Jul 2009
Location: las vegas
Posts: 12
1993 gt
On3 70mm
Stock bottom end
Stock cam
Stock aod
Tfs tw 170cc
Gt40 intake
10.25 psi at 5200rpm
495.8 rwtq at 3800rpm
480.2rwhp
Dynojet

Last edited by 1clean93gt; 02-27-2013 at 05:46 AM.
1clean93gt is offline
post #27 of 37 Old 02-26-2013, 01:52 PM
Registered User

longstroke's Avatar

Trader Feedback: (7)
Join Date: Mar 2009
Location: baxley, georgia
Posts: 294
What turbine a/r are you 306" guys running with the on3 70mm turbo's?
This kit im installing came with a .96 a/r and i was thinking that would be alittle slow to spool on a 306.

If I was gettin smart with you, would you know it?
longstroke is offline
post #28 of 37 Old 02-26-2013, 09:45 PM
Corral Elite Member

89BlackGtVert's Avatar

Trader Feedback: (6)
Join Date: Jan 2012
Location: PA
Posts: 1,535
Blog Entries: 1
RE: On3 Dyno Thread. Post your dyno chart and combo here:

89 Vert GT

On3 70mm

306 bottom end

Trick flow stage 2 cam

Fully built AOD

Tfs tw 170cc

edlebrock intake

12PSI

512whp

480wtq

Don't know dyno was Frank at PSI.

Ran once 11.8 125- crappy 215 street tire.

New setup this year.
B50 347
F-Cam
Ported TW 170
Ported Edlebrock by Tmoss (sending out this week)




Sent from my PI86100 using Board Express

1989 GT Vert.. Major Changes for 2013 Wish me luck
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Old setup from 2012 On3 Turbo, Trick Flow 170 Heads, Edelbrock RPM upper & Lower, Trick Flow Stg 2 cam, UPR K-member and control arms and Strang front and rear coil over, and UPR upper and lower rear control arms, MM frame connectors Fully Built AOD, 512whp
89BlackGtVert is offline
post #29 of 37 Old 02-27-2013, 12:21 AM
Registered User

Trader Feedback: (3)
Join Date: Feb 2010
Location: Long beach
Posts: 167
Car mach 1 mustang
Year 2003
Trans tr3650
Engine/combo 4.6 4 valve
Turbo master power t70
PSI 21
RWHP 734
dynojet

I was very amazed with the power with the master power, I have switched setups though.

1loudsuv is offline
post #30 of 37 Old 02-27-2013, 05:44 AM
Registered User

Trader Feedback: (0)
Join Date: Jul 2009
Location: las vegas
Posts: 12
I'm running the standard 70mm .68 exhaust the car peaked over 500 on hp and tq we shut it down and pulled 2* timing and threw more fuel at it and settled at the numbers posted I'm not driving it until I pull boost to 8-9 psi I need this to live the numbers seem good for the combo but I'm looking to be around 420-440hp at the tires until I upgrade the block through the aod I'm near 600hp at the engine I would like it to stay together awhile
1clean93gt is offline
post #31 of 37 Old 03-15-2013, 06:29 AM
Registered User

Trader Feedback: (0)
Join Date: Oct 2012
Location: Ny
Posts: 73
Anyone else ?
Tudds is offline
post #32 of 37 Old 01-06-2015, 11:17 AM
Registered User

sprayed347's Avatar

Trader Feedback: (13)
Join Date: Jan 2005
Location: st.louis
Posts: 636
ttt

big cox racing
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
sprayed347 is offline
post #33 of 37 Old 01-12-2015, 06:39 PM
Registered User

Trader Feedback: (0)
Join Date: Dec 2009
Location: Fresno
Posts: 35
Car mustang
Year 2001
Trans 3650 5spd
Engine/combo built bottom end, heads, cams, edelbrock intake
Turbo borg warner s300
PSI 21
RWHP 730
RWTQ 765
Type of dyno dynojet

built bottom end/ported heads/on3 kit.
580rwhp/625rwtq
boosted2v is offline
post #34 of 37 Old 01-14-2015, 05:47 PM
Registered User

89blkmustang's Avatar

Trader Feedback: (2)
Join Date: Feb 2013
Location: Hagerstown
Posts: 461
Garage
Car: Mustang
Year: 1993
Trans: T-5
Engine/combo: Stock 351w. Stock cam. stock heads. Stock springs. Rpm Airgap with a 750 demon
Turbo: On3 70mm
PSI: 9#
RWHP: 320
RWTQ: 520
Type of dyno: Not sure

Post your chart if you have it. : Ill try when i get home

Post your time slips or ET/speed. 12.9 112mph spinning first second and thrid. Shifting at 4700 rpm. On street tires. More psi, efi, and cam coming soon.

93 Mustang LX Hatch-351w on3 70mm 9# airgap and 93 and 114 mix. 320hp 520tq. Pulled to 4700. Best 12.9 at 112mph<- Old
New->super vic efi, wilson elbow, f cam, and 15 psi. No times or numbers.
89blkmustang is offline
post #35 of 37 Old 06-21-2015, 07:58 AM
Registered User

sprayed347's Avatar

Trader Feedback: (13)
Join Date: Jan 2005
Location: st.louis
Posts: 636
Ttt
sprayed347 is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Tags
on3 turbo kit

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
