Trans cooler mount pic please

Need some advice on where and how to mount my B&M 70266 trans cooler in turbo cars . Thanks in advance. BTW I also bought 8" fan for trans cooler.







Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
Sponsored Links
Advertisement

post #2 of 39 Old 04-08-2011, 01:47 AM
Registered User

stangbanger88's Avatar

Trader Feedback: (5)
Join Date: Dec 2010
Location: vineland nj
Posts: 747
im thinking the same thing with my build as i just bought a C4 for the car. I dont want to mount the cooler to the Intercooler and i dont think ill have enough room to run it near the top of the rad. so im gona look at the back of the car and check the mounting options near the rear bumper. then again i have a fox car with cobra bumper with no rear bumper support so thers a big empty space.


88 LX Turbo, C4, H.C.I.---SOLD
97 COBRA, Vortech, T56, Forged, 445/438
stangbanger88 is offline
post #3 of 39 Old 04-08-2011, 02:10 AM Thread Starter
Registered User

2002mustanggt's Avatar

Trader Feedback: (13)
Join Date: Jul 2007
Location: Las Vegas
Posts: 2,012
I have no space , might have to relook to see any free space.

Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
Sponsored Links
Advertisement

post #4 of 39 Old 04-08-2011, 02:14 AM
Registered User

stangbanger88's Avatar

Trader Feedback: (5)
Join Date: Dec 2010
Location: vineland nj
Posts: 747
maybe check the inside of the fender area and fab up some mounting brackets.

88 LX Turbo, C4, H.C.I.---SOLD
97 COBRA, Vortech, T56, Forged, 445/438
stangbanger88 is offline
post #5 of 39 Old 04-08-2011, 12:58 PM
Registered User

Trader Feedback: (2)
Join Date: May 2010
Location: NOR CAL
Posts: 353
on my 98 gt i was able to mount mine behind the pass side fog light but that was before i was turboed. IM going to mount it in the muffler spot at the rear of the car since im running single exhaust now. lots of room there and with the fan it will have enought air flow.
boostedstang98 is offline
post #6 of 39 Old 04-09-2011, 12:44 AM
Registered User

firemanwill28's Avatar

Trader Feedback: (11)
Join Date: Jan 2009
Location: Seattle
Posts: 711
I'm running the same cooler with my AOD.


1990 Coupe, 302/AOD, stock cam/short block, AFR 165's, 3.55's. Working on a N/A stroker build.
firemanwill28 is offline
post #7 of 39 Old 04-09-2011, 12:48 AM
Registered User

firemanwill28's Avatar

Trader Feedback: (11)
Join Date: Jan 2009
Location: Seattle
Posts: 711
Quote:
Originally Posted by stangbanger88 View Post
im thinking the same thing with my build as i just bought a C4 for the car. I dont want to mount the cooler to the Intercooler and i dont think ill have enough room to run it near the top of the rad. so im gona look at the back of the car and check the mounting options near the rear bumper. then again i have a fox car with cobra bumper with no rear bumper support so thers a big empty space.

You'll have plenty of room for the cooler; it just takes some gentle massage of the lower nose to fit the IC pipes.

1990 Coupe, 302/AOD, stock cam/short block, AFR 165's, 3.55's. Working on a N/A stroker build.
firemanwill28 is offline
post #8 of 39 Old 04-09-2011, 01:14 AM
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
Where did you get the braided line kit? I'm getting ready to install a c4 in my turbo car. I have the cooler but need the lines and fittings.

Quote:
Originally Posted by 2002mustanggt View Post
Need some advice on where and how to mount my B&M 70266 trans cooler in turbo cars . Thanks in advance. BTW I also bought 8" fan for trans cooler.





92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress
fmyth is offline
post #9 of 39 Old 04-09-2011, 01:48 AM Thread Starter
Registered User

2002mustanggt's Avatar

Trader Feedback: (13)
Join Date: Jul 2007
Location: Las Vegas
Posts: 2,012
Ebay, cost me around 145 bucks for all hose and an fittings. I bought 12ft hose, hope it will be enough. This is the seller, ship fast.
Performance Dynamics Speed Shop items - Get great deals on GM, Books items on eBay Stores!

Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
post #10 of 39 Old 04-09-2011, 10:28 AM
Registered User

firemanwill28's Avatar

Trader Feedback: (11)
Join Date: Jan 2009
Location: Seattle
Posts: 711
I used Summit brand press lock hose and fittings. Been using it this way for two years and no problems. Much better cost than braided but doesn't look as cool.


1990 Coupe, 302/AOD, stock cam/short block, AFR 165's, 3.55's. Working on a N/A stroker build.
firemanwill28 is offline
post #11 of 39 Old 04-10-2011, 11:22 AM
Registered User

Trader Feedback: (55)
Join Date: Mar 2008
Location: Phoenix
Posts: 2,773
Thanks guys.

92 Hatch On3 Turbo, T56
92 Vert 349 Lunati Stroker T5
87 Gt Eddy HCI T5
87 Notch in progress
fmyth is offline
post #12 of 39 Old 04-10-2011, 12:15 PM Thread Starter
Registered User

2002mustanggt's Avatar

Trader Feedback: (13)
Join Date: Jul 2007
Location: Las Vegas
Posts: 2,012
Quote:
Originally Posted by firemanwill28 View Post
I'm running the same cooler with my AOD.

Thanks for the picture!

Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
post #13 of 39 Old 04-15-2011, 11:18 PM
Registered User

390mustang's Avatar

Trader Feedback: (2)
Join Date: Jul 2007
Location: Il
Posts: 130
i just did a th400 swap on my hellion 2v 02gt and i used a b&m hi-tek cooler with fan and mounted it inside the driver side from bumper cover. used 20' of hose to reach as well.
390mustang is offline
post #14 of 39 Old 04-15-2011, 11:38 PM
Registered User

Trader Feedback: (1)
Join Date: Jan 2010
Location: Missouri
Posts: 62
any pics of that, I am about to mount mine in the fender well unless this way looks better

Quote:
Originally Posted by 390mustang View Post
i just did a th400 swap on my hellion 2v 02gt and i used a b&m hi-tek cooler with fan and mounted it inside the driver side from bumper cover. used 20' of hose to reach as well.
sprintstang is offline
post #15 of 39 Old 04-16-2011, 02:43 AM
Registered User

Trader Feedback: (17)
Join Date: Mar 2006
Location: nevada
Posts: 444
any thought of under the driver seat on foxbody with sub frames and low profile fan is where i am goign to try and mount and it will be closer to the trany i got a haden with fan on it
allenpeake is offline
post #16 of 39 Old 04-17-2011, 08:42 PM
Registered User

390mustang's Avatar

Trader Feedback: (2)
Join Date: Jul 2007
Location: Il
Posts: 130
sorry i didnt take any pics and i already put it all back together
390mustang is offline
post #17 of 39 Old 04-17-2011, 09:00 PM
Registered User

Rich G's Avatar

Trader Feedback: (35)
Join Date: May 2001
Location: West Palm Beach, Florida
Posts: 7,963
I mounted mine to the front of my intercooler

Been out of the game since 2011.. looking to get back in in 2019
Rich G is offline
post #18 of 39 Old 04-17-2011, 11:43 PM
Jersey True Street Guy

mcj50's Avatar

Trader Feedback: (84)
Join Date: May 2002
Location: Wall NJ
Posts: 3,195
I have that exact cooler on the front of my car, between the radiator and the intercooler. Just be aware that the more you obstruct air going through the radiator the more challenging it is going to be to cool the car.

I have another cooler in my garage with a fan and temp switch setup that I plan to mount where the stock drivers muffler is to get it out of the way.

I run a fuel cooler also because of the amount I street drive the car and plan to move that to the fender well.

There is a cost to blocking airflow through the radiator.

These turbo cars create a MASSIVE amount of heat under the hood.

If I did it again, I would put as little as possible obstructing the radiator...just my $0.02

1989 Saleen 89-425 all original + Baer 6P Brakes
1990 Saleen 90-137 heavily modded
1989 Shadow Blue Metallic Hatchback LX
[email protected] -- 94mm T4 True Street Trim
Thanks: Baer, Haltech, UPR, National Parts Depot, Meziere, Weldon, BBRC
mcj50 is offline
post #19 of 39 Old 04-17-2011, 11:44 PM
Jersey True Street Guy

mcj50's Avatar

Trader Feedback: (84)
Join Date: May 2002
Location: Wall NJ
Posts: 3,195
One more thing...C4's are funny with transversely mounted trans coolers. If you put the in and out backwards (top vs. bottom) it makes the trans fluid frothy and expel more then normal out of the vent.

I don't remember which way is which but I was spraying a crazy amount out of my C4 until I fixed it.

Before you put the C4 in, pull that vent out and put 1/4 nylon line to a small catch can. The pressure in these things under high hp is enough to spray fluid out badly.

1989 Saleen 89-425 all original + Baer 6P Brakes
1990 Saleen 90-137 heavily modded
1989 Shadow Blue Metallic Hatchback LX
[email protected] -- 94mm T4 True Street Trim
Thanks: Baer, Haltech, UPR, National Parts Depot, Meziere, Weldon, BBRC
mcj50 is offline
post #20 of 39 Old 04-18-2011, 10:47 PM
Registered User

coupextasy's Avatar

Trader Feedback: (14)
Join Date: Sep 2009
Location: baltimore
Posts: 239
What size braided line should I use for my trans to trans cooler? -4 or -6?
coupextasy is offline
post #21 of 39 Old 04-18-2011, 10:51 PM
Jersey True Street Guy

mcj50's Avatar

Trader Feedback: (84)
Join Date: May 2002
Location: Wall NJ
Posts: 3,195
-6 is typically used

1989 Saleen 89-425 all original + Baer 6P Brakes
1990 Saleen 90-137 heavily modded
1989 Shadow Blue Metallic Hatchback LX
[email protected] -- 94mm T4 True Street Trim
Thanks: Baer, Haltech, UPR, National Parts Depot, Meziere, Weldon, BBRC
mcj50 is offline
post #22 of 39 Old 04-18-2011, 11:20 PM Thread Starter
Registered User

2002mustanggt's Avatar

Trader Feedback: (13)
Join Date: Jul 2007
Location: Las Vegas
Posts: 2,012
Mine is -6

Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
post #23 of 39 Old 04-19-2011, 06:52 AM
Registered User

coupextasy's Avatar

Trader Feedback: (14)
Join Date: Sep 2009
Location: baltimore
Posts: 239
Thanks guys
coupextasy is offline
post #24 of 39 Old 04-21-2011, 10:34 AM
Registered User

montelius's Avatar

Trader Feedback: (31)
Join Date: May 2003
Location: Chicago, IL
Posts: 1,015

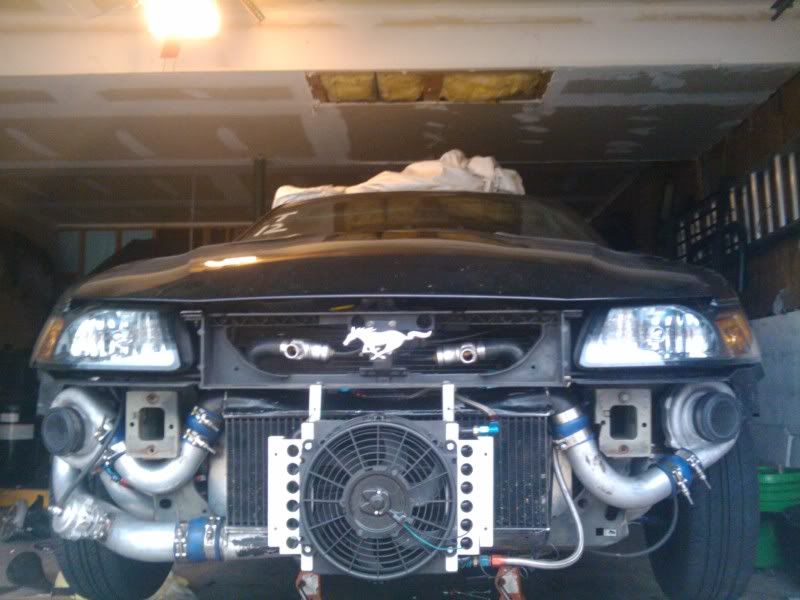

Mine is mounted between the intercooler and radiator.


Luke M.
montelius is offline
post #25 of 39 Old 04-21-2011, 11:09 AM Thread Starter
Registered User

2002mustanggt's Avatar

Trader Feedback: (13)
Join Date: Jul 2007
Location: Las Vegas
Posts: 2,012
^ thanks for the pic but cannot see your cooler, will it get enough air to cool down?

Voodoo racing innovation built 4v , powerglide, borg warner s475 at 29psi, custome turbo kit , pro efi ecu, Aeromotive fuel pump, aeromotive fuel rails, id 1000 injectors, e85. Best to date 1.36 60'
Best pass to date 8.92 at 156mph. Best 1/8 mile 5.6at 127 mph.
2002mustanggt is offline
post #26 of 39 Old 04-24-2011, 04:26 PM
Gt
Registered User

Gt's Avatar

Trader Feedback: (23)
Join Date: Nov 1999
Location: Tallahassee, FL
Posts: 668
We mounted mine in place of the muffler, since I'm running a single pipe with the Turbo. It also has a fan on top of it, to help airflow and cooling.



Tony Whetstone
'88 Gt Vert 348 S491 [email protected] 1.22 60' 275 DRs
'02 Gt VT Cam'd! [email protected] Sold
'05 6.0 Excursion
Gt is offline
post #27 of 39 Old 04-24-2011, 06:28 PM
Registered User

six6six's Avatar

Trader Feedback: (3)
Join Date: Nov 2010
Location: Illinois
Posts: 96
Quote:
Originally Posted by Gt View Post
We mounted mine in place of the muffler, since I'm running a single pipe with the Turbo. It also has a fan on top of it, to help airflow and cooling.
Hows that working for ya?
six6six is offline
post #28 of 39 Old 04-24-2011, 06:35 PM
Gt
Registered User

Gt's Avatar

Trader Feedback: (23)
Join Date: Nov 1999
Location: Tallahassee, FL
Posts: 668
Quote:
Originally Posted by six6six View Post
Hows that working for ya?

It's not a daily driver or anything, but it does fine on the drives around town I've done. Been running it that way since 2009. After the 30 mile cruise, I see maybe 150-160 temps with a 6000 stall converter.
Gt is offline
post #29 of 39 Old 04-24-2011, 07:58 PM
Registered User

y2k02's Avatar

Trader Feedback: (12)
Join Date: Jan 2003
Location: OHIO
Posts: 1,335
I have one behind the intercooler also.

2002 2V TF heads Custom Edelbrock NA SVT Cams
Twin 6466 TH400 Dominator EFI TH400 UCC
y2k02 is offline
post #30 of 39 Old 05-04-2011, 04:39 PM
Registered User

ssj50driver's Avatar

Trader Feedback: (17)
Join Date: May 2003
Posts: 1,283
Quote:
Originally Posted by y2k02 View Post
I have one behind the intercooler also.
That looks really nice but it looks like it is in front of the cooler not behind it? Nice pic man.
ssj50driver is offline
post #31 of 39 Old 05-04-2011, 09:00 PM
Registered User

y2k02's Avatar

Trader Feedback: (12)
Join Date: Jan 2003
Location: OHIO
Posts: 1,335
I have two. The second one is behind the intercooler. Just follow the top an line from the front cooler.

2002 2V TF heads Custom Edelbrock NA SVT Cams
Twin 6466 TH400 Dominator EFI TH400 UCC
y2k02 is offline
post #32 of 39 Old 05-06-2011, 01:09 PM
Registered User

ssj50driver's Avatar

Trader Feedback: (17)
Join Date: May 2003
Posts: 1,283
Quote:
Originally Posted by y2k02 View Post
I have two. The second one is behind the intercooler. Just follow the top an line from the front cooler.
Ahhhh... durrr on my part man. Nice photos for sure. How does this effect the efficiency of your intercooler? Do you have a before and after comparison? Or something to let us know efficiency decline or a nil affect?
ssj50driver is offline
post #33 of 39 Old 05-08-2011, 11:38 AM
Registered User

y2k02's Avatar

Trader Feedback: (12)
Join Date: Jan 2003
Location: OHIO
Posts: 1,335
Iat at begining of run 86* and 122* at end, so I dont think there's any ill effects on my setup. I have a meth kit if I need to lower the iat.

2002 2V TF heads Custom Edelbrock NA SVT Cams
Twin 6466 TH400 Dominator EFI TH400 UCC
y2k02 is offline
post #34 of 39 Old 05-10-2011, 01:33 PM
Registered User

ssj50driver's Avatar

Trader Feedback: (17)
Join Date: May 2003
Posts: 1,283
Quote:
Originally Posted by y2k02 View Post
Iat at begining of run 86* and 122* at end, so I dont think there's any ill effects on my setup. I have a meth kit if I need to lower the iat.
That is wonderful man. How is the trans cooler working out so far? Any tests on that? Great info man. BTW, are you also on Buckeyestangs? Your user name sounds familiar. Have a good one.
ssj50driver is offline
post #35 of 39 Old 05-10-2011, 10:39 PM
Registered User

y2k02's Avatar

Trader Feedback: (12)
Join Date: Jan 2003
Location: OHIO
Posts: 1,335
I've had no issues with the cooler.
Yes, I'm on that site. y2k2gt on most sites.

2002 2V TF heads Custom Edelbrock NA SVT Cams
Twin 6466 TH400 Dominator EFI TH400 UCC
y2k02 is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
What trans mount for Tremec / FRPP T-56 into fox? 5.0calypso93lx General Mustang Tech 6 04-06-2011 11:15 AM
Want To Buy WTB trans cooler, torque converter, and 4.10's dwtjr3 Drivetrain Parts 0 03-12-2011 02:26 PM
For Sale energy suspension trans mount joe5.0bonko Drivetrain Parts 0 01-29-2011 02:21 PM
What's the thickness on trans mount? Screamin' 90LX 94/95 Tech 6 01-03-2011 04:58 PM
Want To Buy Poly trans mount for 94 GT FastGT94 Drivetrain Parts 0 11-13-2010 12:18 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
