Need a pic of oil pan return On3 (fox)

Guys I am looking to put together the bottom of my engine but want to tap the oil pan before I do. Can someone post a pic of where to tap the oil pan for a fox with a On3 set up? Thanks

cbibb is offline
Sponsored Links
Advertisement

post #2 of 10 Old 06-26-2010, 03:18 PM
Registered User

Trader Feedback: (3)
Join Date: Jun 2005
Location: Minot, ND
Posts: 155

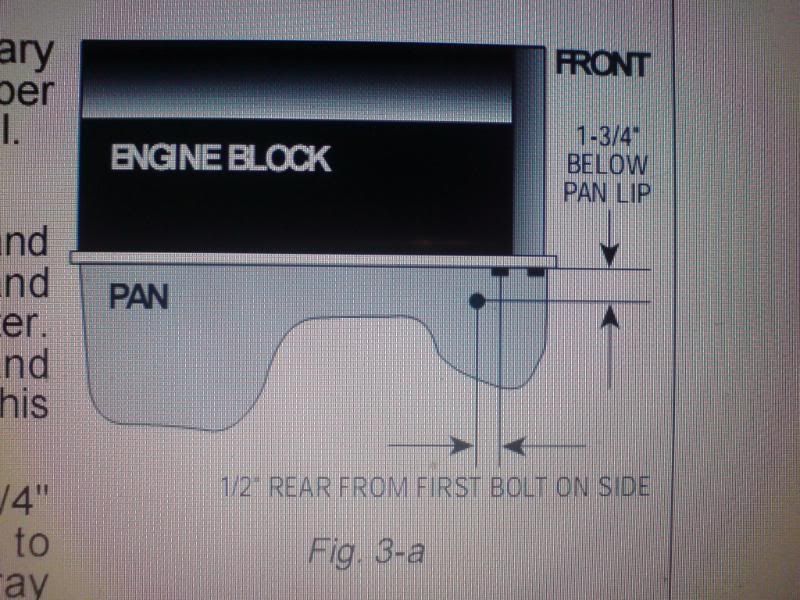

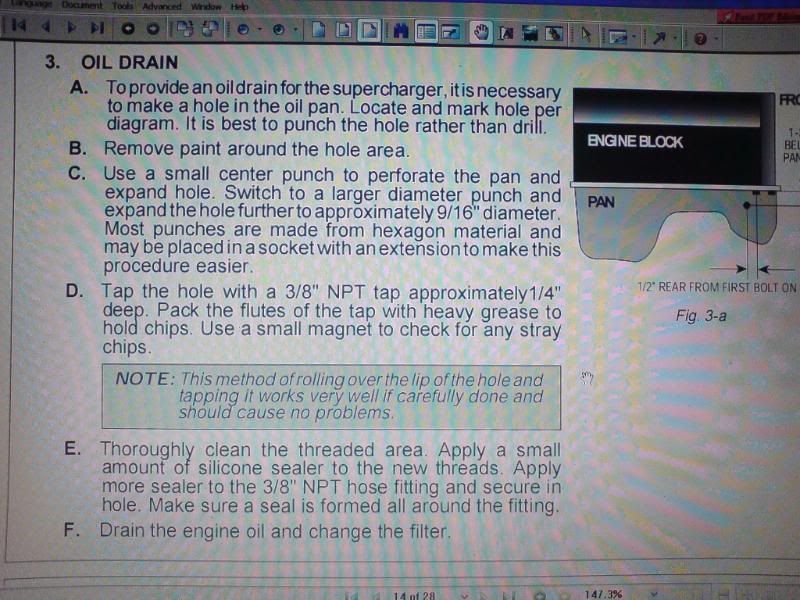

go to vortechs website and look at this. This will help u out.

http://www.vortechsuperchargers.com/...n=Installation Manuals - Supercharging Systems - Ford Cars

Then select 87-93 mustang installation file. Just did mine the other day.

Tobacco barn5.0 is offline
post #3 of 10 Old 06-26-2010, 05:36 PM Thread Starter
Registered User

Trader Feedback: (36)
Join Date: Jan 2003
Location: florida
Posts: 1,549
Cool, thanks man!! I guess it doesnt matter if its supercharged or turbo as long as they are both on the passenger side right?
cbibb is offline
Sponsored Links
Advertisement

post #4 of 10 Old 06-27-2010, 11:44 PM
Registered User

Trader Feedback: (17)
Join Date: Feb 2006
Location: Las Vegas
Posts: 855
passenger or driver, doesnt matter which side. my pan is tapped on both sides since i have twins

TWIN TURBO!! Because bottles are for babies and superchargers blow
megasquirt, 331, twin 66s, ported 205cc head, efi spyder intake, 160# injectors, e85
luckythirteen13 is offline
post #5 of 10 Old 07-01-2010, 01:41 PM
Registered User

Trader Feedback: (0)
Join Date: May 2005
Location: Guatemala
Posts: 842

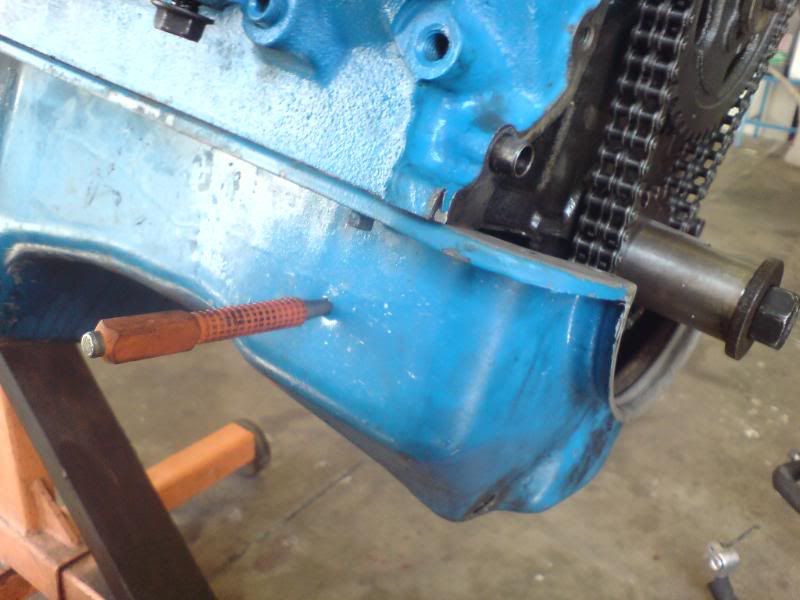

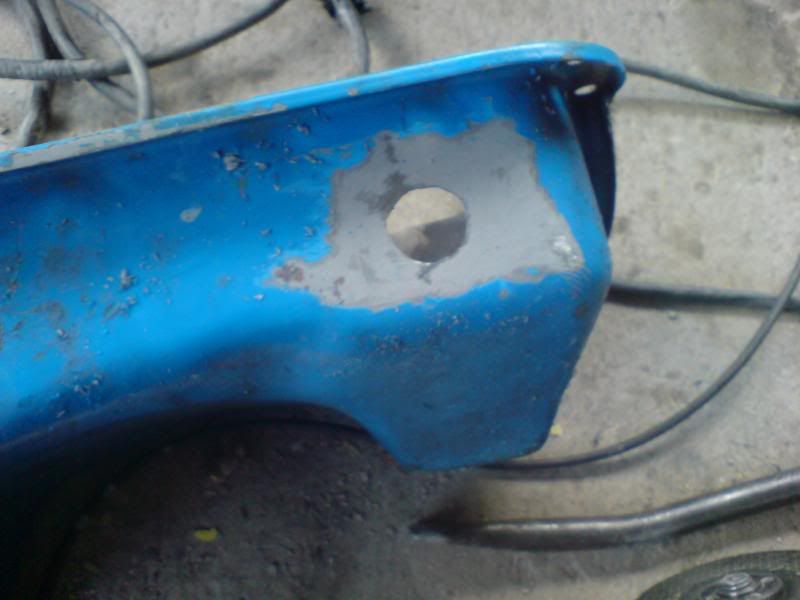

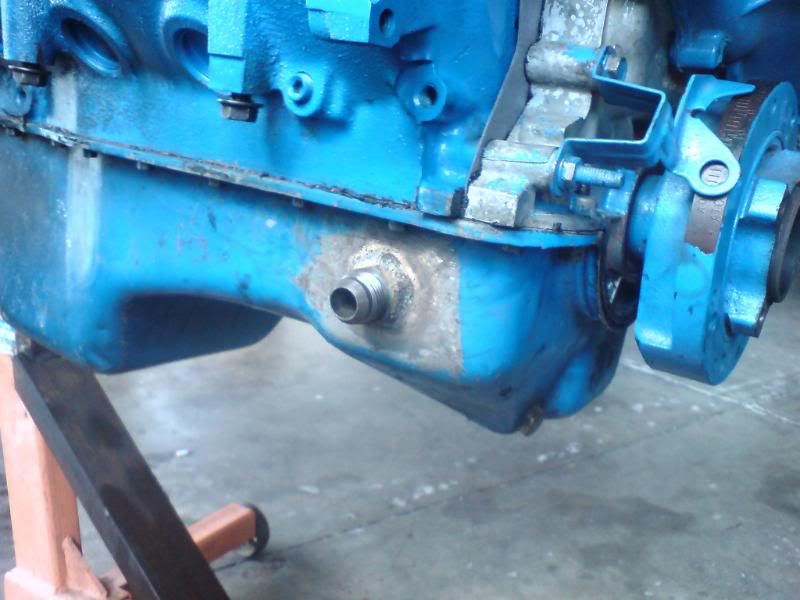

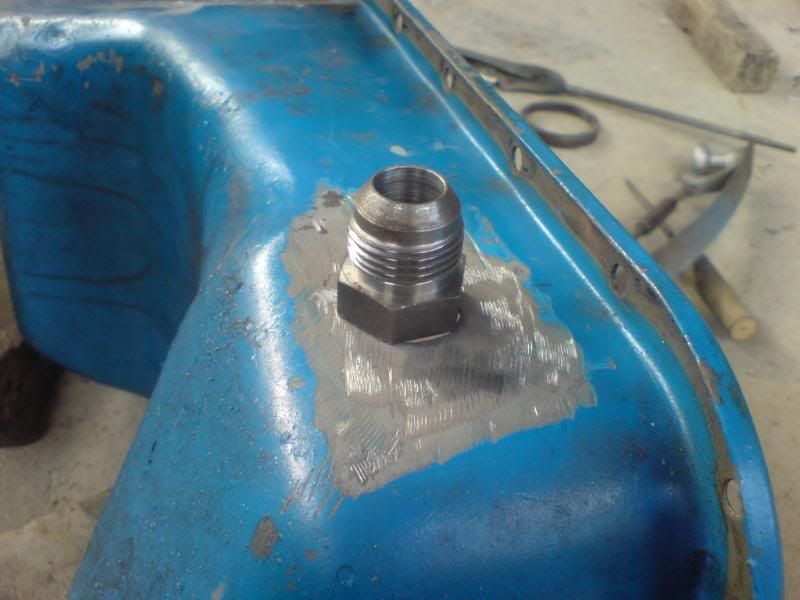

Here is how i did mine using vortech instruccions, I have a bg hot side but it doesnt matter which one you have...












Turbomustang

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Mesarina is offline
post #6 of 10 Old 07-02-2010, 01:29 PM
Authorized corral.net Advertiser

Trader Feedback: (13)
Join Date: Mar 2001
Location: Columbus
Posts: 2,829
Both sit on the passenger side and thats why I normally use that same diagram for the drain in as well. I believe I have some photos of when I did my pan on the computer at home if you needed any other photos but I think the post above has all details you really need. If tapping it though, we use a 3/8"npt tap as thats what size barb the kit comes with.
On 3 Performance is offline
post #7 of 10 Old 07-02-2010, 01:32 PM Thread Starter
Registered User

Trader Feedback: (36)
Join Date: Jan 2003
Location: florida
Posts: 1,549
Thanks guys!!!!
cbibb is offline
post #8 of 10 Old 07-03-2010, 06:26 PM
Registered User

nmcgrawj's Avatar

Trader Feedback: (2)
Join Date: Aug 2004
Location: Ann Arbor, Mi
Posts: 1,536
Hey mesarina, is that welded to the pan?

-Nate
'95 GT
nmcgrawj is offline
post #9 of 10 Old 07-06-2010, 09:45 PM
Authorized corral.net Advertiser

Trader Feedback: (13)
Join Date: Mar 2001
Location: Columbus
Posts: 2,829
Im about positive from the looks of that, its welded
On 3 Performance is offline
post #10 of 10 Old 07-12-2010, 12:40 AM
Registered User

Trader Feedback: (0)
Join Date: May 2005
Location: Guatemala
Posts: 842
Quote:
Originally Posted by nmcgrawj View Post
Hey mesarina, is that welded to the pan?
Yes it is


Turbomustang

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Mesarina is offline
