Discuss EFI Victor Spyder intake

Okay open topic for discussion: I am contemplating switching from the 94/95 factory style Cobra upper and lower to a Edelbrock or Wilsons EFI Victor short runner manifold.

My current combo is Dart 4.125" 347ci, AFR185, custom ground cam (.598"/.579", 234*/236* dur, 116* lobe separation, intake on center at 112*) and matched springs, Precision T76, Aeromotive Eliminator fuel system to power the space shuttle, 75mm T/B, 60lb inj., AEM EMS, EPM and LS2 Coils etc. Drive train is a Viper T56 and 3.27 rear gears

My requirements:
Retain heater even if I have to redesign the heater tube or create my own out of hose and or tubing and fittings.
Clear factory hood (MM K-Member and Energy Suspension mounts).
F/B style T/B needs to clear Moroso Fabricated V/Cs.
Will my Aeromotive/Trick Flow fuel rails work or could I make them work with a bracket to mount them?


My reasons:
Switch to an 80mm T/B
Mount LS2 Coils on the V/C
Open Cold side to 4" from intercooler
Lighter manifold and elbow combination
Easier to work on by pulling the T/B off the elbow vs removing entire upper manifold.

Pics would be helpful if any of you have a 94/95 with this set up.

Talk me into or out of this swap. I posted the same in the 94/95 tech but realized I would get better info in here.

kbscobravert is offline
Sponsored Links
Advertisement

post #2 of 23 Old 05-04-2009, 04:37 PM
Registered User

DsuperA's Avatar

Trader Feedback: (5)
Join Date: Feb 2000
Location: Warner Robins Ga.
Posts: 979
Well if you decide to do that and need the spyder elbow upper, I've got a new one that I had professionally ported I ended up not using. Let it go for 120 shipped.


88lx coupe supercharged 351w.....sold but not forgotten.
DsuperA is offline
post #3 of 23 Old 05-04-2009, 04:41 PM
Registered User

331merc's Avatar

Trader Feedback: (8)
Join Date: Sep 2002
Location: Glen Ellyn Il.
Posts: 1,185
The issue is usually the intake elbow. The low profile ones will not or barley clear the fuel rails. The taller ones obviouslly have hood clearance issues.

Do you have access to someone local that can fabricate you a intake elbow? That is your best bet. A tight radius 3.5" bend would work well. Then you can place the throttle body where ever you need it. We did that on my car. I run the Vic Sr. (taller than the Jr) and a 4" (4"center line radius) intake elbow. Was pretty simple to make. Looks great and clear every thing including the tall Ford Motorsport valve covers. I just prefer the short ones. And it clears the stock hood, shock tower, etc. It is also a 90mm throttle body. All the off the shelf elbows I tried would not work. Yes it is a foxbody but you get the point. Material was cheap. Like $40. So some labor was worth it. Something you may want to look in to.



fyi, the Edelbrock short profile elbow does not even clear their fuel rails on that intake. So you have to run a spacer. What good is a low profile elbow if you need a spacer to make it work???

Buy the fuel rails with the intake. They are specific to the intake and not worth making or modifying yours to work. The Edelbrock ones are like $80 a pair. You can't beat that.

The heater tube will not work. Some barb fittings and rubber hose takes care of that. The issue could be the coolant temp sensor the ECU uses. In the foxbody the one in the intake is just for the temp gauge. The one in the heater tube is the one the ECU uses. And with a temp sending unit for the gauge in the intake there was no room for the other sender. You have two options. Drill and tap the intake some where else for the sender. Or make a contraption like mine (not pictured). lol The heater hose and sending unit are in the same spot. It doesn't look bad and works fine. If we had thought about this before I may have changed the way we did it. Oh well. Next time. hahaha

Mike 1986 Capri street car w/ a/c, p/s & p/w
Custom built T6 80mm s400sx based kit Shaunthony's built (Twin Trouble and Anthony Fury)
9.31 @ 146 1.39 60' on drag radials @ 3735# Kurgan tuned AEM EMS
80mm 718rwhp new 88mm 921rwhp No new track times yet

Last edited by 331merc; 05-04-2009 at 04:43 PM.
331merc is offline
Sponsored Links
Advertisement

post #4 of 23 Old 05-05-2009, 01:12 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
Quote:
Originally Posted by 331merc View Post
The issue is usually the intake elbow. The low profile ones will not or barley clear the fuel rails. The taller ones obviouslly have hood clearance issues.

Do you have access to someone local that can fabricate you a intake elbow? That is your best bet. A tight radius 3.5" bend would work well. Then you can place the throttle body where ever you need it. We did that on my car. I run the Vic Sr. (taller than the Jr) and a 4" (4"center line radius) intake elbow. Was pretty simple to make. Looks great and clear every thing including the tall Ford Motorsport valve covers. I just prefer the short ones. And it clears the stock hood, shock tower, etc. It is also a 90mm throttle body. All the off the shelf elbows I tried would not work. Yes it is a foxbody but you get the point. Material was cheap. Like $40. So some labor was worth it. Something you may want to look in to.



fyi, the Edelbrock short profile elbow does not even clear their fuel rails on that intake. So you have to run a spacer. What good is a low profile elbow if you need a spacer to make it work???

Buy the fuel rails with the intake. They are specific to the intake and not worth making or modifying yours to work. The Edelbrock ones are like $80 a pair. You can't beat that.

The heater tube will not work. Some barb fittings and rubber hose takes care of that. The issue could be the coolant temp sensor the ECU uses. In the foxbody the one in the intake is just for the temp gauge. The one in the heater tube is the one the ECU uses. And with a temp sending unit for the gauge in the intake there was no room for the other sender. You have two options. Drill and tap the intake some where else for the sender. Or make a contraption like mine (not pictured). lol The heater hose and sending unit are in the same spot. It doesn't look bad and works fine. If we had thought about this before I may have changed the way we did it. Oh well. Next time. hahaha

Thanks for the info. I have a line on a probe spyder manifold and have looked at the Edelbrocks for the 302. I have a guy that is doing the install for me (Brooks "turbostang" on the boards) who does custom builds and tons of custom fabrication for people in the DFW area all on the side. I am going to have him build an elbow so it will clear the tall Moroso fabricated valve covers. Would be cool to figure out how to switch to a 4v oval throttle body for hood clearence, would need to figure out the IAC ports and mounting though.

I looked up the Edelbrock fuel rails and you are right for $80 you can't beat that. I just wished they were straight cut -an threads instead of pipe thread. I already have all the fittings for my Aeromotive (Trickflow) rails of wich I have two sets now.

For the heater and the temp gauges I may drill and tap the rear of the manifold. Not that I need the factory temp gauge to work since I have an AEM water temp going in and it uses the same sensor and signal as the ECM sending unit does. The heater I may do myself when I get home in August I would rather run all -an fittings and hose up to the firewall anyways. (would be cool to tig -an bungs to the heater core but should have done that when the motor was out)

Where did you get the flanges to use on the elbow?
kbscobravert is offline
post #5 of 23 Old 05-05-2009, 08:35 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
What about switching to the Accufab 4150 flanged 4bbl throttle body? It has an IAC built into it and would give tons more hood clearance with a carb hat.
kbscobravert is offline
post #6 of 23 Old 05-05-2009, 12:10 PM
Registered User

Trader Feedback: (0)
Join Date: May 2006
Location: Houston, Tx.
Posts: 4,744
Quote:
Originally Posted by kbscobravert View Post
What about switching to the Accufab 4150 flanged 4bbl throttle body? It has an IAC built into it and would give tons more hood clearance with a carb hat.
It's close, just about got mine to clear.

Requires use of AEM plug-n-play computer to make the TB sensors work
though.

Mine is on a 351W too, would easily clear on a 8.5" deck block




Democracy is two wolves and a sheep sitting down and voting on whats for lunch.

Last edited by r.barn; 05-05-2009 at 12:16 PM.
r.barn is offline
post #7 of 23 Old 05-05-2009, 12:19 PM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
Quote:
Originally Posted by r.barn View Post
It's close, just about got mine to clear.

Requires use of AEM plug-n-play computer to make the TB sensors work
though.



man I just tried to send you a pm with some questions about this stuff. your box is full. lol


the car is a '95 Cobra with a MM K-member and a Dart 8.2 based block.

but yep I have an AEM ECM with EPM and LS2 coils etc.
kbscobravert is offline
post #8 of 23 Old 05-05-2009, 12:30 PM
Registered User

Trader Feedback: (0)
Join Date: May 2006
Location: Houston, Tx.
Posts: 4,744
hmmm, thanks didnt know my box was full, fixed.

It will clear your hood, especially if you get inventive with intake pipe
routing like I did and have the 302 based block.

We never could figure out how to make the IAC work, but the AEM idles
my engine with 240 dur / .625 lift cam with no IAC at 900rpm just fine.

There was a guy on the AEM forums that said he got his IAC to work somehow.

Used a $30 throttle cable for 1986 Mustang from Autozone and a custom
cable mounting bracket.

Works like a charm

Other routing I've tried


Democracy is two wolves and a sheep sitting down and voting on whats for lunch.
r.barn is offline
post #9 of 23 Old 05-05-2009, 12:34 PM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
Quote:
Originally Posted by r.barn View Post
hmmm, thanks didnt know my box was full, fixed.

It will clear your hood, especially if you get inventive with intake pipe
routing like I did and have the 302 based block.

We never could figure out how to make the IAC work, but the AEM idles
my engine with 240 dur / .625 lift cam with no IAC at 900rpm just fine.

There was a guy on the AEM forums that said he got his IAC to work somehow.

Used a $30 throttle cable for 1986 Mustang from Autozone and a custom
cable mounting bracket.

Works like a charm

Other routing I've tried

Well here I will put the pm up here so others can use the info too.

Have you figured out a way to do cruise control on the throttle linkage?
Got any more file pics that may mean nothing but could help with the throttle linkage and what not?
Did you retain the heater, how is it plumbed?

I am sure I will have more questions.

I am wanting to fit it all under a stock '95 Cobra hood. So far a 94-95 Cobra manifold with a 3/8" spacer clears. Would love to know what the combined height is from block deck to compare with.

Guess I need to start ordering some more parts.
kbscobravert is offline
post #10 of 23 Old 05-05-2009, 12:50 PM
Registered User

Trader Feedback: (0)
Join Date: May 2006
Location: Houston, Tx.
Posts: 4,744
There is a heater core port on top of the intake
just screw in barb'd 90 and run heater hoses back to heater core.
They lay flat next to fuel rail and look fine.

Screwd temp sensor into T-stat housing hole

No cruise control. Not a big deal for me.
You could always be the first to make it work


Democracy is two wolves and a sheep sitting down and voting on whats for lunch.
r.barn is offline
post #11 of 23 Old 05-05-2009, 01:01 PM
Registered User

331merc's Avatar

Trader Feedback: (8)
Join Date: Sep 2002
Location: Glen Ellyn Il.
Posts: 1,185
Quote:
Originally Posted by kbscobravert View Post
Thanks for the info. I have a line on a probe spyder manifold and have looked at the Edelbrocks for the 302. I have a guy that is doing the install for me (Brooks "turbostang" on the boards) who does custom builds and tons of custom fabrication for people in the DFW area all on the side. I am going to have him build an elbow so it will clear the tall Moroso fabricated valve covers. Would be cool to figure out how to switch to a 4v oval throttle body for hood clearence, would need to figure out the IAC ports and mounting though.

I looked up the Edelbrock fuel rails and you are right for $80 you can't beat that. I just wished they were straight cut -an threads instead of pipe thread. I already have all the fittings for my Aeromotive (Trickflow) rails of wich I have two sets now.

For the heater and the temp gauges I may drill and tap the rear of the manifold. Not that I need the factory temp gauge to work since I have an AEM water temp going in and it uses the same sensor and signal as the ECM sending unit does. The heater I may do myself when I get home in August I would rather run all -an fittings and hose up to the firewall anyways. (would be cool to tig -an bungs to the heater core but should have done that when the motor was out)

Where did you get the flanges to use on the elbow?

I know if Brooks. You are in good hands. He should be able to make the elbow with ease.

I had a EGR delete plate already. So we used that for the throttle body and cable bracket mount. So the cruise control and AOD TV cable could be used. The base we made a plate on the cnc machine. To make it real nice. But you could make a base plate with simple hand tools with no problem. Flat stock, drill four mounting holes, hole saw the center and grind to finish the center hole.

The oval throttle body may make it much harder to fabricate with out gaining a lot of clearance. Plus you would have to look at the cable hook ups, tps, etc. I am sure it can be done. Not sure it would be worth the effort.

I bet you could get the elbow & throttle body under 6" from the intake mounting flange with a 3.5" elbow. The center line of a 3.5" tight radius or donut is 3.5". So add another 1.75" (half of the 3.5" diameter) to the 3.5" CLR. That is 5.25". Now add for the .50" mounting flange. That is 5.75". I don't know how high the throttle body and carb hat would be like r.barn is using. But I doubt it is much lower than that. If not taller yet. A holly carb in my office is almost 5" tall. So not sure how much lower the EFI unit is.

Do they make drop motor mounts for your year? That is another great help as well.

The AEM is a big help when doing custom stuff for sure. But in the past I have had issues running a temp gauge in the rear of the intake. I would get spikes and higher readings all the time. With out a cross over in the back I think you get poor fluid movement back there. And the water sits there getting hot till rpms climb. I would try and keep the sender in the front port of the intake. Seemed to be a more accurate spot. Some thing to think about and look into.

Mike 1986 Capri street car w/ a/c, p/s & p/w
Custom built T6 80mm s400sx based kit Shaunthony's built (Twin Trouble and Anthony Fury)
9.31 @ 146 1.39 60' on drag radials @ 3735# Kurgan tuned AEM EMS
80mm 718rwhp new 88mm 921rwhp No new track times yet
331merc is offline
post #12 of 23 Old 05-05-2009, 03:42 PM
Registered User

privatejoker's Avatar

Trader Feedback: (3)
Join Date: Sep 2004
Location: overland park kansas
Posts: 1,304
Quote:
Originally Posted by kbscobravert View Post
Would be cool to figure out how to switch to a 4v oval throttle body for hood clearence
I'm interested in a spyder with this style tbody. Has anyone done it? Is there generic tubing available to fit this style or would I need to pilage a CAI?
privatejoker is offline
post #13 of 23 Old 05-06-2009, 01:30 AM
Registered User

Trader Feedback: (0)
Join Date: Feb 2006
Location: Portland, OR
Posts: 114
Why do you want to increase your coldside piping to 4" after the intercooler, you will lose your velocity.

1965 Cobra replica with twin turbo Dart block 331
thomaswpt is offline
post #14 of 23 Old 05-06-2009, 05:32 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
Quote:
Originally Posted by thomaswpt View Post
Why do you want to increase your coldside piping to 4" after the intercooler, you will lose your velocity.
Then is it safe to assume that the shorter the coldside the more velocity then? If so I will be able to cut the entire coldside pipping by half if I go to driverside T/B.
kbscobravert is offline
post #15 of 23 Old 05-06-2009, 08:18 AM
Registered User

91GT331's Avatar

Trader Feedback: (0)
Join Date: Aug 2005
Location: Thurmont,Md.
Posts: 64
Awesome setups guys. You said something about running a 4v TB. Pro M(Yes,theyre in business again), makes a adapter plug they say...

"This adapter allows use of more modern mass air meters in earlier vehicles. One end connects to later model meters with 4 and 6 pin rectangular connectors. The other end connects to the 4 pin oval harness connector found in earlier Ford vehicles. This adapter is far superior, cleaner looking, and much more reliable than the goofy pigtail adapters offered by our competition.
Retail Price $50"

Im not sure if that will work for you or not. Thought I'd throw it out there though.

Almost at the bottom of the page.
http://www.promracing.com/products.htm

331,twisted wedge,TFS stage 1 cam,performer RPM,Pro-M
91GT331 is offline
post #16 of 23 Old 05-06-2009, 10:15 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
That is for the MAF connector, thanks for the input though.
Speed density thru the AEM here. Besides making a 4v single blade would be way more trouble than it's worth I am sure.
kbscobravert is offline
post #17 of 23 Old 05-06-2009, 11:03 AM
Registered User

blacksaleen95's Avatar

Trader Feedback: (10)
Join Date: Feb 2002
Location: Asheville, NC
Posts: 709
I've got the GM stepper-type iac motor working with the mustang ems's.....

those looking to do the same can pm me for the info.

Have you checked out the sullivan low-pro elbow?

http://www.sullivanperformance.com/Y.../tbadapter.htm

I think this will be on my upcoming setup
blacksaleen95 is offline
post #18 of 23 Old 05-06-2009, 11:33 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
Quote:
Originally Posted by crazycoupe351 View Post
I've got the GM stepper-type iac motor working with the mustang ems's.....

those looking to do the same can pm me for the info.

Have you checked out the sullivan low-pro elbow?

http://www.sullivanperformance.com/Y.../tbadapter.htm

I think this will be on my upcoming setup
man I saw those and wondered how would it clear a 94-95 car with all factory accessories and brackets (no distributor but I do have an EPM). Would a front facing t/b be the best? This adaptor would allow the IAC and possibly the factory cruise cable also.

If I wasn't worried about cutting up the car I would rear mount the t/b and go water/air behind the dash. As it is I am trying to accomplish all mods and still retain 100% of the factory functions and outward appearance.
kbscobravert is offline
post #19 of 23 Old 05-10-2009, 06:29 PM
Registered User

privatejoker's Avatar

Trader Feedback: (3)
Join Date: Sep 2004
Location: overland park kansas
Posts: 1,304
Quote:
Originally Posted by crazycoupe351 View Post
I've got the GM stepper-type iac motor working with the mustang ems's.....

those looking to do the same can pm me for the info.

Have you checked out the sullivan low-pro elbow?

http://www.sullivanperformance.com/Y.../tbadapter.htm

I think this will be on my upcoming setup
Very cool, any idea if the tps function for the 4v is the same as the 5.0 style?
privatejoker is offline
post #20 of 23 Old 05-10-2009, 06:31 PM
Registered User

blacksaleen95's Avatar

Trader Feedback: (10)
Join Date: Feb 2002
Location: Asheville, NC
Posts: 709
yup....tps is just going to be a 0-5v sensor... could prob use with a stock ecu, will for sure work with the aem.
blacksaleen95 is offline
post #21 of 23 Old 05-11-2009, 06:37 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
Looks like I am going Accufab 90mm and elbow for a driverside inlet. If Accufab will sell me the 4bl and allow me to return the one that I can not get to work with the factory hood.
kbscobravert is offline
post #22 of 23 Old 05-11-2009, 06:39 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565
r.barn can you give me the installed height from manifold base/block to the top of the stud on the hat?
kbscobravert is offline
post #23 of 23 Old 05-07-2010, 10:48 AM Thread Starter
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,565

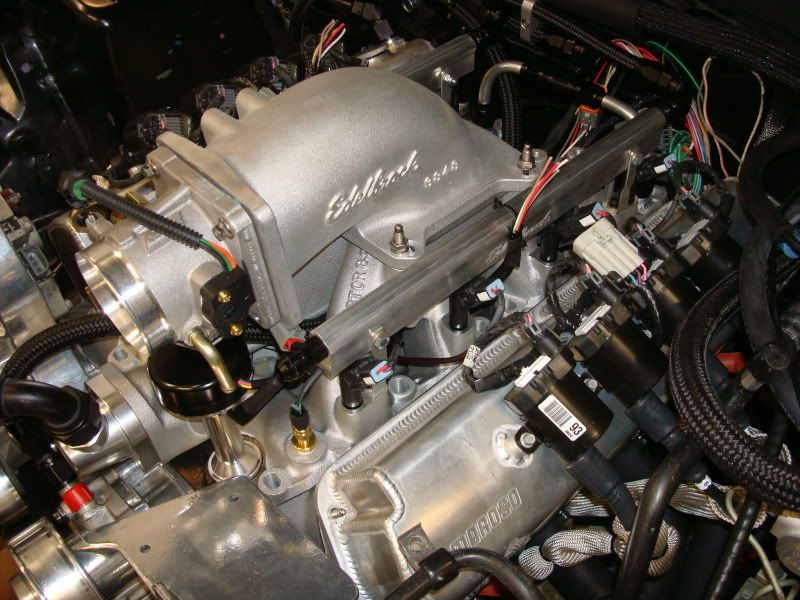

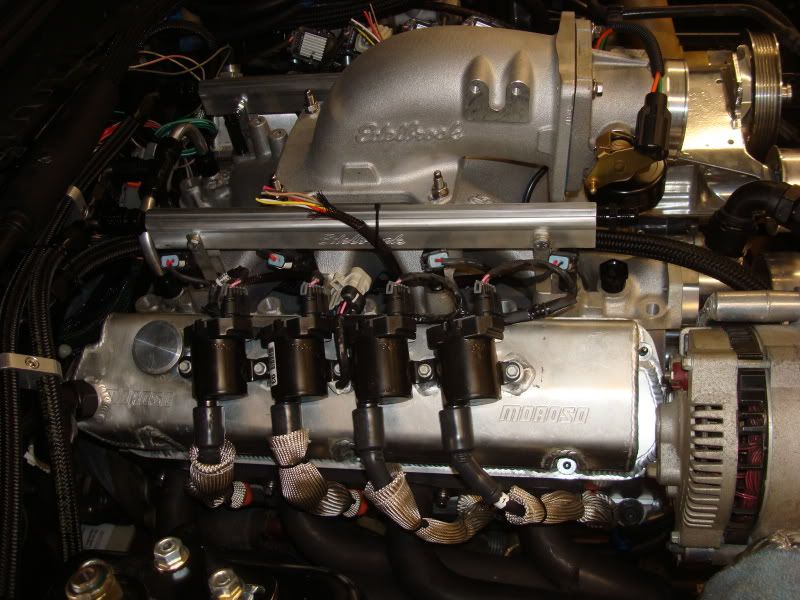

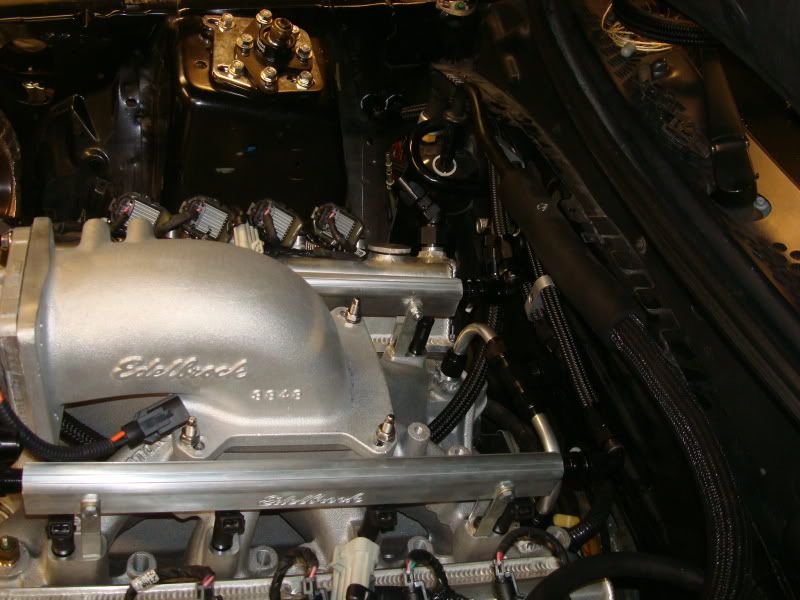

I still have tons to do before she is up and running but here is where I am at. Even clears the factory hood without any k-member modifications. I did have to machine down the intake manifold inlet pad .3750".







somanycorners likes this.
kbscobravert is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
Discuss EFI Victor Spyder intake kbscobravert 94/95 Tech 31 07-29-2009 07:27 AM
EFI Victor intake and EFI Spyder elbow silver88coupe Windsor Engine Parts 15 06-08-2008 11:07 PM
Spyder EFI Victor Jr intake gray86hatch Windsor Engine Parts 15 03-15-2008 03:17 PM
EFI Spyder intake Victor Jr. 5.0 jako30 Fuel System & Related 4 01-08-2007 10:44 PM
Victor Jr Spyder Efi Intake speedracer1260 Fuel System & Related 8 07-29-2005 06:44 AM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
