Custom Single Turbo setup

Finally getting a start on my single turbo kit for the 1991 notchback I bought last year. Car is my DD in the summer, 1991 5.0 auto with 177k bone stock. Currently installing a custom single kit, tko 600 , classic FAST system and a few suspension mods and rearend work. For the turbo kit I'm using a pony down hotside, and my own custom 3" coldside piping. I have the entire coldside tacked together but I have a small decision to make about joining the pipe between the fender and the TB. I have two options:

A) Use a v-band to join the pipe in the fender and the TB pipe, would look clean and make it easy to take pipe off to change spark plugs. Problem is that Im not sure that the v-bands can be used on the pressure side, are they airtight like a silicone sleeve?

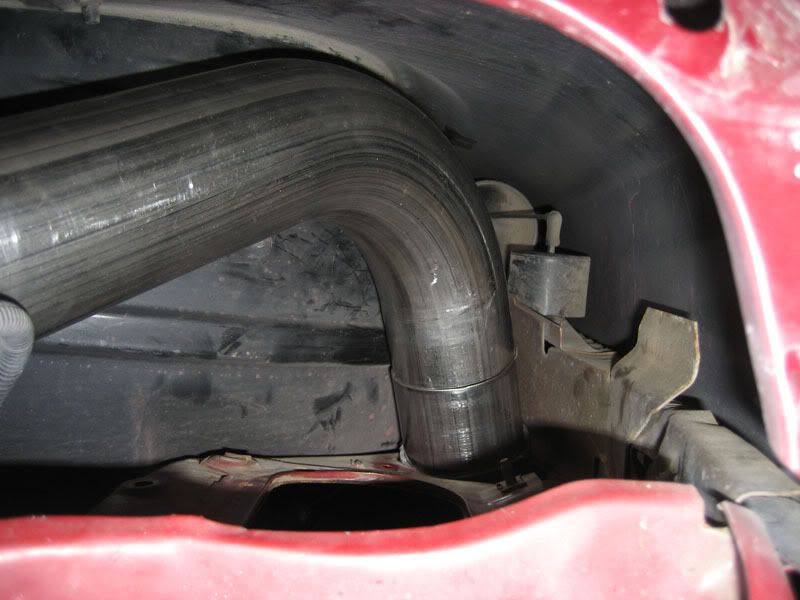

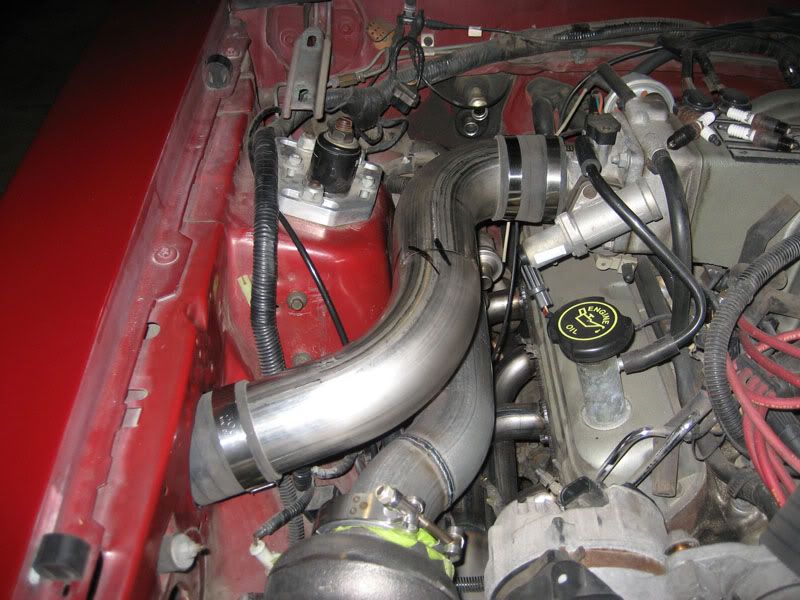

B) Install a silicon sleeve as you see in the pictures below, have one t-bolt in the fender and one in the engine bay. I am leaning towards this method, but want to see what you guys think.

I will come back and update this thread as things progress.

[IMG][/IMG]
[IMG][/IMG]




got9lbs is offline
Sponsored Links
Advertisement

post #2 of 11 Old 04-09-2009, 10:58 PM
Registered User

Trader Feedback: (2)
Join Date: Dec 2005
Location: Diamond Bar, CA
Posts: 300
I'd go with the silicone sleeve. I wouldn't trust a v-band assembly to hold boost as much as I would a silicone sleeve.


SOLD, but not forgotten... '93 Reef Blue LX Notch, 286/292... Tuned by Steve @ Powertrain Dynamics
SonicFox is offline
post #3 of 11 Old 04-09-2009, 11:33 PM
Registered User

Trader Feedback: (0)
Join Date: Aug 2004
Location: vancouver
Posts: 174
nice work, if you want to get trick you can use a wiggins clamp
http://www.burnsstainless.com/Hardwa...insclamps.html

Last edited by DR.GRIP; 04-09-2009 at 11:36 PM.
DR.GRIP is offline
Sponsored Links
Advertisement

post #4 of 11 Old 04-10-2009, 09:38 AM Thread Starter
Registered User

Trader Feedback: (4)
Join Date: Nov 2004
Location: Michigan
Posts: 360
Wow good thing I was sitting down! Those clamps are $208 each, I'll just stick to the silicone and t-bolts. I will say they are slick looking!
got9lbs is offline
post #5 of 11 Old 04-10-2009, 11:06 AM
Registered User

-venom-'s Avatar

Trader Feedback: (0)
Join Date: Apr 2009
Location: South FL
Posts: 92
Wow those are sweet clamps but pricey.
-venom- is offline
post #6 of 11 Old 04-10-2009, 11:17 AM
Registered User

Trader Feedback: (0)
Join Date: May 2006
Location: Houston, Tx.
Posts: 4,744
Nothing wrong with V-bands on cold side.

Yes they will seal. Much better than silicone couplers.
Check out cold side pipes on some Pro-stock turbo cars sometimes.........

Couplers give the system somewhere to flex, so you do need some
but a V-band isnt going to "blow off" like a coupler.

Democracy is two wolves and a sheep sitting down and voting on whats for lunch.
r.barn is offline
post #7 of 11 Old 04-10-2009, 11:26 AM
Registered User

Trader Feedback: (0)
Join Date: Aug 2004
Location: vancouver
Posts: 174
Quote:
Originally Posted by got9lbs View Post
Wow good thing I was sitting down! Those clamps are $208 each, I'll just stick to the silicone and t-bolts. I will say they are slick looking!
yeah they are up there, ive seen them on ebay for 45 dollars, but i dont know how the quality is.
DR.GRIP is offline
post #8 of 11 Old 04-10-2009, 10:14 PM
Registered User

STANGFREEK94's Avatar

Trader Feedback: (27)
Join Date: Mar 2004
Location: EASTERN SHORE, MARYLAND
Posts: 810
I got V-bands from these guys. They are very nice. Had a tounge and groove receiver type setup. 1 side has a groove, the other has a lip that sits in the groove for perfect alighnment. This was @ 1.5 years ago. But, you can call and ask them if they still have that type. I used it on my hot and cold side. No issues what so ever.
http://racepartsolutions.com/products.asp?cat=106

1994, 347, 78mm, alot, NO-you can't!
STANGFREEK94 is offline
post #9 of 11 Old 04-11-2009, 04:57 PM
Registered User

PUR PONY's Avatar

Trader Feedback: (4)
Join Date: Sep 2000
Location: S.E CT
Posts: 1,484
im building my new intake pipe today and am using a racepartssolution v-band on my pressure side. It has an o-ring for holding pressure. Ill post pics later.

-'89 Coupe - Incon Twin Turbo - Sheetmetal Elbow on a EFI Victor-Trick Flow Heads-Viper T56-RXT-Baer Brakes-iforged Wheels-Griggs,MM,KB-DFI-
PUR PONY is offline
post #10 of 11 Old 04-11-2009, 05:03 PM Thread Starter
Registered User

Trader Feedback: (4)
Join Date: Nov 2004
Location: Michigan
Posts: 360
hmm shoot me a link if you dont mind

got9lbs is offline
post #11 of 11 Old 04-11-2009, 06:24 PM
Registered User

PUR PONY's Avatar

Trader Feedback: (4)
Join Date: Sep 2000
Location: S.E CT
Posts: 1,484
here is a pic of what i have tack welded together so far. Hope to finish it up tonight.



finished it up last night-


-'89 Coupe - Incon Twin Turbo - Sheetmetal Elbow on a EFI Victor-Trick Flow Heads-Viper T56-RXT-Baer Brakes-iforged Wheels-Griggs,MM,KB-DFI-

Last edited by PUR PONY; 04-14-2009 at 01:48 PM.
