post #141 of 291 Old 12-28-2008, 07:39 PM
Registered User

1trkpny's Avatar

Trader Feedback: (1)
Join Date: Nov 2002
Location: Dededo, Guam
Posts: 611
The links to bearings and seals not working. Anybody else know where to source these?

Are the high-speed bearings that expensive, over $150?
According to this link its $198: http://bearingsdirect.com/store/inde...t_detail&p=515

My S-Trim appears to be leaking oil and ending up in my discharge tube to throttle body. How difficult is just changing this seal?
This would be the compressor seal, correct?


1966 Vert: Work in progress, 6-cyl to EFI 302, AOD, Coilovers.
1989 GT:Ford Stroker 347, S-trim,TFS CNC 205, RPM II, Dynamic C4, Megasquirt, Baseline rear, UPR front.
2015 GT, Auto, Premium Package, Whipple 2.9, Corsa Catback.

Last edited by 1trkpny; 12-28-2008 at 07:42 PM.
1trkpny is offline
Sponsored Links
Advertisement

post #142 of 291 Old 12-28-2008, 09:46 PM
Registered User

TimP's Avatar

Trader Feedback: (89)
Join Date: Jan 2005
Location: Tonawanda, NY
Posts: 3,580
I can get them a bit cheaper... I work for one of the bearing distributors mentioned in the first post. Let me know what parts you need and I'll PM you a price.


Electric Currant Red 93 LX Hatch: July 98 MM&FF Feature Car, 9.39 @ 144.
Dark Grey Metallic 87 LX Notch: gears, exhaust, shift kit.
TimP is offline
post #143 of 291 Old 12-29-2008, 12:06 AM
Registered User

92rohcp's Avatar

Trader Feedback: (52)
Join Date: Sep 2003
Location: Fort Kent, Maine
Posts: 4,323
Quote:
Originally Posted by 1trkpny View Post
The links to bearings and seals not working. Anybody else know where to source these?

Are the high-speed bearings that expensive, over $150?
According to this link its $198: http://bearingsdirect.com/store/inde...t_detail&p=515

My S-Trim appears to be leaking oil and ending up in my discharge tube to throttle body. How difficult is just changing this seal?
This would be the compressor seal, correct?
If its your output shaft seal leaking into your discharge tube than you might have an issue with crankcase backpressure from blowby or incorrect routing of PVC system. Excessive crankcase pressure can travel up the S/C drain tube and make that seal leak. If you need to change that seal everything must come apart to get to it so a bearing refresh would be smart. You may also damage the bearings when disasembling the S/C.

15 GTPP OW 2.9L Whipple

SOLD 92LX Dart 363 KB2.8LC Custom A2A with Stinger PIMP EMS 11.4 ET trap 138 MPH no Dyno time.
"The sound is unnatural and not of this world, like a screeching velociraptor with the flames of hell licking it's ass"
92rohcp is offline
Sponsored Links
Advertisement

post #144 of 291 Old 12-29-2008, 12:22 AM
Registered User

1trkpny's Avatar

Trader Feedback: (1)
Join Date: Nov 2002
Location: Dededo, Guam
Posts: 611
Quote:
Originally Posted by 92rohcp View Post
If its your output shaft seal leaking into your discharge tube than you might have an issue with crankcase backpressure from blowby or incorrect routing of PVC system. Excessive crankcase pressure can travel up the S/C drain tube and make that seal leak. If you need to change that seal everything must come apart to get to it so a bearing refresh would be smart. You may also damage the bearings when disasembling the S/C.
Even if I run an open breather setup (no pcv)? Wouldn't the excess pressure go out the valve cover breather?

I just replace my head gasket because number 2 cylinder had zero compression (HG pushed in towards lifter valley).

1966 Vert: Work in progress, 6-cyl to EFI 302, AOD, Coilovers.
1989 GT:Ford Stroker 347, S-trim,TFS CNC 205, RPM II, Dynamic C4, Megasquirt, Baseline rear, UPR front.
2015 GT, Auto, Premium Package, Whipple 2.9, Corsa Catback.
1trkpny is offline
post #145 of 291 Old 12-29-2008, 12:58 AM
Registered User

92rohcp's Avatar

Trader Feedback: (52)
Join Date: Sep 2003
Location: Fort Kent, Maine
Posts: 4,323
That should keep the PCV system from closing under boost, but you may still need to vent the other valve cover.

15 GTPP OW 2.9L Whipple

SOLD 92LX Dart 363 KB2.8LC Custom A2A with Stinger PIMP EMS 11.4 ET trap 138 MPH no Dyno time.
"The sound is unnatural and not of this world, like a screeching velociraptor with the flames of hell licking it's ass"
92rohcp is offline
post #146 of 291 Old 08-25-2009, 01:06 AM
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,194
What does the nut on the compressor housing need to be torqued to? Does anyone have the torque specs including the case?

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #147 of 291 Old 09-08-2009, 04:19 PM
Registered User

Trader Feedback: (1)
Join Date: Aug 2000
Location: st.paul MN
Posts: 399
Where are you guys getting these seals??? I have tried all over ?????

91 Silver coupe KC B50 331 Tremec, AFR 185's Track Heat intake, Aeromotive fuel system, 50 pound injectors PMS Vortech t-trim yadeda And I wonder why I cant move out?
Blown5.0lx is offline
post #148 of 291 Old 09-08-2009, 08:26 PM
Registered User

Trader Feedback: (1)
Join Date: Aug 2000
Location: st.paul MN
Posts: 399
WTF, superchargerrebuild.com wants $90 for these seals. the price list out at $4 each...

91 Silver coupe KC B50 331 Tremec, AFR 185's Track Heat intake, Aeromotive fuel system, 50 pound injectors PMS Vortech t-trim yadeda And I wonder why I cant move out?
Blown5.0lx is offline
post #149 of 291 Old 09-20-2009, 09:16 PM
Registered User

Trader Feedback: (4)
Join Date: Apr 2005
Location: CA
Posts: 167
Bumpasaurus. Have a question about the SKF 7003CD bearings. Are they the same crappy design as the ones Vortech uses? I mean there is plastic or some sort of carbon material inside the bearing holding the balls in place.

Also the part numbers for the seals, are they for the rubber seals for the S-Trim? What are the part number for the carbon seals for the SQ trim?
3 blue Merks is offline
post #150 of 291 Old 11-01-2009, 01:50 PM
Registered User

giddyup90gt's Avatar

Trader Feedback: (22)
Join Date: Oct 2004
Location: Longview, Tx
Posts: 1,292

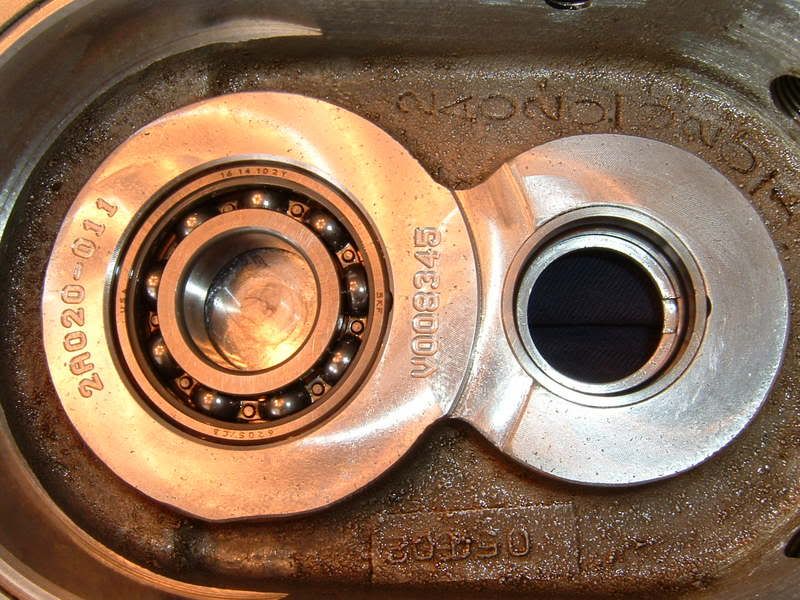

ok i have had the low speed side bearing come apart in the case and only the race remains...

any ideas on how to remove it?



giddyup90gt is offline
post #151 of 291 Old 11-02-2009, 12:23 AM
Registered User

Trader Feedback: (1)
Join Date: Aug 2000
Location: st.paul MN
Posts: 399
Quote:
Originally Posted by giddyup90gt View Post
ok i have had the low speed side bearing come apart in the case and only the race remains...

any ideas on how to remove it?

Heat the out side of the case just where the race is with a propane torch. and the race should fall out with a couple taps of a hammer on the back side.


If that dont work, sounds odd. But you can weld a bead all the way around the inside of the race. When it cools the race will literally full out.

91 Silver coupe KC B50 331 Tremec, AFR 185's Track Heat intake, Aeromotive fuel system, 50 pound injectors PMS Vortech t-trim yadeda And I wonder why I cant move out?
Blown5.0lx is offline
post #152 of 291 Old 11-02-2009, 04:47 PM
Registered User

giddyup90gt's Avatar

Trader Feedback: (22)
Join Date: Oct 2004
Location: Longview, Tx
Posts: 1,292
thanks!..i took my dremel and cut two slits in the race and then it just poped out with ease.
giddyup90gt is offline
post #153 of 291 Old 06-15-2010, 05:41 PM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
hello friends! I am really curious, that have the higher models of vortech for example V7, V9, V20 the same bearings like V1 and V2?
Elwis
elwis999 is offline
post #154 of 291 Old 06-16-2010, 12:33 AM
Registered User

Trader Feedback: (3)
Join Date: Apr 2001
Location: Los Angeles, Ca
Posts: 735
resubscribing!
fastsvo is offline
post #155 of 291 Old 06-16-2010, 05:11 AM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
Yes, I am asking, because my friend can buy two bigger (I suppose V6 and V9) vortech superchargers very cheap, and he doesn't know, he can buy the rebuild parts without problems (like for small V1 or V2 superchargers)???? If the parts (bearings, seals) are the same, he will be very enjoy
elwis999 is offline
post #156 of 291 Old 06-17-2010, 07:22 AM
Registered User

Lee8995's Avatar

Trader Feedback: (16)
Join Date: May 2000
Location: Odessa ,Tx
Posts: 4,925
Garage
Quote:
Originally Posted by elwis999 View Post
Yes, I am asking, because my friend can buy two bigger (I suppose V6 and V9) vortech superchargers very cheap, and he doesn't know, he can buy the rebuild parts without problems (like for small V1 or V2 superchargers)???? If the parts (bearings, seals) are the same, he will be very enjoy
The bigger blowers use a ceramic low speed deep groove ball bearing while the high speed side uses a ceramic bearing also but an angular contact like all the V1 and V2s. I have the numbers for a V7 somewhere, I will see of I can find them.

The real reason that we can't have the Ten Commandments posted in a courthouse is this:
You cannot post 'Thou Shalt Not Steal,' 'Thou Shalt Not Commit Adultery,' and 'Thou Shall Not Lie' in a building full of lawyers, judges and politicians...It creates a hostile work environment.
Lee8995 is offline
post #157 of 291 Old 06-17-2010, 04:17 PM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
ok, hope you still remember, thank you in advance friend!
Also I found very good kit for small vortech:

EBAY Item number: 270595247673

I know this seller, he made rebuild in my friend's eu eaton in Mercedes SLK. Friend is enjoy... But I am not sure this kit fits in bigger vortechs :/
elwis999 is offline
post #158 of 291 Old 06-17-2010, 04:43 PM
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,194
I'm going to take the pludge and re-do the seals myself. Including the main case one between the volute and gear case.

Does anyone know what to torque the impeller nut to?

Since the unit is a low mile unit will I need a "speedy race" the shop that offered to rebuild it for me said I may need one.

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #159 of 291 Old 06-17-2010, 08:54 PM
Registered User

Lee8995's Avatar

Trader Feedback: (16)
Join Date: May 2000
Location: Odessa ,Tx
Posts: 4,925
Garage
Quote:
Originally Posted by Nitrous SSC View Post
I'm going to take the pludge and re-do the seals myself. Including the main case one between the volute and gear case.

Does anyone know what to torque the impeller nut to?

Since the unit is a low mile unit will I need a "speedy race" the shop that offered to rebuild it for me said I may need one.
It will depend on what output shaft seal it has, The older viton seal wears a groove in the shaft over time but if it has the newer mechanical seal then you shouldn't have to worry about needing a "speedy sleeve". If it has a mechanical seal you can take the seal and have it lapped instead of replacing it, Look around for a John Crane shop because they repair mechanical seals and also make some of the best seals on the market. If it's a lip seal then look the shaft over real well and make sure the wear surface is clean and undamaged, Check with Gerhardt Inc. for a lip seal.

The real reason that we can't have the Ten Commandments posted in a courthouse is this:
You cannot post 'Thou Shalt Not Steal,' 'Thou Shalt Not Commit Adultery,' and 'Thou Shall Not Lie' in a building full of lawyers, judges and politicians...It creates a hostile work environment.

Last edited by Lee8995; 06-17-2010 at 08:59 PM.
Lee8995 is offline
post #160 of 291 Old 06-17-2010, 09:52 PM
Registered User

boostdcoupe's Avatar

Trader Feedback: (30)
Join Date: Jan 2010
Location: Jacksboro, Tn
Posts: 6,986
Garage
AWESOME THREAD! this should be a sticky, mods! thanks for the info guys.

replaced the 93'ish coupe with a 76 F100, 393, 11.5:1, TEA CNC 205 TW's, custom Hyd Roller, Super Vic, 830 HP, AOD, Edge custom conv., Silverfox SPT-MAC-TB.
boostdcoupe is offline
post #161 of 291 Old 06-21-2010, 10:36 AM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
so I will buy this kit from ebay, hope will be good
elwis999 is offline
post #162 of 291 Old 06-27-2010, 02:42 PM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
I bought kit form top-gear-center (ebay account name), came quick. Parts are excellent, the same like you described here in this rebuild topic. NSK super precision bearings, SKF oem bearings and german viton seals. I paid only USD 220 for all
Thank you guys for help!
elwis999 is offline
post #163 of 291 Old 06-27-2010, 10:59 PM
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,194
Post pics of install PLEASE. I need to do this badly. Also what do you torque the impeller nut to?

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #164 of 291 Old 06-27-2010, 11:17 PM
Registered User

Lee8995's Avatar

Trader Feedback: (16)
Join Date: May 2000
Location: Odessa ,Tx
Posts: 4,925
Garage
Quote:
Originally Posted by Nitrous SSC View Post
Post pics of install PLEASE. I need to do this badly. Also what do you torque the impeller nut to?
The tq on the impeller nut is 35ft lbs.

The real reason that we can't have the Ten Commandments posted in a courthouse is this:
You cannot post 'Thou Shalt Not Steal,' 'Thou Shalt Not Commit Adultery,' and 'Thou Shall Not Lie' in a building full of lawyers, judges and politicians...It creates a hostile work environment.

Last edited by Lee8995; 06-27-2010 at 11:20 PM.
Lee8995 is offline
post #165 of 291 Old 06-28-2010, 03:15 PM
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,194
So is it true that it has to be re balanced or is that a myth?

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #166 of 291 Old 06-28-2010, 07:43 PM
Registered User

Lee8995's Avatar

Trader Feedback: (16)
Join Date: May 2000
Location: Odessa ,Tx
Posts: 4,925
Garage
Quote:
Originally Posted by Nitrous SSC View Post
So is it true that it has to be re balanced or is that a myth?
Well I suppose it is but before I pull it apart I mark the shaft and impeller so I can line them back up the way they came apart, I have never had a problem with one doing it this way.

The real reason that we can't have the Ten Commandments posted in a courthouse is this:
You cannot post 'Thou Shalt Not Steal,' 'Thou Shalt Not Commit Adultery,' and 'Thou Shall Not Lie' in a building full of lawyers, judges and politicians...It creates a hostile work environment.
Lee8995 is offline
post #167 of 291 Old 06-30-2010, 03:31 AM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
parts are great, I will send you pic asap. Also seller asked me befor purchase to getting the coated seals. I didn't want. I have bought normal double lipped viton seals, not coated. Is it good choice?
elwis999 is offline
post #168 of 291 Old 07-07-2010, 12:00 PM
Registered User

302svt's Avatar

Trader Feedback: (1)
Join Date: Oct 2008
Location: Eastern, KY
Posts: 36
Where would be the cheapest place to get these parts from? I have a V-2 on a 2006 Mustang Gt.
302svt is offline
post #169 of 291 Old 07-14-2010, 04:21 AM
Registered User

Trader Feedback: (0)
Join Date: Jun 2010
Location: France
Posts: 7
simply contact the seller, who has got name on ebay:
top-gear-center
elwis999 is offline
post #170 of 291 Old 08-26-2010, 09:18 PM
Registered User

SilverSmith82's Avatar

Trader Feedback: (28)
Join Date: Oct 2002
Location: Spain
Posts: 9,911
This thread is the sex. I'm in the market for a used Vortech kit and I would want to do a rebuild on anything I got, even one with a "working" headunit. So with one of those kits I can just bust it down, and build it right back up and be good to go? Provided there is no impeller damage obviously...

Also the original link is down...

edit: NM, read the whole thread and got the link. THANKS!

-2000 Mustang GT Steeda #0048. 4V swapped, FTBR IRS, Steeda factory suspension, Ultralites, VRS X, "Exhaust Shop Special" catback.

Stock 2V computer rewired for 4V, Tuned by James Gordon.

Last edited by SilverSmith82; 08-26-2010 at 09:34 PM.
SilverSmith82 is offline
post #171 of 291 Old 03-26-2011, 03:50 PM
Banned

Trader Feedback: (0)
Join Date: Jul 2001
Posts: 359
I just replaced the leaking input shaft seal on my T trim Vortech. Will have pics up soon.
post #172 of 291 Old 07-26-2011, 12:13 AM
Registered User

9-SECGT's Avatar

Trader Feedback: (23)
Join Date: Mar 2006
Location: KENTUCKY
Posts: 950
Garage
great thread!!!awsome info!!!!

87 GT 342 A4 block Z304 YSI..
1.41 60' 9.52 @ 140
9-SECGT is offline
post #173 of 291 Old 09-10-2011, 01:59 PM
Registered User

Trader Feedback: (0)
Join Date: Jan 2005
Location: Orlando FL.
Posts: 140
I just sent my S-trim V1 back to vortech for a rebuild. The bearing behind the belt pulley started going bad and had some play. They said as long as the impellar was not rubbing on the housing and the gears inside were ok then it should be an easy rebuild. Im a tech for a living, over 10 years now so I know what to look for when it comes to things like this and I looked at the impellar and housing and there was no play in the impeller and no marks at all on the housing if it was rubbing. Vortech called me back and basically said my whole unit was junk except for the internal gears. Complete housing, bearings, impellar was rubbing on the housing and wore it down. All that was bad. Only my gears are good. $1050.00 to repair. Im wondering if they trying to screw me. They said when they try and put a new bearing in the housing that it is loose and doesnt fit right. And I know my impellar was not touching anything and had no play too. They said $1200 for a new one. Thinking of rebuilding it myself but have to pay the $100 teardown fee they dont tell you about and they take the chance what they told me was wrong which in that case I could let them keep the junk. What do you guys think?
vnmsgt is offline
post #174 of 291 Old 09-10-2011, 08:28 PM
Registered User

joeswr400's Avatar

Trader Feedback: (7)
Join Date: May 2004
Location: McHenry
Posts: 1,224
Call them back and see if they can upgrade it to the newer V3SI? Otherwise pay them the $100 and rebuild it yourself. It's not hard and I personally think their specs for wear are on the 'overly cautious' side. Everything they get in for a bearing is 'junk'

"Authority should derive from the consent of the governed, not from the threat of force!"-- Barbie TS3

fquick.com/frankenstang
joeswr400 is offline
post #175 of 291 Old 09-11-2011, 02:08 PM
Registered User

Trader Feedback: (0)
Join Date: Jan 2005
Location: Orlando FL.
Posts: 140
Quote:
Originally Posted by joeswr400 View Post
Call them back and see if they can upgrade it to the newer V3SI? Otherwise pay them the $100 and rebuild it yourself. It's not hard and I personally think their specs for wear are on the 'overly cautious' side. Everything they get in for a bearing is 'junk'
I can rebuild it without a problem. Easy for me. Just wasnt too much difference in price with me buying the bearings and stuff and them doing it so I sent it to them as I have more then enough stuff keeping me busy now. Mistake I guess. They said $1200 to upgrade to the new one but still dont want to spend that. I think I agree with you on there specs for wear. Im just hoping the housing is not bad and the bearing is loose like there trying to tell me. Gonna get it sent back and check it myself and may rebuild it. And thats what I have heard about them saying everything that gets sent in is junk.
vnmsgt is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
