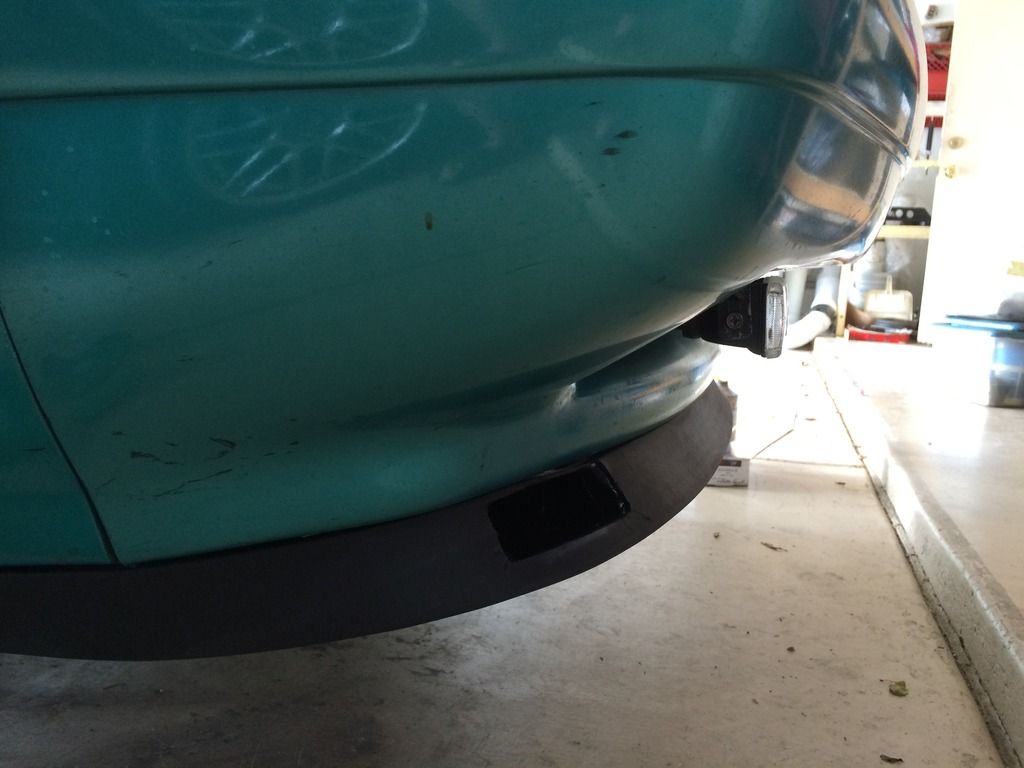

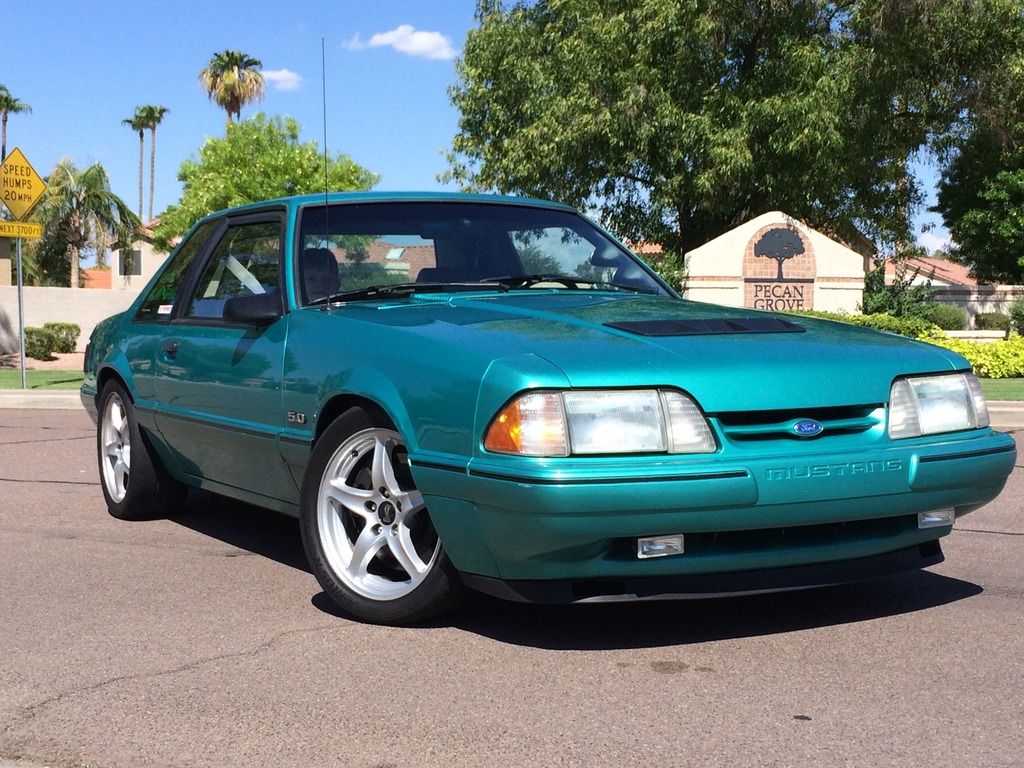

Mach 1 chin spoiler on my notch.

Finally completed the job, which included new brake ducts and the holes to feed them. It fit pretty good, I just had to slit the backing int two places so I could bend the fender extensions in to fit the fenderline without wrinkling it. I think it turned out pretty clean.

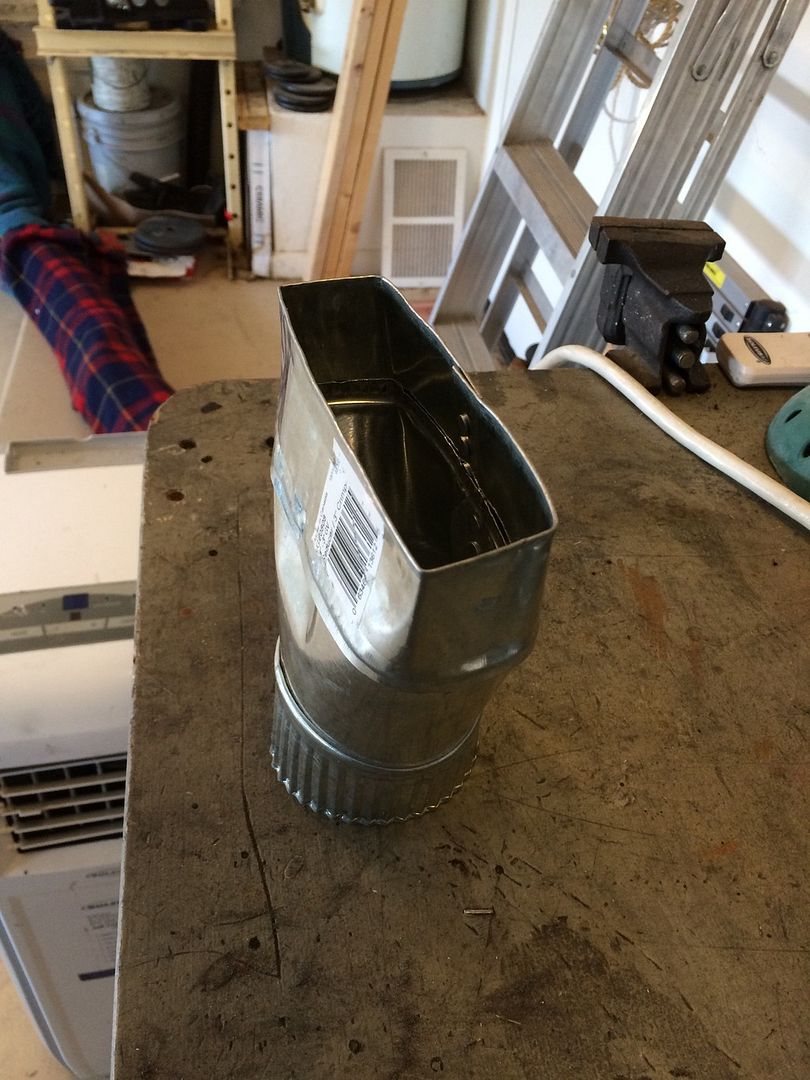

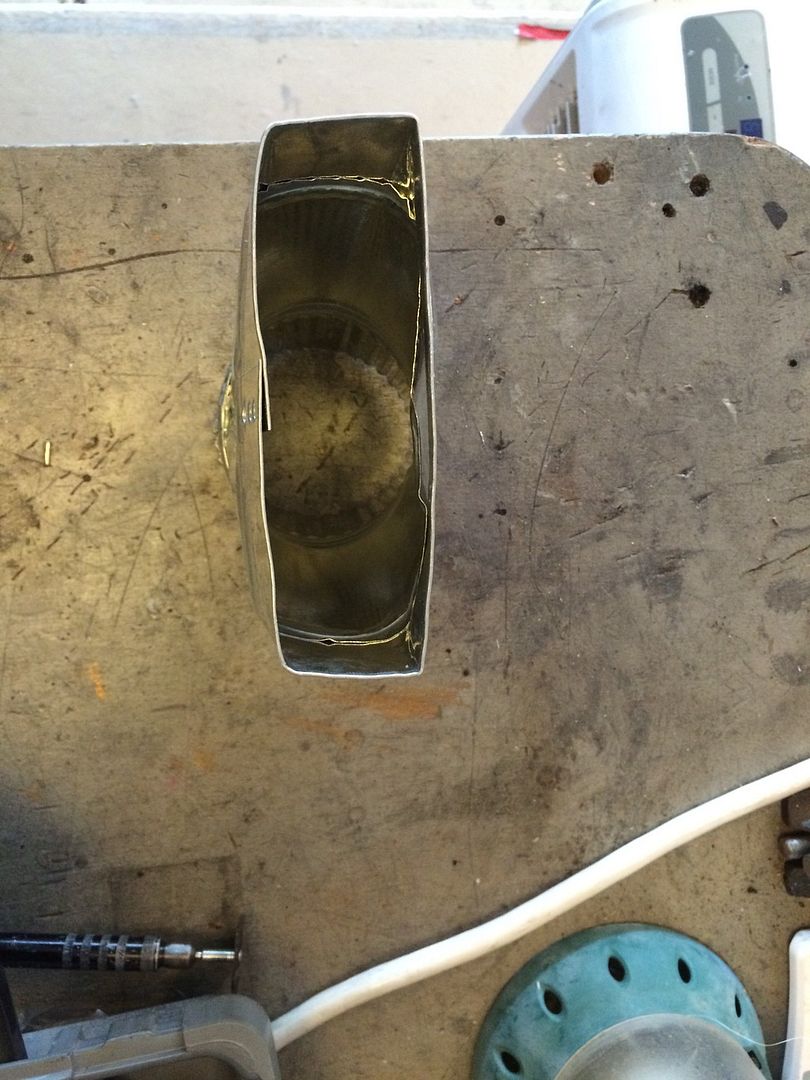

I used 4-inch-to-3-inch galvanized reducers bent down square at the large end for the scoops:

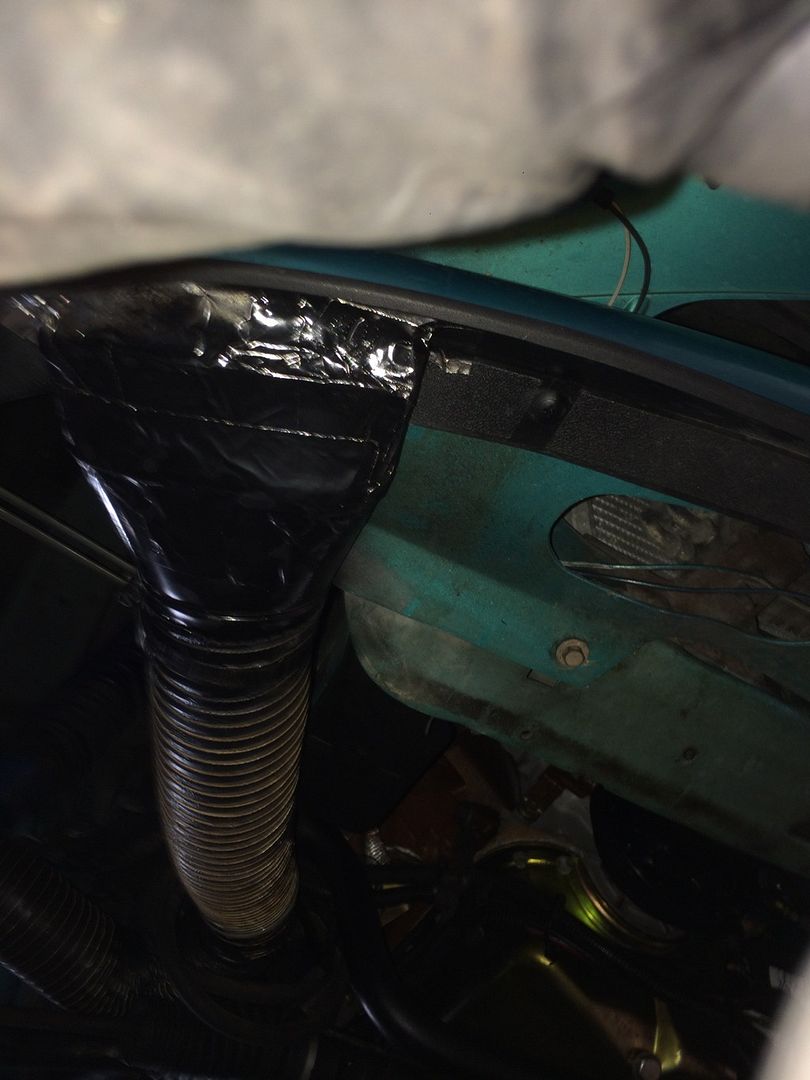

Passenger side ducting:

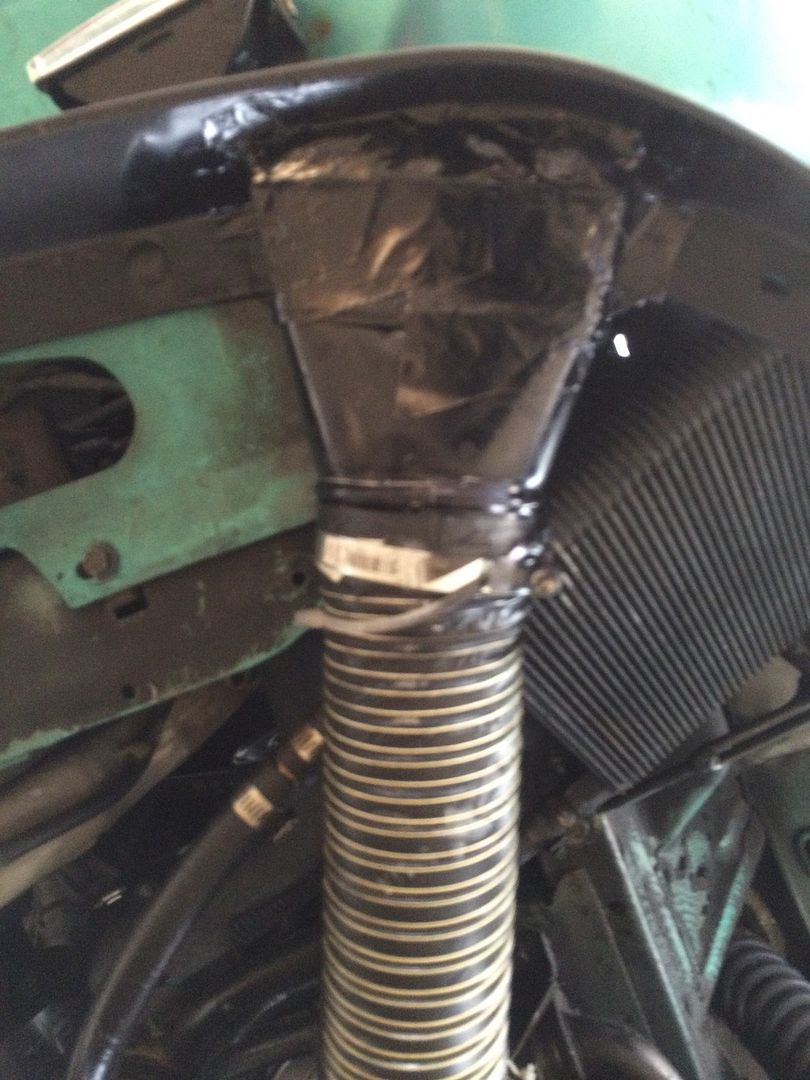

I closed the gap between the duct and the dam with aluminum tape, then painted it. Looks like ass but few people will see it

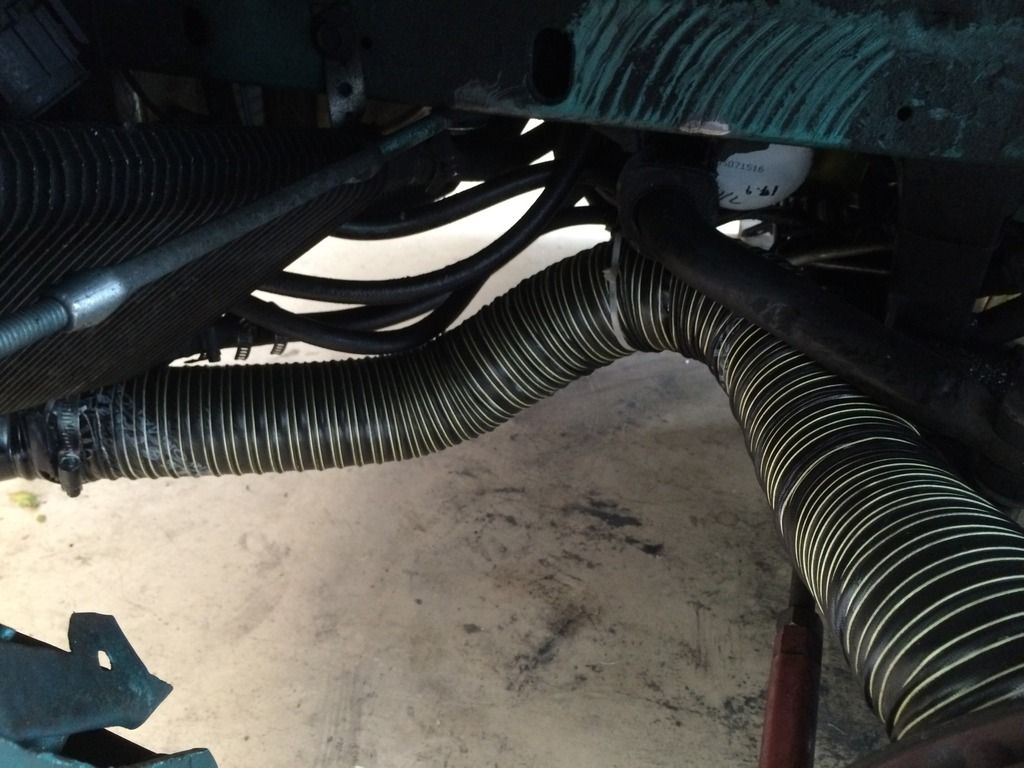

Drivers side ducting:





Last edited by MFE; 11-20-2015 at 04:39 PM.
MFE is offline
Sponsored Links
Advertisement

post #2 of 29 Old 08-24-2015, 11:06 AM
Registered User

jw98lx's Avatar

Trader Feedback: (5)
Join Date: Jan 2003
Location: Lincoln, NE
Posts: 687
Do you have any pictures or can you share the details of how you attached the sheet metal work to the chin spoiler?

jw98lx is offline
post #3 of 29 Old 08-24-2015, 11:46 AM
Registered User

willy87's Avatar

Trader Feedback: (6)
Join Date: Oct 2003
Location: NC
Posts: 232
That's a great DIY idea for the induction portion. Thanks for the inspiration!

Which bracket are you using to connect to the spindle?

91 Lx - 306
willy87 is offline
Sponsored Links
Advertisement

post #4 of 29 Old 08-24-2015, 12:17 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by jw98lx View Post
Do you have any pictures or can you share the details of how you attached the sheet metal work to the chin spoiler?
I'll get more pics later, but my metalworking skills aren't good enough to put the scoops right up against the back side of the dam, so I did what I could, and then closed the gap with aluminum tape. To secure the scoops in place, I slit each top corner so the top of the scoop is a flap that fits under the mounting lip on the top back side of the spoiler, and also drilled a hole through the top of each one and a corresponding hole in the bumper cover and used a push-type fastener to hold it in place. Each one is also zip-tied up tight so its back side with the hose doesn't flop around.
MFE is offline
post #5 of 29 Old 08-24-2015, 12:19 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by willy87 View Post
That's a great DIY idea for the induction portion. Thanks for the inspiration!

Which bracket are you using to connect to the spindle?
I clamped it to the spindle using a small gates clamp through the ABS sensor hole which is unused on my car, and a slit I cut in the tubing so the clamp grabs two sections of the wire spiral in each hose. Then the hose is pinched down somewhat rectangular and aimed into the hat of the rotor.
MFE is offline
post #6 of 29 Old 08-24-2015, 12:40 PM
Registered User

aurdraco's Avatar

Trader Feedback: (9)
Join Date: Aug 2009
Location: Boston, MA
Posts: 1,614
Is there a plan to install a mesh grate to keep debris from entering the pathway? Also, neat solution. Not pretty. I like it
aurdraco is offline
post #7 of 29 Old 08-24-2015, 01:27 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
I'm not worried about debris in the ducts
MFE is offline
post #8 of 29 Old 08-24-2015, 02:20 PM
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,922
Garage
When i get home, and settled iam going to re-route my dyer ducts to the front brakes via fog light openings. I like your setup, one day ill drive to AZ and we attend a track day together.

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is online now
post #9 of 29 Old 09-05-2015, 02:37 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Updated with more pics.
MFE is offline
post #10 of 29 Old 09-06-2015, 01:02 PM
Registered User

dencon's Avatar

Trader Feedback: (0)
Join Date: May 2015
Location: Phoenix, Az.
Posts: 56
Nice work! looks real good and functional. I am going to do that to my GT via the round driving light openings. Thanks for posting. Helps me in figuring out my routing of the duct. Again, nice work.


1988 GT
2006 V6 S197
dencon is offline
post #11 of 29 Old 09-19-2015, 07:10 AM
Registered User

Trader Feedback: (13)
Join Date: Aug 2010
Location: Glendale, Az
Posts: 226
Any benefit to having a Mach 1 chin spoiler?
road is offline
post #12 of 29 Old 09-20-2015, 12:56 AM
Registered User

SoCal Stang's Avatar

Trader Feedback: (0)
Join Date: Feb 2014
Location: San Diego
Posts: 35
Quote:
Originally Posted by road View Post
Any benefit to having a Mach 1 chin spoiler?
Theoretically, it will provide some downforce and help prevent the front end from floating at speed. After discovering the tendency of my 86 coupe to float at 85+ MPH while trying to keep up with some exotic rides on a run up the coast to the Monterey Historics, I had a custom air dam and rear wing built for my 86 coupe.

BTW, MFE, great job on the installation of the Mach 1 spoiler. It looks great!
Attached Images
File Type: jpg image.jpg (191.6 KB, 70 views)

1986 Mustang LX 5.0 - K&N CAI, E303 cam, JBA headers, Dynomax/Magnaflow exhaust, Cobra brakes, Steeda K-member, Granatelli front coilovers, H&R rear springs, MM panhard bar, Konig Villain wheels, Cobra racing seats, G-Force harnesses, MM 4-pt roll bar, Momo steering wheel, Hurst shifter
SoCal Stang is offline
post #13 of 29 Old 10-14-2015, 10:08 PM
Registered User

Trader Feedback: (46)
Join Date: Jun 2002
Location: California
Posts: 2,768
Looks nice what front dam is that MFE ?
yogibear357 is offline
post #14 of 29 Old 10-15-2015, 10:01 AM
Registered User

Trader Feedback: (1)
Join Date: Apr 2000
Location: Moline, Il
Posts: 428
Have you noticed any changes in on track water temps?
RollCamberCoef is offline
post #15 of 29 Old 10-15-2015, 01:11 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Only two track events into the setup, not enough data points, but my hunch is "no".
MFE is offline
post #16 of 29 Old 10-15-2015, 01:11 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by yogibear357 View Post
Looks nice what front dam is that MFE ?
The Mach 1 spoiler that's the topic of the thread LOL
MFE is offline
post #17 of 29 Old 10-15-2015, 01:35 PM
Registered User

Trader Feedback: (46)
Join Date: Jun 2002
Location: California
Posts: 2,768
Quote:
Originally Posted by MFE View Post
The Mach 1 spoiler that's the topic of the thread LOL
Thanks Looks like your son is ready for a ride along
yogibear357 is offline
post #18 of 29 Old 10-15-2015, 08:22 PM
Registered User

mtrain2000's Avatar

Trader Feedback: (24)
Join Date: Aug 2007
Location: AL
Posts: 1,975
Good job.
mtrain2000 is offline
post #19 of 29 Old 11-20-2015, 01:39 PM
Registered User

Trader Feedback: (3)
Join Date: Apr 2014
Location: new jersey
Posts: 76
How do you like that heat extractor?
5.0tooslow is offline
post #20 of 29 Old 11-20-2015, 04:39 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by 5.0tooslow View Post
How do you like that heat extractor?
It helped in the AZ heat, but it would be better if it was 2-4 inches further back. But the lateral hood brace is exactly right there and I didn't want to cut it out.
MFE is offline
post #21 of 29 Old 12-11-2015, 02:21 PM
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,922
Garage
Quote:
Originally Posted by SoCal Stang View Post
Theoretically, it will provide some downforce and help prevent the front end from floating at speed. After discovering the tendency of my 86 coupe to float at 85+ MPH while trying to keep up with some exotic rides on a run up the coast to the Monterey Historics, I had a custom air dam and rear wing built for my 86 coupe.

BTW, MFE, great job on the installation of the Mach 1 spoiler. It looks great!

Ive mentioned somewhere on here (i think) and on my blog on tumblr for sure, when i added mach 1 lip and removed factory air dam, 100% noticeable improvement on reducing that "floating" feel at higher speeds. Venting the hood helps a ton as well.

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is online now
post #22 of 29 Old 12-14-2015, 02:17 PM
Registered User

qtrracer's Avatar

Trader Feedback: (34)
Join Date: Jun 2004
Location: Maryland
Posts: 5,348
MFE, in the on-track pic it looks to me like the Mach-1 dam is deforming a bit - especially between center and PS duct opening. Perhaps it's nothing more than a shadow game but what are your thoughts?

I recently installed the Ranger Dam with brake ducting and am a little concerned that I may not have enough support to keep the dam from folding under.
Attached Images
File Type: jpg 86 Air Dam w Brake Cooling Ducts.JPG (99.9 KB, 36 views)
qtrracer is offline
post #23 of 29 Old 12-14-2015, 03:04 PM
Registered User

jw98lx's Avatar

Trader Feedback: (5)
Join Date: Jan 2003
Location: Lincoln, NE
Posts: 687
qtrracer - what did you use for scoops in the ranger air dam?

FWIW, I also have the ranger air dam and to not believe it folds under at speed. I don't have the air duct holes cut in it though so that might weaken it??
jw98lx is offline
post #24 of 29 Old 12-14-2015, 03:38 PM
Registered User

qtrracer's Avatar

Trader Feedback: (34)
Join Date: Jun 2004
Location: Maryland
Posts: 5,348
Quote:
Originally Posted by jw98lx View Post
qtrracer - what did you use for scoops in the ranger air dam?
These: Allstar ALL42141 Black 5" x 9-3/4" Single Hole Offset Plastic Brake Cooling Duct. Purchased on Amazon (brake ducts, Pronto.com)

Quote:
Originally Posted by jw98lx View Post
FWIW, I also have the ranger air dam and to not believe it folds under at speed. I don't have the air duct holes cut in it though so that might weaken it??
I don't know; car isn't finished. I have about a dozen fasteners holding the thing on but they are all across the front. May need a brace or two on the back side.
qtrracer is offline
post #25 of 29 Old 12-14-2015, 04:33 PM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
The ranger dam has ribs on the back side and I don't think I ever had a problem with it folding under. The Mach1 may be deforming but it too is still not folding back.
MFE is offline
post #26 of 29 Old 03-18-2016, 08:58 PM
Registered User

B0jangles's Avatar

Trader Feedback: (0)
Join Date: Jul 2014
Location: California
Posts: 334
Garage
If you bent a flange at the mouth of the ducts you could push them through the holes in the air dam from the front and do away with the aluminum tape. Of course that's IF they fit through that opening at all.

But it's an elegant and simple solution that would stay put and always have airflow
B0jangles is offline
post #27 of 29 Old 03-18-2016, 10:44 PM
Registered User

Stew_Magoo's Avatar

Trader Feedback: (16)
Join Date: Feb 2010
Location: Bayview, Wis
Posts: 836

1993 Mustang LX Coupe H/C/I 306/T5/IRS
1997 Lincoln Mark VIII
Stew_Magoo is offline
post #28 of 29 Old 03-18-2016, 11:48 PM
Registered User

aurdraco's Avatar

Trader Feedback: (9)
Join Date: Aug 2009
Location: Boston, MA
Posts: 1,614
Fender spreader.
aurdraco is offline
post #29 of 29 Old 03-20-2016, 01:08 AM Thread Starter
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
