OK racers! more questions

ok so i have the basic comp engineering/moroso 10pt cage (mild steel) in my fox now, the front 2 bars are kinda screwed (long story) so i think im just going to cut them out with the halo and run it as an 8 pt (so i can pass an inspection)

i want to add some more braces to the cage to help out with cornering/lateral stiffness

now ive heard for hpde u need a diagnal brace in the main hoop

im thinking of doing another diagnal brace the opisite direction between the rear bars, making an x kind (1 diag in main hoop, 1 diag in rear bars)

im also thining of doing a brace on each side, coming from the door bars down to the subframe connectors behind the seats...

i also did small braces from the rear bars to the shock towers to help stiffen up the shock towers against lateral flex (MM rear coilovers)

any other good braces i should add that would really help in the autox/RR world?


disclaimer....i want to do the least amount of bars/braces that provide the most about of stiffness (due to weight concerns, and practicality)

looking at corner carvers ppl have like 25 pt CAGES! its redic!

ill post some pics soon


instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
Sponsored Links
Advertisement

post #2 of 37 Old 12-15-2011, 12:39 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage





instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #3 of 37 Old 12-15-2011, 12:46 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage


Uploaded with ImageShack.us


red is main hoop
yellow is rear bars

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
Sponsored Links
Advertisement

post #4 of 37 Old 12-15-2011, 01:36 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
or even something like this (i have some extra pipes from the cage)


instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #5 of 37 Old 12-15-2011, 02:21 PM
Registered User

87Fox5.0's Avatar

Trader Feedback: (0)
Join Date: Mar 2008
Location: West Coast, USA
Posts: 543
You should move the A-pillar bars closer to the A-pillars and gusset them into the A-pillars. This is one of the most important mods for chassis rigidity. Also gusseting the halo to the roof (above the windshield and above the doors) helps a bunch. Gusset the main hoop to the B-pillars as well. Anything you can do to tie in the unibody to the cage in this manner will help tremendously with chassis rigidity.

'87 Fox C-Prepared Mustang
2013, 2015 Pacific NW Regional Champ
Car has trophied at 2015, 2016, 2017, 2018 SCCA Nationals
Zero scrub SLA front end
87Fox5.0 is offline
post #6 of 37 Old 12-15-2011, 02:22 PM
Registered User

Trader Feedback: (3)
Join Date: Sep 2002
Location: Chicago, IL
Posts: 529
Being a road racer I have a couple of suggestions. I'm sure some others will make some as well.

Refering to your pictures I would place the "red" tube just the opposite as you have drawn it.

You should install a diagonal bar from the main hoop just behind the driver to the bottom of the main hoop on the passenger side. I would cut the horizontal harness bar so that you can use one piece of tubing for this. You don't have to but that's the way I would do it.

Refering to your pictures I would place the yellow tube in the opposite corners and make it reach to each end of the tube.

A diagonal between the two rear main hoop braces is good but attach them at the opposite corners of the two braces near where they attach to the the rest of the cage or footing plates, not in the middle of the tubes. I would run the diagonal from the top of the passenger brace to the bottom of the drivers side brace.

This way both corners of the main hoop are supported by a tube in case of a roll over.

"Drag racing is for those people who don't know how to down shift and brake at the same time. "
DD '12 VW Jetta TDI, Race car '87 ITA 16V Scriocco
Cars owned: '86 Mustang GT, '92 Mustang LX, '93 Mustang Cobra "R" #58
Jim Brozynski is offline
post #7 of 37 Old 12-15-2011, 02:31 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
i figurd doing this instead of the tradional X (wouldnt it be easier to see in the rear view mirrior) having the diags like mentioned above

i still drive the car on the street so,

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #8 of 37 Old 12-15-2011, 02:33 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
Quote:
Originally Posted by 87Fox5.0 View Post
You should move the A-pillar bars closer to the A-pillars and gusset them into the A-pillars. This is one of the most important mods for chassis rigidity. Also gusseting the halo to the roof (above the windshield and above the doors) helps a bunch. Gusset the main hoop to the B-pillars as well. Anything you can do to tie in the unibody to the cage in this manner will help tremendously with chassis rigidity.
ive noticed this...in the MM race car and others....dont know why i didnt think of this!

just use a piece of sheet metal with holes drilled into it for the gussets?

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #9 of 37 Old 12-15-2011, 02:48 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
ok better?




Uploaded with ImageShack.us

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #10 of 37 Old 12-15-2011, 03:04 PM
Registered User

Trader Feedback: (3)
Join Date: Sep 2002
Location: Chicago, IL
Posts: 529
Quote:
Originally Posted by EscortSportage View Post
ok better?




Uploaded with ImageShack.us
It's how I would do it and your vision to the rear is not blocked to much. Anytime you add a roll bar/cage your going to reduce your vision to the rear. It's goes with the territory.


"Drag racing is for those people who don't know how to down shift and brake at the same time. "
DD '12 VW Jetta TDI, Race car '87 ITA 16V Scriocco
Cars owned: '86 Mustang GT, '92 Mustang LX, '93 Mustang Cobra "R" #58
Jim Brozynski is offline
post #11 of 37 Old 12-15-2011, 05:20 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
hmmm....my plan is to go for maximum chassis stiffness with the least amount of beams (less weight more effective)


the car is 10000000 times stiffer and feels amazinly solid after the 10pt i can only imagine doing more braces and added gussets to the body, im going to have to get custom front beams made close to the a pillars, so for now ill run the 8 pt and work on adding more beams

god i miss her! cant wait to drive her again

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W

Last edited by EscortSportage; 12-15-2011 at 05:23 PM.
EscortSportage is offline
post #12 of 37 Old 12-15-2011, 05:28 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #13 of 37 Old 12-15-2011, 05:37 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
more dickin around.... (can u tell im bored?)


instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #14 of 37 Old 12-15-2011, 05:40 PM
Registered User

Trader Feedback: (3)
Join Date: Sep 2002
Location: Chicago, IL
Posts: 529
Quote:
Originally Posted by EscortSportage View Post
If you want to keep the number of tubes to a minimum I would remove the two short angles braces that attach to the main hoop on both side that go towards the trans tunnel but don't quite make it. There is not much structure there in a FOX chassis so attaching them there doesn't add anything.

You could add a diagonal brace from the bottom of the horzontal harness bar on the passenger side to the bottom of the main hoop on the drivers side. Think triangles. The cage should be made up of as many triangles as you can make but those two just don't work for me.

"Drag racing is for those people who don't know how to down shift and brake at the same time. "
DD '12 VW Jetta TDI, Race car '87 ITA 16V Scriocco
Cars owned: '86 Mustang GT, '92 Mustang LX, '93 Mustang Cobra "R" #58
Jim Brozynski is offline
post #15 of 37 Old 12-15-2011, 05:42 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
they are already in there, i dont really want to remove any more... we put in a lot of work to do this, now i just want to add a few more, make it a custom cage

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #16 of 37 Old 12-15-2011, 05:59 PM
Registered User

87Fox5.0's Avatar

Trader Feedback: (0)
Join Date: Mar 2008
Location: West Coast, USA
Posts: 543
Quote:
Originally Posted by EscortSportage View Post
ive noticed this...in the MM race car and others....dont know why i didnt think of this!

just use a piece of sheet metal with holes drilled into it for the gussets?
I used 1/8" thick metal strips spaced a few inches apart (kind of like a stitch weld). Not as pretty as the sheet metal with holes, but hey this car wasn't built to win any beauty contests.

'87 Fox C-Prepared Mustang
2013, 2015 Pacific NW Regional Champ
Car has trophied at 2015, 2016, 2017, 2018 SCCA Nationals
Zero scrub SLA front end
87Fox5.0 is offline
post #17 of 37 Old 12-15-2011, 06:13 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
pics please!


im thinking weld a piece of sheet metal onto the body to the left and right of the main hoop, and then weld another piece of sheet metal from the tubing to the flat piece on the body,

making a T

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #18 of 37 Old 12-15-2011, 06:16 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
here is what im talking about....(i let some kindergarten kid draw it for me) LMAO


instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #19 of 37 Old 12-15-2011, 06:27 PM
Registered User

87Fox5.0's Avatar

Trader Feedback: (0)
Join Date: Mar 2008
Location: West Coast, USA
Posts: 543
I just welded the 1/8" strip perpendicular to the tubing then perpendicular to the body metal, just like in your picture, but no flat piece underneath.

Sorry got no pics, car's in storage. My '65 Mustang project is hogging up the space in the garage.

'87 Fox C-Prepared Mustang
2013, 2015 Pacific NW Regional Champ
Car has trophied at 2015, 2016, 2017, 2018 SCCA Nationals
Zero scrub SLA front end
87Fox5.0 is offline
post #20 of 37 Old 12-15-2011, 06:59 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
nice, hell yea im trying to get this car to point where its so predictable!

and my atitude is like why not make the chassis stiffer, id love to weld all the seams underneath the car one day as well

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #21 of 37 Old 12-15-2011, 07:05 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
Like this?


instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #22 of 37 Old 12-15-2011, 07:53 PM
Registered User

87Fox5.0's Avatar

Trader Feedback: (0)
Join Date: Mar 2008
Location: West Coast, USA
Posts: 543
Uhmm, you kinda lost me there.

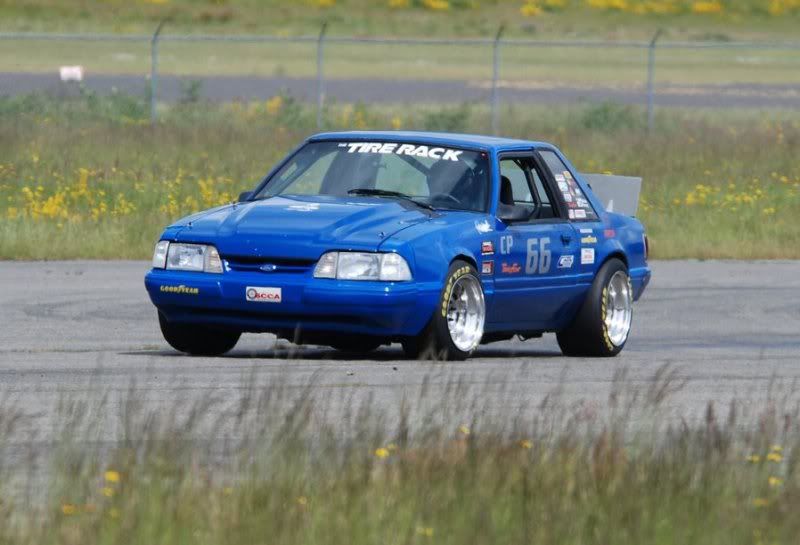

Anyway, here's an old pic. Stare at the passenger side A pillar and you can see the two metal strips connecting the A pillar to the A pillar tubing on the cage. The strips are approx 4" x 1 1/2", 1/8" thick. Nothing fancy.


'87 Fox C-Prepared Mustang
2013, 2015 Pacific NW Regional Champ
Car has trophied at 2015, 2016, 2017, 2018 SCCA Nationals
Zero scrub SLA front end
87Fox5.0 is offline
post #23 of 37 Old 12-15-2011, 09:23 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
LMAO, im thinking of making a wing like urs

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #24 of 37 Old 12-15-2011, 10:02 PM
Registered User

87Fox5.0's Avatar

Trader Feedback: (0)
Join Date: Mar 2008
Location: West Coast, USA
Posts: 543
High speed slaloms at wide open throttle without having to lift. What that there spoiler does for ya.

'87 Fox C-Prepared Mustang
2013, 2015 Pacific NW Regional Champ
Car has trophied at 2015, 2016, 2017, 2018 SCCA Nationals
Zero scrub SLA front end
87Fox5.0 is offline
post #25 of 37 Old 12-15-2011, 10:17 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
Sold

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #26 of 37 Old 12-16-2011, 08:33 AM
CSG
Registered User

Trader Feedback: (18)
Join Date: Apr 2002
Location: Sulphur, La.
Posts: 1,722
Are you sure the cage is DOM? I would have expected it to be ERW?
CSG is offline
post #27 of 37 Old 12-16-2011, 09:32 AM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
no idea, its NHRA legal (obvisiously that doesnt apply) but i have not got it inspected it, the welds are solid

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #28 of 37 Old 12-16-2011, 05:22 PM
Registered User

Apocolipse's Avatar

Trader Feedback: (0)
Join Date: Jun 2008
Location: Bulrington, Ontario
Posts: 289
Shouldnt the bars in the trunk be welded to somewhere stronger than the floor pan? I usually see them welded to the shock towers...
Apocolipse is offline
post #29 of 37 Old 12-16-2011, 11:46 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
1 i didnt know the floor pan was flimsy,
2 this is a basic drag racing cage and thats how its designed
3 i later on tied the cage into the shock tower (in pic above)

yea thats all i got, what do u think about running 2 bars from the main hoop back to the hump?in an x fashion

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #30 of 37 Old 12-16-2011, 11:49 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
or even better running from main hoop behind where the door bars weld into, and then going into the rear shock towers...

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #31 of 37 Old 12-16-2011, 11:57 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #32 of 37 Old 12-17-2011, 10:36 PM
Registered User

Apocolipse's Avatar

Trader Feedback: (0)
Join Date: Jun 2008
Location: Bulrington, Ontario
Posts: 289
Uh... dont want to sound rude... but you have WAY too many bars going on there lol.

Why not just check out some company offerings and copy them? They put a lot of research into them to make the best product and most effective.

Stop worrying about the back so much, your bars have that all covered already. Just fix the main hoop and your golden.
Apocolipse is offline
post #33 of 37 Old 12-18-2011, 05:38 AM
Registered User

Trader Feedback: (13)
Join Date: Aug 2011
Location: MD
Posts: 1,698
Exclamation

Needs to be like this but the rear supports and x-bars should be anchored at the rear shock tower area.
racerxmdd is offline
post #34 of 37 Old 12-18-2011, 12:57 PM Thread Starter
Registered User

EscortSportage's Avatar

Trader Feedback: (5)
Join Date: Dec 2009
Location: NYC
Posts: 1,963
Garage
i posted a pic of the small beams i had welded into the shock towers, and we added gussets for ####s.


i figured to brace the rear shock towers since im running rear coilovers, i didnt know the rear shock towers are so beefy

instagram.com/escortsportage
Sponsors: MaximumMotorsports,liwrap,Stinger-Performance,Cosmis Racing Wheels
2480LBS
306W
EscortSportage is offline
post #35 of 37 Old 12-22-2011, 11:18 PM
Registered User

Trader Feedback: (3)
Join Date: Feb 2010
Location: Missouri
Posts: 62
A couple of thoughts. If you are going to do open track events with NASA or the SCCA you should consult their rules when considering how you are going to modify the cage you have. Both groups have very specific rules regarding how the main hoop is braced and it would suck if you wasted time doing it wrong. Note that both groups place allot of importance on the main hoop because so much of the strength of the cage and its ability to protect the driver starts there.

Another thing that you will see if you read the various rule sets is that cage specs usually list a required minimum design along with a required material spec for these minimum specs. This means that additional braces/tubes/structure can be made of lighter material to save wieght and add stiffness.

Speaking for the SCCA you can download their rules for free from The Sports Car Club of America - Home. The rules are in PDF form and you can search them for cage rules.

I believe you can also get cage specs from NASA on their web site as well.

85 Mustang GT
83 RX7 Super Touring U #17
SCCA Club Racer
mustanghammer is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
On 3 Performance turbo questions, 2v, 3v, 4v 5.0, 5.8 Kit On 3 Performance Turbochargers 1522 05-04-2015 11:44 PM
couple swap questions joedgvnn94gt Mixed-platform Engine & Drag Racing Tech 3 09-12-2011 09:15 AM
Questions questions questions The Stallion mang GT & SOHC 7 08-31-2011 11:14 AM
fuel injector questions... maf questions... ll2none 94/95 Tech 0 03-21-2011 11:56 AM
Planning a project - a few questions guitarhermit General Mustang Tech 8 02-11-2011 01:00 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
