Need to find a strut tower brace that will clear.. Pics..



Any hope?


Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
Sponsored Links
Advertisement

post #2 of 22 Old 11-23-2010, 06:50 PM
Registered User

Trader Feedback: (34)
Join Date: Jun 2007
Location: in the hills
Posts: 502
Always is hope if you have the $$$.But I can only see one being made custom to fit around the intake tubes.Stan

Ruslow is offline
post #3 of 22 Old 11-24-2010, 06:39 AM
Registered User

Trader Feedback: (1)
Join Date: May 2009
Location: Nowhere, Special
Posts: 574
For some reason, I still can't post attachments but I am looking at my MM one and both the front and rear tubes on the passenger side look like they'd interfer with that intake tube.

I'm sure a custom one can be fabbed up or an existing design can be modified to work but I don't think I've ever seen one pre-made that would work with that intake setup.
MJ91GT is offline
Sponsored Links
Advertisement

post #4 of 22 Old 11-24-2010, 06:59 AM
Registered User

90331GT's Avatar

Trader Feedback: (12)
Join Date: Jul 2006
Location: Holland, MI
Posts: 296
Garage

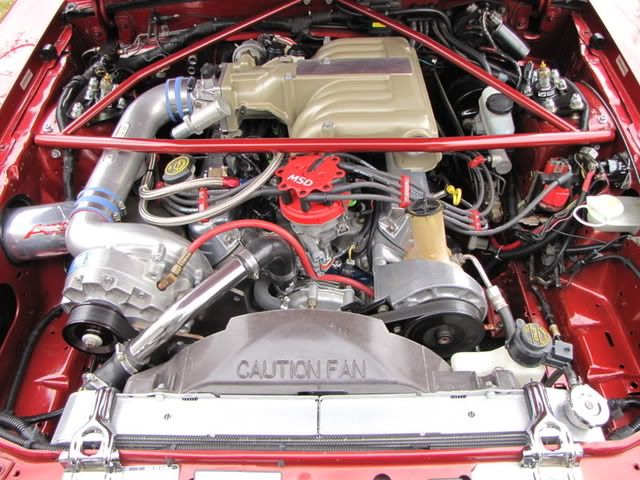

I have a Steeda bar that clears the discharge tube, but like MJ91GT said, looks like yours would interfere with some of the bars. Here's a pic for some reference.


'90 GT, 331ci, AFR 185's, S-Trim, Cobra brakes, Torsen T-2R, Koni's, Fays2 watts, MM goodies, K-member, Torque-arm, control arms, coil-overs, 18x10" wheels.
My Fox GT Build-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
CAM-C www.sbrscca.org
90331GT is offline
post #5 of 22 Old 12-07-2010, 10:47 PM
Registered User

hotmustang95's Avatar

Trader Feedback: (0)
Join Date: Jan 2009
Location: Boynton Beach, FL
Posts: 309
If you have the skills you could customize your existing one to fit or take it to someone who can do it for you. Looks like your's will need to be fab'ed up from the pic. I had to do it to mine.
hotmustang95 is offline
post #6 of 22 Old 12-08-2010, 12:57 AM Thread Starter
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,196
Well, I scored a FMS one for fitting. Its about 1-1/4 away from being able to rest on the passenger side. Even if I fabricate the bar to go up and around, I'm not sure if it'll clear the hood. I'm thinking about finding a 45* bend to maybe angle it down.

I have Vert Motor mounts which lower the engine which is nice... However I'm not to sure how much longer they'll be in for.

Hotmustang: can you post pics?

I wonder if I can go under the discharge pipe?

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily

Last edited by Nitrous SSC; 12-08-2010 at 12:59 AM.
Nitrous SSC is offline
post #7 of 22 Old 12-09-2010, 01:04 AM
Registered User

Trader Feedback: (1)
Join Date: May 2009
Location: Nowhere, Special
Posts: 574
Quote:
Originally Posted by Nitrous SSC View Post
Well, I scored a FMS one for fitting. Its about 1-1/4 away from being able to rest on the passenger side. Even if I fabricate the bar to go up and around, I'm not sure if it'll clear the hood. I'm thinking about finding a 45* bend to maybe angle it down.

I have Vert Motor mounts which lower the engine which is nice... However I'm not to sure how much longer they'll be in for.

Hotmustang: can you post pics?

I wonder if I can go under the discharge pipe?
You should be able to figure out if it'd clear the hood going over the pipe.

Measure the tubing outside diameter from your stb and roll a piece of paper to the same outside diameter. Make the paper tube long enough to simulate the modified piece or pieces (rearward running bar and/or cross bar) that would need to go over the pipe, including two seperate paper tubes on the ends that are cut and angled to simulate the angled tube that would need to come up from the stb.

Shim the paper tubing up with some pieces of cardboard or something to simulate necessary clearance for engine movement and tape the whole thing together and to the pipe, close the hood and see if you crush the paper.

It's hard to tell, but from the looks of your hood, it may fit going over the pipe, I can't imagine a way you could make it work going under the pipe.
MJ91GT is offline
post #8 of 22 Old 12-09-2010, 02:06 AM Thread Starter
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,196
I'll be dinking around with it on Sunday. I'll let you guys know. Thanks for the help/pointers.

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #9 of 22 Old 12-10-2010, 11:05 PM
Registered User

hotmustang95's Avatar

Trader Feedback: (0)
Join Date: Jan 2009
Location: Boynton Beach, FL
Posts: 309
Quote:
Originally Posted by Nitrous SSC View Post
.

Hotmustang: can you post pics?

I wonder if I can go under the discharge pipe?
I tried, it tells me I'm too new to post pics.
hotmustang95 is offline
post #10 of 22 Old 12-10-2010, 11:59 PM
Registered User

tigerdrvr's Avatar

Trader Feedback: (0)
Join Date: May 2003
Location: Alamo, CA
Posts: 488
Given the bends/angles required to clear your induction set up, why bother?

Seriously, it is hard enough to quantify any benefit to the best designed aftermarket STB's...ones that are well triangulated with the straightest possible sections.

tigerdrvr is offline
post #11 of 22 Old 12-11-2010, 04:09 AM Thread Starter
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,196
Quote:
Originally Posted by hotmustang95 View Post
I tried, it tells me I'm too new to post pics.
madevilmustang (at) hotmail(dot)com

E-mail em please.

Tiger, Foxes are like tin cans. even a piece of spagetty between the 2 strut towers is better than nothing.

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #12 of 22 Old 12-11-2010, 11:53 AM
Registered User

tigerdrvr's Avatar

Trader Feedback: (0)
Join Date: May 2003
Location: Alamo, CA
Posts: 488
I know a little about the torsional rigidity of the Fox unibody, having built a couple of Fox cars. I've also seen Fox cars where the doors won't shut correctly, because of tweaking from track use with insufficient bracing. No doubt, they're noodles, in some areas more than others.

It is hard to find any real data that shows that the specific bracing we're talking about (STB) has much benefit, even when designed correctly. "Correctly" seems to indicate straightest possible tubing, substantial tie in to not only the towers, but also the firewall, and minimal angles directing energy into torquing the tubing of the STB. The most credible source I've seen share actual data on this topic happens to be on this forum (at least he was when I used to lurk here) and, I believe, feels that the biggest potential benefit is actually under braking. But, I don't know that anyone has been able to measure any inward/outward deflection of the towers, which is all a two point could possibly help. The idea that just sticking some tubing between the strut towers will "do something" doesn't seem to be true. The type of bar angles/bends that your induction set up will require make it hard for me to imagine any design that will result in any benefit, but I could be wrong.

There's a long thread over on Corner Carvers that gives some tech (not enough, unfortunately) on the topic and also some raw data from Ford floating around somewhere. I guess, even if there's no actual benefit, with all your horsepower the extra weight (even though it is exactly where you don't want it) shouldn't hurt your lap times

Last edited by tigerdrvr; 12-11-2010 at 09:12 PM.
tigerdrvr is offline
post #13 of 22 Old 12-11-2010, 10:29 PM
Registered User

hotmustang95's Avatar

Trader Feedback: (0)
Join Date: Jan 2009
Location: Boynton Beach, FL
Posts: 309
Quote:
Originally Posted by Nitrous SSC View Post
madevilmustang (at) hotmail(dot)com

E-mail em please.

Tiger, Foxes are like tin cans. even a piece of spagetty between the 2 strut towers is better than nothing.
Sent you a before and after pic.
hotmustang95 is offline
post #14 of 22 Old 12-12-2010, 08:45 PM
Registered User

hotmustang95's Avatar

Trader Feedback: (0)
Join Date: Jan 2009
Location: Boynton Beach, FL
Posts: 309

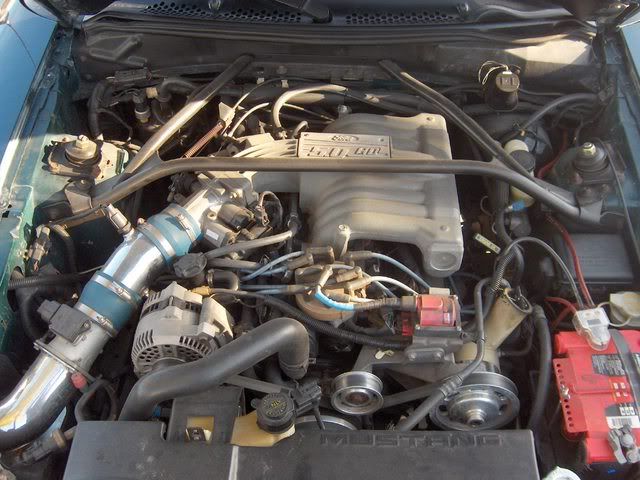

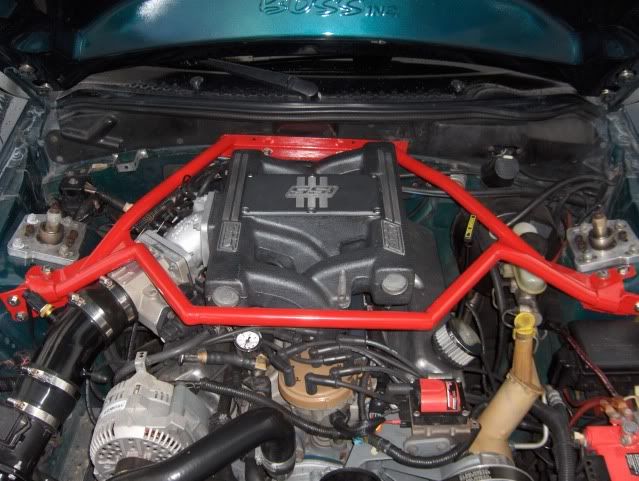

Here's one of mine but I don't think it'll help much but at least you can get an idea. My opinion is if it turns out to be a pain in the ass to do just leave it.

Before



After

hotmustang95 is offline
post #15 of 22 Old 12-16-2010, 07:10 PM
Registered User

Trader Feedback: (0)
Join Date: Oct 2005
Location: The Florida Keys
Posts: 336
Is this really necessary or just some myth? My hood has a pretty close fit between the fenders and shows zero sign signs of any binding on the edges after some extreme back and forth cornering without any cross bracing. Are you just adding more high weight to the front end of this body style exactly where you don't want it?

Last edited by DENGUY; 12-16-2010 at 07:15 PM.
DENGUY is offline
post #16 of 22 Old 12-16-2010, 07:39 PM
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by DENGUY View Post
Are you just adding more high weight to the front end of this body style exactly where you don't want it?
Pretty much. I still keep mine because there's a noticeable reduction in cowl shake that makes the car more enjoyable to drive. It does not, however, appear to reduce lap times in the least.
MFE is offline
post #17 of 22 Old 12-16-2010, 11:56 PM Thread Starter
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,196
Quote:
Originally Posted by MFE View Post
Pretty much. I still keep mine because there's a noticeable reduction in cowl shake that makes the car more enjoyable to drive. It does not, however, appear to reduce lap times in the least.
So in your humble opinion should I just not worry about it?

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #18 of 22 Old 12-17-2010, 12:51 AM
Registered User

Trader Feedback: (3)
Join Date: Aug 2006
Location: Wisconsin
Posts: 294
I have driven my car right before and after installing my strut tower brace and it is very noticeable. I doubt it drops lap times, but the feel of the car is better.

Is it different enough to go through the hassle of having a custom one made, not really sure.

91 GT, MM Grip Box, 03 Cobra Brakes, 03 Cobra Wheels, 3.73 Gears.
Maximum91GT is offline
post #19 of 22 Old 12-17-2010, 01:03 AM
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by Nitrous SSC View Post
should I just not worry about it?
Not even a little bit.
MFE is offline
post #20 of 22 Old 12-17-2010, 01:04 AM Thread Starter
Registered User

Nitrous SSC's Avatar

Trader Feedback: (7)
Join Date: Jun 2002
Location: Layton, UT
Posts: 7,196
Alright. Thanks.

Matt, 90' GT 347, 6037 heads, V1 Si-trim, 11psi, B31 Cam, T56, SV Intake, BE/Tweecer Tuned. 550rwhp 513tq
Bonneville 130 club member. (139.993) [email protected] in the 1/4.
03' Sonic Blue Cobra 497rwhp 481tq
13' Taurus SHO Performance PackDaily
Nitrous SSC is offline
post #21 of 22 Old 12-19-2010, 12:22 PM
Registered User

tigerdrvr's Avatar

Trader Feedback: (0)
Join Date: May 2003
Location: Alamo, CA
Posts: 488
Quote:
Originally Posted by MFE View Post
Pretty much. I still keep mine because there's a noticeable reduction in cowl shake that makes the car more enjoyable to drive. It does not, however, appear to reduce lap times in the least.
You really can tell a difference in cowl shake? My last Fox, I couldn't tell if the brace was on or off, iirc (that was about ten years ago).

Last edited by tigerdrvr; 12-20-2010 at 12:03 AM.
tigerdrvr is offline
post #22 of 22 Old 12-21-2010, 08:02 PM
Registered User

carrew's Avatar

Trader Feedback: (5)
Join Date: Feb 2002
Location: Home of the Indy 500
Posts: 17,035
I have your same issue and I have the MM brace. I plan to cut it where he vortech pipe is located and weld in a round pipe that clears the OD of the vortech pipe. Since it is round any forces will still be equal. I would leave enough room between the pipes for vibration and engine/body twist.

2014 Camaro 1LE
2001 Cobra White SOLD
1989 Mustang GT "F0xR0d" SOLD
12.49 @ 116.8 mph (BFG KDW Street tire)
carrew is offline
