Side exhaust w/subframes

Anyone have any tips/pictures on how to do a 'raw' type of side exhaust like the 00' R has. I DO NOT want the SVO side skirts. My only problem is I have MM Full length subframes. Just wondering if there would be any major modifications to make it fit?

Thanks.

Midnight_Cobra is offline
Sponsored Links
Advertisement

post #2 of 24 Old 09-25-2009, 04:09 PM
Registered User

2k2GT's Avatar

Trader Feedback: (0)
Join Date: Aug 2002
Location: Lenoir City, TN
Posts: 6,493
Quote:
Originally Posted by Midnight_Cobra View Post
Just wondering if there would be any major modifications to make it fit?

Thanks.
Yea, the exhaust pipe would hafta be flat like a pizza, or have a 1/2" of ground clearance from the "U" shape going under the MM sub frame bar.

2k2GT is offline
post #3 of 24 Old 09-25-2009, 04:47 PM Thread Starter
Registered User

Trader Feedback: (1)
Join Date: Feb 2007
Location: Central Coast, CA
Posts: 130
Bare with me for a second...what if, instead of going straight to the side after the muffler. The pipe traveled a little further and went 'around' the subframes. I looked under my car and it seems like the only obstacle would be the brake lines.
Midnight_Cobra is offline
Sponsored Links
Advertisement

post #4 of 24 Old 09-25-2009, 04:56 PM
Registered User

2k2GT's Avatar

Trader Feedback: (0)
Join Date: Aug 2002
Location: Lenoir City, TN
Posts: 6,493
Then the potential for it drag the ground would be even higher being in the middle of the car. That, and it'd look pretty goofy.
2k2GT is offline
post #5 of 24 Old 09-26-2009, 01:14 AM
Registered User

Trader Feedback: (0)
Join Date: Jan 2008
Location: So Cal.
Posts: 29
Just use oval tube. They have ones that are round then oval then round just for passing under subframes.

Christopher Earl
Crew Chief Team Free Racing
Yellow 2006 Z06
NASA ST1 STR1 TTU #548
EarlAutoWorks is offline
post #6 of 24 Old 09-26-2009, 09:50 AM
Registered User

huesmann's Avatar

Trader Feedback: (6)
Join Date: Jul 2004
Location: DC burbs, MD side
Posts: 6,894
Grind 'em off and get Spintech stuff.
huesmann is offline
post #7 of 24 Old 09-26-2009, 03:11 PM
Registered User

Britboy's Avatar

Trader Feedback: (14)
Join Date: Jun 2001
Location: Culpeper, VA
Posts: 406
I just finished installing a NASCAR side exit system on my race car. It's a 92 LX and I bought the exhaust from a NASCAR shop on ebay ($90). I had to reduce it's width by 7" and the exit is 22" wide by just under 2" tall. It fits good especially under the subframe connectors. This however would only work for a track car, it's rediculously loud and obviously has no cats.

Silver 92 LX NEI Time Trial car
GT40 irons, 1.6 roller rockers, Edelbrock Perf RPM intake, Holley 600 DP.
273 RWHP, 285 RWTQ
Britboy is offline
post #8 of 24 Old 09-26-2009, 05:32 PM
Registered User

mlanoux's Avatar

Trader Feedback: (9)
Join Date: Dec 1999
Location: New Orleans, LA USA
Posts: 662
Quote:
Originally Posted by Britboy View Post
I just finished installing a NASCAR side exit system on my race car. It's a 92 LX and I bought the exhaust from a NASCAR shop on ebay ($90). I had to reduce it's width by 7" and the exit is 22" wide by just under 2" tall. It fits good especially under the subframe connectors. This however would only work for a track car, it's rediculously loud and obviously has no cats.
Interesting...got a link to the seller on eBay?
mlanoux is offline
post #9 of 24 Old 09-26-2009, 07:02 PM
Registered User

Trader Feedback: (1)
Join Date: Jul 2008
Location: St. Charles, IL
Posts: 53
If I was wanting a "raw" side-exit exhaust with subframe connectors on a lowered roadrace SN-95 chassis (assuming this is what you have since you mentioned SVO sideskirts), I'd use oval tubing as mentioned combined with subframes that run through the floor. However I'd definitely use oval tubing from as far forward as possible if I intended to drive the car on the street at all, as the floorpans alone sit pretty low on lowered late-models.

FWIW, here is a pic of my '65 setup. Notice I was able to use 3" round tubing, but the floor on my lowered '65 sits significantly higher than an SN-95 with a typical lowered stance. Regardless, the chassis layouts are similar enough so the subframe connector design could be fairly similar. Options to align the connectors to the offset subframes include making bends in the connectors themselves, or tie them in through a middle section of boxed steel, as I did on the rear framerails.







'65 GT350 Clone - 363 stroker, Weber 48 IDA induction
'70 SportsRoof - roadrace project, currently on the rotisserie
'98 Chrome Yellow Cobra
'05 Mineral Grey GT

Last edited by amorrow02; 09-26-2009 at 07:05 PM.
amorrow02 is offline
post #10 of 24 Old 09-27-2009, 02:36 AM
Registered User

Britboy's Avatar

Trader Feedback: (14)
Join Date: Jun 2001
Location: Culpeper, VA
Posts: 406
Quote:
Originally Posted by mlanoux View Post
Interesting...got a link to the seller on eBay?

http://cgi.ebay.com/ebaymotors/ws/eB...5107&viewitem=


Silver 92 LX NEI Time Trial car
GT40 irons, 1.6 roller rockers, Edelbrock Perf RPM intake, Holley 600 DP.
273 RWHP, 285 RWTQ
Britboy is offline
post #11 of 24 Old 09-27-2009, 09:25 AM
Registered User

Trader Feedback: (0)
Join Date: Aug 2002
Location: At the apex, blocking your pass.
Posts: 2,133
Dr. Gas sells these, too.

-- Robert King
NASA AI #42, Texas
Instructor, NASA Texas Region
Instructor, TWS Perf. Driving School
gt40mkII is offline
post #12 of 24 Old 09-27-2009, 08:06 PM
Registered User

serpentnoir's Avatar

Trader Feedback: (15)
Join Date: Nov 2001
Location: Detroit, MI
Posts: 1,264

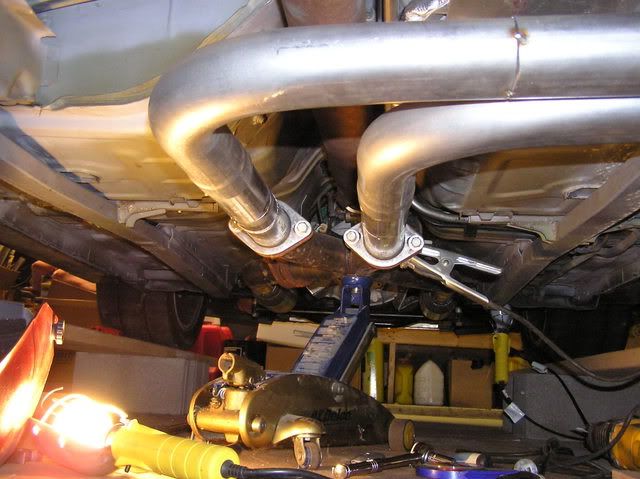

Like that...

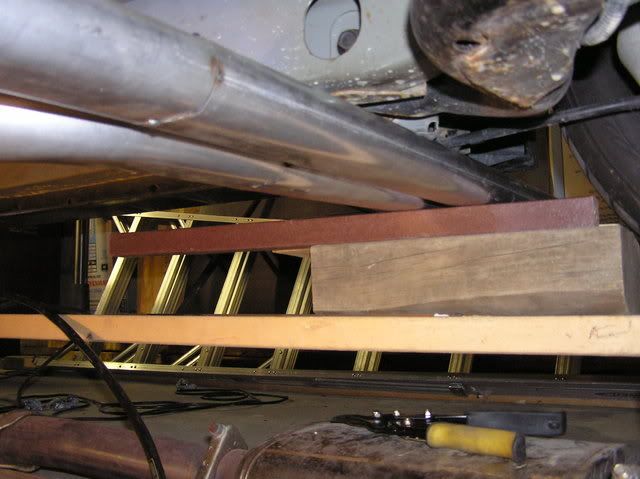

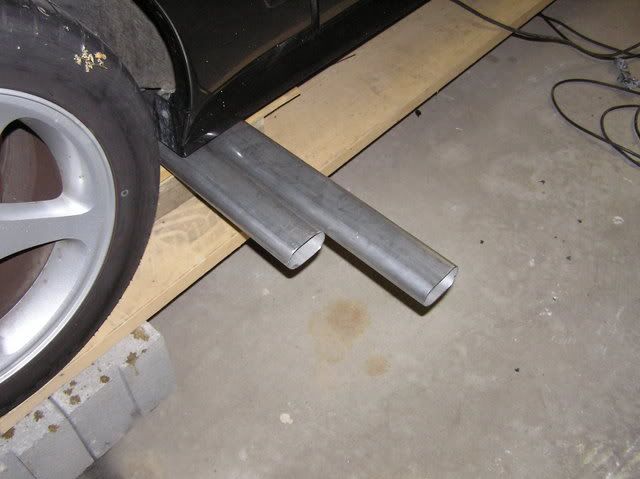

Oval Tubing (i.e. expensive!)

The car has IRS and frame connectors. Good drop on diff temperature too.

I had a picture of the finished project but can't find it. I bought a set of ball flanges and picked up where the X-pipe ends. This way I can easily bolt/un-bolt for the track/street.

I did it mainly for weight save and found out that the heavy wall Dr. Gas pipes are, well... heavy.

particularly non-stock 99 Cobra w/brand C motor...

Last edited by serpentnoir; 09-27-2009 at 08:17 PM.
serpentnoir is offline
post #13 of 24 Old 09-28-2009, 09:18 AM
Registered User

drudis's Avatar

Trader Feedback: (1)
Join Date: Apr 2000
Location: Livonia, MI (Detroit) USA
Posts: 3,013
Here are a few photos... (wow, cant believe that is from 1999!)
http://www.dariusrudis.com/1999_T-arm



Darius Rudis

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
1989 Mustang S-trim Roadracer
drudis is offline
post #14 of 24 Old 09-29-2009, 12:29 AM
Registered User

cntchds's Avatar

Trader Feedback: (4)
Join Date: Aug 2008
Location: San Jose, California
Posts: 275
Quote:
Originally Posted by Midnight_Cobra View Post
Bare with me for a second...what if, instead of going straight to the side after the muffler. The pipe traveled a little further and went 'around' the subframes. I looked under my car and it seems like the only obstacle would be the brake lines.
I remembered this when I saw this Roush with pipes bent just like you were talking about. http://www.performanceautosport.com/detail.asp?car=6019

I've wanted to do something like that too, so I car fit some SFC's with the Borla's.
cntchds is offline
post #15 of 24 Old 09-29-2009, 08:27 AM
Registered User

huesmann's Avatar

Trader Feedback: (6)
Join Date: Jul 2004
Location: DC burbs, MD side
Posts: 6,894
Looks to me like that Roush has a modified control arm mount, plus the fact that they're basically race arms gives them some extra clearance for the exhaust tube.
huesmann is offline
post #16 of 24 Old 09-29-2009, 10:23 AM
Registered User

sivnalem's Avatar

Trader Feedback: (0)
Join Date: Jul 2004
Location: Missouri
Posts: 114
amorrow02

Holy shi'ite great looking 70, and 65GT350. I like the Marshall full stack too, although I am more partial to strats Back to regularly scheduled programming.

Neal
-86 coupe project sitting in my garage on a 5 lug conversion.. and the motor is in.. and it runs
-newspeak SUCKS
sivnalem is offline
post #17 of 24 Old 09-29-2009, 10:44 AM
Registered User

Trader Feedback: (7)
Join Date: Feb 2009
Location: Houston, Texas
Posts: 60
Quote:
Originally Posted by huesmann View Post
Grind 'em off and get Spintech stuff.
On the right track here. I also went with the Spintech subs. They are a step design and give you added space for the side exit. I'd rather run the NASCAR open pipes, but some of the tracks I go to have noise limits so I stayed with the Spintech stuff.

Larry95
'95 Red Cobra Coupe #684/4005
'95 White Cobra Coupe (open track car)
'03 Red Annv Cobra Convt #711/2003
Larry95 is offline
post #18 of 24 Old 10-01-2009, 05:53 PM
Authorized corral.net Advertiser

Matt@HFP's Avatar

Trader Feedback: (82)
Join Date: Aug 2008
Location: Ventura, CA
Posts: 1,556
Quote:
Originally Posted by serpentnoir View Post




Oval Tubing (i.e. expensive!)

The car has IRS and frame connectors. Good drop on diff temperature too.

I had a picture of the finished project but can't find it. I bought a set of ball flanges and picked up where the X-pipe ends. This way I can easily bolt/un-bolt for the track/street.

I did it mainly for weight save and found out that the heavy wall Dr. Gas pipes are, well... heavy.



does it make a difference having the mufflers before the x pipe. I am about to do my exhaust and I want to do it exactly like yours


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

M-F 9am-6pm PST
1-818-574-FUEL (3835)

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

AIM: HighFlowFuel

PM or Email us for the absolute BEST pricing on:
AEM | AFR | ARP | BBK | Bosch | Fuelab | Injector Dynamics | Innovate | Magnaflow | Maximum Motorsports
Phenix Industries | RC Engineering | Siemens | StopTech | Walbro | QFS 340LPH Fuel Pumps
And More!
post #19 of 24 Old 10-01-2009, 06:26 PM
Registered User

mlanoux's Avatar

Trader Feedback: (9)
Join Date: Dec 1999
Location: New Orleans, LA USA
Posts: 662
Quote:
Originally Posted by GPSMat View Post
does it make a difference having the mufflers before the x pipe. I am about to do my exhaust and I want to do it exactly like yours
I was about to ask that same question
mlanoux is offline
post #20 of 24 Old 10-01-2009, 08:19 PM
Registered User

carrew's Avatar

Trader Feedback: (5)
Join Date: Feb 2002
Location: Home of the Indy 500
Posts: 17,035
You can also modify C5 corvette mufflers and use twin 2" muffler out each side. Cutting off the inlet and adding a straight piece. There is a thread about this on corral. If your lucky find a Z06 owner selling a set of factory titanium mufflers


Last edited by carrew; 10-01-2009 at 08:22 PM.
carrew is offline
post #21 of 24 Old 10-02-2009, 12:08 PM
Registered User

serpentnoir's Avatar

Trader Feedback: (15)
Join Date: Nov 2001
Location: Detroit, MI
Posts: 1,264
Quote:
Originally Posted by GPSMat View Post
does it make a difference having the mufflers before the x pipe. I am about to do my exhaust and I want to do it exactly like yours
The mufflers before the X-pipe are Dynomax race bullets. Just there to take the "edge off". At the track I still have to wear ear plugs inside my helmet or else I get a headache. At 7000rpm it's LOUD! On the street I still run the regular Magnaflow cat-back with mufflers and leave the x-pipe/bullets in place. At the time my motor was factory stock.

With the new motor (full race LS2) I expect the noise to go up again. I'm re-doing the exhaust for the new motor and this time I will use V-band clamps for ease of assembly/dis-assembly although my car sees very little street use. Plus I'm upgrading to full 3" pipes/oval.

particularly non-stock 99 Cobra w/brand C motor...

Last edited by serpentnoir; 10-02-2009 at 02:06 PM.
serpentnoir is offline
post #22 of 24 Old 10-02-2009, 12:54 PM
Registered User

Trader Feedback: (1)
Join Date: Jul 2008
Location: St. Charles, IL
Posts: 53
Quote:
Originally Posted by sivnalem View Post
amorrow02

Holy shi'ite great looking 70, and 65GT350. I like the Marshall full stack too, although I am more partial to strats Back to regularly scheduled programming.
Haha, thanks for the '65 and amp comments, but most of the '70 pics are of other cars I have in there for reference. The rotisserie pics are still pretty much how it looks, as I'm really just starting on that project. But hopefully it's not too long before it gets its schoolbus yellow paint!

'65 GT350 Clone - 363 stroker, Weber 48 IDA induction
'70 SportsRoof - roadrace project, currently on the rotisserie
'98 Chrome Yellow Cobra
'05 Mineral Grey GT
amorrow02 is offline
post #23 of 24 Old 10-05-2009, 09:28 PM
Registered User

Trader Feedback: (33)
Join Date: Nov 2003
Location: Abingdon, Md.
Posts: 2,877
I remember seeing someone who had brought the pipes up through the floor into the rear seat section and out through the body panel in front of the rear tires. I believe it was an AIX Fox body. Maybe someone has a better memory than me and knows who this is. It was a pretty clean setup and solved the clearance issue nicely.

2005 F250 Super Duty Harley Davidson True Blue
1997 SVT Cobra Pacific Green
1995 5.0 GT Dark Forest Green
If you aren't living on the edge, you're takin' up too much space!
PGreenSVT is offline
post #24 of 24 Old 10-05-2009, 10:14 PM
Registered User

mlanoux's Avatar

Trader Feedback: (9)
Join Date: Dec 1999
Location: New Orleans, LA USA
Posts: 662
Quote:
Originally Posted by PGreenSVT View Post
I remember seeing someone who had brought the pipes up through the floor into the rear seat section and out through the body panel in front of the rear tires. I believe it was an AIX Fox body. Maybe someone has a better memory than me and knows who this is. It was a pretty clean setup and solved the clearance issue nicely.
http://www.dariusrudis.com/2005_Exhaust/
mlanoux is offline
