made myself some brake cooling ducts!!! (pics inside)

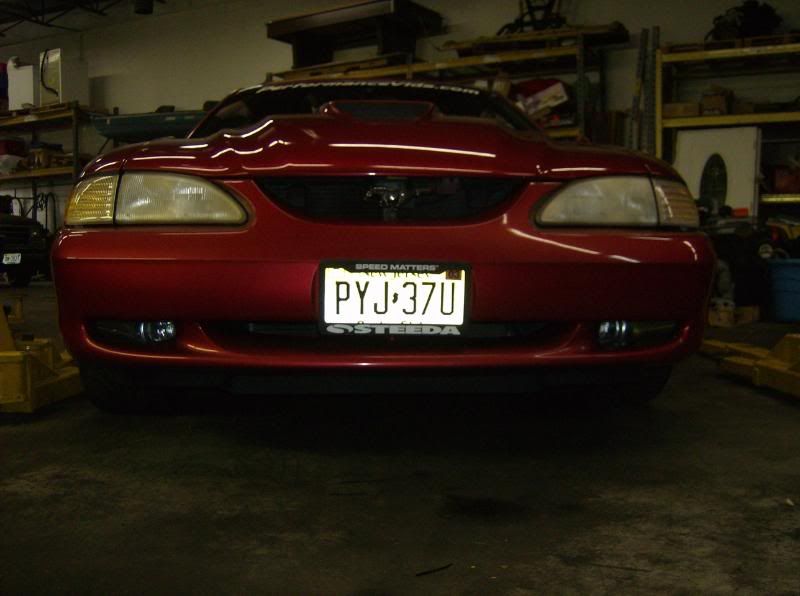

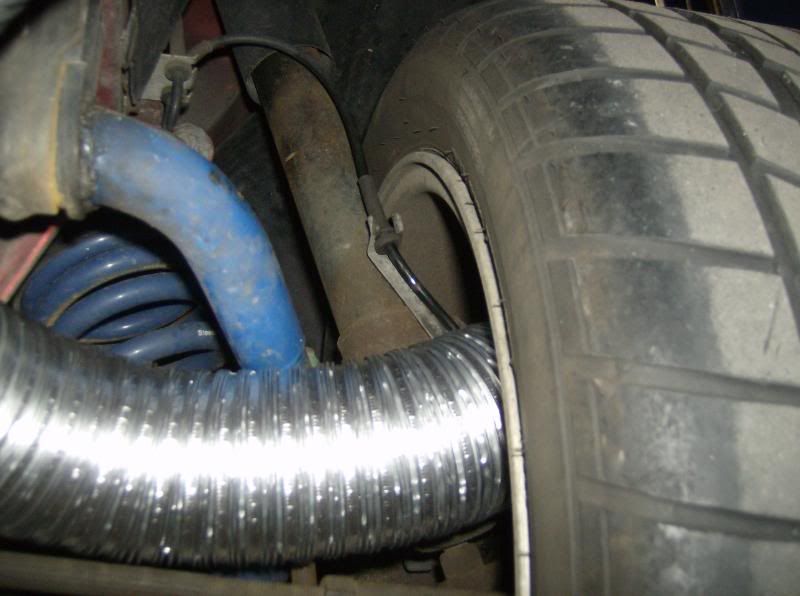

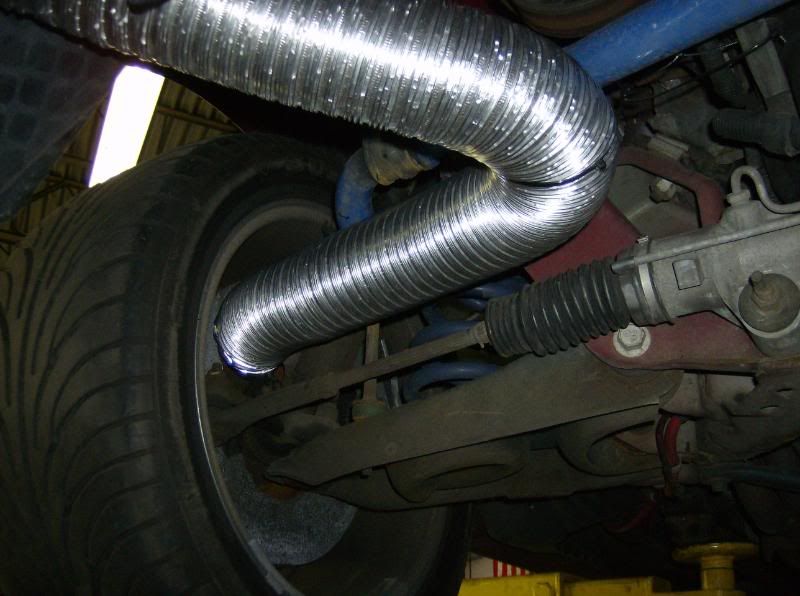

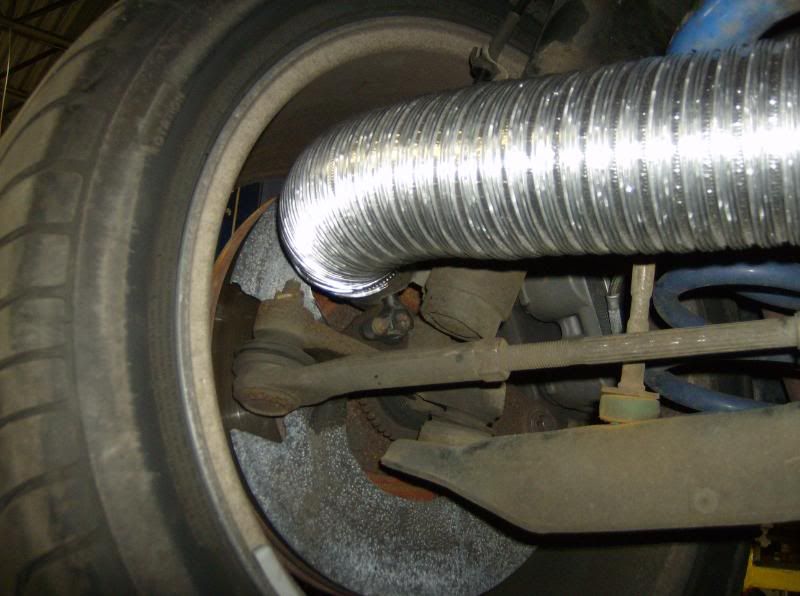

finally got a chance to get my car on the lift at work. decided to do another low budget project. this is what i ended up with. to get a 3 inch pipe to fit i put the end in a vice and made it more oval then round. and the whole outlet of the setup is pointed at the rotor hat, not at the rotor face. i've heard that if it points at the face, the inside face cools alot more quickly then the ouside and cracking can occur. so with it pointed in the center, it gets evenly distributed through the cooling vanes in the rotor. pictures pretty much explain it all. any question just ask. as always, all comments are welcome.

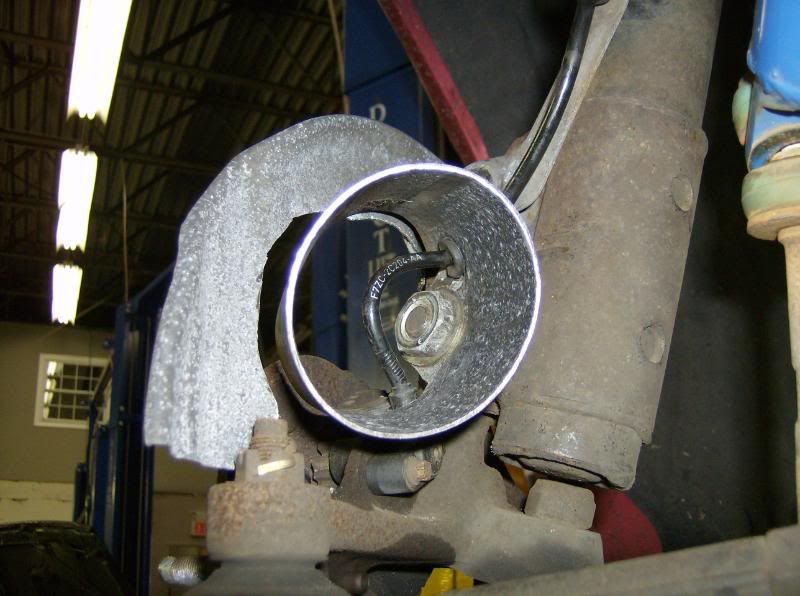

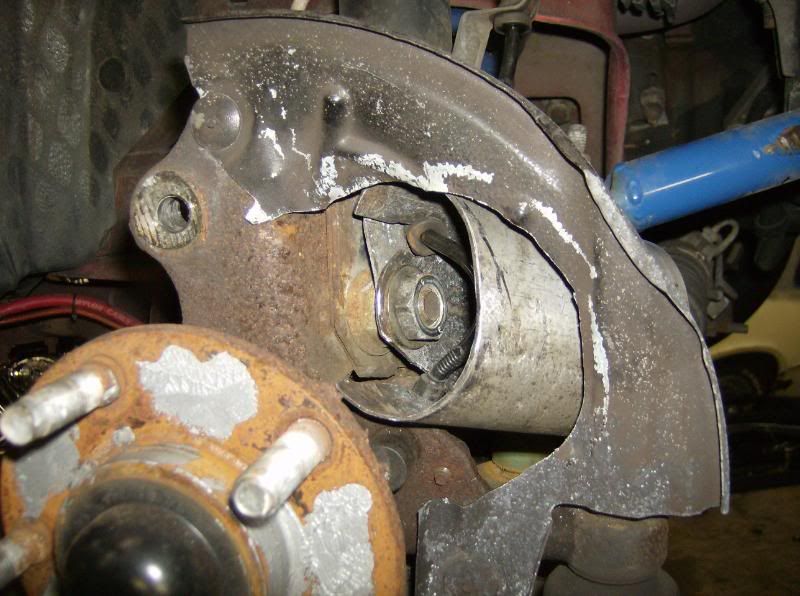

i cut the dust sheild a little to wide on this side. the driver side is alot tighter fitting.



i used the nut that held the abs wire bracked. its usually on the top but i just moved it to the bottom to hold the end of the duct.

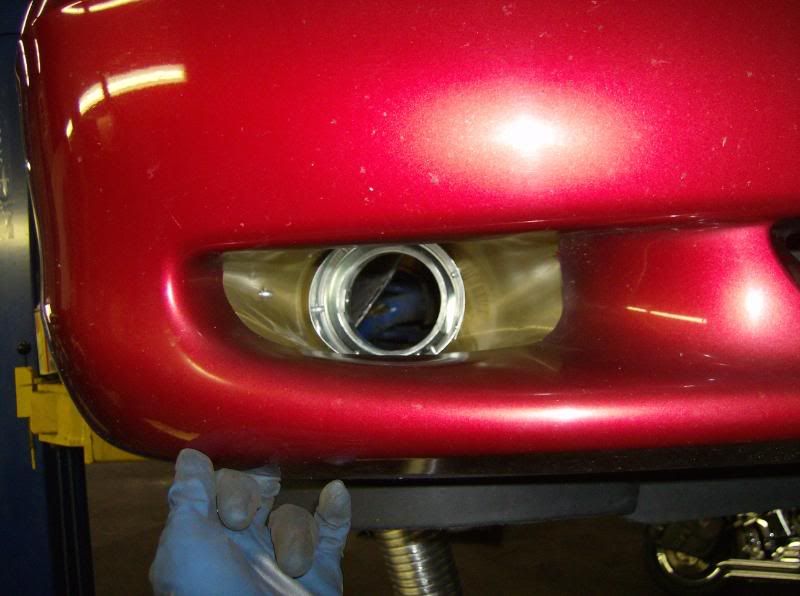

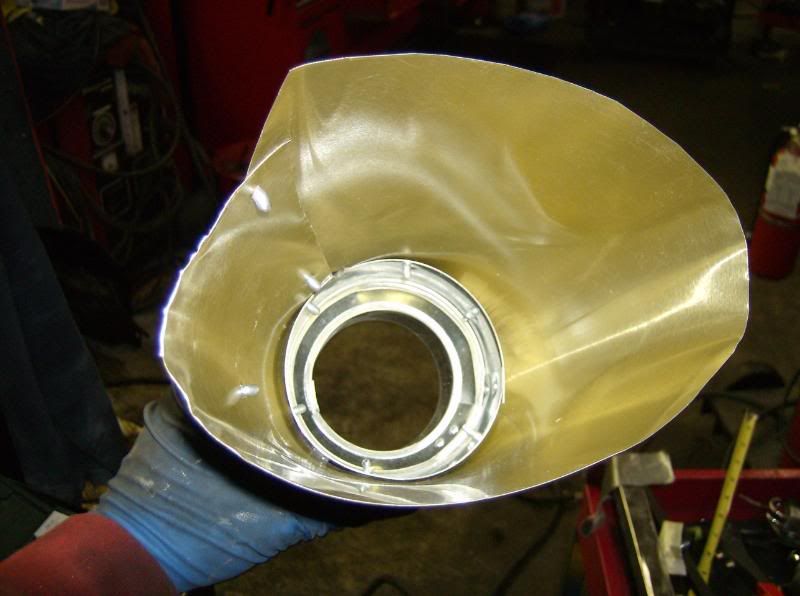

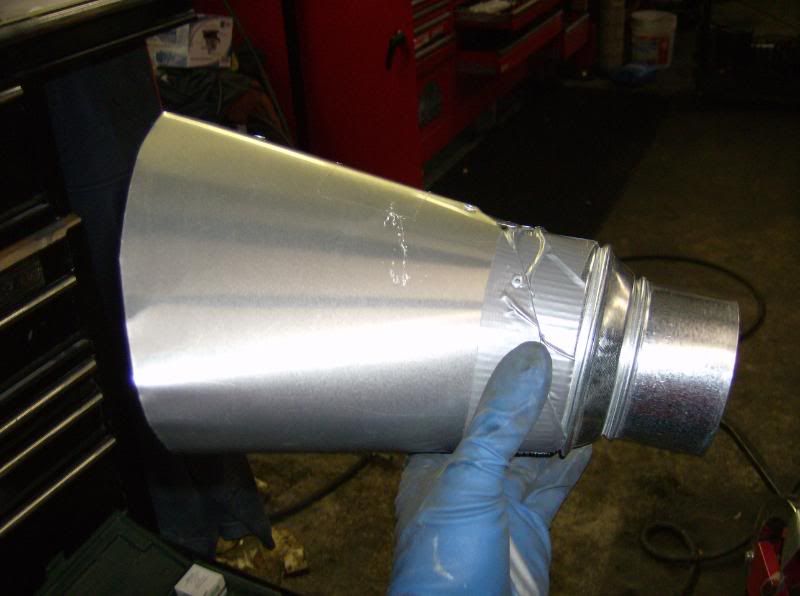

the intake horns (i guess ill call them that) just some aluminum flashing with an air duct for houses. i got everything from lowes/home depot. except the 3" tubing from the local exhaust shop.











the cool thing about this, is that the whole brake duct setup probably weighs less the the fog light setup. so i save maybe a pound or 2 off the front.

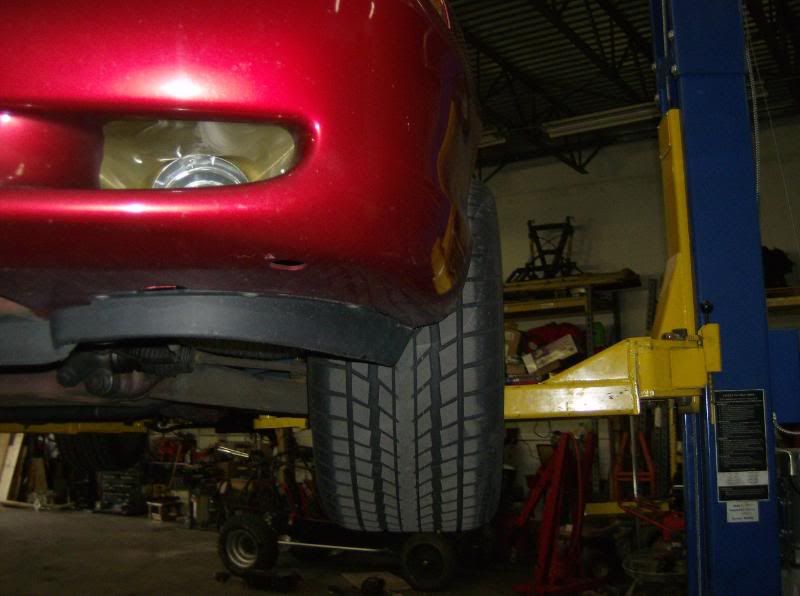

a few teasers of what i might try and do next.


315's on the front! shouldn't be too hard. this will include making custom flares for the fenders.


AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion

Last edited by loudnslow98gt; 04-10-2009 at 12:03 AM.
loudnslow98gt is offline
Sponsored Links
Advertisement

post #2 of 29 Old 04-10-2009, 08:50 AM
Registered User

huesmann's Avatar

Trader Feedback: (6)
Join Date: Jul 2004
Location: DC burbs, MD side
Posts: 6,894
You might reconsider using something a little more flexible for the hose...I suspect that dryer duct will beat itself to death in short order.

huesmann is offline
post #3 of 29 Old 04-10-2009, 10:17 AM
Registered User

avbcon12's Avatar

Trader Feedback: (26)
Join Date: Jan 2002
Location: MI
Posts: 5,780
Quote:
Originally Posted by huesmann View Post
You might reconsider using something a little more flexible for the hose...I suspect that dryer duct will beat itself to death in short order.
X2, very shortly... that stuff is NOT meant to be flexed over and over. it will fall apart quickly.

90 GT black, V2 SI-Trim, Blow-Thru A/A Intercooler
stage 3 "Y" heads/ Bennett Racing intake, TFS#1, long tubes, 3"Pro-Dumps/H-pipe, TKO500, 3.55's, Home made TA and PHB, cobra brakes, 22 gallon Fuel Safe Cell, PMS tuned etc.. built for twisties
avbcon12 is offline
Sponsored Links
Advertisement

post #4 of 29 Old 04-10-2009, 04:24 PM
Registered User

Trader Feedback: (9)
Join Date: Jun 2005
Location: Vancouver
Posts: 452
X3 tried it and it ripped up good real quick.

91 notch, 3000#, Astro T-5, Dart 10.5:1 331, RPM2, AFR 185, custom cam, Max Motorsports, StopTech
redb*tch is offline
post #5 of 29 Old 04-10-2009, 04:30 PM
Registered User

2k2GT's Avatar

Trader Feedback: (0)
Join Date: Aug 2002
Location: Lenoir City, TN
Posts: 6,493
What they said, but off topic....

Is that a Steeda 32mm swaybar, 1000lb spring....and a STOCK damper?!
2k2GT is offline
post #6 of 29 Old 04-10-2009, 04:33 PM
Registered User

WhiteSSP's Avatar

Trader Feedback: (3)
Join Date: Jan 2003
Location: Norfolk VA
Posts: 818
If so, that has to ride horribly.

Good looking setup though, I might have to try to make something like this with my GT.
WhiteSSP is offline
post #7 of 29 Old 04-10-2009, 06:13 PM
Registered User

Trader Feedback: (0)
Join Date: Aug 2002
Location: At the apex, blocking your pass.
Posts: 2,133
As others have said, that dryer duct will live a short, violent life. And getting black-flagged because your super-hoopty brake ducts are scatteed all ober the track is no fun. You want this.

-- Robert King
NASA AI #42, Texas
Instructor, NASA Texas Region
Instructor, TWS Perf. Driving School
gt40mkII is offline
post #8 of 29 Old 04-10-2009, 07:25 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
Quote:
Originally Posted by huesmann View Post
You might reconsider using something a little more flexible for the hose...I suspect that dryer duct will beat itself to death in short order.
i thought about that also. but all the real stuff i found online was expensive. if it does fail i will get something different.

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #9 of 29 Old 04-10-2009, 07:28 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
Quote:
Originally Posted by gt40mkII View Post
As others have said, that dryer duct will live a short, violent life. And getting black-flagged because your super-hoopty brake ducts are scatteed all ober the track is no fun. You want this.
yeah i came across that suff. ill probably pick up 6 ft of it. is that 6 ft. not stretched out? or stretched out?

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #10 of 29 Old 04-10-2009, 07:32 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
Quote:
Originally Posted by 2k2GT View Post
What they said, but off topic....

Is that a Steeda 32mm swaybar, 1000lb spring....and a STOCK damper?!
yeah, its the HD steeda bar, not 1000lb spring, and yes... a stock damper. funny u should mention dampers, cause they are next on my list. i came across some money so they will be done soon. as for the springs, steeda used to make a spring call the superlite sport spring. i dont know the exact rate on them but im pretty sure its no 1000. plus they are progressive, so the ride isn't really that bad.


AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #11 of 29 Old 04-10-2009, 08:24 PM
Registered User

Trader Feedback: (0)
Join Date: Aug 2002
Location: At the apex, blocking your pass.
Posts: 2,133
Quote:
Originally Posted by loudnslow98gt View Post
yeah i came across that suff. ill probably pick up 6 ft of it. is that 6 ft. not stretched out? or stretched out?
It doesn't stretch more than a few percent..

-- Robert King
NASA AI #42, Texas
Instructor, NASA Texas Region
Instructor, TWS Perf. Driving School

Last edited by gt40mkII; 04-10-2009 at 09:11 PM. Reason: kant spel
gt40mkII is offline
post #12 of 29 Old 04-11-2009, 09:44 AM
Registered User

Trader Feedback: (1)
Join Date: May 2001
Location: north central Kansas
Posts: 617
Quote:
Originally Posted by loudnslow98gt View Post
i've heard that if it points at the face, the inside face cools alot more quickly then the ouside and cracking can occur. so with it pointed in the center, it gets evenly distributed through the cooling vanes in the rotor.
Does anyone have pictures of a rotor with a crack only on the inside due to the brake duct not directing all the air to the exact center of the rotor?

Id really like to see one.

1999 Cobra Coupe
'00 Mustang GT
#28 NASA AMERICAN IRON
www.drivenasacentral.com
ramnstang is offline
post #13 of 29 Old 04-11-2009, 10:55 AM
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Never took any pictures of mine when they cracked, but I've since blocked off part of the duct outlet to keep it off the face of the rotor. Problem solved so far.

And I should note, they don't crack on the inside face, they crack on the outside face because the inside is contracting faster than the outside after heating.

Last edited by MFE; 04-11-2009 at 12:03 PM.
MFE is offline
post #14 of 29 Old 04-11-2009, 11:54 AM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
Quote:
Originally Posted by MFE View Post
Never took any pictures of mine when they cracked, but I've since blocked off part of the duct outlet to keep it off the face of the rotor. Problem solved so far.
u got any pics of ur setup?

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #15 of 29 Old 04-11-2009, 12:03 PM
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Not since I installed the block-offs.
MFE is offline
post #16 of 29 Old 04-11-2009, 12:10 PM
Registered User

Trader Feedback: (3)
Join Date: Dec 2003
Location: Atlanta, Georgia
Posts: 397
That hose WILL fail. Getting a 6' length has always been a little bit short for me. Here is a link to some cheaper neoprene coated stuff that is nearly as durable as the silicone stuff but much cheaper. 10' for about $50.

http://www.pitstopusa.com/detail.aspx?ID=50414

This is the first place I found the neoprene stuff, you may be able to find it cheaper

Eric Anderson
Alpharetta, GA

At Corner-Carvers, we're not happy till you're not happy
a79coupe is offline
post #17 of 29 Old 04-11-2009, 04:10 PM
Registered User

By-Tor's Avatar

Trader Feedback: (2)
Join Date: Mar 2003
Location: Shillington, Pa
Posts: 252
Garage

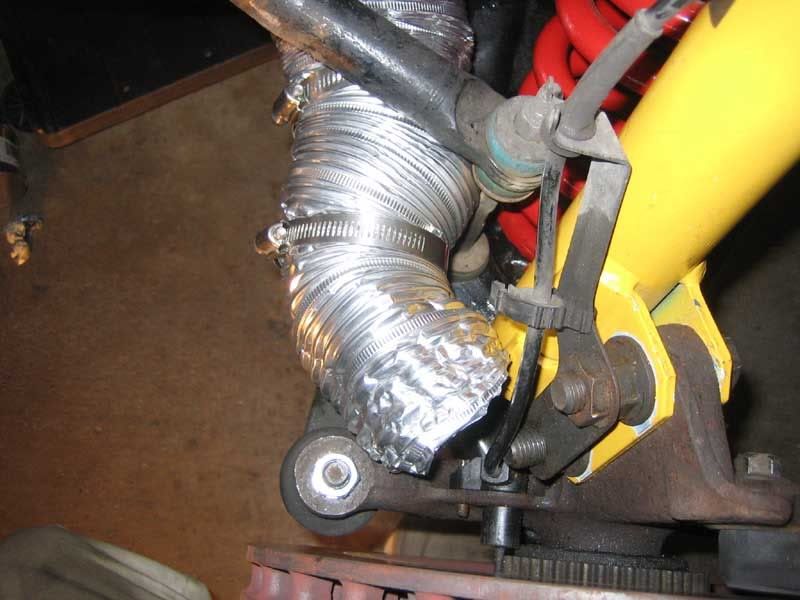

Hmmm, I have that exact same dryer duct hose on my roadrace car for over 4 years and I have not had an issue. One of the great things about it besides it was cheap is that the hose crushed down just a bit where things were close and now there is no rubbing anywhere. I don't have any ducts on the spindle side. Instead I have the hose zip tied to the strut and spindle so it stays right in the center of the rotor.

My drinking team has a racing problem.
SCCA North East Division IV Solo 1 Champion '98,'99,'00,'01,'02

SCCA Club Racing American Sedan #30
By-Tor is offline
post #18 of 29 Old 04-11-2009, 05:35 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
if it fails ill get some better stuff. but by-tor seems to think, as well as has proof, that it should last pretty long. i'll just bring some ducktape with me to any track even i do, in case it falls apart, i could get thru the day. they ill get some better stuff.

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #19 of 29 Old 04-12-2009, 07:52 AM
Registered User

By-Tor's Avatar

Trader Feedback: (2)
Join Date: Mar 2003
Location: Shillington, Pa
Posts: 252
Garage
Since I don't have any kind of tubes that the hose mounts to on my spindle it does keep the hose from flexing when turning. I will try to post some pics of my set up.

If you have a problem at the track with the hose seperating then you might want to consider taking the ducts off of the spindle and zip tie the end to the srtut as close to the center of the rotor as you can get. Another tip, when I mounted the hose on the strut I poked 2 small holes about 3 inches apart on one side to loop the zip tie through.

You also might want to consider losing the dust shields you may trap alot of heat against the inside face of the rotor between track sessions.

My drinking team has a racing problem.
SCCA North East Division IV Solo 1 Champion '98,'99,'00,'01,'02

SCCA Club Racing American Sedan #30

Last edited by By-Tor; 04-12-2009 at 08:03 AM.
By-Tor is offline
post #20 of 29 Old 05-04-2009, 08:43 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
got an update with some hard numbers.

the aluminum tubing broke about a week after the install so i got some of the real stuff. much better. i took a laser temp gauge with me and measured the heat of the rotors after my runs. i did have to do 1 big sweeper onto the main straight then pit in before i could measure them. so the fronts were at a cool 375ish. and the rears were at 650ish. so the ducts work pretty good.

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #21 of 29 Old 05-04-2009, 09:15 PM
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by loudnslow98gt View Post
so the ducts work pretty good.
Comparing front to rear temps doesn't tell you your ducts are working. Plug the ducts with tape for a session and check your front temps then...then you'll at least have a better idea if your ducts are working, and even then...maybe not. Rotor temps rise and fall pretty damn quickly and measuring them after a session doesn't tell you the peak temps or the decay rate afterward. But it's better than measuring front vs rear
MFE is offline
post #22 of 29 Old 05-04-2009, 09:40 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
Quote:
Originally Posted by MFE View Post
Comparing front to rear temps doesn't tell you your ducts are working. Plug the ducts with tape for a session and check your front temps then...then you'll at least have a better idea if your ducts are working, and even then...maybe not. Rotor temps rise and fall pretty damn quickly and measuring them after a session doesn't tell you the peak temps or the decay rate afterward. But it's better than measuring front vs rear
i hear what ur saying. i didn't have tape with me so couldn't do that. but the fact that they were almost 300 degrees cooler then the rears says something. ill try the tape thing the next time im out.

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #23 of 29 Old 05-04-2009, 09:48 PM
MFE
Super Moderator

MFE's Avatar

Trader Feedback: (9)
Join Date: Nov 1999
Location: Phoenix
Posts: 27,649
Quote:
Originally Posted by loudnslow98gt View Post
but the fact that they were almost 300 degrees cooler then the rears says something.
I agree it says something, I just wouldn't want to see you take it for granted that it says what you think it does. Your ebrake failing to release would be just one thing that might give you similar results
MFE is offline
post #24 of 29 Old 05-09-2009, 08:35 PM
Registered User

Trader Feedback: (7)
Join Date: Nov 2008
Location: San Diego, CA
Posts: 253
maybe you can measure left to right
mchector is offline
post #25 of 29 Old 05-13-2009, 10:52 PM
Registered User

Scot_94GT's Avatar

Trader Feedback: (0)
Join Date: Apr 2000
Location: Minnesota
Posts: 103
Been there and done that.

The dryer duct is just not flexible enough.

At first it looks like it may work






buuuuut
after a few lock-to-lock turns, and some frustration....


Modifications worth noting:
Cobra brakes, BBK headers, H&Rs, Bilstiens
Scot_94GT is offline
post #26 of 29 Old 05-16-2009, 06:19 PM Thread Starter
Registered User

loudnslow98gt's Avatar

Trader Feedback: (5)
Join Date: Aug 2006
Location: new jersey
Posts: 763
mine didn't get that bad. but they did split open right where they mount the the tubing that points at the rotor hat.

AJ Hartman
RHRPerf.com
facebook.com/rhrperformancellc/
2013, 2016-217 NASA Northeast American Iron Champion
loudnslow98gt is offline
post #27 of 29 Old 05-16-2009, 07:30 PM
Registered User

Trader Feedback: (1)
Join Date: May 2001
Location: north central Kansas
Posts: 617
Quote:
Originally Posted by MFE View Post
And I should note, they don't crack on the inside face, they crack on the outside face because the inside is contracting faster than the outside after heating.

So far in testing the outside rotor temps have been very consistent (+-15°) with the inner face of the rotors with my cooling ducts installed.

This may be due to the increased air flow the exposed face of the rotor sees compared to the inner face that's more shrouded from direct airflow. Additional testing needs to be done to determine why the inner rotor face isnt cooler than the outer rotor face when the brake duct is directing air over it towards the hub and cooling vanes. Stay tuned.

Anthony

1999 Cobra Coupe
'00 Mustang GT
#28 NASA AMERICAN IRON
www.drivenasacentral.com
ramnstang is offline
post #28 of 29 Old 05-17-2009, 07:42 AM
Registered User

Trader Feedback: (3)
Join Date: Dec 2003
Location: Atlanta, Georgia
Posts: 397
Do you still have your brake backing plates installed? If so, either trim them so that the entire inner rotor face is exposed or remove them entirely.

Eric Anderson
Alpharetta, GA

At Corner-Carvers, we're not happy till you're not happy
a79coupe is offline
post #29 of 29 Old 07-18-2009, 11:05 PM
Registered User

rusqtsi's Avatar

Trader Feedback: (1)
Join Date: Oct 2007
Location: 01970
Posts: 263
cheaper hoses

Go to pegasus racing supplies and search for part # 3620

12ft for $50
rusqtsi is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
Forte's Firewall Adjuster $20 shipped pics inside... badass98svt Drivetrain Parts 14 06-09-2010 10:33 PM
1 piece or 2 piece rear main seal? Pics inside 91stang50gt 5.0/5.8 Engine Tech 2 04-06-2009 03:06 PM
my home made solid sway bar endlinks. (pics) loudnslow98gt Road Racing/Auto X 17 03-27-2009 08:49 PM
Siemens Deka EV1 60lb. Injectors - Pics inside gmkillr Fuel System & Related 3 03-24-2009 07:41 PM
please look at my cylINDER walls pics inside MnIrishJr 5.0/5.8 Engine Tech 11 03-24-2009 10:26 AM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
