what has everyone done for GAUGES

im coming down to the end of my ls1 swap sn95 car, now im at the point where I need oil/temp/volt/rpm gauges, so what has everyone done for their gauge needs?

im a stock 2002 ls1 with stock ecu and modified harness

skatermckimm is offline
Sponsored Links
Advertisement

post #2 of 20 Old 07-22-2014, 08:21 PM Thread Starter
Registered User

Trader Feedback: (0)
Join Date: Apr 2012
Location: florida
Posts: 97
nobody is running gauges I guess.....

skatermckimm is offline
post #3 of 20 Old 07-23-2014, 10:13 PM
S2H
Registered User

S2H's Avatar

Trader Feedback: (0)
Join Date: Jun 2012
Location: Schexnayder Racing - Arnaudville, LA.
Posts: 336

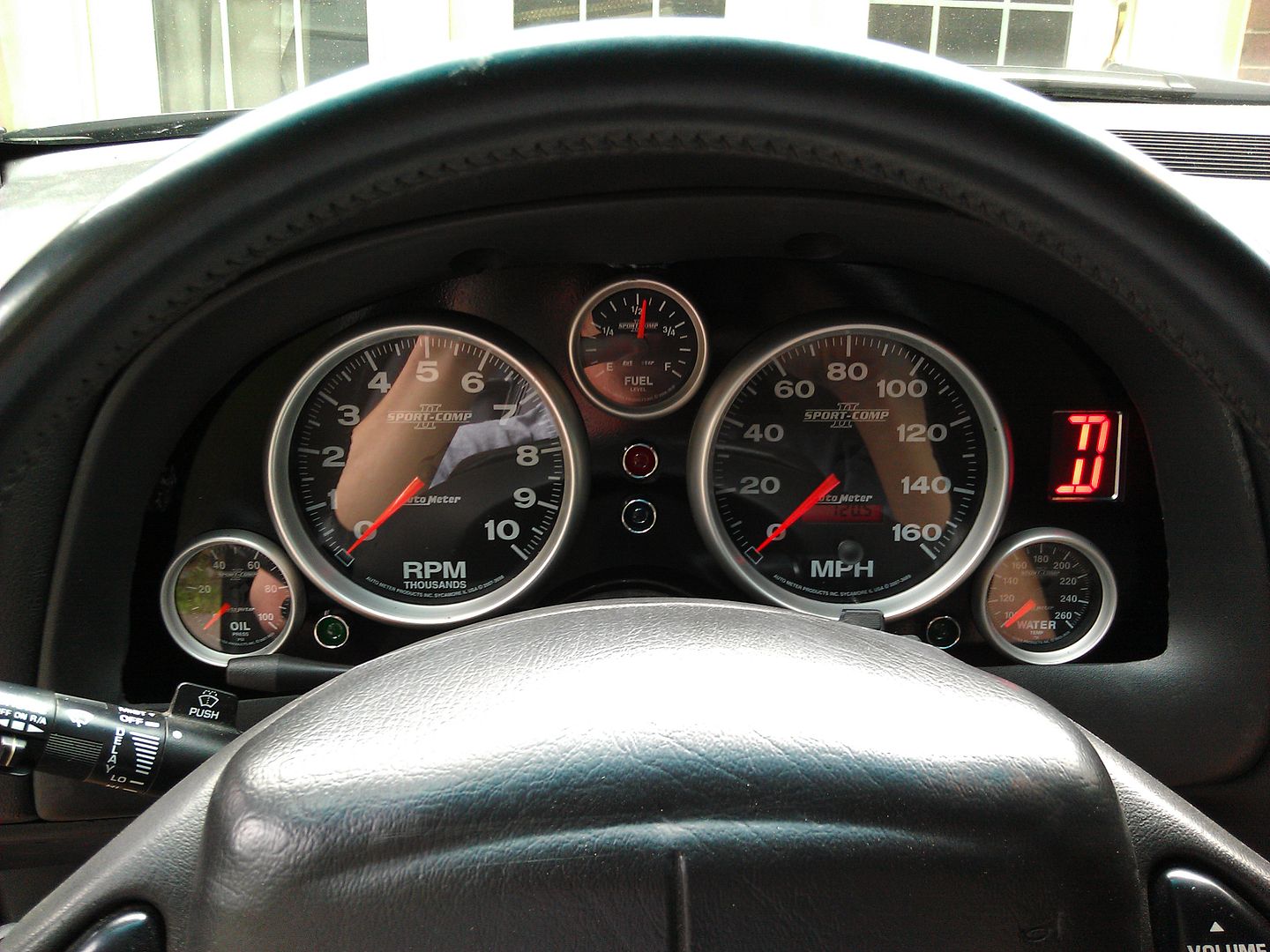

Glasstek Dash.....

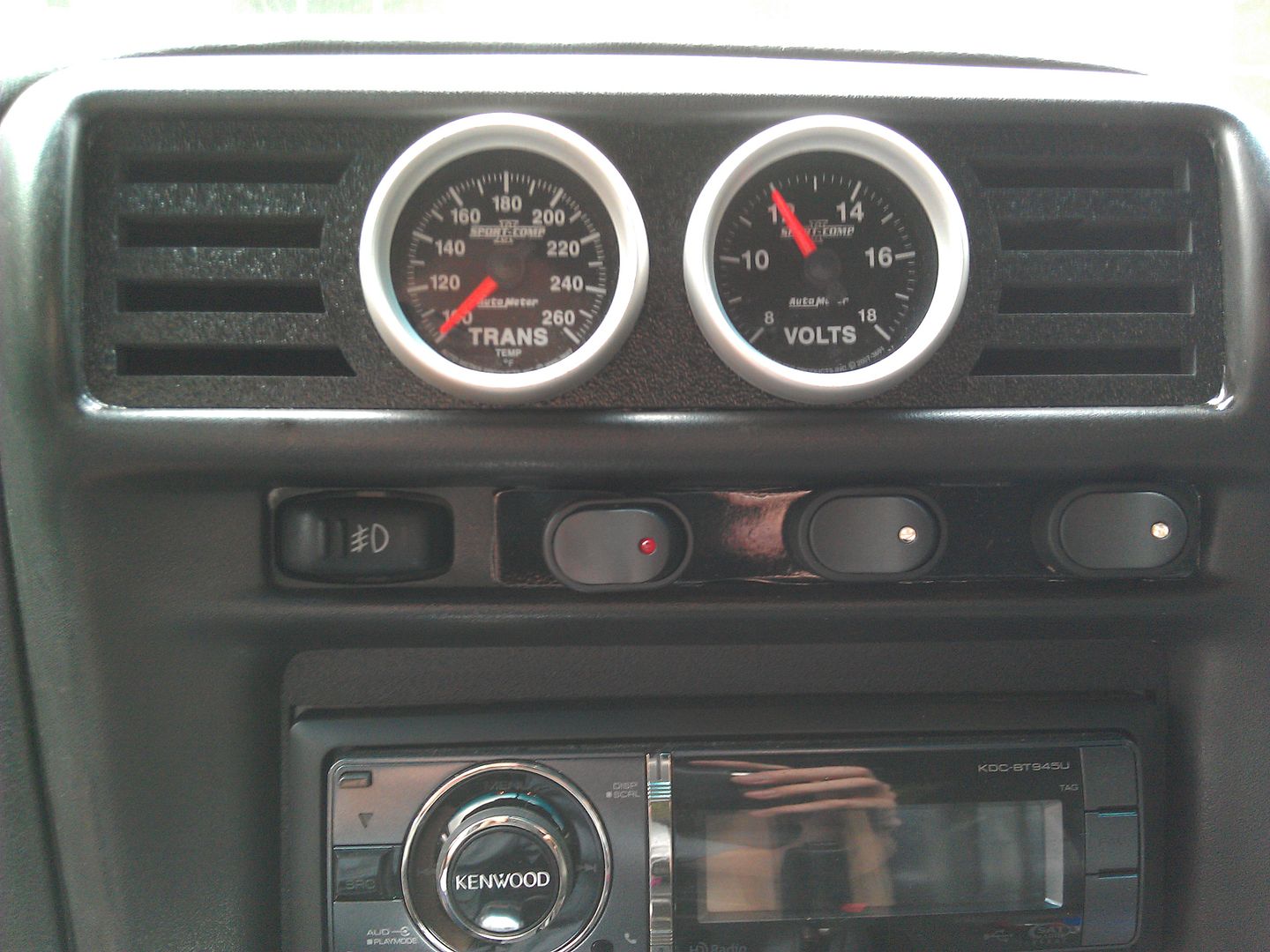

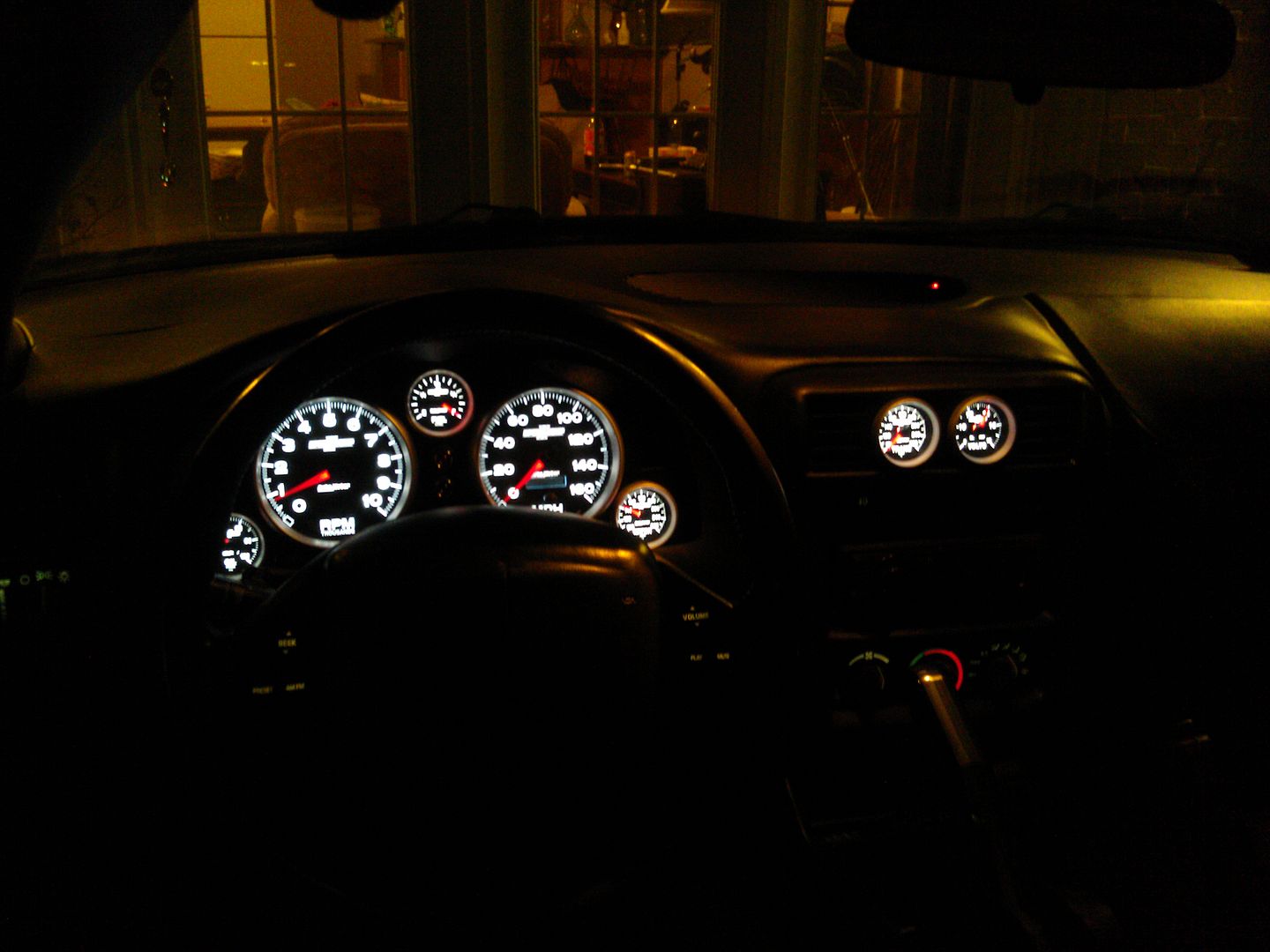

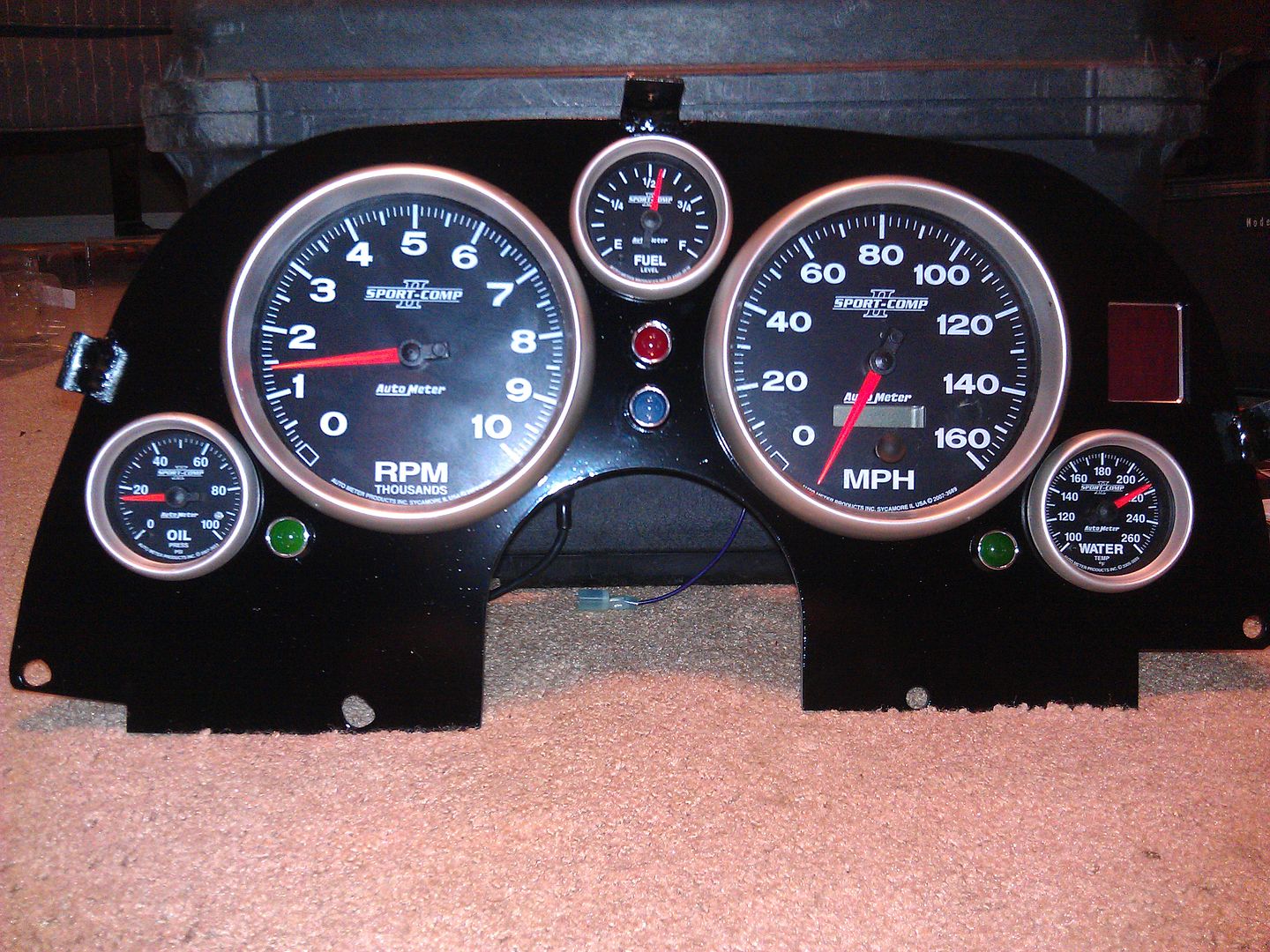

Custom Gauge Panel designed by me
Autometer Tach, speedo, and fuel gauge
all the rest are Holley EFI digital universal programmable gauges.
plus a PCS Gear Gauge to communicate with my TCI Trans Controller













you can see the gauges in action in this video...
25 seconds into it till about 48 seconds...

Project Blasphemy - Walk Around 408 LSx Procharger F1c Mustang Foxbody - YouTube

-Scott
Schexnayder Racing -Arnaudville LA.(North East Lafayette)
Engines, Transmissions, Tuning and Injector Flowing/Cleaning/Testing.
Holley EFI Authorized Dealer
S2H is offline
Sponsored Links
Advertisement

post #4 of 20 Old 07-25-2014, 10:52 PM Thread Starter
Registered User

Trader Feedback: (0)
Join Date: Apr 2012
Location: florida
Posts: 97
wow now that's a killer setup!!

I didn't run holley efi, im on stock ecu. are the holley gauges able to be hooked up to the stock sensors??
skatermckimm is offline
post #5 of 20 Old 07-25-2014, 11:08 PM
S2H
Registered User

S2H's Avatar

Trader Feedback: (0)
Join Date: Jun 2012
Location: Schexnayder Racing - Arnaudville, LA.
Posts: 336
Quote:
Originally Posted by skatermckimm View Post
wow now that's a killer setup!!

I didn't run holley efi, im on stock ecu. are the holley gauges able to be hooked up to the stock sensors??
No...
Holley Universal Digital Gauges only work with Holley EFI products (Avenger/HP/Dominator)

-Scott
Schexnayder Racing -Arnaudville LA.(North East Lafayette)
Engines, Transmissions, Tuning and Injector Flowing/Cleaning/Testing.
Holley EFI Authorized Dealer
S2H is offline
post #6 of 20 Old 07-26-2014, 05:26 PM Thread Starter
Registered User

Trader Feedback: (0)
Join Date: Apr 2012
Location: florida
Posts: 97
so what gauges can I get to run with my setup?

sorry it sounds like such a newbie question I just really am stumped. I see gauges online but how/what do I hook them up? stock sensors? aftermarket sensors?
skatermckimm is offline
post #7 of 20 Old 07-27-2014, 02:14 PM
Registered User

TopNotchLSX's Avatar

Trader Feedback: (0)
Join Date: Feb 2014
Location: Missouri
Posts: 59
Some people choose to run an F-body cluster within the Mustang gauge surround. To me it looks weird but many have done it. Many others have done a full custom cluster like myself using gauges from autometer for example. I used a piece of carbon fiber and made a backing plate for the gauges to sit in.

Built Ford tough with all kinds of stuff!
TopNotchLSX is offline
post #8 of 20 Old 07-27-2014, 09:47 PM Thread Starter
Registered User

Trader Feedback: (0)
Join Date: Apr 2012
Location: florida
Posts: 97
maybe im wording this wrong, what do you hook the gauges up to? obviously the gauges don't come with sensors, or maybe they do, so my question is what sensors do you use to run the gauges off of?
skatermckimm is offline
post #9 of 20 Old 07-28-2014, 10:07 PM
S2H
Registered User

S2H's Avatar

Trader Feedback: (0)
Join Date: Jun 2012
Location: Schexnayder Racing - Arnaudville, LA.
Posts: 336
Autometer gauges come with sensors...
Except for the speedometers... you gotta supply your own hall effect sensor for that.
And the tachometers have add on pieces if you need to use an inductive style pickup...or they take any standard square wave tach signal..the ls1 ecu has a wire that outputs a tach signal(set tach to 4cylinder mode)
S2H is offline
post #10 of 20 Old 07-29-2014, 01:37 AM
S2H
Registered User

S2H's Avatar

Trader Feedback: (0)
Join Date: Jun 2012
Location: Schexnayder Racing - Arnaudville, LA.
Posts: 336
for the stock Dash ion a 98-02 Fbody.....

that was my last car...2001 Camaro Z28

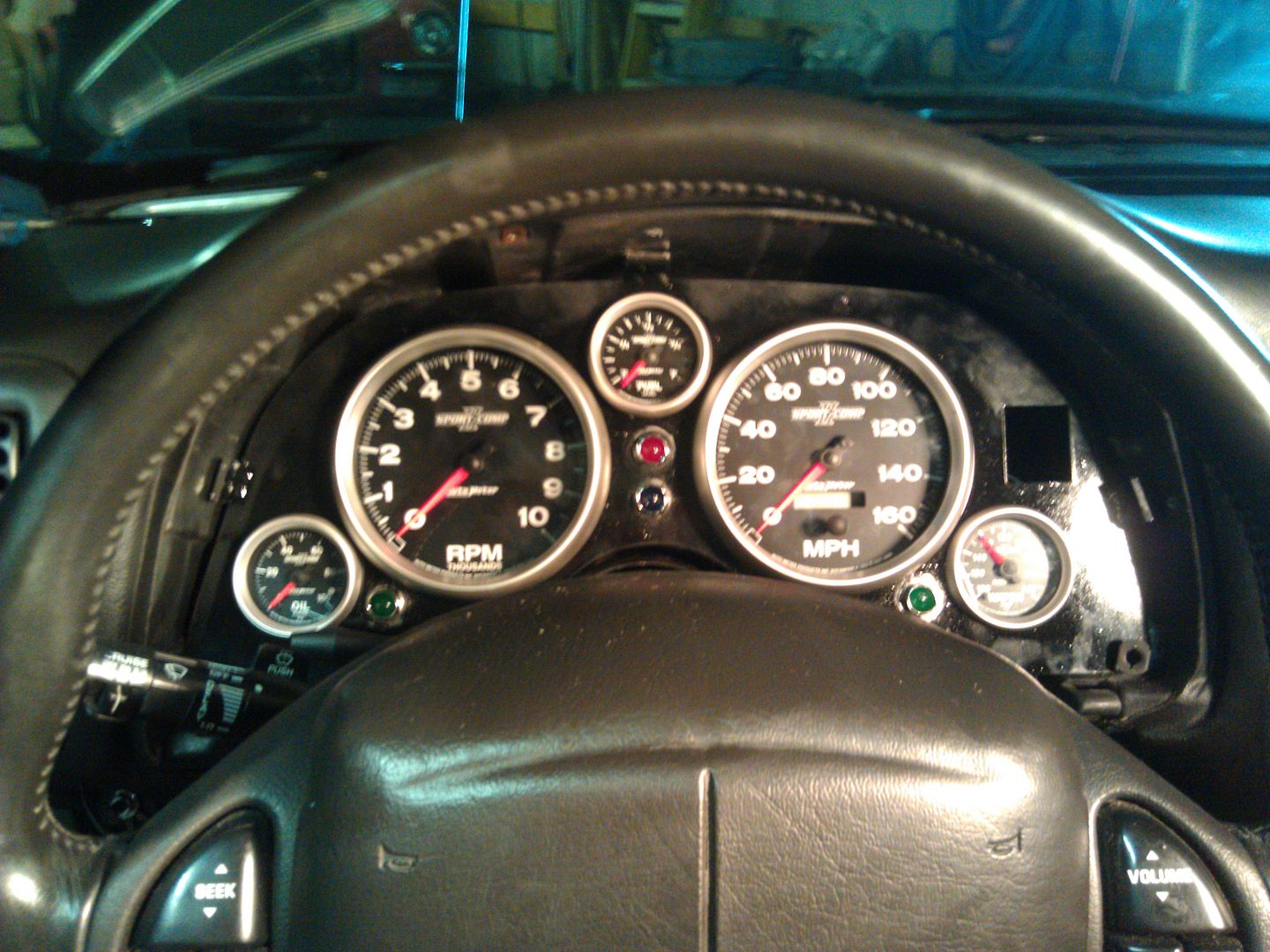

and I had made a dash plate to put a bunch of gauges in...
I started with all Autometer Gauges...and when Upgraded from the stock ECU to the Holley I just replace some of the gauges with Holley Gauges so I could lose a a lot of wiring clutter and cut down on sensors






















-Scott
Schexnayder Racing -Arnaudville LA.(North East Lafayette)
Engines, Transmissions, Tuning and Injector Flowing/Cleaning/Testing.
Holley EFI Authorized Dealer
S2H is offline
post #11 of 20 Old 07-31-2014, 08:33 PM Thread Starter
Registered User

Trader Feedback: (0)
Join Date: Apr 2012
Location: florida
Posts: 97
wow that looks AMAZING!!!

thankyou for clarifying the gauge deal, I will be ordering up some this week.

im not worried about speedo, just temp, oil, volt, rpm....and yes my harness has an rpm sensor
skatermckimm is offline
post #12 of 20 Old 08-24-2014, 07:50 AM
Registered User

floatn's Avatar

Trader Feedback: (5)
Join Date: Mar 2006
Location: NC 28625
Posts: 322
Florida 5.0 cluster here. With ultra light gauges.
floatn is offline
post #13 of 20 Old 08-25-2014, 12:00 AM
Registered User

Trader Feedback: (0)
Join Date: Sep 2008
Location: detroit
Posts: 286
racepak.
summer nites is offline
post #14 of 20 Old 08-25-2014, 05:26 PM
Registered User

Trader Feedback: (4)
Join Date: Sep 2002
Location: kansas
Posts: 121
Ill be using the digital dash for most while i save up for all autometer gauges.
sleeperls is offline
post #15 of 20 Old 04-05-2015, 11:06 AM
S2H
Registered User

S2H's Avatar

Trader Feedback: (0)
Join Date: Jun 2012
Location: Schexnayder Racing - Arnaudville, LA.
Posts: 336
I have an update to my dash...

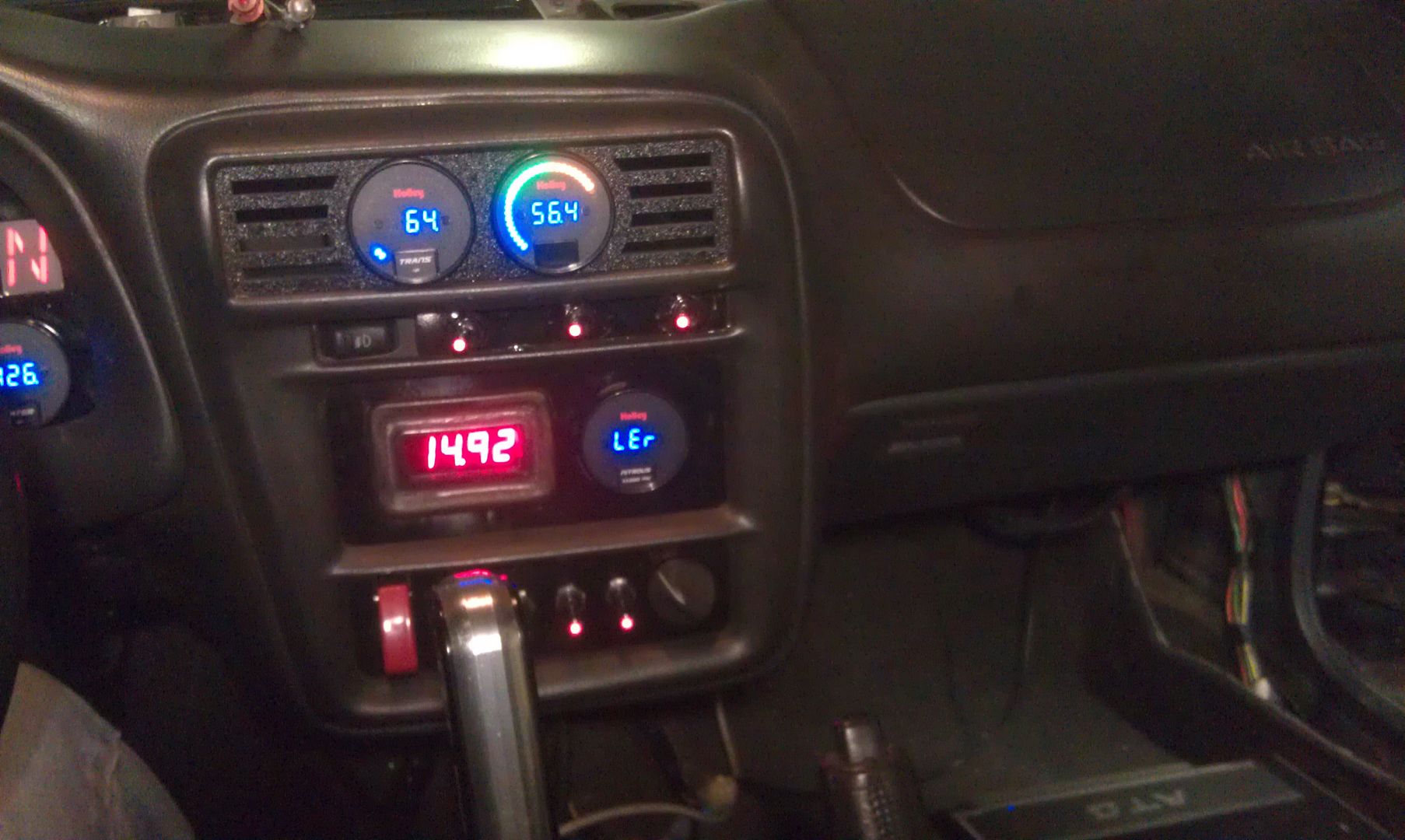

with the Recent Release of the Holley Dash (and me being a beta tester)
I have changed my Dash in my mustang a little bit

I still have the Autometer Tach/Speedo/Fuel Gauge
and I kept a few of the Holley Universal Digital Gauges...
but I added in the New Holley 553-106 Digital LCD Dash






-Scott
Schexnayder Racing -Arnaudville LA.(North East Lafayette)
Engines, Transmissions, Tuning and Injector Flowing/Cleaning/Testing.
Holley EFI Authorized Dealer
S2H is offline
post #16 of 20 Old 10-09-2015, 12:47 AM
Registered User

Trader Feedback: (1)
Join Date: Sep 2005
Location: Phoenix, Arizona
Posts: 104
Old thread, but, by any chance has anyone used a stock fbody cluster in a fox? I've done a few Google searches and only found one example

89 LX 5.0, 5spd, bone stock down to the original owners manual
wishahada50 is offline
post #17 of 20 Old 10-14-2015, 10:38 AM
Registered User

Trader Feedback: (3)
Join Date: Jul 2009
Location: bham
Posts: 105
I'm doing it now. It's not hard at all, just connecting the right wires. I also molded the gauge surround so the ls1 cluster didn't look to out of place.
amicksLS1 is offline
post #18 of 20 Old 10-21-2015, 06:57 PM
Registered User

Trader Feedback: (1)
Join Date: Sep 2005
Location: Phoenix, Arizona
Posts: 104
thanks for the response, i gave up on the Fbody cluster, just going to run gauges all through out, didint really want to get rid of the stock cluster look.

89 LX 5.0, 5spd, bone stock down to the original owners manual
wishahada50 is offline
post #19 of 20 Old 11-13-2015, 03:49 PM
Registered User

Trader Feedback: (32)
Join Date: Aug 2002
Location: ADEL GA BABY
Posts: 2,287
you can use the stock gauges. autometer makes an adapter to put a pipe thread sending unit in the back of the block where the stock oil pressure sender was on the ls block. then you use the original ford wire and oil pressure sending unit. same with the temp gauge. you can get an adapter and put in the back side of the passenger head where the allen head plug is. Or you can drill and tap the top of the waterpump if you have room or get a heater hose adapter to put a sending unit in. Use the stock ford temp sending unit and wires. For the tach you can run the signal wire from the ls computer to the ford tach, then adjust the tach signal in the tune to 4hi-4lo and the tach will work like stock. You can even make the speedometer work using a gps sending unit

bone stock Bright Atlantic Blue 98gt
ruffledfeathers is offline
post #20 of 20 Old 11-15-2015, 03:24 PM
Registered User

Trader Feedback: (1)
Join Date: Sep 2005
Location: Phoenix, Arizona
Posts: 104
Quote:
Originally Posted by ruffledfeathers View Post
you can use the stock gauges. autometer makes an adapter to put a pipe thread sending unit in the back of the block where the stock oil pressure sender was on the ls block. then you use the original ford wire and oil pressure sending unit. same with the temp gauge. you can get an adapter and put in the back side of the passenger head where the allen head plug is. Or you can drill and tap the top of the waterpump if you have room or get a heater hose adapter to put a sending unit in. Use the stock ford temp sending unit and wires. For the tach you can run the signal wire from the ls computer to the ford tach, then adjust the tach signal in the tune to 4hi-4lo and the tach will work like stock. You can even make the speedometer work using a gps sending unit

Awesome man, this is going to be
way better, jus add the gauges I need and keep the stock ones.
wishahada50 is offline
