Broken original 5.0T to JY 5.3T

Old engine lifted the head.. So instead of dumping 4-5grand into a new SBF. I just spent $400 on a complete 5.3L.

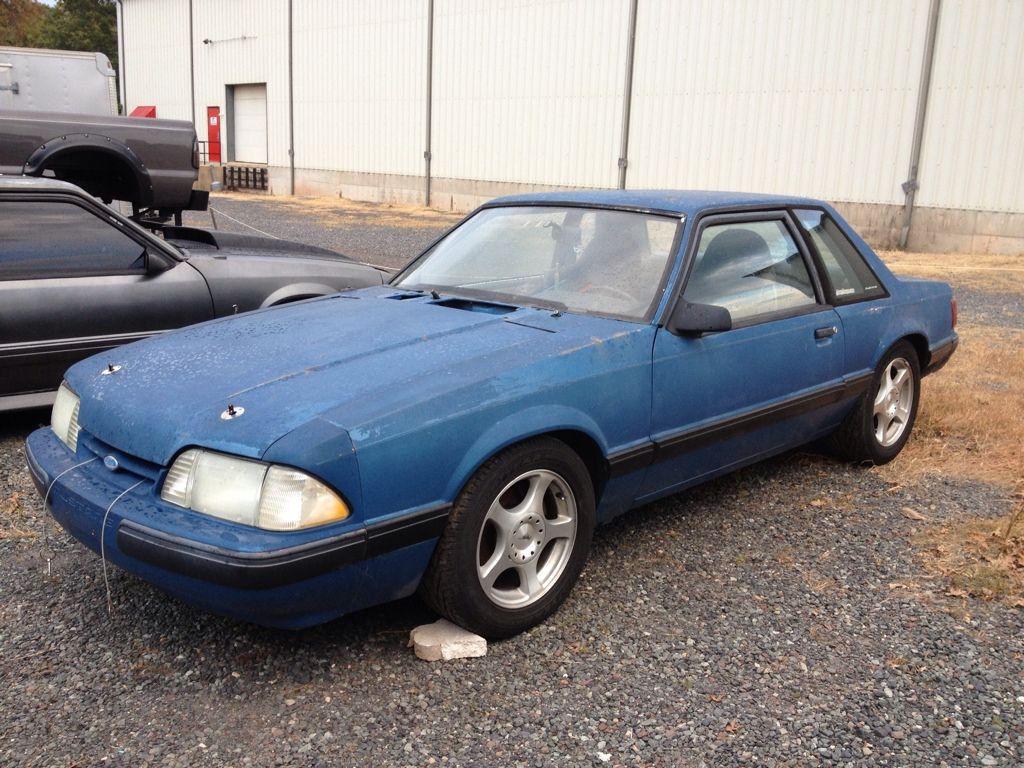

Went from this:

To this:


To a cleaned this:


Then the final product:


I have the engine/trans (TH400) already and yesterday fabbed up the motor plates. Hoping next week to have the engine/trans in for a mock up fitting.


'88 LX -New mill coming soon.
ManicMike is offline
Sponsored Links
Advertisement

post #2 of 54 Old 09-12-2012, 01:28 AM
Registered User

Trader Feedback: (0)
Join Date: Sep 2010
Location: Sparks
Posts: 43
In for pics.

Ginchy is offline
post #3 of 54 Old 10-01-2012, 11:38 AM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
HUGE progress today...

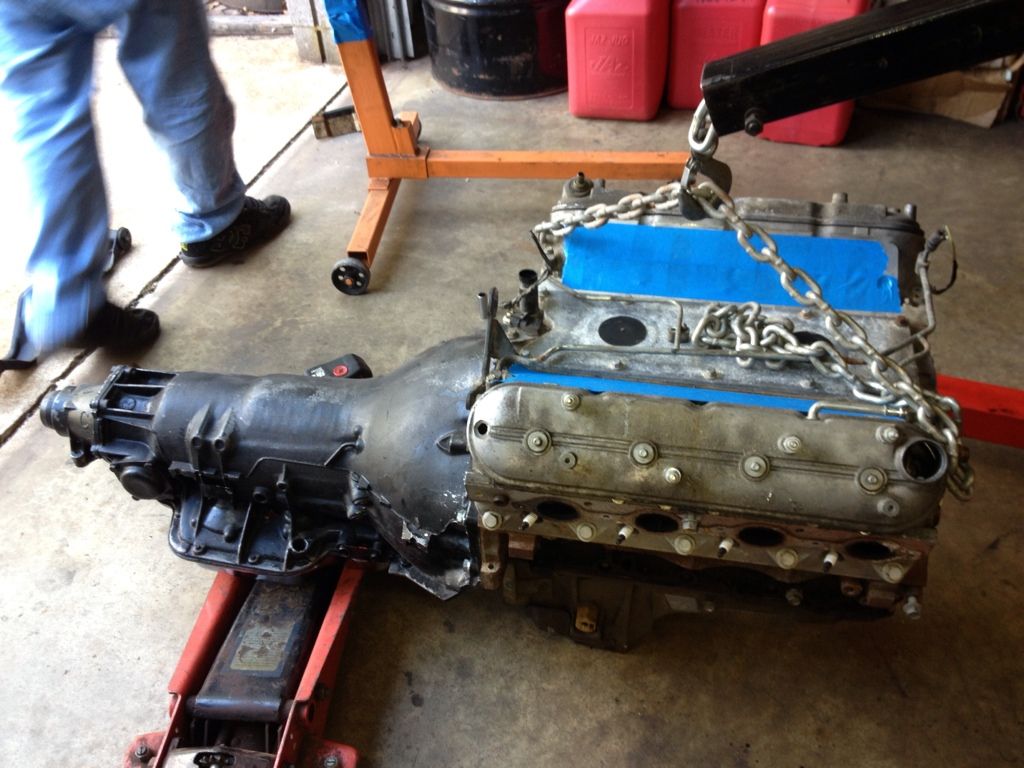

5.3 and the TH400 bolted together...

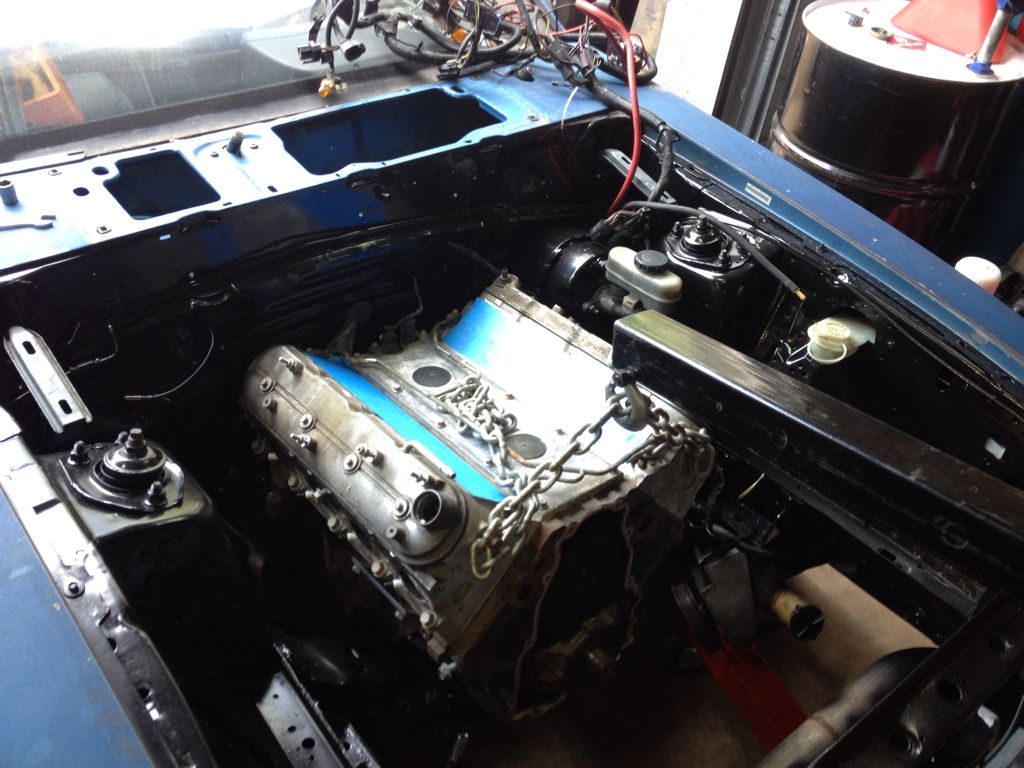

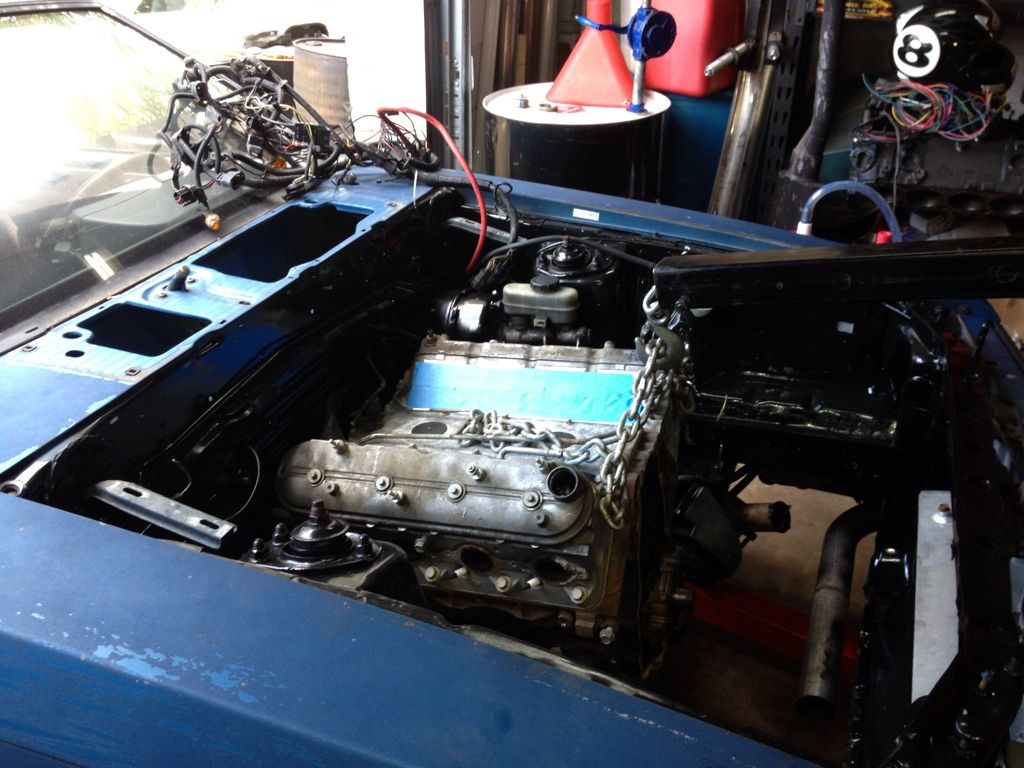

Getting it set in...

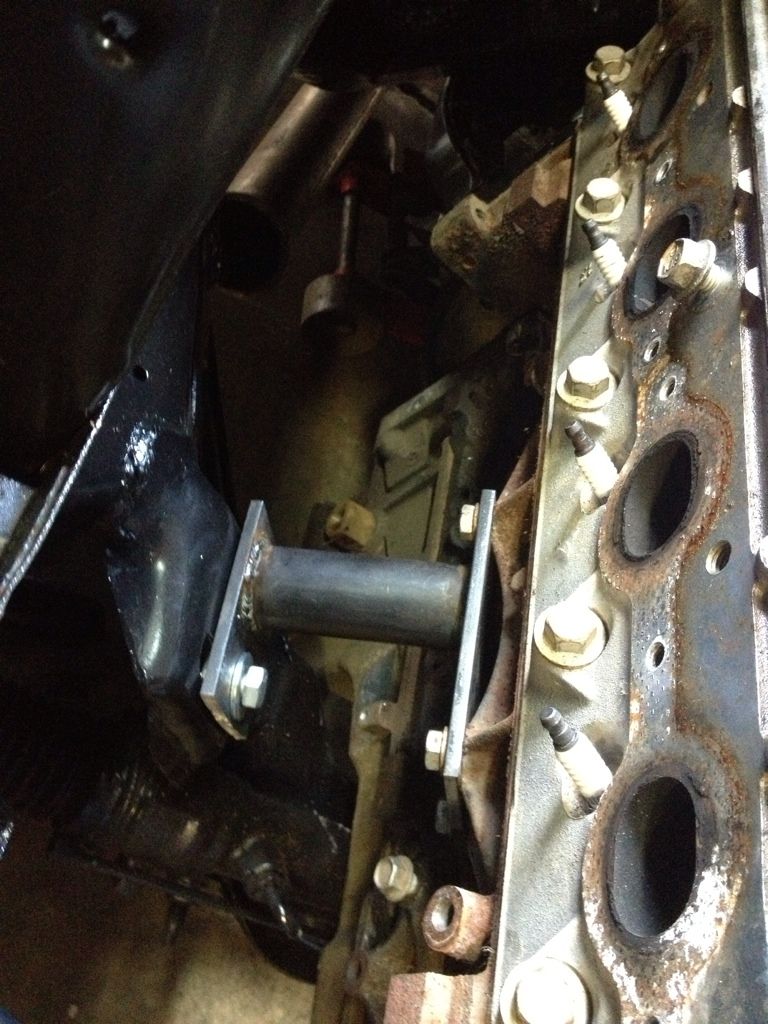

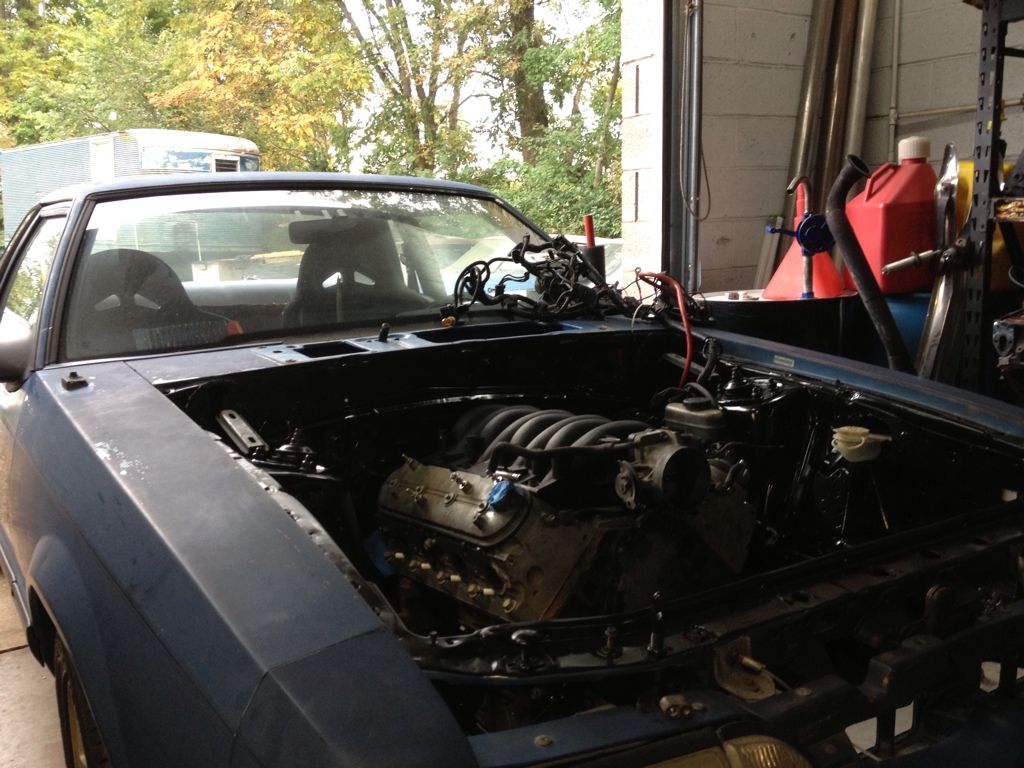

Got the mount's made up...

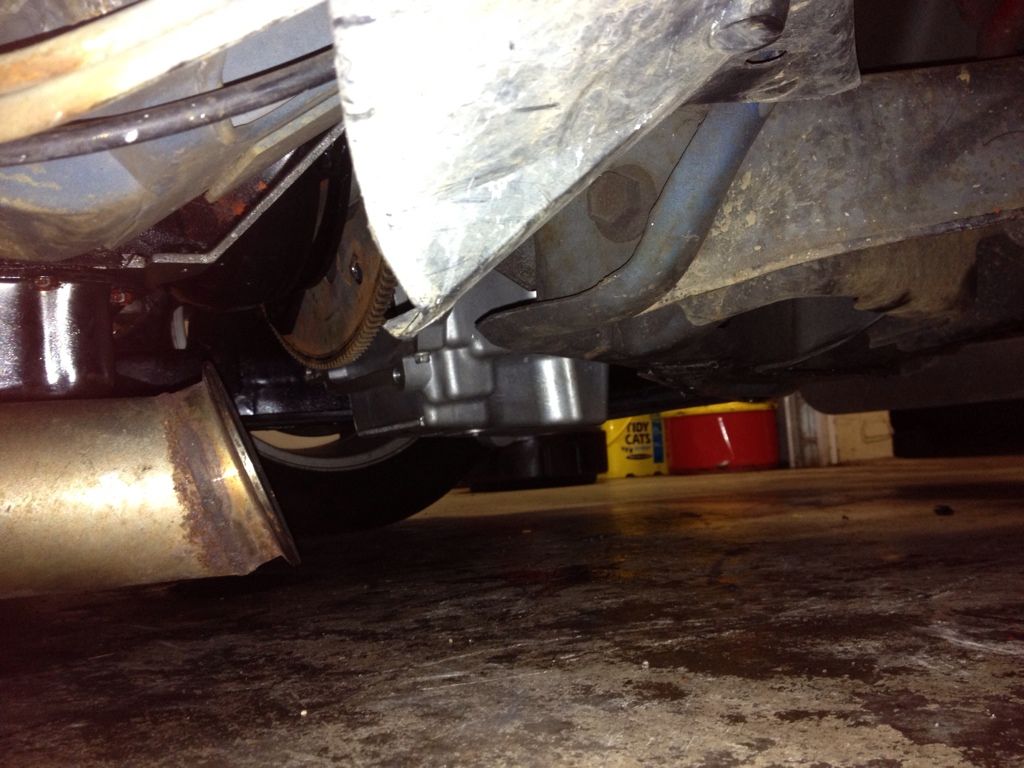

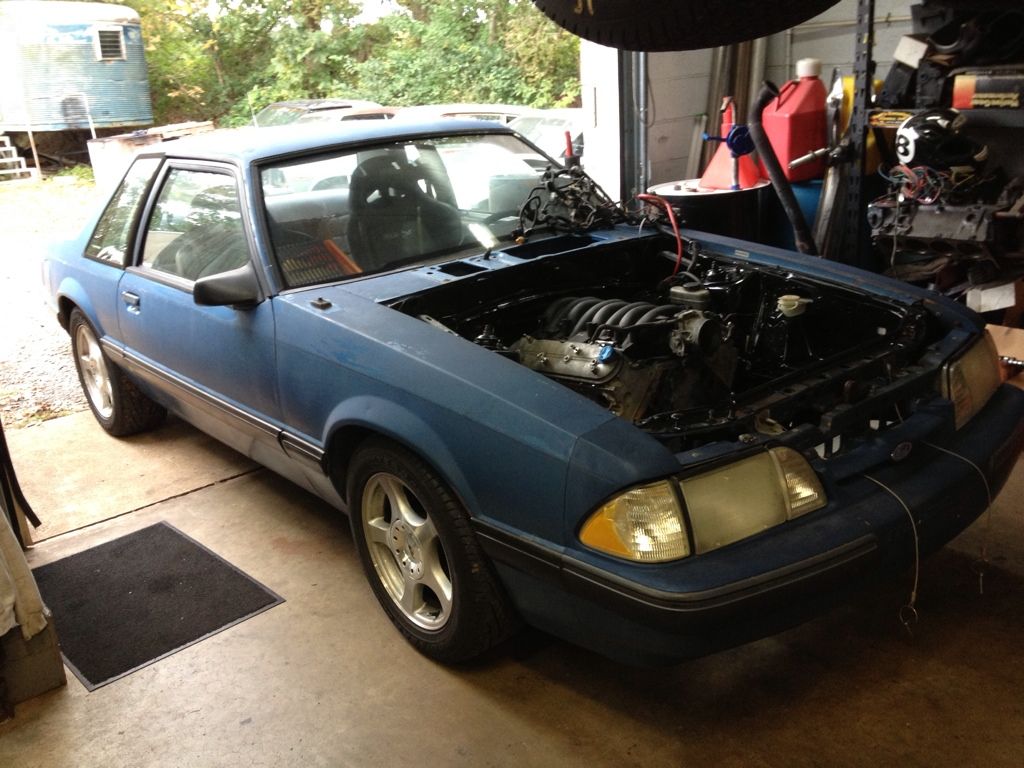

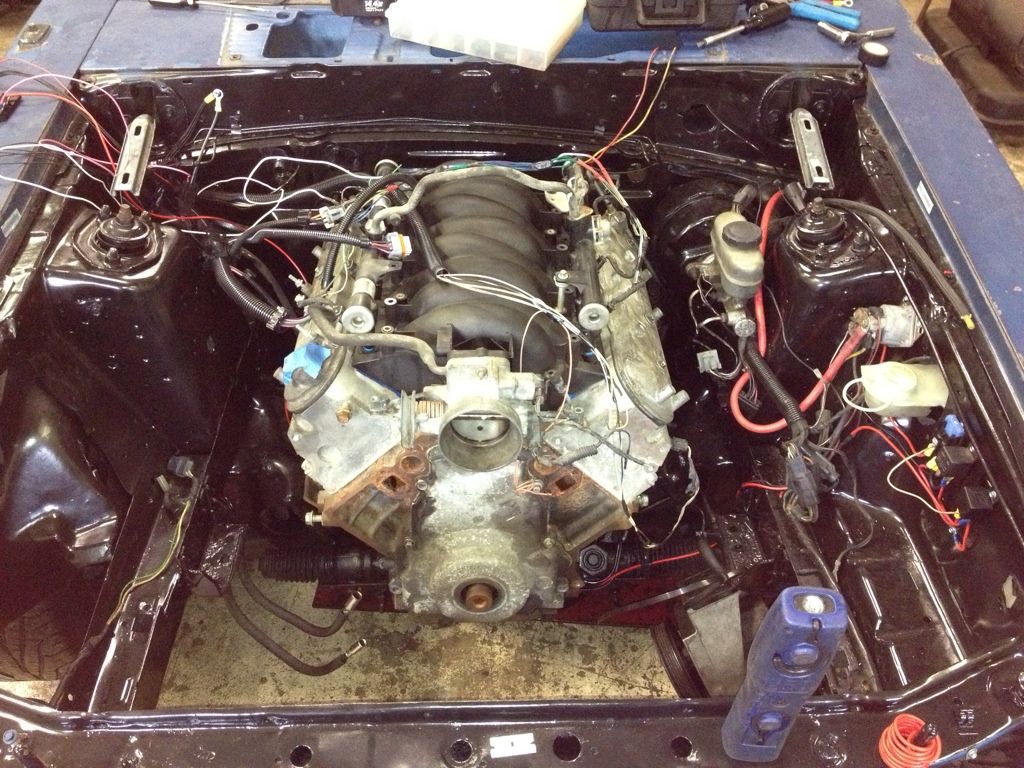

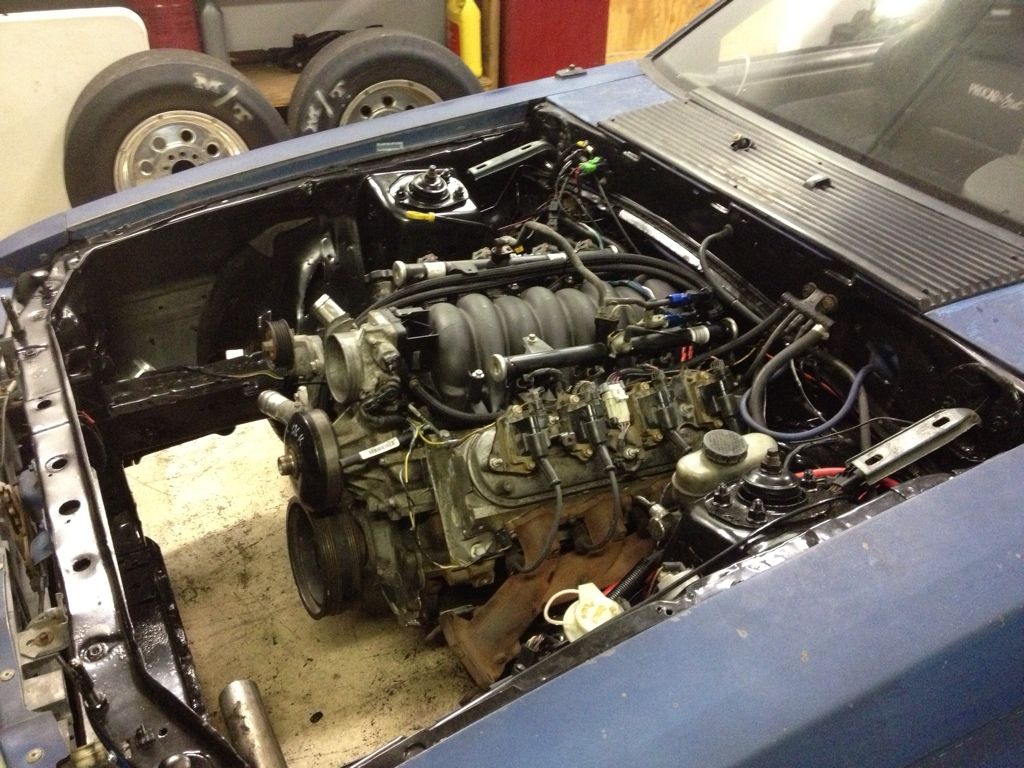

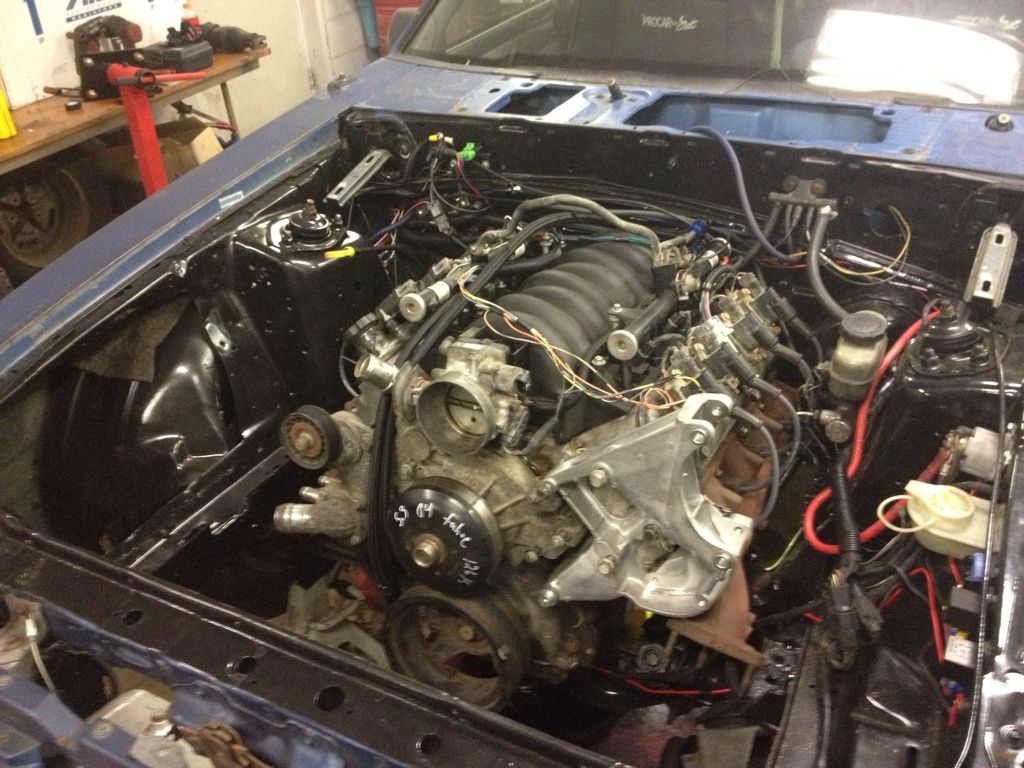

All in...




You'd never know.



So glad that's done now. Now thing's are gonna get rollin'.

'88 LX -New mill coming soon.
ManicMike is offline
Sponsored Links
Advertisement

post #4 of 54 Old 10-01-2012, 09:09 PM
Registered User

Trader Feedback: (0)
Join Date: Jan 2009
Location: Tennessee
Posts: 57
Great job.
Nogoodnamesleft is offline
post #5 of 54 Old 10-04-2012, 10:10 PM
Corral Elite Member

TxFireman1972's Avatar

Trader Feedback: (87)
Join Date: Nov 2011
Location: Beaumont Tx
Posts: 3,305
Garage
Subscribing. I'm considering this myself, so looking forward to seeing how yours turns out.

One day the same people that doubt your dream will tell people how they met you!
TxFireman1972 is offline
post #6 of 54 Old 10-06-2012, 02:51 PM
Registered User

Trader Feedback: (1)
Join Date: Oct 2009
Location: kansas city
Posts: 46
youre gonna love it. i have a stock 5.3 myself and it puts down 854 hp with a 76mm turbo. lights off as fast as you want it (sometimes too fast) and has lasted a year over 700 hp. cant beat it.
dr.dilsnick is offline
post #7 of 54 Old 10-21-2012, 11:30 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by dr.dilsnick View Post
youre gonna love it. i have a stock 5.3 myself and it puts down 854 hp with a 76mm turbo. lights off as fast as you want it (sometimes too fast) and has lasted a year over 700 hp. cant beat it.

I can't wait, hoping by x-mas it'll be done.. I currently regasketing the engine before the final install.

Well the MS came and was built...

From this...

To this...


My converter also came in...



Also my 80's came in with the completed MS setup:

'88 LX -New mill coming soon.
ManicMike is offline
post #8 of 54 Old 10-30-2012, 03:50 PM
Registered User

TWNWHR's Avatar

Trader Feedback: (16)
Join Date: Sep 2009
Location: Western MA
Posts: 520
How does your trans, converter, flexplate to LS all work out?

Really I mean, does your converter have the LS flexplate bolt pattern, orrr?

Thanks for the help - Jesse


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
GOOD FRIENDS DON'T LET YOU DO STUPID THINGS, ALONE
90 Trunkback 140k+ miles stock short block, Holley heads & Intake, stock cam, Faceplated 600, MS1, 72mm, Its ALIIIVE.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

89 Notch 427W, PMS, some nitrous, a parachute, getting boost someday
67 Coupe, soapbox derby car
TWNWHR is offline
post #9 of 54 Old 10-30-2012, 05:04 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by TWNWHR View Post
How does your trans, converter, flexplate to LS all work out?

Really I mean, does your converter have the LS flexplate bolt pattern, orrr?

Thanks for the help - Jesse
It's all GM stuff. The trans is a th400, flexplate is from a 5.3 truck engine and the converter is for the th400. Though new holes had to be drilled for the torque converter.

'88 LX -New mill coming soon.
ManicMike is offline
post #10 of 54 Old 11-01-2012, 09:06 AM
Registered User

TWNWHR's Avatar

Trader Feedback: (16)
Join Date: Sep 2009
Location: Western MA
Posts: 520
Quote:
Originally Posted by ManicMike View Post
Though new holes had to be drilled for the torque converter.
Thats what I was getting at. Thanks!



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
GOOD FRIENDS DON'T LET YOU DO STUPID THINGS, ALONE
90 Trunkback 140k+ miles stock short block, Holley heads & Intake, stock cam, Faceplated 600, MS1, 72mm, Its ALIIIVE.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

89 Notch 427W, PMS, some nitrous, a parachute, getting boost someday
67 Coupe, soapbox derby car
TWNWHR is offline
post #11 of 54 Old 11-14-2012, 10:58 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815


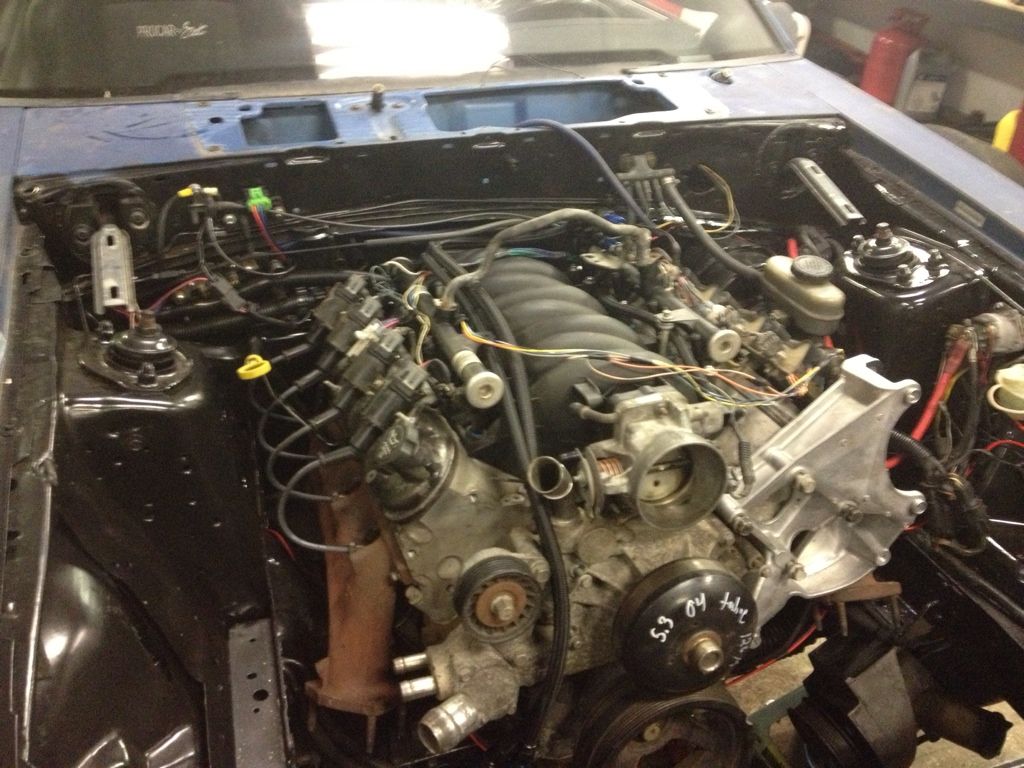

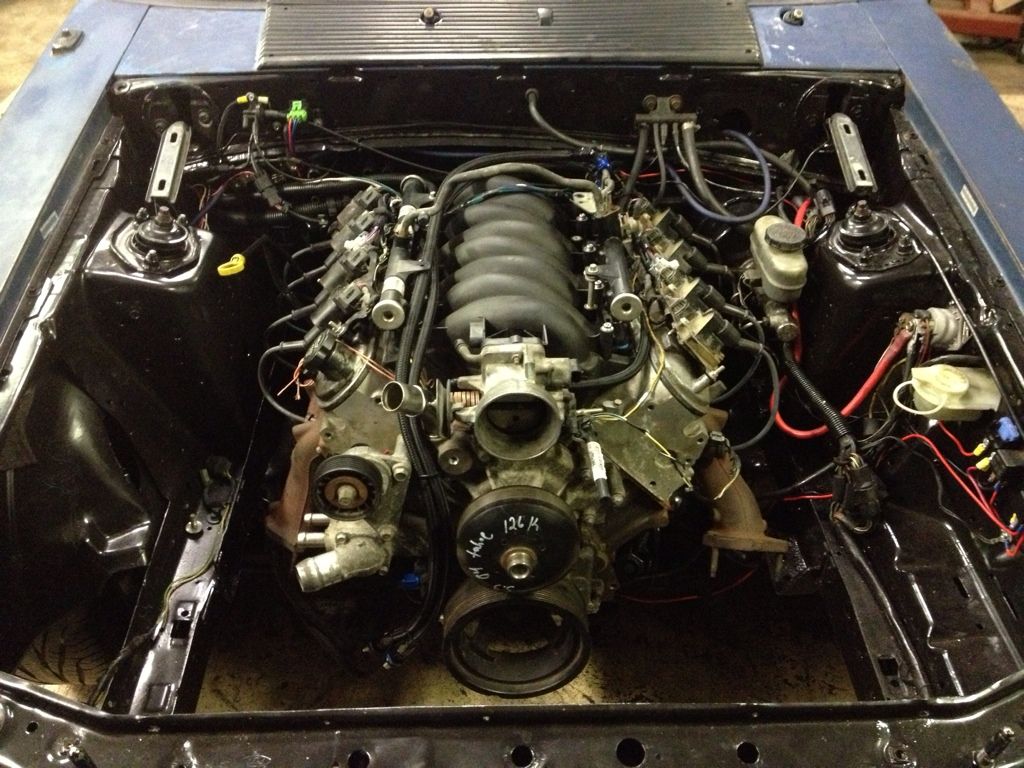

It's in for good now. Got the MSD/MS wired and working. Now just to plum the fuel system and get the turbo kit fabbed up.

'88 LX -New mill coming soon.
ManicMike is offline
post #12 of 54 Old 11-25-2012, 10:37 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Put the hammer down today and got her to cough to life


Video I took:
http://i9.photobucket.com/albums/a87...80175C8F31.mp4
My buddy also took one:
Mikey runs - YouTube

'88 LX -New mill coming soon.
ManicMike is offline
post #13 of 54 Old 11-25-2012, 10:48 PM
Registered User

2stangcoupes's Avatar

Trader Feedback: (43)
Join Date: Mar 2008
Location: central indiana
Posts: 3,780
can't wait to see how this turns out

Quote:
Originally Posted by Wicked03GT View Post
The internals may support 800HP, but that block will spilt faster than a virgin on prom night!
2stangcoupes is offline
post #14 of 54 Old 11-25-2012, 10:50 PM
Corral Elite Member

TxFireman1972's Avatar

Trader Feedback: (87)
Join Date: Nov 2011
Location: Beaumont Tx
Posts: 3,305
Garage
Lookin good man!! I may have missed it, did you leave the truck pan on it or change it out? Have any pics of how low it hangs?

One day the same people that doubt your dream will tell people how they met you!
TxFireman1972 is offline
post #15 of 54 Old 11-25-2012, 10:54 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by TxFireman1972 View Post
Lookin good man!! I may have missed it, did you leave the truck pan on it or change it out? Have any pics of how low it hangs?

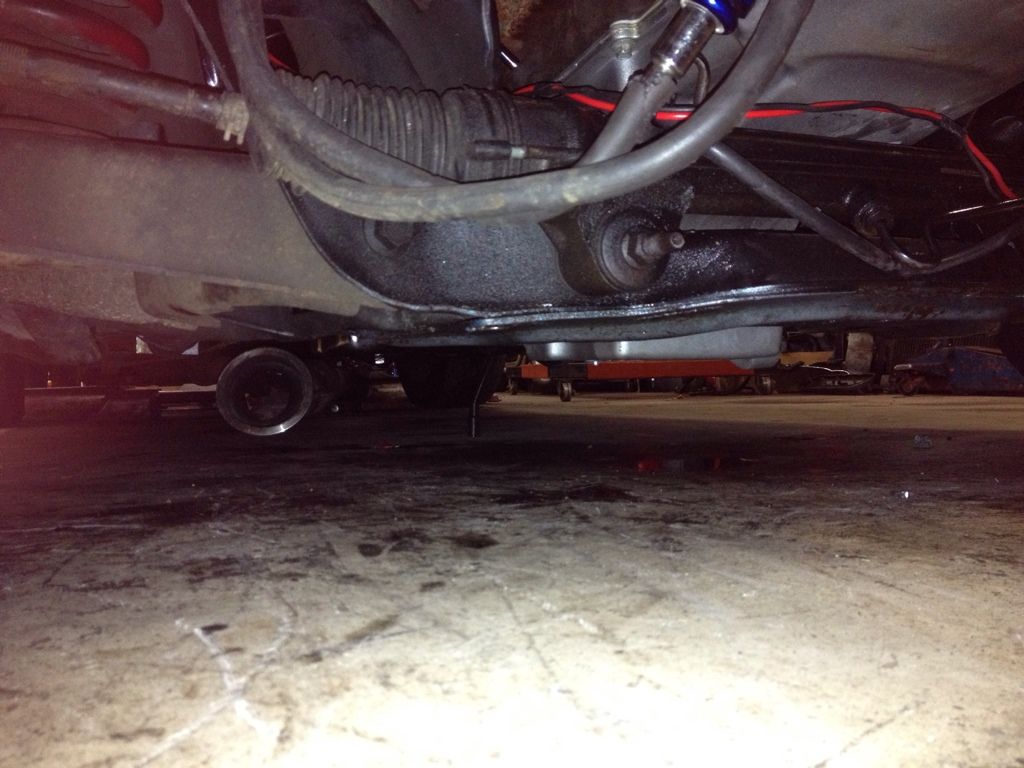

Yup, used the stock truck pan.. though apparently mine was a dud..


Guess we'll be pulling the motor once again before going any further..

'88 LX -New mill coming soon.
ManicMike is offline
post #16 of 54 Old 11-25-2012, 10:57 PM
Corral Elite Member

TxFireman1972's Avatar

Trader Feedback: (87)
Join Date: Nov 2011
Location: Beaumont Tx
Posts: 3,305
Garage
Is it cracked?

One day the same people that doubt your dream will tell people how they met you!
TxFireman1972 is offline
post #17 of 54 Old 11-25-2012, 10:58 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by TxFireman1972 View Post
Is it cracked?

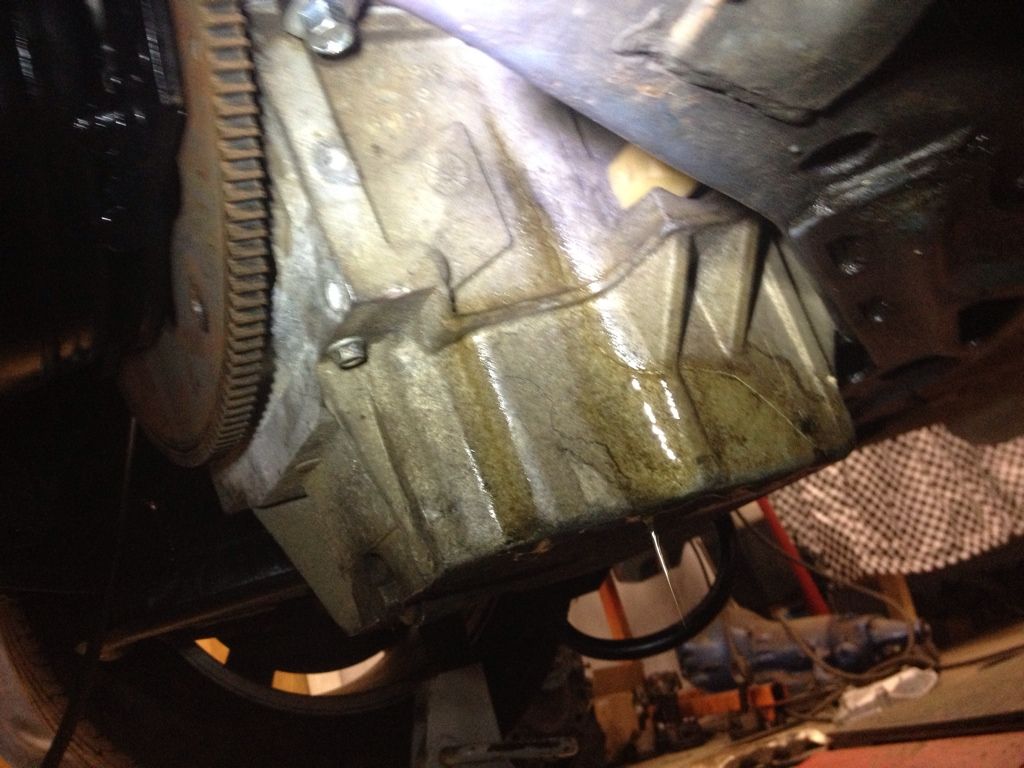

Yea, look where it's all wet and follow it down..

'88 LX -New mill coming soon.
ManicMike is offline
post #18 of 54 Old 11-25-2012, 11:09 PM
Corral Elite Member

TxFireman1972's Avatar

Trader Feedback: (87)
Join Date: Nov 2011
Location: Beaumont Tx
Posts: 3,305
Garage
Man that sucks

One day the same people that doubt your dream will tell people how they met you!
TxFireman1972 is offline
post #19 of 54 Old 11-25-2012, 11:20 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by TxFireman1972 View Post
Man that sucks
Yea it does, not a big deal but it's a setback for sure.

'88 LX -New mill coming soon.
ManicMike is offline
post #20 of 54 Old 12-02-2012, 10:21 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815

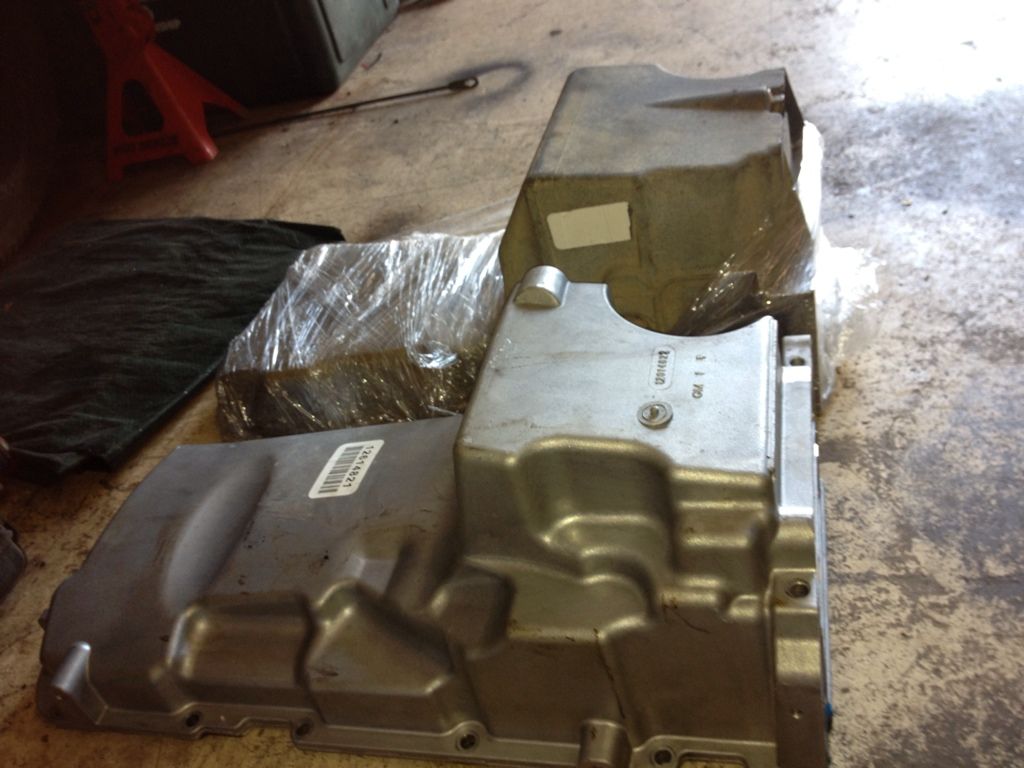

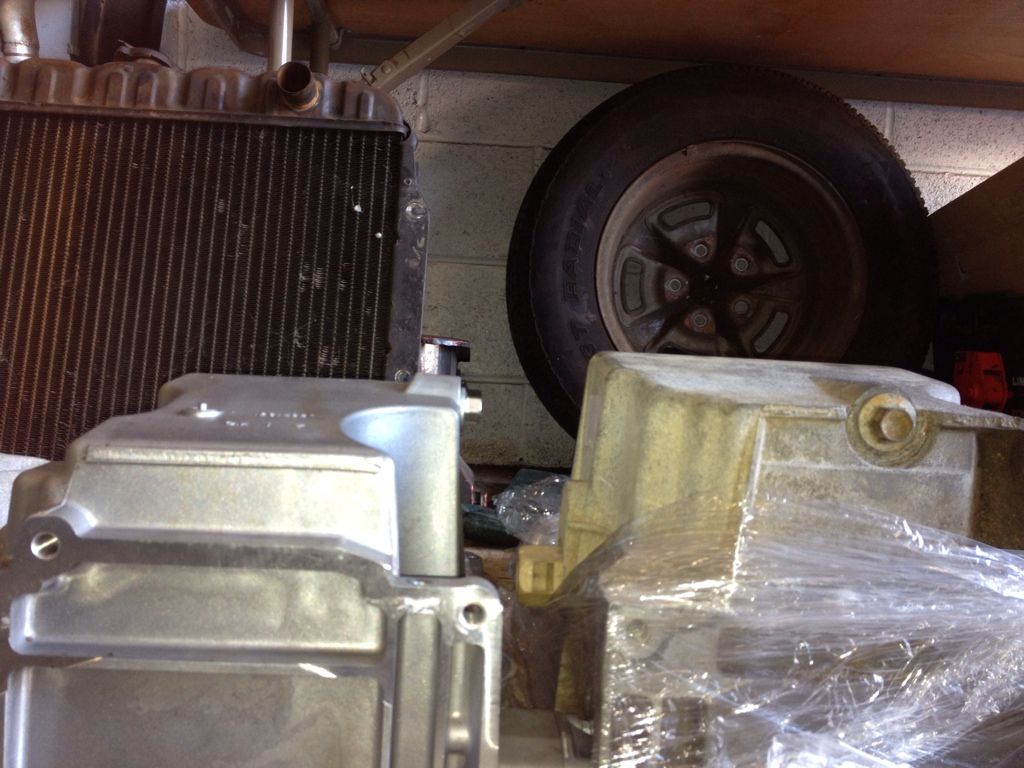

Picked up the Hummer/GM hot rod pan today, along with a stock pan just in case.. Hoping Tuesday I can get the new pan on and run the motor a bit longer.

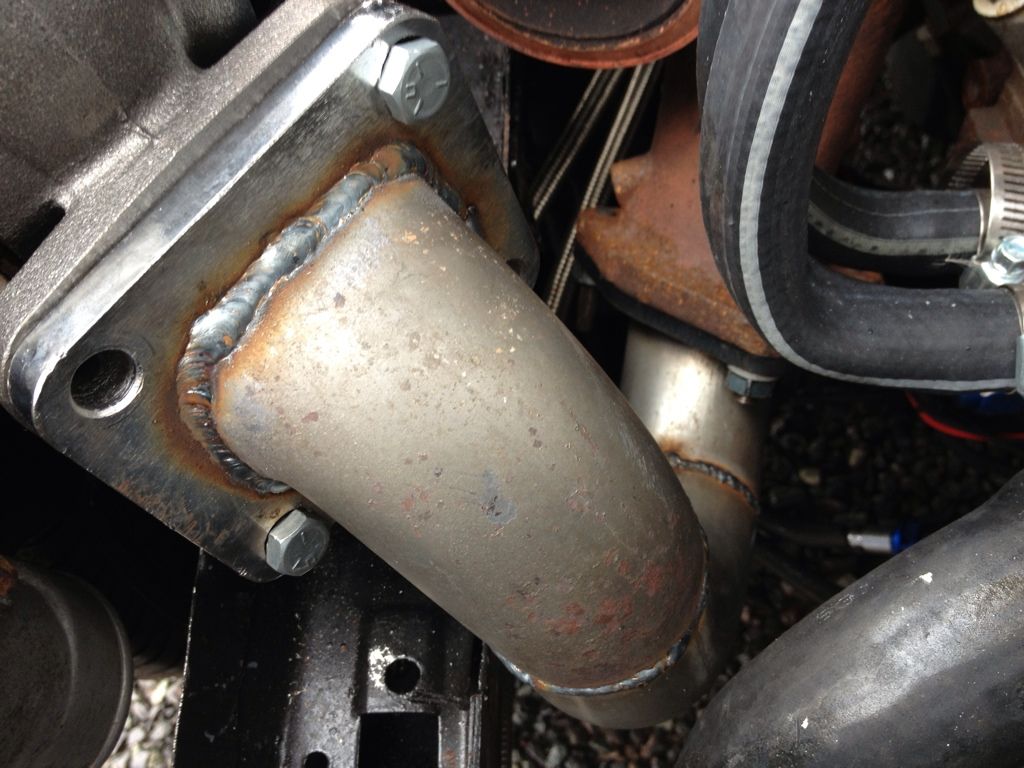

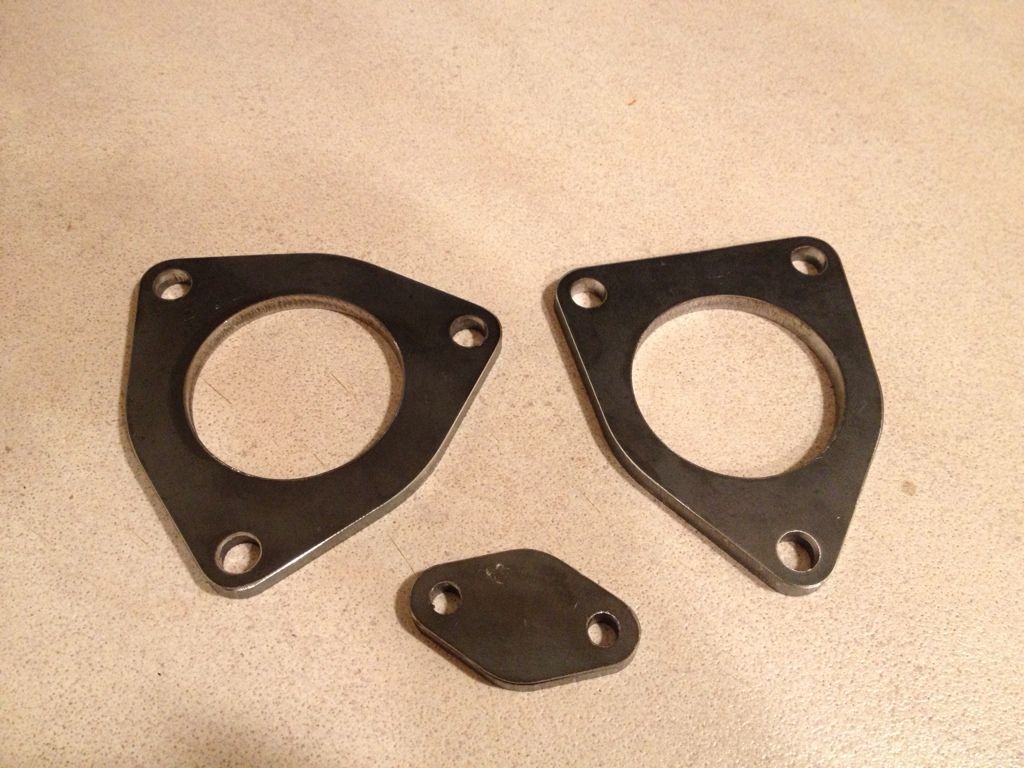

Also just ordered the flanges to start on the hotside..

'88 LX -New mill coming soon.
ManicMike is offline
post #21 of 54 Old 12-04-2012, 08:48 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Got a good bit done today. Replaced the cracked truck pan with the Hummer/GM hot rod pan, drilled/tapped the new one for oil return, tapped the water pump for the gauge, and got the pump wired.










Made a little noise too...


'88 LX -New mill coming soon.
ManicMike is offline
post #22 of 54 Old 12-05-2012, 03:12 PM
Registered User

Mustang92's Avatar

Trader Feedback: (7)
Join Date: Nov 1999
Location: South Florida
Posts: 1,817
Quote:
Originally Posted by TWNWHR View Post
How does your trans, converter, flexplate to LS all work out?

Really I mean, does your converter have the LS flexplate bolt pattern, orrr?

Thanks for the help - Jesse
Depending on who you get your converter from you can ask for an LS bolt pattern. I got mine from FTI and it bolted right up to the TCI LS flexplate for my 5.3L.

1994 Mustang LS Swap - 11.40 @ 117.88 / 9.85 @ 134.74 nitrous / 8.73 @ 157.13 PT88
2004 Mach 1-P1SC (11.93 @ 120.54, 468RWHP/417RWTQ) - SOLD
2000 GT 2V NA (11.97 @ 113.20 w/1.56 60ft, 285.3RWHP/296.3RWTQ) - SOLD
Mustang92 is offline
post #23 of 54 Old 12-20-2012, 05:53 PM
Registered User

Trader Feedback: (0)
Join Date: Oct 2006
Location: Owasso, Ok
Posts: 2
That's pretty cool! I'm new to the whole LSx swap thing. Other than fabbing your own motor mounts, were there any other issues with fitting the 5.3 in the car? Also, if you were just running an NA setup, would the stock manifolds still work if you are using the stock foxbody kmember?
Tims2002GT is offline
post #24 of 54 Old 12-24-2012, 12:17 AM
Registered User

Trader Feedback: (0)
Join Date: Jan 2009
Location: Tennessee
Posts: 57
Quote:
Originally Posted by Mustang92 View Post
Depending on who you get your converter from you can ask for an LS bolt pattern. I got mine from FTI and it bolted right up to the TCI LS flexplate for my 5.3L.
I bought this for mine.

712500A : LS-Series Engine to TH350/700R/Flexplate Kit | Advance Adapters
Nogoodnamesleft is offline
post #25 of 54 Old 01-02-2013, 10:43 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Little update..

Flange end's came..

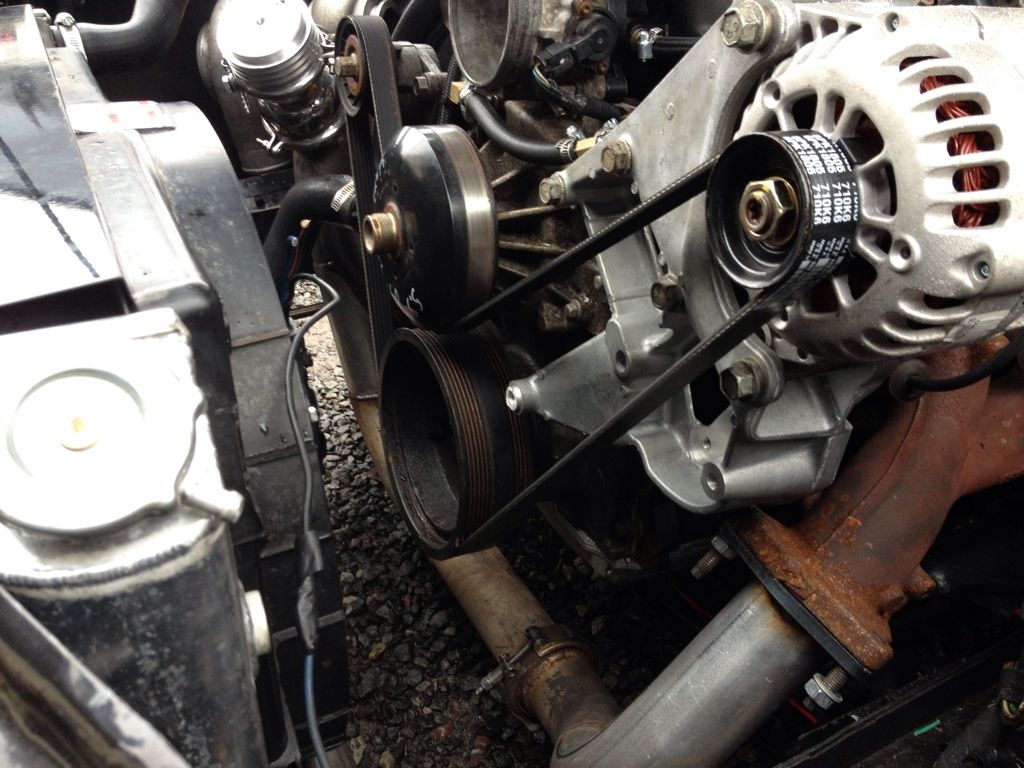

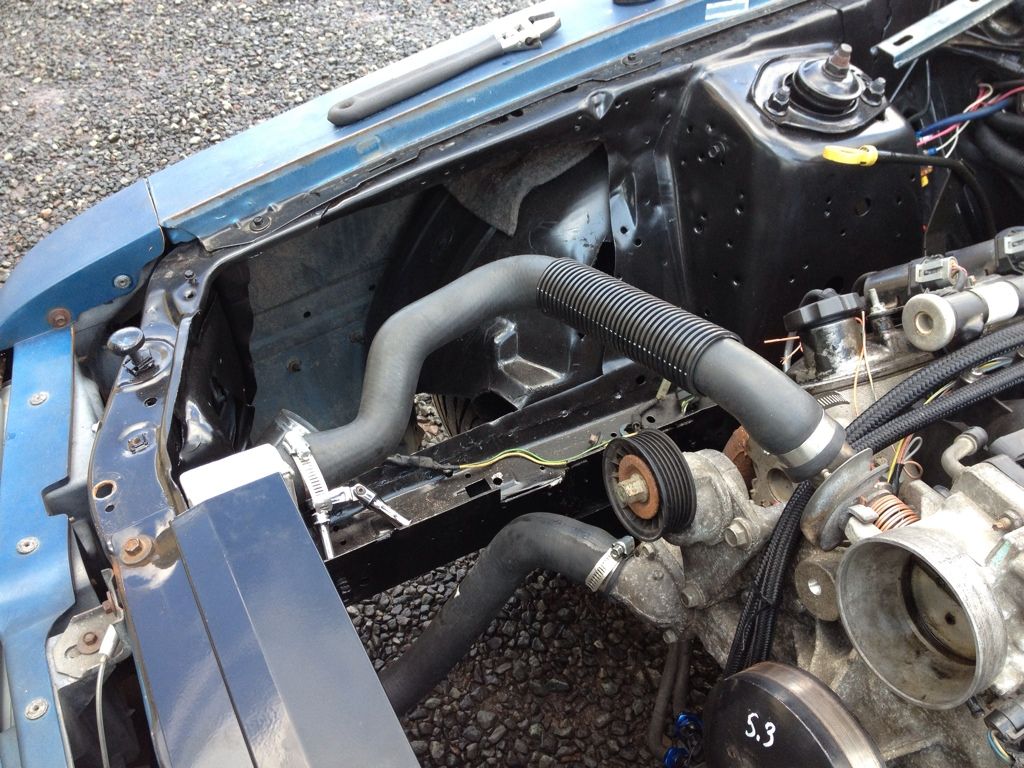

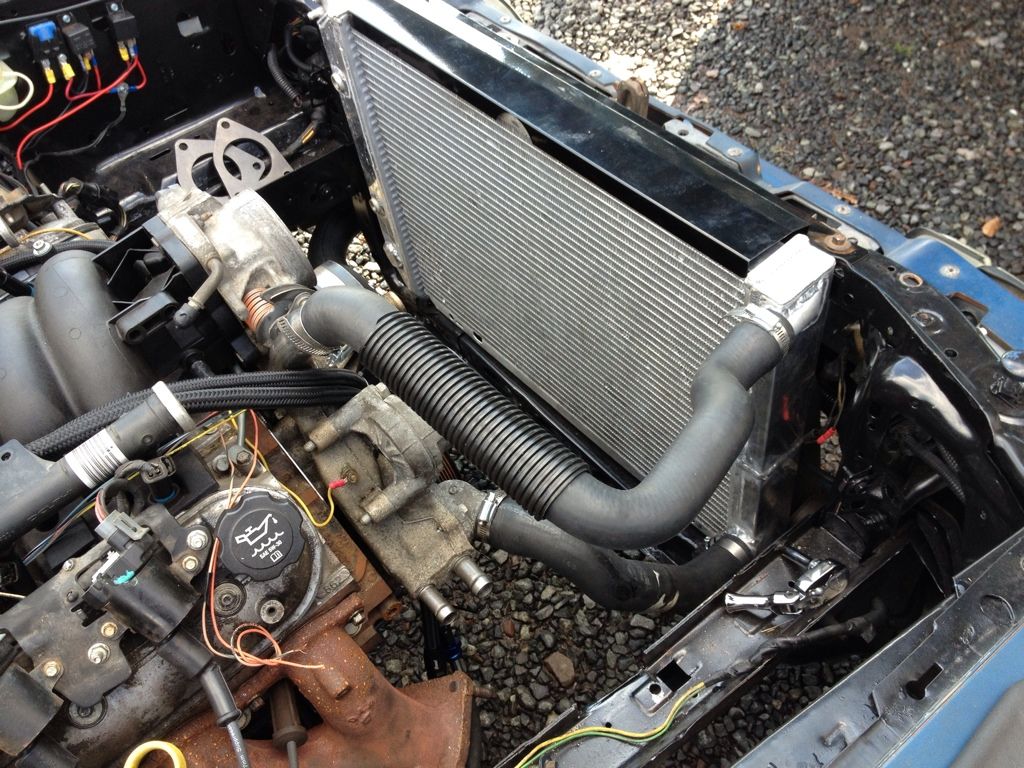

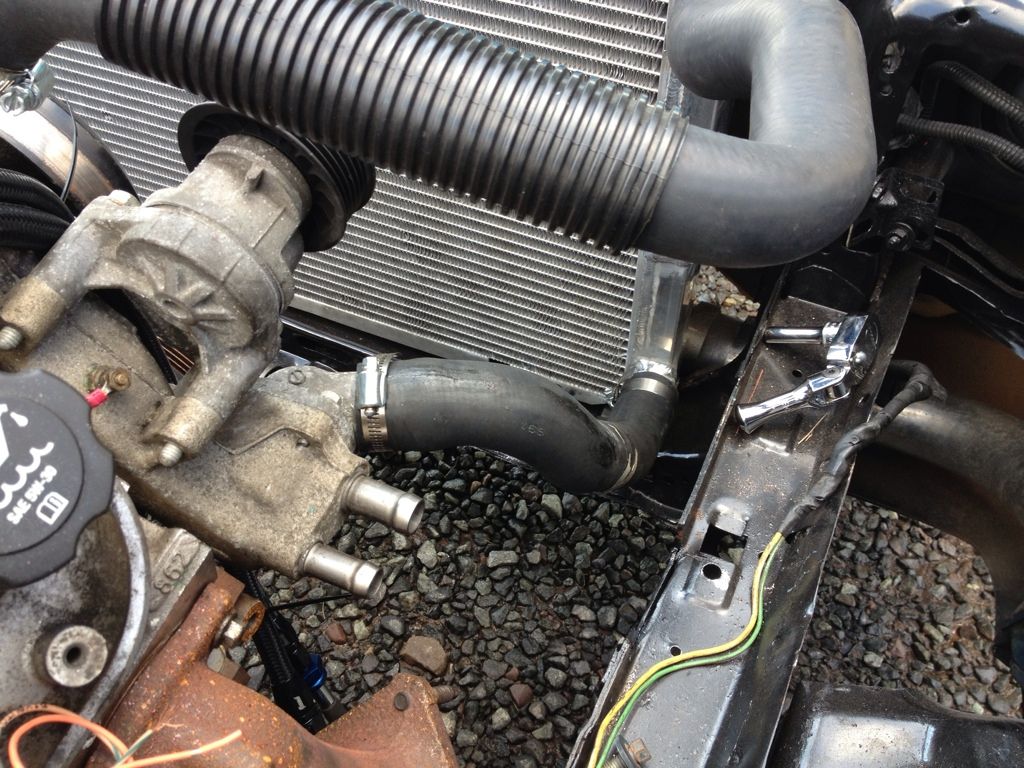

Only had to trim the 5.0 hoses a bit to work wit the modifed rad and engine...

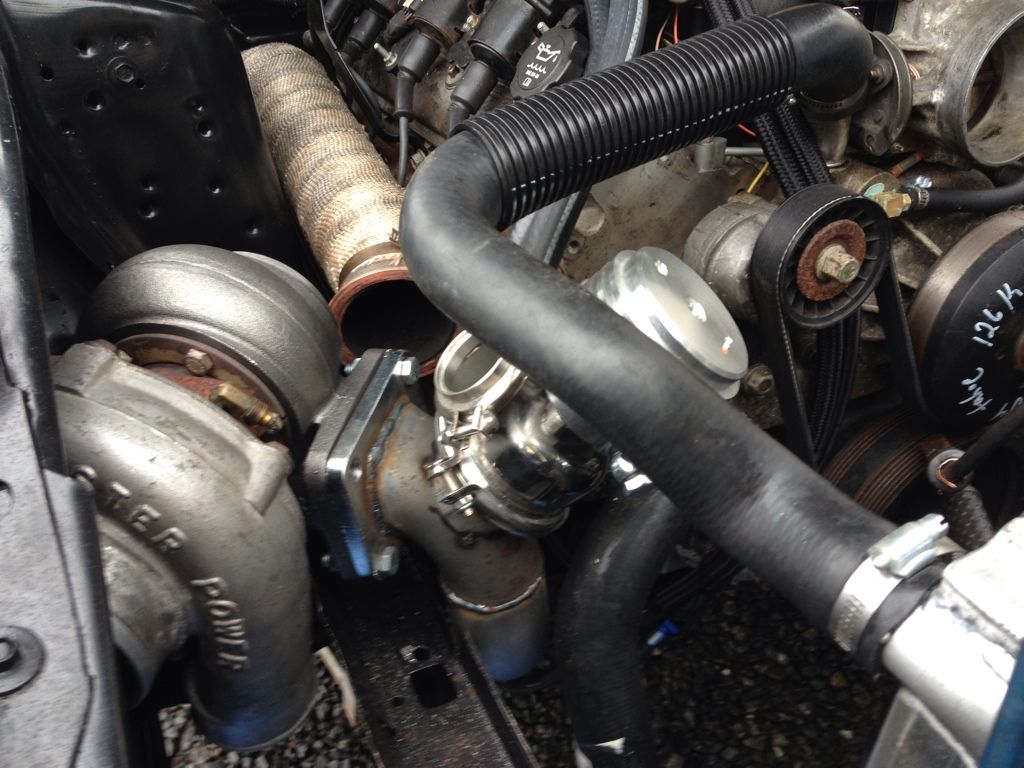

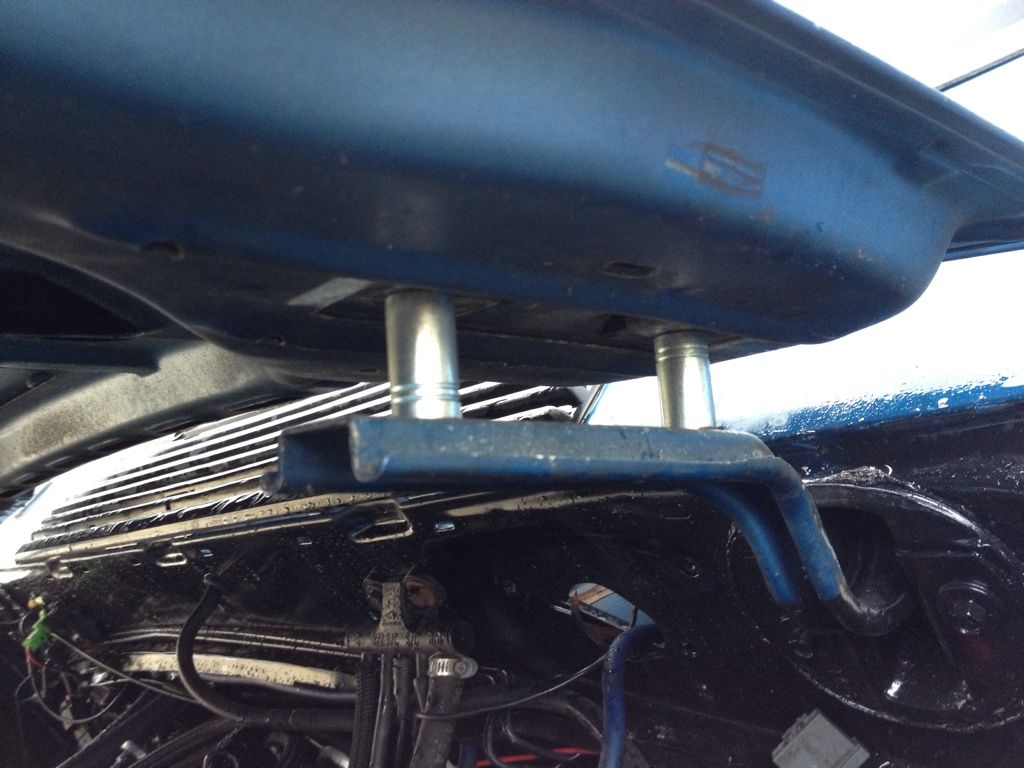

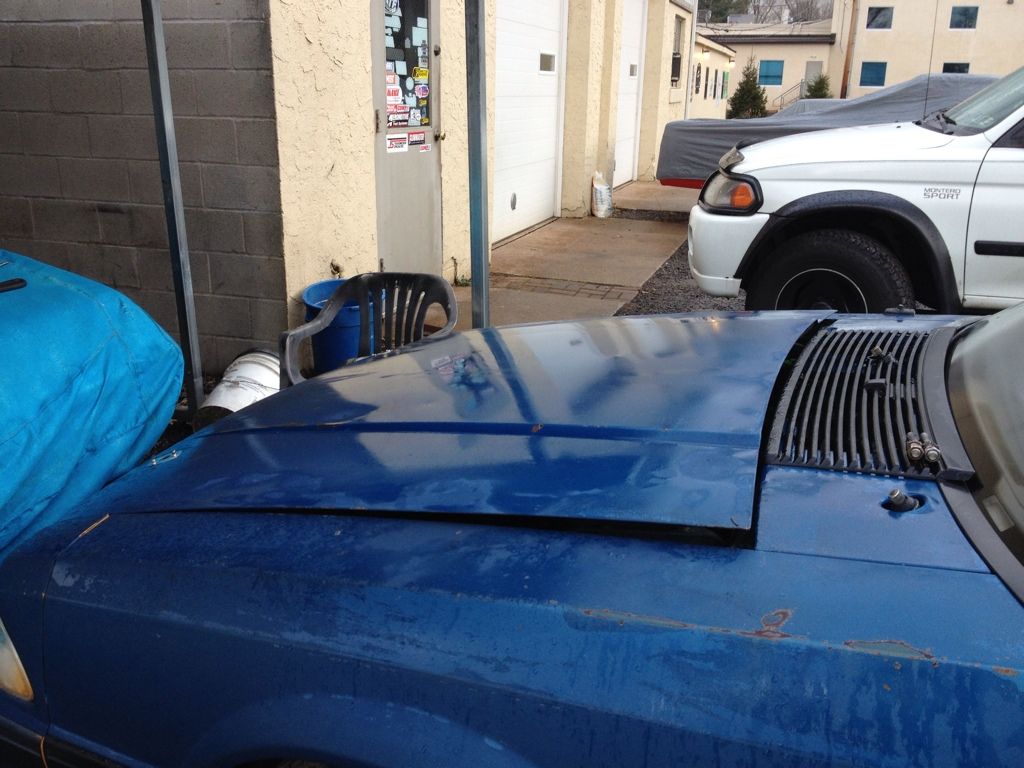

Since the truck fuel rail crossover is a monster, I decided to do a bit of improv for the stock hood (this is just temporarily)..

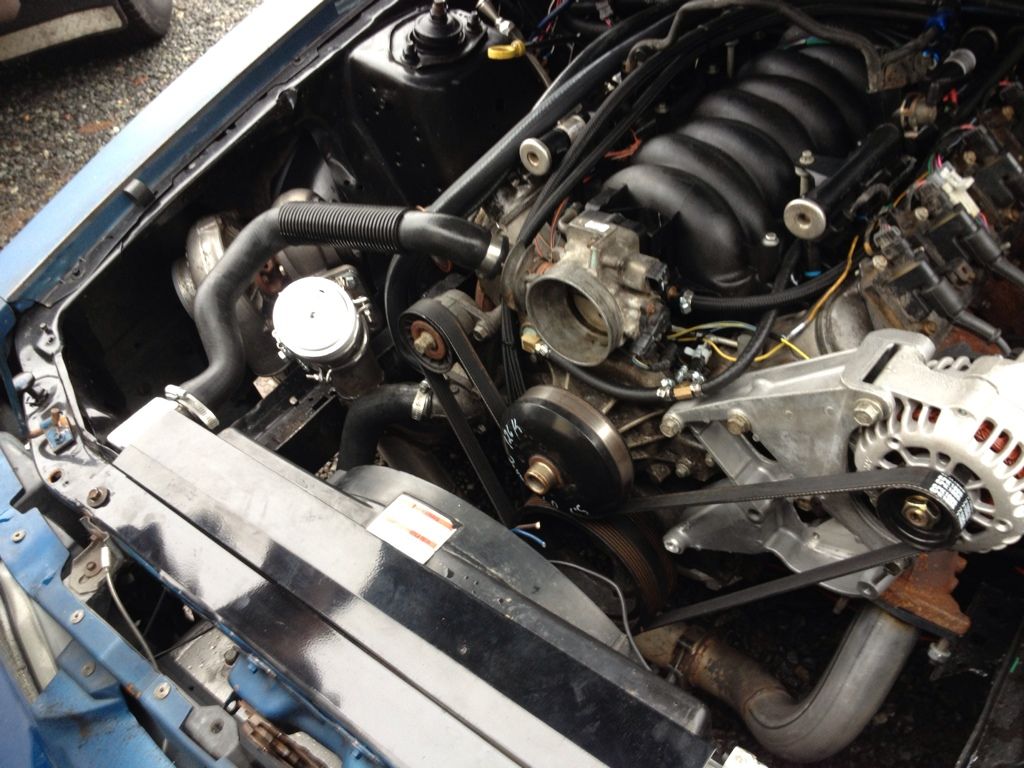

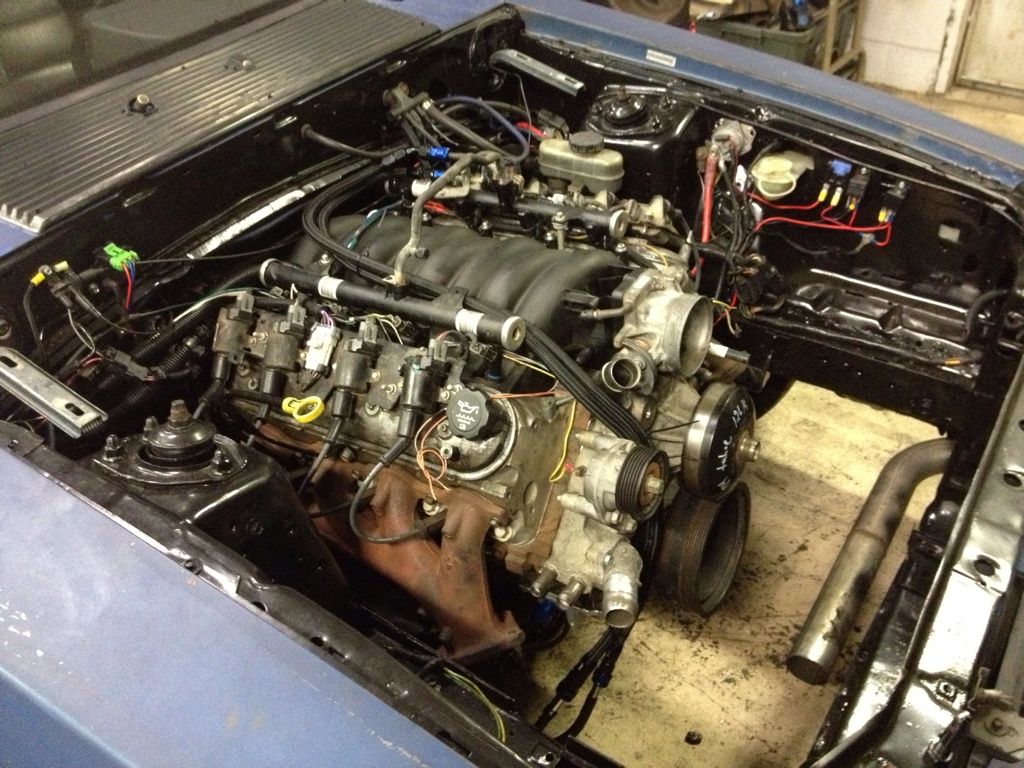

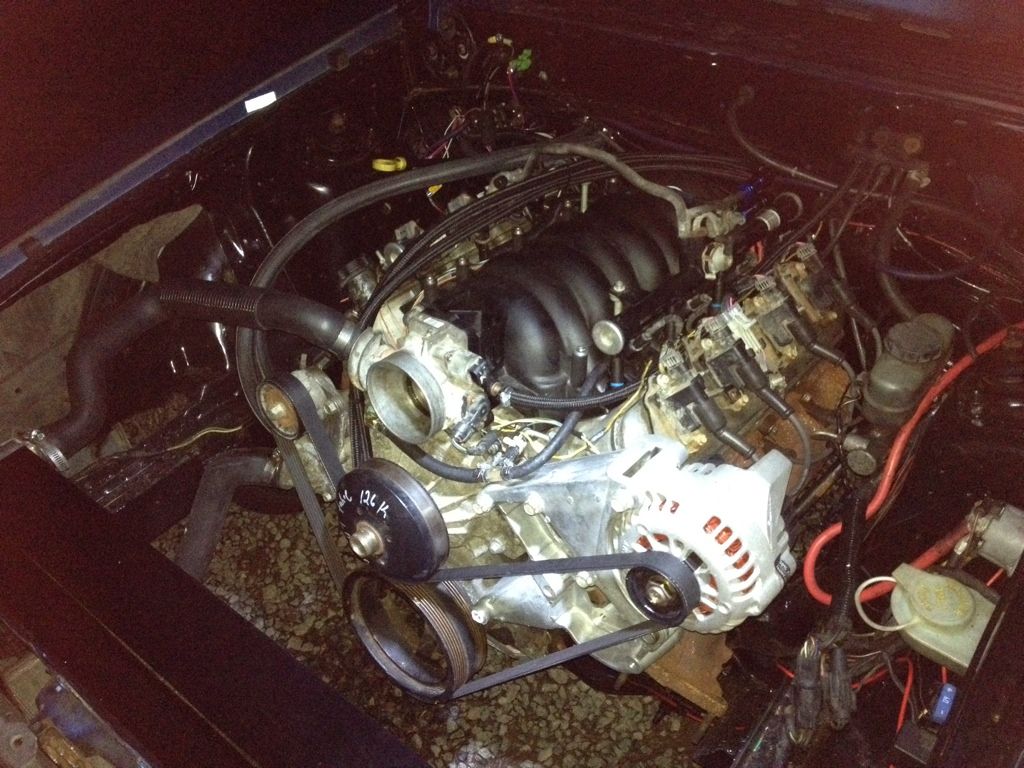

Final product for today...


Let's see what's left:

- Get drive shaft built
- Mount trans cooler
- Mount shifter
- Build the turbo kit

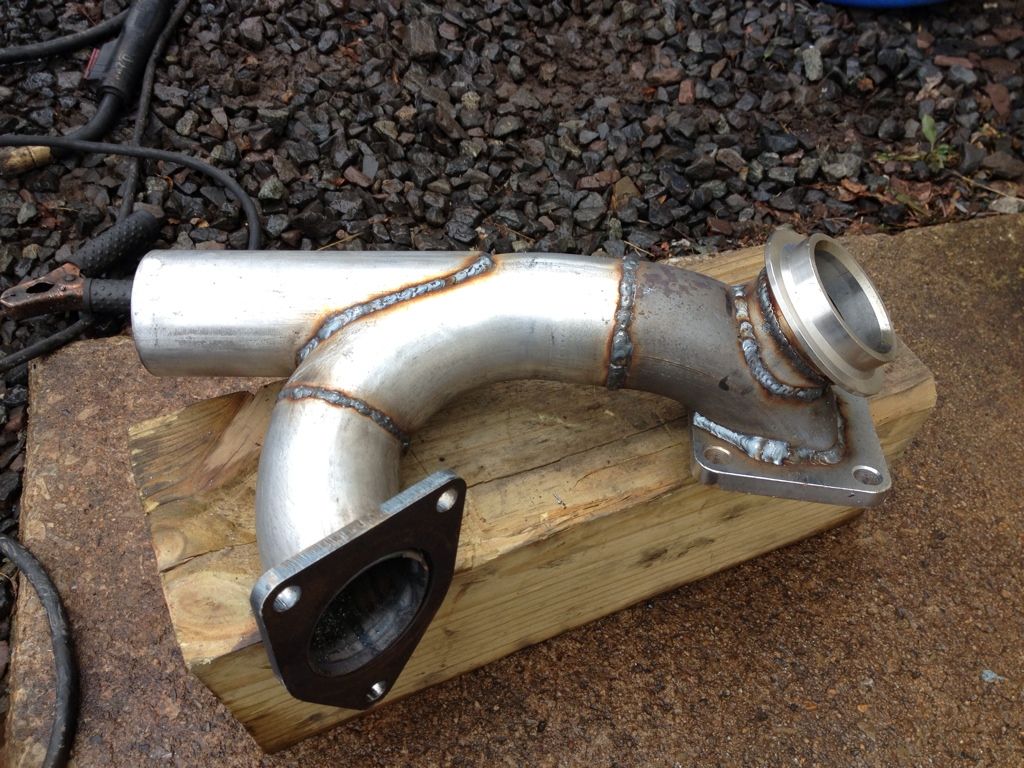

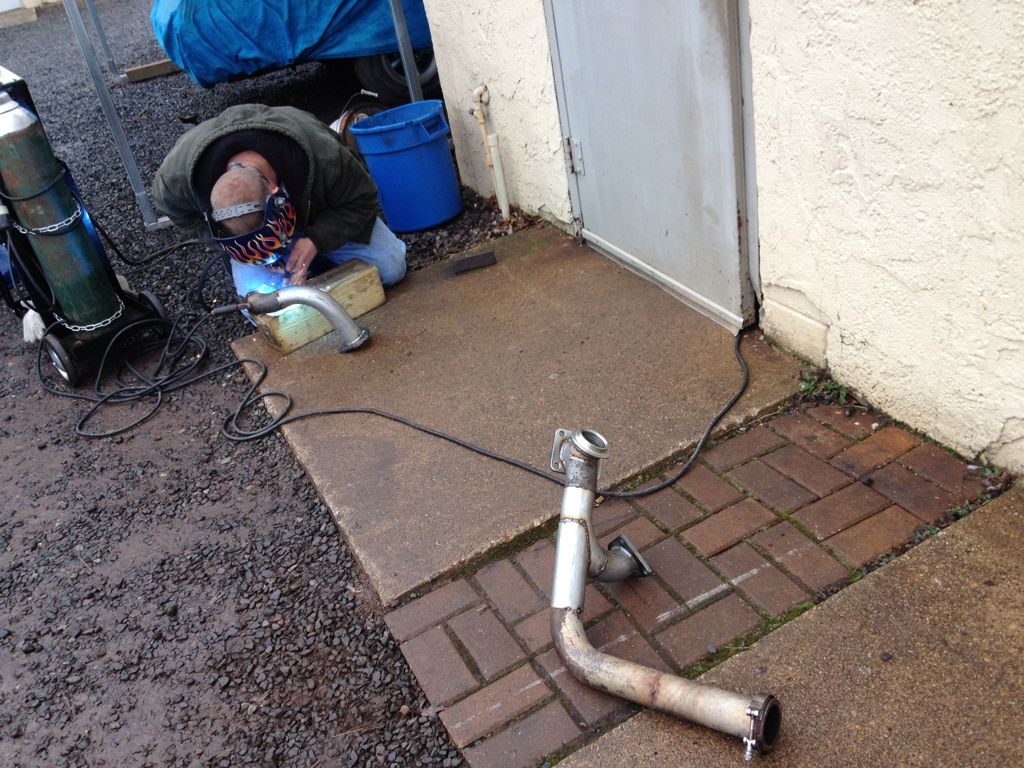

- Modify the exhaust
- Swap front springs
- Bleed the brakes

Not much left.. It'll be making it's debut down OCMD for the Spring car show.

'88 LX -New mill coming soon.
ManicMike is offline
post #26 of 54 Old 01-02-2013, 10:47 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by Tims2002GT View Post
That's pretty cool! I'm new to the whole LSx swap thing. Other than fabbing your own motor mounts, were there any other issues with fitting the 5.3 in the car? Also, if you were just running an NA setup, would the stock manifolds still work if you are using the stock foxbody kmember?
No real fit problems, yea the stock manifolds would fit fine. They do for me and they are flipped forward.

'88 LX -New mill coming soon.
ManicMike is offline
post #27 of 54 Old 01-07-2013, 03:07 PM
Registered User

badbrad's Avatar

Trader Feedback: (36)
Join Date: May 2009
Location: hueytown, alabama
Posts: 1,154
very nice.......i see me doing this soon.

New project: 86 Coupe
9 previous Mustangs--all gone
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
badbrad is offline
post #28 of 54 Old 01-10-2013, 10:51 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by badbrad View Post
very nice.......i see me doing this soon.
If I had the cash, the swap wouldn't of happened.. I woulda did a built aftermarket block SBF 331.

Though for the money I have invested and how much power this engine can handle in totally stock form, it's worth it to me.


This past week i've got the fan mounted, trans dipstick installed, converter bolted up, trans cooler installed and drive shaft length measured and ordered... Should have the driveshaft end of the week then it's just the turbo kit left and a few minor things.

'88 LX -New mill coming soon.
ManicMike is offline
post #29 of 54 Old 01-13-2013, 05:18 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815

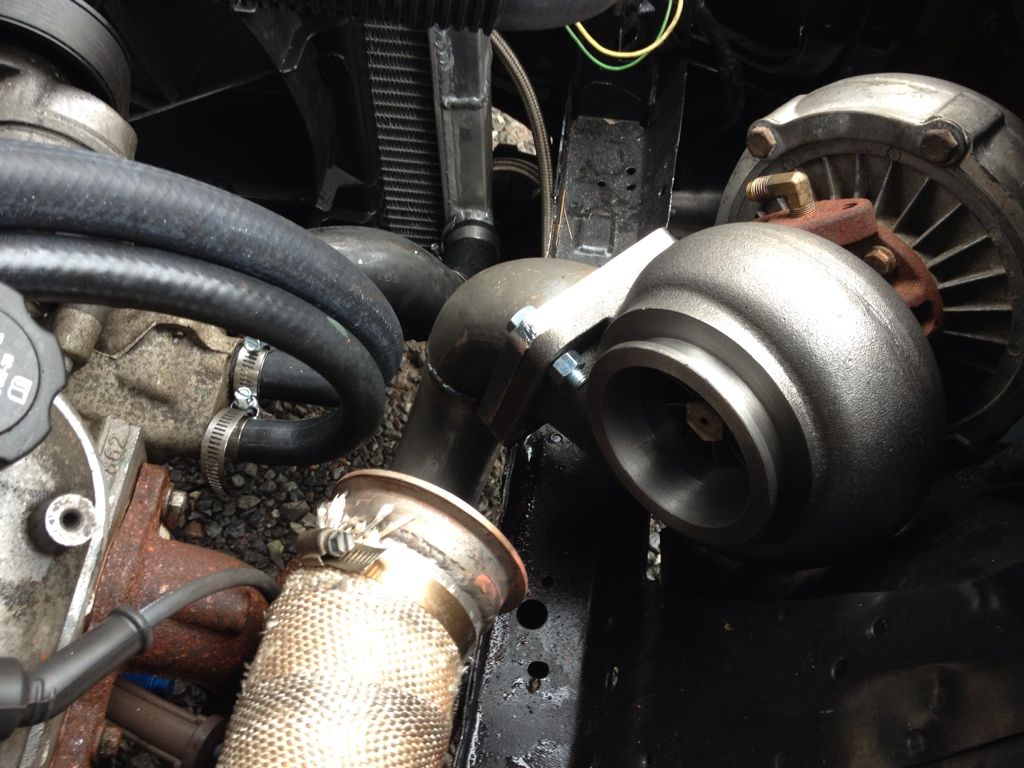

Made some good progress today. Turbo's hotside is all done. Just need's to be cleaned and painted..

How it started..

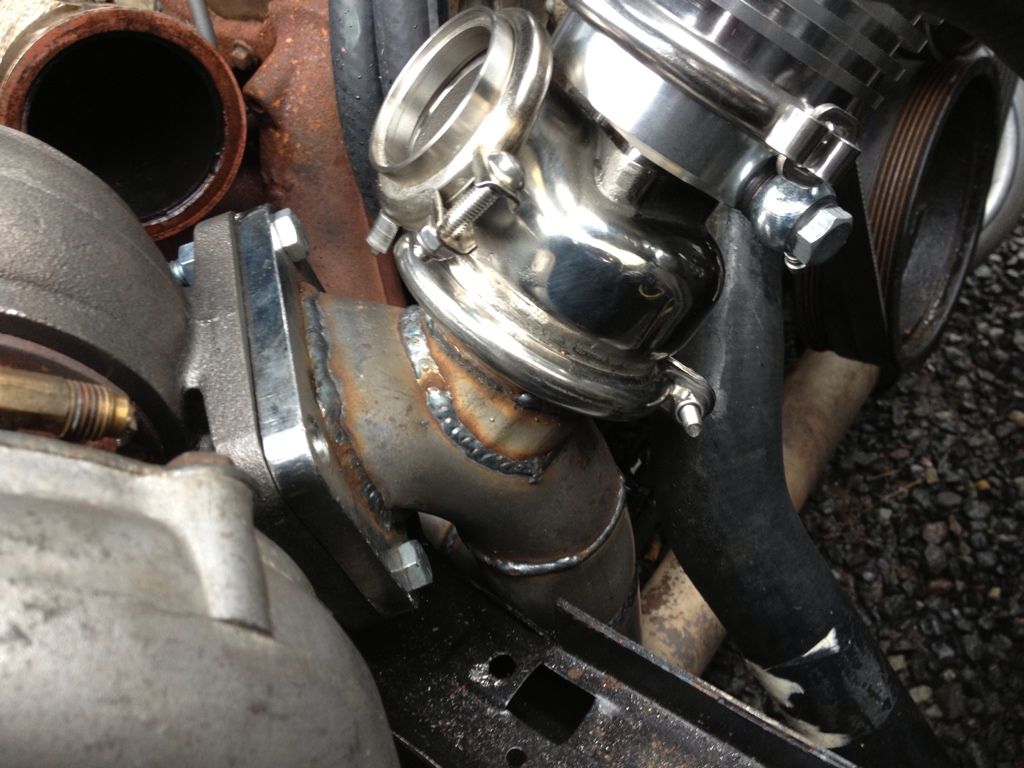

Wastegate weld...

Tacked into place...

Merge...

'88 LX -New mill coming soon.
ManicMike is offline
post #30 of 54 Old 01-13-2013, 05:21 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Final welding...

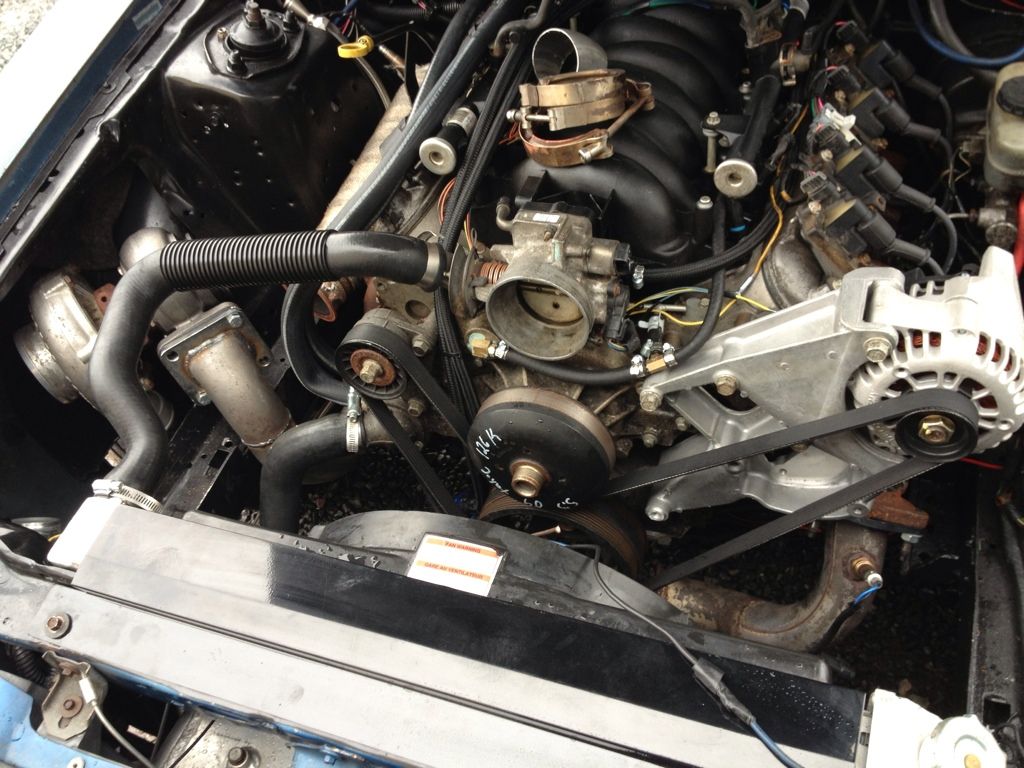

Installed...




It couldn't of came out better, I'm so pleased with it.

Just for some fun, we fired her up.. had to get her to whistle a bit

First start with the turbo! - YouTube

'88 LX -New mill coming soon.
ManicMike is offline
post #31 of 54 Old 01-13-2013, 07:39 PM
Registered User

Trader Feedback: (38)
Join Date: Aug 2010
Location: New Jersey
Posts: 1,281
Subscribed. Cool build!
XThe ResurrectionX is offline
post #32 of 54 Old 01-14-2013, 09:54 PM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Quote:
Originally Posted by XThe ResurrectionX View Post
Subscribed. Cool build!

Thanks! It's almost driveable, waiting on the driveshaft shop to be done and gotta install the shifter then it's a few odd's and end's.

'88 LX -New mill coming soon.
ManicMike is offline
post #33 of 54 Old 01-17-2013, 08:35 AM
Registered User

Mustang92's Avatar

Trader Feedback: (7)
Join Date: Nov 1999
Location: South Florida
Posts: 1,817
What size turbo is that?

1994 Mustang LS Swap - 11.40 @ 117.88 / 9.85 @ 134.74 nitrous / 8.73 @ 157.13 PT88
2004 Mach 1-P1SC (11.93 @ 120.54, 468RWHP/417RWTQ) - SOLD
2000 GT 2V NA (11.97 @ 113.20 w/1.56 60ft, 285.3RWHP/296.3RWTQ) - SOLD
Mustang92 is offline
post #34 of 54 Old 01-17-2013, 10:53 AM Thread Starter
Registered User

ManicMike's Avatar

Trader Feedback: (4)
Join Date: Dec 2008
Location: Bear, De
Posts: 815
Master power 70mm with a .96 a/r exhaust housing.

'88 LX -New mill coming soon.
ManicMike is offline
post #35 of 54 Old 01-19-2013, 04:45 AM
Registered User

king cobra 2003's Avatar

Trader Feedback: (0)
Join Date: Feb 2010
Location: Florida
Posts: 535
Awesome little build!

95 gt.... Bolt ons, weight reduction, slicks, 150 shot
2795lbs w/ driver.... 1.44 60' 11.29 @ 120mph.
New setup: 347ci SBF/88mm turbo/Powerglide
7.84 @ 177mph
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
king cobra 2003 is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
For Sale Original Condition 1989 Saleen car #89-0054 mikebna Mustangs For Sale/Wanted, 1987-1993 0 02-07-2012 01:26 AM
For Sale 1994 Ford Mustang GT 5.0 5spd. Convertible - 66k original miles!! LXFiveO Mustangs For Sale/Wanted, 1994-1998 5 12-18-2010 04:38 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
