Trunk Mount Batteries

I'm considering the job......... I have an ignition to install and am really on the fence about relocating the battery... Watcha guys think?


How did you guys hook it up?


91' Hatch
Reignman is offline
Sponsored Links
Advertisement

post #2 of 31 Old 04-25-2012, 07:38 AM
Registered User

Trader Feedback: (7)
Join Date: Jul 2000
Location: Texas
Posts: 630
There are many threads about this, Search feature should and will answer all your questions. Just use high quality 1 gauge cable, and pay attention to grounds. They will make or break the installation from my experiance. Use a cut of switch if you plan to race the car. Also, good connections.. solder all of them, make it look good.

FWIW, I am using the Aluminium taylor box with the Ron francis battery relocation cable kit 1 gauge all the way to the solenoid and the flaming rivier switch mounted behind the licsence plate. Ground ran to block, then ground from block to car. Works good. 10 year old 1-wire alternator ran directly to battery (+).


~Republic of Texas~
~Silver Foxbody w/ Fordstrokers 363~
Fast82LX is offline
post #3 of 31 Old 04-25-2012, 08:47 AM
Registered User

95cobraguy's Avatar

Trader Feedback: (75)
Join Date: Dec 2005
Location: Concord, NC by way of LI, NY
Posts: 5,493

95 Cobra #1679
Copy and paste link for my 363 thread
https://forums.corral.net/forums/5-0-5-8-engine-tech/1283537-fordstrokers-363-pics.html
95cobraguy is offline
Sponsored Links
Advertisement

post #4 of 31 Old 04-25-2012, 11:22 AM
Registered User

rkloehn's Avatar

Trader Feedback: (36)
Join Date: Jul 2008
Location: belgium, WI
Posts: 3,726
Use #1/0 cable not #1. There is a difference

Sold my car for a boat!!!!
rkloehn is offline
post #5 of 31 Old 04-25-2012, 12:56 PM
Registered User

Bullitt5253's Avatar

Trader Feedback: (1)
Join Date: Sep 2004
Location: Palm Bay, FL
Posts: 187
I got the 1/0 cable from lowes by the foot, and bought the black plastic box from Summit Racing.

Brian: '90 Ex-FHP LX (IRS'd)
'01 Bullitt #5253 - SOLD
Bullitt5253 is offline
post #6 of 31 Old 04-26-2012, 09:34 PM
Registered User

Blackfive0's Avatar

Trader Feedback: (62)
Join Date: Oct 2004
Location: Midlothian,VA
Posts: 2,109
I am using the taylor kit. I used the cable that came with it to run up to the solenoid and for the ground. But I also added a 1 gauge from the battery to the starter and made a ground cable out of the left over 1 gauge fot the block to body ground. Also using a flaming river kill swithch.


Big Bore Boss 347 FTI 225cc High Port, FTI Cam, Box R Intake under stock hood, T-56 Magnum, 4.30 gears.
Blackfive0 is online now
post #7 of 31 Old 04-26-2012, 09:41 PM
Registered User

rkloehn's Avatar

Trader Feedback: (36)
Join Date: Jul 2008
Location: belgium, WI
Posts: 3,726
Quote:
Originally Posted by Blackfive0 View Post
I am using the taylor kit. I used the cable that came with it to run up to the solenoid and for the ground. But I also added a 1 gauge from the battery to the starter and made a ground cable out of the left over 1 gauge fot the block to body ground. Also using a flaming river kill swithch.

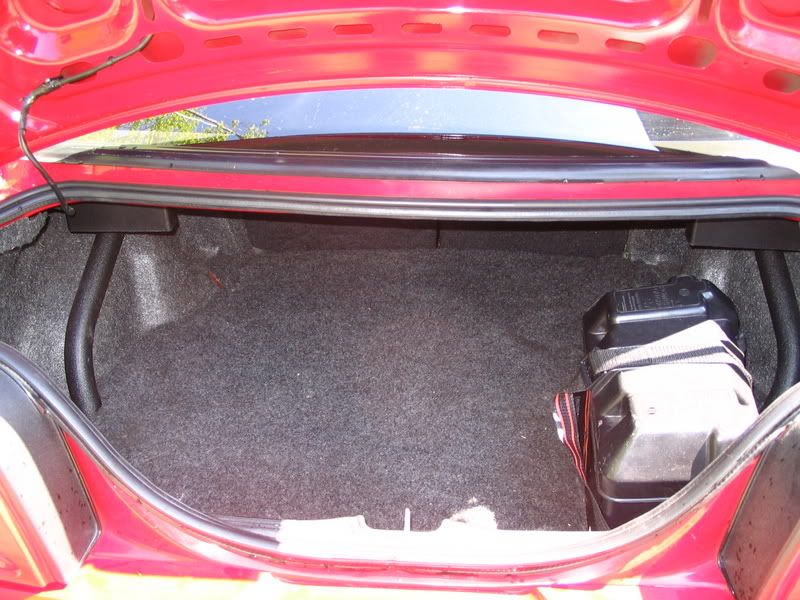

ohhhh i like this, may have to carpet and sink the battery down!!!!

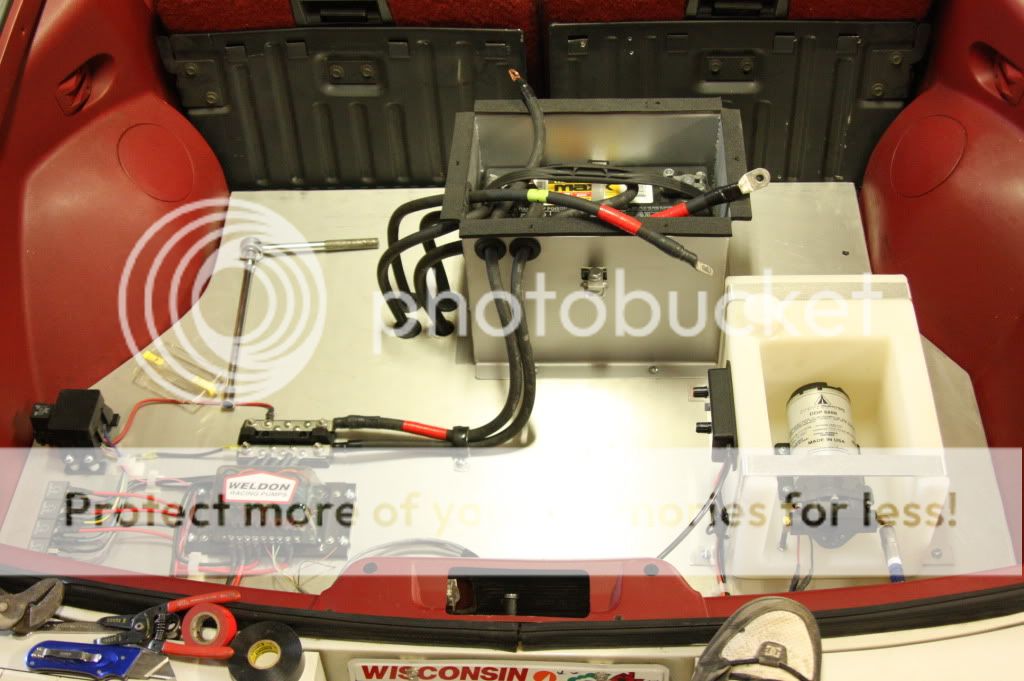

here is mine


Sold my car for a boat!!!!
rkloehn is offline
post #8 of 31 Old 04-26-2012, 10:05 PM Thread Starter
Registered User

Trader Feedback: (17)
Join Date: Dec 2005
Location: North Carolina
Posts: 433
Man, digging the pics, Some creative setups for sure!!!

91' Hatch
Reignman is offline
post #9 of 31 Old 04-26-2012, 10:18 PM
Registered User

Trader Feedback: (1)
Join Date: Apr 2007
Location: Hamilton Ontario
Posts: 158
how about some detail on how you wired up the MSD
legwound is offline
post #10 of 31 Old 04-26-2012, 10:20 PM
Registered User

Trader Feedback: (11)
Join Date: Dec 2011
Location: Houma, LA
Posts: 839
Bullit, you got 1/0 cable from Lowes? I haven't seen battery or welding cable there. Exactly what wire did you use? Any pics of it?

Sent using nothing


95 GT Back from the dead. 342 stroker with 190 Trick Flow heads and intake and the other usual bolt ons with TR3650 transmission
Pfirmin is offline
post #11 of 31 Old 04-26-2012, 10:26 PM
Registered User

rkloehn's Avatar

Trader Feedback: (36)
Join Date: Jul 2008
Location: belgium, WI
Posts: 3,726
Quote:
Originally Posted by Pfirmin View Post
Bullit, you got 1/0 cable from Lowes? I haven't seen battery or welding cable there. Exactly what wire did you use? Any pics of it?

Sent using nothing
im guessing he bought THHN, which if this is correct is not ideal for a vehicle. its very rigid and the jacket is not that protective. i could be wrong but i also didnt htink lowes sells welding cable/battery cable/locomotive cable

Sold my car for a boat!!!!
rkloehn is offline
post #12 of 31 Old 04-26-2012, 11:49 PM
Registered User

Trader Feedback: (11)
Join Date: Dec 2011
Location: Houma, LA
Posts: 839
That's exactly what I was thinking, thus the question. Sure, it's rated for 600 volts -AC not DC. Big difference

Sent using nothing

95 GT Back from the dead. 342 stroker with 190 Trick Flow heads and intake and the other usual bolt ons with TR3650 transmission
Pfirmin is offline
post #13 of 31 Old 04-28-2012, 04:38 PM
Registered User

Trader Feedback: (6)
Join Date: Oct 2010
Location: Wales UK
Posts: 1,342
Are you all using 1/0 or 2/0 gauge on power and earth?

1970 Mach 1 Mustang with SoT bilsteins and mid-eye 4 1/2 leafs 620lb drop springs in the front. *393 4V cleveland with Buddy Rawls custom solid cam Astro A5*
Reverb is offline
post #14 of 31 Old 04-28-2012, 04:49 PM
Registered User

Michael Yount's Avatar

Trader Feedback: (17)
Join Date: Apr 2002
Location: Charlotte, NC
Posts: 35,018
A little different approach -- mine has an un-used spare tire 'well' (commonly referred to as 'butt cheeks' by the brickers) on the passenger side. I put mine in there. Sits flush with the floor of the trunk - although the battery box top sits above the floor line. I used a WalMart plastic marine battery box. For hot cable I bought a set of 25' 2 gauge fine strand jumper cables (also Wally World) and joined them at the lug after removing/discarding the clamps. So I have a double 2-gauge running to the front. Penetrated the floor in the trunk and ran on the underside of the car just on the edge of the driveshaft tunnel. Oh - also mounted a disconnect in the trunk. It simply disconnects the ground for the battery like you would if you were working on the car. Pretty decent theft deterrent as well.

Without taking a new picture - you can just see the top in the right side of the pic below....and the disconnect is pretty clear.


Michael Yount - Charlotte, NC - 82 Volvo 242 - 6.2L; '17 Mazda3; '16 CrossTrek

Last edited by Michael Yount; 04-28-2012 at 04:54 PM.
Michael Yount is offline
post #15 of 31 Old 04-28-2012, 06:40 PM
Corral Elite Member

Nolan592's Avatar

Trader Feedback: (5)
Join Date: Apr 2012
Location: Clinton, Indiana
Posts: 881
Garage
So is it required to mount the ignition box with it in the back or is it ok to leave it up front?

92 GT, Green/Grey, MM Control Arms, FMS B Springs, Bilstein HD Shocks & Struts, OEM 03/04 Cobra Brakes and Wheels
Nolan592 is offline
post #16 of 31 Old 04-28-2012, 09:36 PM
Registered User

Trader Feedback: (40)
Join Date: Aug 2007
Location: fairfax station, va
Posts: 1,994
my ignition is up front, battery in trunk. I used 2/0 welding cable. the stuff was not cheap, but I had used smaller gauge wire prior and was having issues with starting the car once it was hot. rewired with 2/0 and problems solved.
notchthis is offline
post #17 of 31 Old 04-28-2012, 10:53 PM
Registered User

blownholley50's Avatar

Trader Feedback: (28)
Join Date: May 2001
Location: Odessa, TX
Posts: 1,113
2/0 here


WestTexasMeanStreet-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
93 LX Hatch F1A-94 ,363, Freezy, XFI-/[email protected]/[email protected] 5000'DA
Harlow Sammons,Southwest Perf. & Machine
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
YouTube Page- www.youtube.com/user/blownholley50
blownholley50 is offline
post #18 of 31 Old 04-29-2012, 08:51 AM
Registered User

Venom351_R's Avatar

Trader Feedback: (4)
Join Date: Jan 2010
Location: Maine
Posts: 1,021
Quote:
Originally Posted by Bonez8791 View Post
So is it required to mount the ignition box with it in the back or is it ok to leave it up front?
You can put the ignition box where ever you want to. Just more creative to put it in the back plus it keeps it out of the heat of the engine bay.



1994 SVT Cobra #42 of 5009/ 95 Cobra R drivetrain

Performance- FTI TFS Custom CNC Ported 234HR High Ports /Edelbrock Victor 5.8/FTI Camshaft/Accufab 75MM TB/ PMAS 95MM Velocity Meter/Tremec 3550
Venom351_R is offline
post #19 of 31 Old 04-29-2012, 10:54 AM
Registered User

rkloehn's Avatar

Trader Feedback: (36)
Join Date: Jul 2008
Location: belgium, WI
Posts: 3,726
Quote:
Originally Posted by Reverb View Post
Are you all using 1/0 or 2/0 gauge on power and earth?
1/0 or 2/0 is fine. 2/0 is better but you will be just fine with 1/0. i used 3/0 to my started and ground.

Sold my car for a boat!!!!
rkloehn is offline
post #20 of 31 Old 04-29-2012, 01:29 PM
Registered User

Trader Feedback: (6)
Join Date: Oct 2010
Location: Wales UK
Posts: 1,342
Michael - when you put two wires in parallel like that - won't the electrons find the easiest path? If one has even a slightly different resistance to it - it'll chose the one with the least.

Anyway - how much is enough from back to front? 10ft?

1970 Mach 1 Mustang with SoT bilsteins and mid-eye 4 1/2 leafs 620lb drop springs in the front. *393 4V cleveland with Buddy Rawls custom solid cam Astro A5*
Reverb is offline
post #21 of 31 Old 06-18-2012, 09:43 AM
Registered User

5.0calypso93lx's Avatar

Trader Feedback: (45)
Join Date: Jan 2004
Location: cincinnati, ohio
Posts: 2,661
Quote:
Originally Posted by Fast82LX View Post
There are many threads about this, Search feature should and will answer all your questions. Just use high quality 1 gauge cable, and pay attention to grounds. They will make or break the installation from my experiance. Use a cut of switch if you plan to race the car. Also, good connections.. solder all of them, make it look good.

FWIW, I am using the Aluminium taylor box with the Ron francis battery relocation cable kit 1 gauge all the way to the solenoid and the flaming rivier switch mounted behind the licsence plate. Ground ran to block, then ground from block to car. Works good. 10 year old 1-wire alternator ran directly to battery (+).
Do you have a part number for the wiring kit?

1993 Mustang LX SOLD
2007 R1
5.0calypso93lx is offline
post #22 of 31 Old 06-18-2012, 10:28 AM
Registered User

Trader Feedback: (7)
Join Date: Jul 2000
Location: Texas
Posts: 630
TP-35 HOT ROD BATTERY CABLES-Ron Francis Wiring

~Republic of Texas~
~Silver Foxbody w/ Fordstrokers 363~
Fast82LX is offline
post #23 of 31 Old 06-18-2012, 10:33 AM
Registered User

5.0calypso93lx's Avatar

Trader Feedback: (45)
Join Date: Jan 2004
Location: cincinnati, ohio
Posts: 2,661
Holy crap! That is a lot for a few terminals and some 1 gauge cable! That is hardly a kit, no fuses, fuse holders or anything.

1993 Mustang LX SOLD
2007 R1
5.0calypso93lx is offline
post #24 of 31 Old 06-18-2012, 10:37 AM
Registered User

Trader Feedback: (11)
Join Date: Dec 2011
Location: Houma, LA
Posts: 839
My nitrous line is 15' and has no extra length.

Sent using nothing

95 GT Back from the dead. 342 stroker with 190 Trick Flow heads and intake and the other usual bolt ons with TR3650 transmission
Pfirmin is offline
post #25 of 31 Old 06-18-2012, 10:41 AM
Registered User

Trader Feedback: (7)
Join Date: Jul 2000
Location: Texas
Posts: 630
Quote:
Originally Posted by 5.0calypso93lx View Post
Holy crap! That is a lot for a few terminals and some 1 gauge cable! That is hardly a kit, no fuses, fuse holders or anything.
yeah, no joke. After dealing with the old Taylor kit, I wanted no bs after dealing with hot start issues. fWIW, the wire is 1000 times better than the taylor stuff. But yes, just like this hobby, it's just pissing money down the drain ;-)

~Republic of Texas~
~Silver Foxbody w/ Fordstrokers 363~
Fast82LX is offline
post #26 of 31 Old 06-18-2012, 09:35 PM
Registered User

rkloehn's Avatar

Trader Feedback: (36)
Join Date: Jul 2008
Location: belgium, WI
Posts: 3,726
Quote:
Originally Posted by 5.0calypso93lx View Post
Holy crap! That is a lot for a few terminals and some 1 gauge cable! That is hardly a kit, no fuses, fuse holders or anything.
x2 this kit is a total rip off!!! i could piece a way better kit together using 2/0 and way better ends for less. FYI number 1 awg cable is too small for trunk mount

Sold my car for a boat!!!!
rkloehn is offline
post #27 of 31 Old 07-07-2012, 07:13 PM
Registered User

Trader Feedback: (6)
Join Date: Oct 2010
Location: Wales UK
Posts: 1,342
Just finished my install - haven't done the wiring yet but it will all be hidden. I've got a false floor in the trunk with the amp, PC, XM Radio tuner, WiFi and GPS under it. It's MDF with some carpeting I found on Amazon. You can still see one of the creases in the carpet, but that will disappear with time.


1970 Mach 1 Mustang with SoT bilsteins and mid-eye 4 1/2 leafs 620lb drop springs in the front. *393 4V cleveland with Buddy Rawls custom solid cam Astro A5*
Reverb is offline
post #28 of 31 Old 07-16-2012, 05:22 PM
Registered User

killer5-0's Avatar

Trader Feedback: (28)
Join Date: Nov 2009
Location: ny
Posts: 3,224
can you mount the battery behind the passanger front seat? im doing a rear seat delete and my hatch is full from my custom audio install? could re-build my amp setup but would rather not have to...

s-trim, f303, 60lbers, ba2400, tubular gt40, 70mm tb, Hi-6, 5 lug cobra disc swap, MM road and track w/stifflers FIT, spyder brace, safety loop, FRPP driveshaft, 3:73s, mac shortys, o/r prochamber, spintech ss super prostreet 9000s, custom: interior, rear seat delete, gauge lighting, gauge pods
killer5-0 is offline
post #29 of 31 Old 07-18-2012, 08:34 PM
Corral Elite Member

Nolan592's Avatar

Trader Feedback: (5)
Join Date: Apr 2012
Location: Clinton, Indiana
Posts: 881
Garage
Is it ok to run the cables under the car instead of through the interior?

92 GT, Green/Grey, MM Control Arms, FMS B Springs, Bilstein HD Shocks & Struts, OEM 03/04 Cobra Brakes and Wheels
Nolan592 is offline
post #30 of 31 Old 07-20-2012, 08:17 PM
Registered User

Trader Feedback: (11)
Join Date: Dec 2011
Location: Houma, LA
Posts: 839
I can't see a problem with it as long as they are routed away from any danger and secured very well. I don't know what Nhra rules specify though.

Sent from my SAMSUNG-SGH-I777 using Tapatalk 2

95 GT Back from the dead. 342 stroker with 190 Trick Flow heads and intake and the other usual bolt ons with TR3650 transmission
Pfirmin is offline
post #31 of 31 Old 07-20-2012, 08:39 PM
Registered User

Trader Feedback: (13)
Join Date: Aug 2011
Location: MD
Posts: 1,698
Exclamation

More! I need More Pics of Installs! Thanks!:joy :
racerxmdd is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
For Sale Ais trunk mount meth system 600stunnin Power Adders 4 09-22-2014 04:45 PM
trunk mount battery question... billison General Mustang Tech 7 10-26-2013 09:45 AM
Want To Buy Postive Battery Cable for Trunk Mount 91svtcoupe Miscellaneous Mustang Parts 1 02-15-2012 10:18 PM
Want To Buy Positive Battery Cable for Trunk Mount 91svtcoupe Electronics and Entertainment 0 02-14-2012 08:39 PM
Trunk mount Meth ???'s brianwolf3 Superchargers 1 06-23-2011 11:30 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
