Wiring in: Trans Brake, VSC, Line Lock, 2 Step, & OD: Suggestions

I have to wire in a trans brake, varible stall control (Freddy Brown), line lock, 2 Step (PMS), and OD. I am thinking about getting a switch panel that goes into the ash tray. What is the best way to wire these in?

I have a push button on the shifter handle (Hurst) and another remote button that comes with the Moroso line lock if I need to use it.

Obviously the OD just needs to go to it's own toggle, so guess we can throw that out.

I was thinking of running the trans brake, vsc, line lock, and 2 step all to the push button switch on the shifter, but each to individual toggles to activate or deactivate. This way when I am at the line I can activate all and control from the single push button. When heating the tires, I can just activate the line lock. I run the 12v hot through the push button and this will then be the hot supply to each toggle. The toggles in turn will only energize the component they are wired to when each is in the on position AND the push button is compressed.

Is this feasible???

Relay(s) needed?


03 Whippled E85 Cobra Vert & 00 ZX12R
4r70w swap in progress 9-1-14

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by mhinchley; 03-05-2012 at 04:41 PM.
mhinchley is offline
Sponsored Links
Advertisement

post #2 of 2 Old 04-20-2012, 07:46 PM Thread Starter
Corral Elite Member

mhinchley's Avatar

Trader Feedback: (44)
Join Date: Apr 2005
Location: South Bend, IN
Posts: 2,913

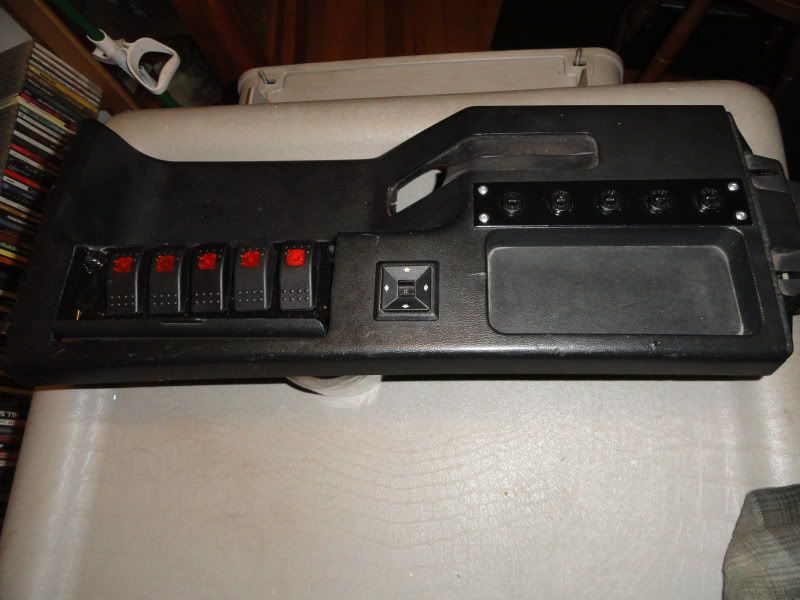

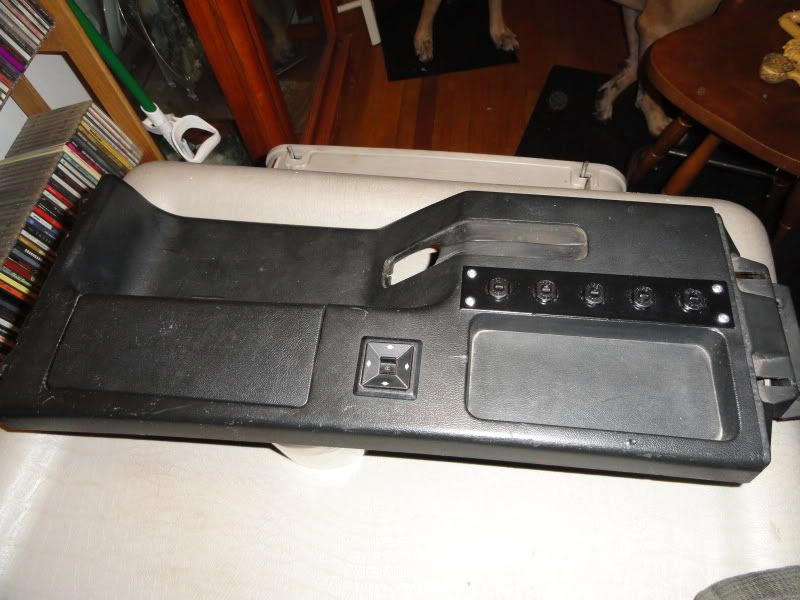

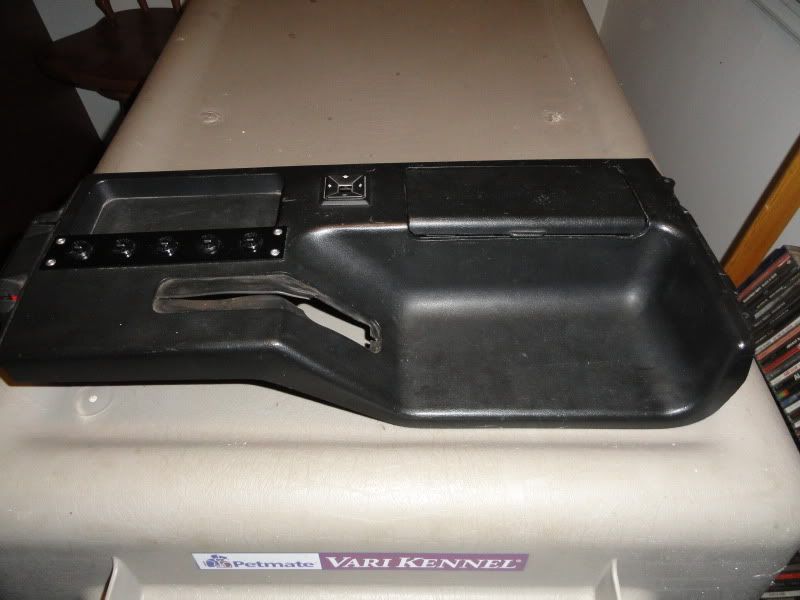

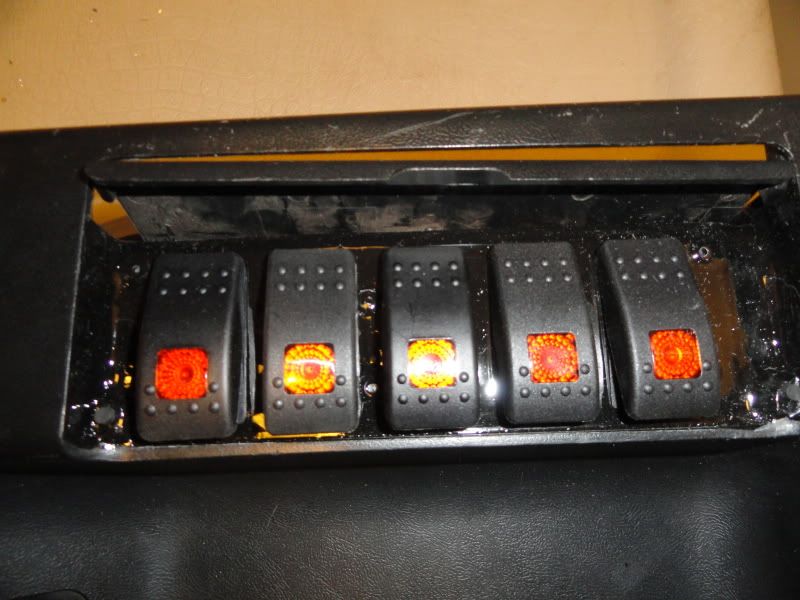

Have not decided for sure on the wiring but panel is mounted. Went with a Moroso switch panel and put it in ash tray compartment, blended in place with a plastic epoxy & painted with Por-15. Has reset breakers and mounted them where they will be under armrest. I bought relays, so I will be installing them.
