Parachute mount and bumper specs

Looking to test out my new tuning bender and been searching the rule book for general specs on diameter, wall thickness and such for making a tube parachute mount and bumper. 1 5/8 dom is what I see some manufactures using. I want to make this a quick disconnect piece, so the upright arm can disconnect. Anyone know off the top of their head? I’ll keep searching the rule book.....thanks!

CrucialProspect is offline
Sponsored Links
Advertisement

post #2 of 43 Old 09-07-2018, 02:34 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
All I’m finding is specs on chute anchor location, release cable location, and release cable mounting. I haven’t seen much else noting the materials. Would I be able to get away with 1 1/2” dom as a rear “bumper” and have the chute mount slide into it? Or did everyone just buy their kits?

CrucialProspect is offline
post #3 of 43 Old 09-07-2018, 06:14 PM
Corral Elite Member

Saleen414's Avatar

Trader Feedback: (2)
Join Date: Feb 2012
Location: Levant, Maine
Posts: 2,264
I bought this:

Wolfe Race Craft - Detail

Install was easy.


1989 Saleen 414 358cid SBF 2.8L Kenne Bell S/C
26 X 8.5 Hoosier
Best 1/4 mile time 8.623 @ 159.82 mph with a 1.34 60' (5.57 1/8th at 128)
Best 1/8 mile time 5.339 @ 133.46 mph with a 1.29 60'
08' Bullitt #4097 N/A 340ish RWHP <<<<<FOR SALE!
Saleen414 is offline
Sponsored Links
Advertisement

post #4 of 43 Old 09-08-2018, 08:14 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915

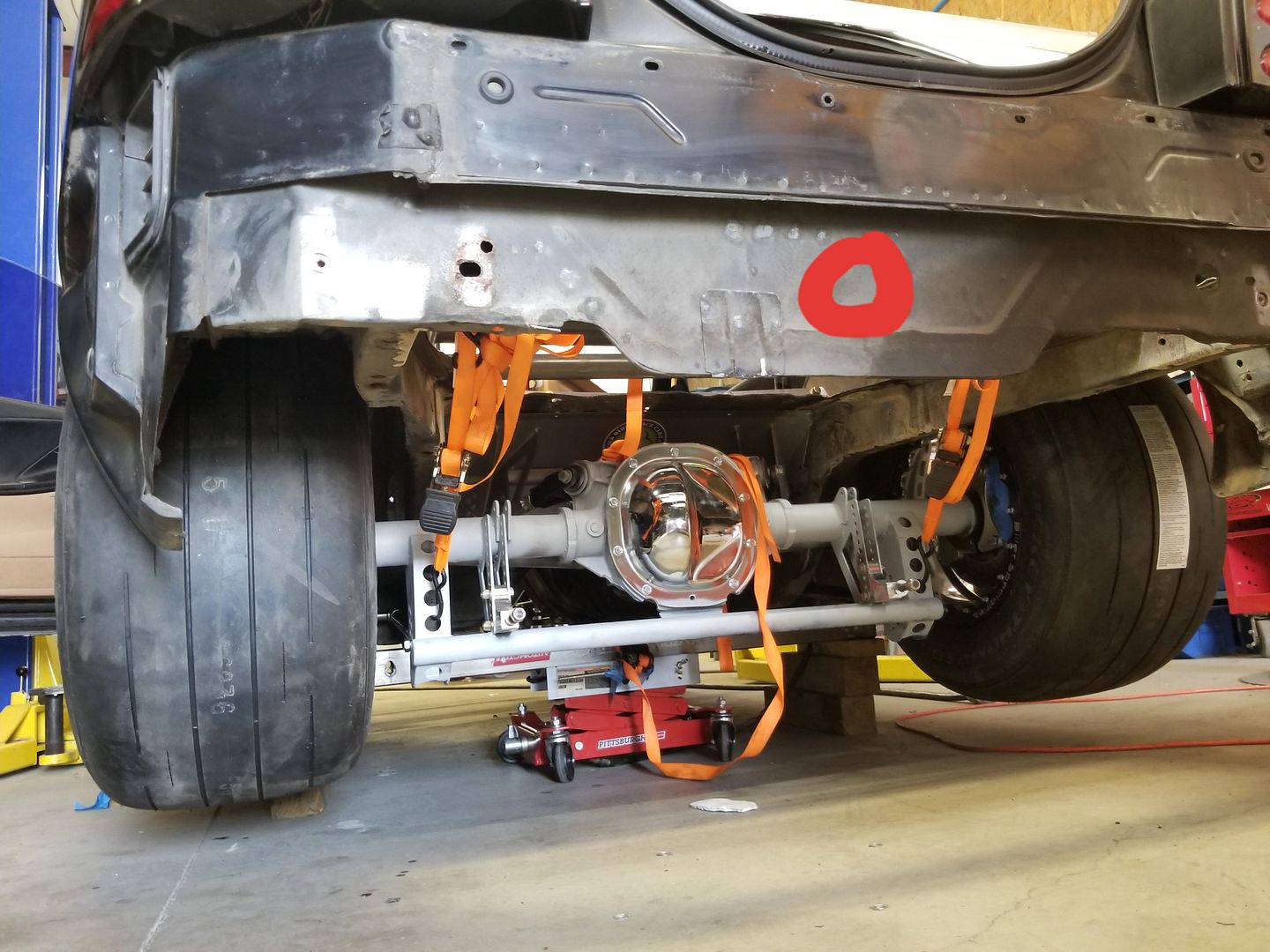

I pulled all this off so far, added up to 42lbs. I’m wondering how much rigidity the actual cross beam bumper adds to the new edge cars. From what I see, it bolts to sheet metal and nothing else really, wonder if I can get away with running it as is until the bumper is made? I plan on using 3/8” plate with 1 1/2” dom as the new bumper with a tube to slide in parachute mount. So all that weight I just tore off will probably be put right back on!
Attached Images
File Type: jpg 01EA0249-0139-4642-9194-19BEDD2CCBC9_1536451768667.jpg (98.5 KB, 32 views)
CrucialProspect is offline
post #5 of 43 Old 09-08-2018, 08:59 PM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
I'm guessing but my front bumper support is probably .06thk 4130 tubing. It's really thin. I had to turn my MIG down really low to weld some brackets onto it otherwise it would burn right through.

ks


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
post #6 of 43 Old 09-08-2018, 10:13 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915

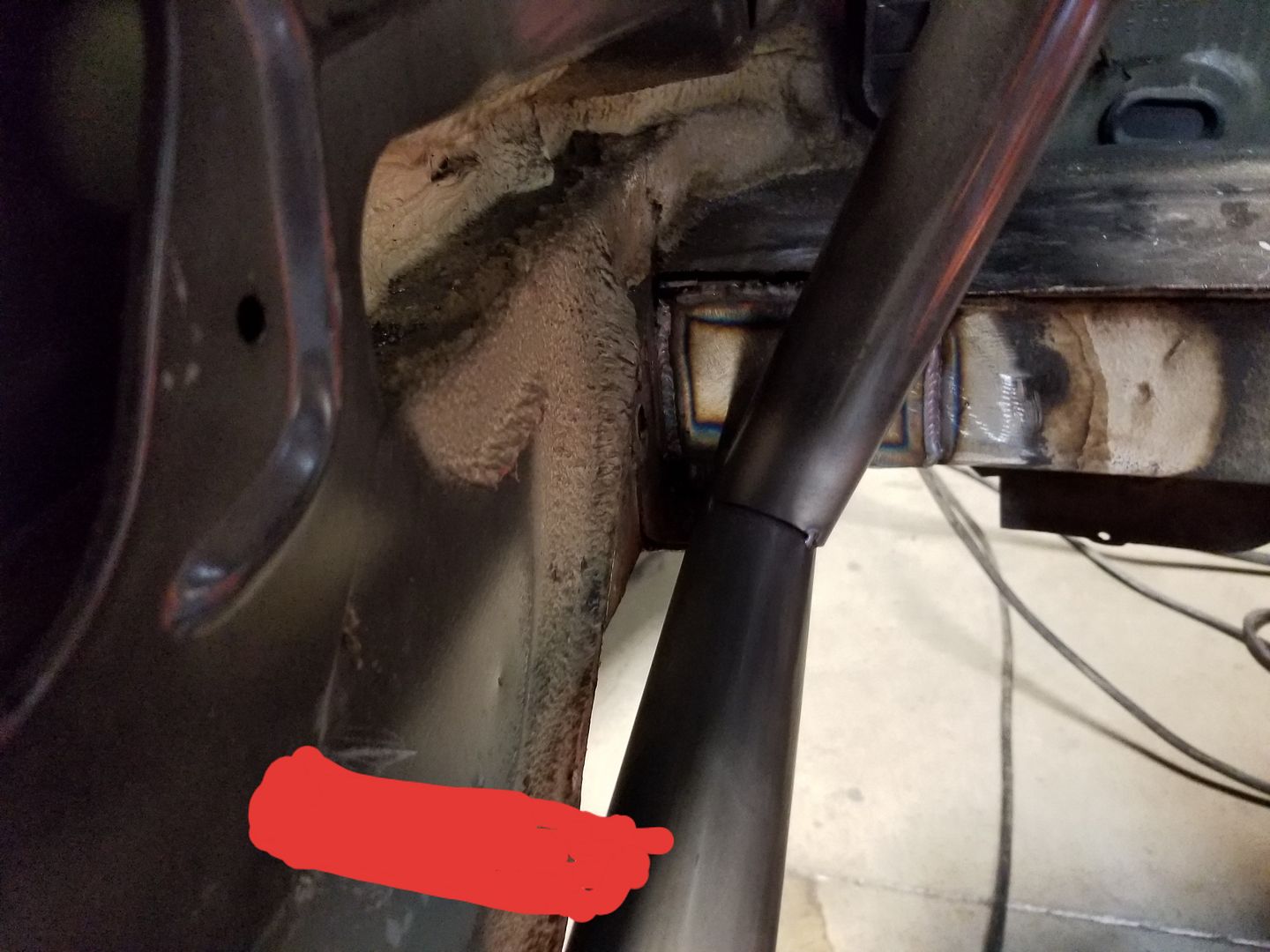

I’m wondering how much body twist is happening, I took my front off with the turbo install 5 years ago and never put anything back on. Maybe that’s been my traction problems the whole time!!!
CrucialProspect is offline
post #7 of 43 Old 09-09-2018, 08:18 PM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
Quote:
Originally Posted by CrucialProspect View Post
Iím wondering how much body twist is happening, I took my front off with the turbo install 5 years ago and never put anything back on. Maybe thatís been my traction problems the whole time!!!
If the cage it done right there will be minimal twist but the more bars (within reason) the less twist.

ks


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
post #8 of 43 Old 09-10-2018, 06:43 AM
Corral Elite Member

Saleen414's Avatar

Trader Feedback: (2)
Join Date: Feb 2012
Location: Levant, Maine
Posts: 2,264
Quote:
Originally Posted by CrucialProspect View Post
Iím wondering how much body twist is happening, I took my front off with the turbo install 5 years ago and never put anything back on. Maybe thatís been my traction problems the whole time!!!
I don't think you are making enough HP to worry about twist...
KEVIN$ likes this.

1989 Saleen 414 358cid SBF 2.8L Kenne Bell S/C
26 X 8.5 Hoosier
Best 1/4 mile time 8.623 @ 159.82 mph with a 1.34 60' (5.57 1/8th at 128)
Best 1/8 mile time 5.339 @ 133.46 mph with a 1.29 60'
08' Bullitt #4097 N/A 340ish RWHP <<<<<FOR SALE!
Saleen414 is offline
post #9 of 43 Old 09-21-2018, 02:47 AM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Challenge accepted!

Maybe I’m overthinking it, but I’ll pull the bumper again tonight and take a closer look, but there doesn’t seem to be much support tied into anything that would not rip off. Flexing may occur, but if the bar bolts onto sheet metal that’s held on by tack welds and body sealer, it may be effective in acting as a crumple zone for impact, not so much catching air in a chute and essentially stopping a car.
CrucialProspect is offline
post #10 of 43 Old 09-21-2018, 08:16 AM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
Quote:
Originally Posted by CrucialProspect View Post
Challenge accepted!

Maybe Iím overthinking it, but Iíll pull the bumper again tonight and take a closer look, but there doesnít seem to be much support tied into anything that would not rip off. Flexing may occur, but if the bar bolts onto sheet metal thatís held on by tack welds and body sealer, it may be effective in acting as a crumple zone for impact, not so much catching air in a chute and essentially stopping a car.
The chute cord shouldn't be anchored to sheet metal. The chute mount can be since it's only holding it up.

ks



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
post #11 of 43 Old 09-21-2018, 09:14 AM
Corral Elite Member

Saleen414's Avatar

Trader Feedback: (2)
Join Date: Feb 2012
Location: Levant, Maine
Posts: 2,264
The chute support bolts to the rear sub-frame. Not the same as sheet metal.

1989 Saleen 414 358cid SBF 2.8L Kenne Bell S/C
26 X 8.5 Hoosier
Best 1/4 mile time 8.623 @ 159.82 mph with a 1.34 60' (5.57 1/8th at 128)
Best 1/8 mile time 5.339 @ 133.46 mph with a 1.29 60'
08' Bullitt #4097 N/A 340ish RWHP <<<<<FOR SALE!
Saleen414 is offline
post #12 of 43 Old 09-21-2018, 10:49 AM
Registered User

Trader Feedback: (1)
Join Date: Aug 2005
Location: NJ
Posts: 357
This is my set up if u see it. Little over kill..36330_1537541346201.jpeg
Blown and strocked is offline
post #13 of 43 Old 09-23-2018, 11:57 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Tore apart the rear end again today, sure enough, it is bolted to the rear subframe.

Rear mount receiver will protrude rear bumper and the chute mount will be close to rear license plate, the cord will be on the mount itself where it slides into the receiver. That way when removing the chute, the whole system can come off in one piece.
CrucialProspect is offline
post #14 of 43 Old 09-24-2018, 03:43 AM
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,564
Our plan is to come off the rear brace for the back half bars which is welded in between the frame rails as far back as we could go. I'll gut the rear sheet metal that hangs down for the parachute mount to punch rearward with gusset braces. Gonna have to seal up the trunk area anyways.





Sent from my SM-G955U using Tapatalk

Dart 348ci, Ed Curtis cam/valvetrain, Precision 76mm, Holley Dominator EFI, CNP ignition, tons of Holler EFI small parts, 4"dp, 4R70W w/T-brake, new suspension coming soon.

Little 750rwhp at 6,000rpms and only 10lbs of boost before we just got tired of playing with clutches. New 4R70W and we are turning it up. Expecting 1,000rwhp.
kbscobravert is offline
post #15 of 43 Old 09-24-2018, 03:48 AM
Corral Elite Member

Trader Feedback: (9)
Join Date: Jul 2007
Location: Hurst, Texas
Posts: 3,564
Quote:
Originally Posted by Blown and strocked View Post
This is my set up if u see it. Little over kill..Attachment 963536
I like that. Don't you have a build thread somewhere with more of the chassis work photos

Sent from my SM-G955U using Tapatalk

Dart 348ci, Ed Curtis cam/valvetrain, Precision 76mm, Holley Dominator EFI, CNP ignition, tons of Holler EFI small parts, 4"dp, 4R70W w/T-brake, new suspension coming soon.

Little 750rwhp at 6,000rpms and only 10lbs of boost before we just got tired of playing with clutches. New 4R70W and we are turning it up. Expecting 1,000rwhp.
kbscobravert is offline
post #16 of 43 Old 11-02-2018, 03:20 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Figured I’d post up my results so far, doesn’t really rate a build thread. But I wanted to build one and maybe save some money.

I started by bending a piece of 1 3/4” dom,
Welded on 1/4” plates to mount to the stock location.B9E083B3-BCA6-474C-8A4B-64F4C32A1CC1_1541186309434.jpg
I also welded on 3 tabs for the lower bumper support. 8CCC3192-8E50-4850-9FC6-BAF25FDF9725_1541186221911.jpg
I didn’t like how other mounts only used the 4 bolts to mount the chute bar, so I used the existing bolt holes under the rear subframe to tie into with more support.
Hopefully I’ll get it completely welded tonight, so I can start on the slide in hitch for the upright chute mount.
CrucialProspect is offline
post #17 of 43 Old 11-04-2018, 06:14 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
B4217FE5-69FC-42FE-BE10-0EA4A35C584D_1541373231490.jpgC3953E14-9BCD-4963-B759-1A0A4C9EABC4_1541373138724.jpg650E508A-0B85-489E-A8AD-7F0C7315F5B8_1541372680171.jpg
Receiver finished this weekend and ready for powder coat. I think it’s plenty strong and overall lost 7.4lbs compared to stock steel bumper.
CrucialProspect is offline
post #18 of 43 Old 11-04-2018, 06:19 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Now all I have to do is cut the hole through the bumper and take measurements for the actual parachute hitch.
CrucialProspect is offline
post #19 of 43 Old 12-12-2018, 04:04 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Made some more headway this weekend, got the hole cut in the bumper,0C55FC90-8B83-43EC-B391-E15AE40D445C_1544648352910.jpg
The mount bar cut,
shackle cut out of 3/8 2” box tubing
And all tacked in place
Attached Images
File Type: jpg 4528FF86-3313-41ED-93A0-226DB55B41DF_1544648425090.jpg (79.4 KB, 11 views)
File Type: jpg 64520E06-4437-41F7-9316-C46A969968FF_1544648454705.jpg (76.0 KB, 14 views)
CrucialProspect is offline
post #20 of 43 Old 12-12-2018, 04:13 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
I used 1 1/2” dom .10 thickness for the slide in hitch. Shackle was made using 2” box tubing, 3/8.” I tapered it after cutting out the third side, and hole cut with the minimum 1/2” material surrounding it, also has 3/8” grade 8 with 1/2” sleeve as per nhra spec.

Instead of getting too fancy on bends for the upright, I decided to do a single 20 degree bend using 1 1/4” dom. Could have went smaller to save weight, but that was the smallest I had on hand.
CrucialProspect is offline
post #21 of 43 Old 12-12-2018, 04:19 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Some more pictures of the hole cut, I started with a pilot hole and used die grinder to enlarge to the opening
Initial upright idea
And final product
CrucialProspect is offline
post #22 of 43 Old 12-12-2018, 04:20 PM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
Does the trunk still open with it in place?

ks


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
post #23 of 43 Old 12-12-2018, 04:20 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Next I’ll be making the parachute mount plate and welding it using the 2 seams on the sides of the upright, and finally cutting it to final height.
CrucialProspect is offline
post #24 of 43 Old 12-12-2018, 04:22 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Quote:
Originally Posted by KEVIN$ View Post
Does the trunk still open with it in place?

ks
It actually does still, even though I will end up cutting it shorter, I see no need for it to set so high with the angle.
CrucialProspect is offline
post #25 of 43 Old 12-12-2018, 04:53 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Not really sure if there is a reason most of the chute mount uprights butt into the parachute mount plate, if anyone can shed some light on that? I just plan on welding the plate along the length of the angle of that upright, hence why I went with a single bend, instead of an s shaped bend.
CrucialProspect is offline
post #26 of 43 Old 12-13-2018, 02:05 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Also, any thoughts on release cable mounting and location? I’ve seen some mounts use an offset eyelet to locate the release cable, didn’t know if it was necessary even though rulebook states it must be within 12” (if I’m reading that correctly) “release housing”

I was thinking of having the cable come through somewhere between the trunk lid and the rear bumper as to not interfere with either operation.
CrucialProspect is offline
post #27 of 43 Old 12-20-2018, 01:51 PM
Registered User

Trader Feedback: (1)
Join Date: Aug 2005
Location: NJ
Posts: 357
This is my setup hope it helps
Attached Images
File Type: jpeg 43464_1545331804638.jpeg (46.8 KB, 13 views)
File Type: jpg 43465_1545331819667.jpg (76.3 KB, 11 views)
Blown and strocked is offline
post #28 of 43 Old 12-20-2018, 04:18 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
I’ve seen a lot of the box style setups, can’t really see how they’re different than this style, maybe a little less weight? Different chute? I see it still let’s you use the trunk as well, very nice setup, is there a way you can measure the angle at which the parachute faces upwards? I feel like my 20 degrees may not face it upwards enough.
CrucialProspect is offline
post #29 of 43 Old 12-20-2018, 06:23 PM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
As you know since it's just holding the groceries the most important thing is that is pushes the chute into the air stream. Otherwise you can be as low or high tech as your mind can create.

ks


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
post #30 of 43 Old 12-21-2018, 04:34 AM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
And that’s where the different chute activation devices come into play? I’ve never used the spring style chute, but like you said it’s not anchored there, it just holds the laundry and feeds into the airstream.
CrucialProspect is offline
post #31 of 43 Old 12-21-2018, 01:35 PM
Registered User

Trader Feedback: (1)
Join Date: Aug 2005
Location: NJ
Posts: 357
That will be a spring style chute. Pretty much had the same set up u had. Redid the chassi and it got moved down.

Asked the same question. Got an answer it was lighter. Not sure the angle. Car is a few hours away from me.

What are u using to launch the chute?
Blown and strocked is offline
post #32 of 43 Old 12-21-2018, 03:28 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Spring. Thanks for the help!
CrucialProspect is offline
post #33 of 43 Old 12-21-2018, 04:10 PM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
Quote:
Originally Posted by CrucialProspect View Post
Internal Rocket. Thanks for the help!


ks


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
post #34 of 43 Old 12-21-2018, 04:24 PM Thread Starter
Registered User

CrucialProspect's Avatar

Trader Feedback: (0)
Join Date: Jan 2016
Posts: 915
Is that the technical term?
CrucialProspect is offline
post #35 of 43 Old 12-21-2018, 04:48 PM
Registered User

KEVIN$'s Avatar

Trader Feedback: (8)
Join Date: Nov 2001
Location: Lincoln NE
Posts: 3,869
Quote:
Originally Posted by CrucialProspect View Post
Is that the technical term?
I'm not YouTube savy enough so I failed at finding a video that shows a parachute being deployed via small rocket or explosive device.

ks


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Kevin Slaby
2002 GT 2V 902hp/820tq through the muffs.
http://baselinesuspensions.com/Projects/balrog.htm
KEVIN$ is online now
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
For Sale brand new fox mustang parachute mount (no bumper bar) 93Mustanggt Miscellaneous Mustang Parts 0 01-11-2015 03:33 PM
For Sale SN95 CM light weight bumper support and removable parachute mount silverpoison Exterior Parts 0 09-11-2014 05:25 PM
For Sale Parachute w/ bumper support/mount 94-04 not fast Miscellaneous Mustang Parts 9 08-02-2013 08:32 AM
For Sale 1993 Cobra bumper with insert and fog mount greenhornet923 Exterior Parts 1 05-09-2011 07:52 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
