Geared engine stand

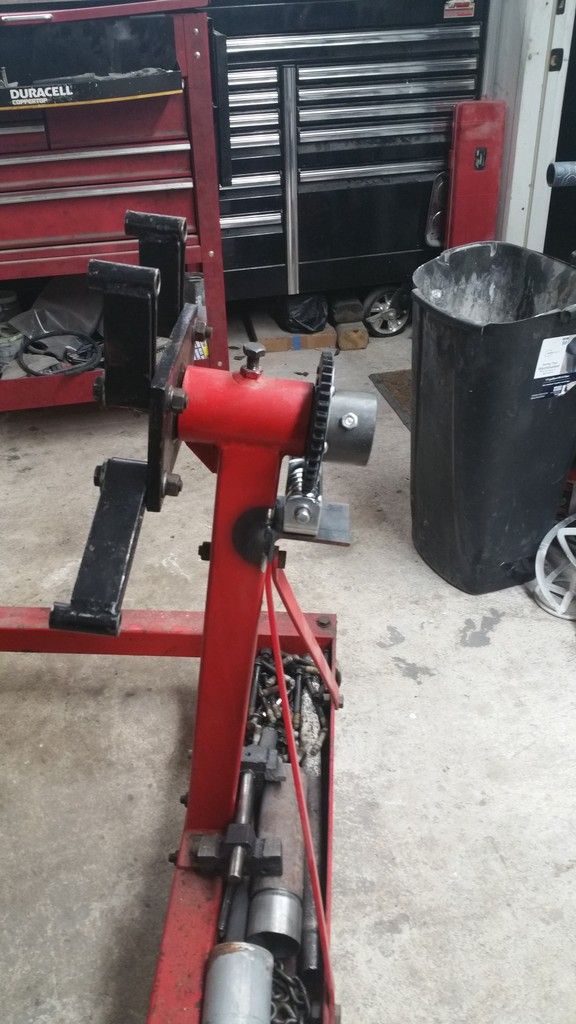

In preparing to rebuild my 5.4 DOHC for my 96 Cobra I realized how much I HATE trying to spin that heavy ass motor by hand. I have always wanted a rotating engine stand but, I can't bring myself to spend that kind of money. So I decided to convert my cheap stand. I used this winch https://www.harborfreight.com/automo...inch-5798.html (with a 20% off coupon it was less than $23) and a few hours of spare time to make it happen. One of the major design flaws, as I see it, is that the geared stands available do not allow the removal of the "head." It is much easier to attach the head to the block then use a hoist to lift it into place, than it is to hoist the motor in the air and try to attach the engine to the stand in the air. I made mine removable. The gear is a removable add on. Simply remove the 2 silver bolts in the pic to remove the gear and remove the head as normal. Here are a few pics of the finished product.








and a video of it in action, since my 5.4 block is still at the machine shop I used a spare 4.6 aluminum block I had laying around.




Last edited by mustangman57; 06-16-2017 at 11:16 AM.
mustangman57 is offline
Sponsored Links
Advertisement

post #2 of 13 Old 06-16-2017, 07:01 PM
Registered User

Mstng93SSP's Avatar

Trader Feedback: (12)
Join Date: Nov 1999
Location: Mililani, Hawaii
Posts: 1,093
Garage
That is cool!


1990 "7 Up" Vert 5 lug, 4 wheel disc, new top and interior, GT40X Heads, Comp Cams XE264HR Cam
1991 LX Hatch. GT40X Heads, Crane Cam, GT 40 tubular intake, 5 lug, 4 wheel disc.
1993 SSP Royal Blue Coupe. Work in progress.
Mstng93SSP is offline
post #3 of 13 Old 06-17-2017, 12:00 AM
Registered User

sanchezj360's Avatar

Trader Feedback: (22)
Join Date: Jan 2011
Location: san antonio
Posts: 579
I also hate spinning the engine by hand. Great idea!

1993 Ford Mustang Lx-turbo stolen feb 22nd 2017
Vin 1FACP41E2PF165961
1994 Ford Lightning- Sold
1990 Ford Mustang Lx- needs a heart transplant.
sanchezj360 is offline

post #4 of 13 Old 06-17-2017, 04:30 PM
Registered User

indy2000's Avatar

Trader Feedback: (2)
Join Date: Oct 2001
Location: vancouver
Posts: 16,546
patent time

nice job!!
indy2000 is offline
post #5 of 13 Old 06-19-2017, 09:16 AM Thread Starter
Corral Elite Member

Trader Feedback: (30)
Join Date: Dec 2007
Location: Gainesville Florida
Posts: 527
Thanks guys, now for a good pressure washing and paint.
mustangman57 is offline
post #6 of 13 Old 06-19-2017, 05:05 PM
Registered User

Trader Feedback: (6)
Join Date: Oct 2009
Location: Down Under
Posts: 2,544
Good stuff!

Another option would be to put the shaft on roller bearings, but that would involve more work that the winch method.
eboost is offline
post #7 of 13 Old 06-20-2017, 11:12 AM Thread Starter
Corral Elite Member

Trader Feedback: (30)
Join Date: Dec 2007
Location: Gainesville Florida
Posts: 527
Quote:
Originally Posted by sanchezj360 View Post
I also hate spinning the engine by hand. Great idea!
Thanks

Quote:
Originally Posted by indy2000 View Post
patent time

nice job!!
Thanks

Quote:
Originally Posted by eboost View Post
Good stuff!

Another option would be to put the shaft on roller bearings, but that would involve more work that the winch method.
I'm trying to source some pipe and bearings to make that happen. This is only step one of my overall plan.

Last edited by mustangman57; 06-20-2017 at 11:20 AM.
mustangman57 is offline
post #8 of 13 Old 06-20-2017, 11:59 AM
Registered User

Trader Feedback: (0)
Join Date: Dec 2015
Location: Rush, NY
Posts: 446
What keeps it from free spinning? Is the roller winch a ratcheting style?
tjm73 is online now
post #9 of 13 Old 06-20-2017, 02:18 PM Thread Starter
Corral Elite Member

Trader Feedback: (30)
Join Date: Dec 2007
Location: Gainesville Florida
Posts: 527
Quote:
Originally Posted by tjm73 View Post
What keeps it from free spinning? Is the roller winch a ratcheting style?
Since it is a worm driven gear it wont free spin. With worm gear setups the driven gear cannot transfer force back to the drive gear. The drive gear acts as a brake. I specifically searched for a low budget worm gear setup. I could have easily used a boat winch with normal ratchet style gears, but that didn't sit right with me.

For more info check out this page http://www.technologystudent.com/gears1/worm1.htm

Last edited by mustangman57; 06-20-2017 at 02:25 PM.
mustangman57 is offline
post #10 of 13 Old 06-20-2017, 02:50 PM
Registered User

Trader Feedback: (0)
Join Date: Dec 2015
Location: Rush, NY
Posts: 446
Quote:
Originally Posted by mustangman57 View Post
Since it is a worm driven gear it wont free spin. With worm gear setups the driven gear cannot transfer force back to the drive gear. The drive gear acts as a brake. I specifically searched for a low budget worm gear setup. I could have easily used a boat winch with normal ratchet style gears, but that didn't sit right with me.

For more info check out this page Worms and Worm Wheels
I did not know that about worm gears.

tjm73 is online now
post #11 of 13 Old 06-20-2017, 03:56 PM
The real white95!

somanycorners's Avatar

Trader Feedback: (10)
Join Date: Jan 2009
Location: Prairieville, LA
Posts: 709
Garage
Nice job!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
somanycorners is online now
post #12 of 13 Old 06-22-2017, 01:24 PM
Registered User

NoSloCoupes's Avatar

Trader Feedback: (50)
Join Date: Oct 2000
Location: Clinton, IL
Posts: 1,496
Too much work... remove that crank and use a drill or battery powered impact.

Just kidding on the work part, nice job. I have seen stands that uses a drill tho.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.




To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NoSloCoupes is offline
post #13 of 13 Old 06-22-2017, 02:02 PM Thread Starter
Corral Elite Member

Trader Feedback: (30)
Join Date: Dec 2007
Location: Gainesville Florida
Posts: 527
Quote:
Originally Posted by NoSloCoupes View Post
Too much work... remove that crank and use a drill or battery powered impact.

Just kidding on the work part, nice job. I have seen stands that uses a drill tho.
I've considered attaching a motor to this, but I asked myself, "just how lazy am I?" The answer was, very lazy. I just don't want to deal with a wire plugged into the wall or having to keep a battery charged.
