Complete Disassembly of Rear Calipers (w/ integrated parking brake)...

Well I have yet to find a single post on any Mustang forum about taking these puppies apart so I figured I would take some pics and post up. And there is probably a reason for this... they're going to be a bitch to get back together and secondly you can buy new ones for a reasonable price.

BUT my reasoning was that I was going to have the fronts powder coated and I would really like the rears to match. It wasn't going to cost me any more to have the rears PC as well so I figured if worst comes to worst and I can't get them back together then I'll just buy some new replacements. Secondly, I really wanted to see how this crazy integrated parking brake mechanism worked.

I got many mixed reviews about whether or not I could just leave the internals of the parking brake mechanism inside the caliper and just have it PC'd that way. My PC guy said even if the seals were OK he was more worried about the chemicals and grit that would most definitely get up inside the mechanism when dipping/blasting the calipers.

Anyway, I decided to pull them apart and here is how it went:


1) Parts/Assembly Diagram

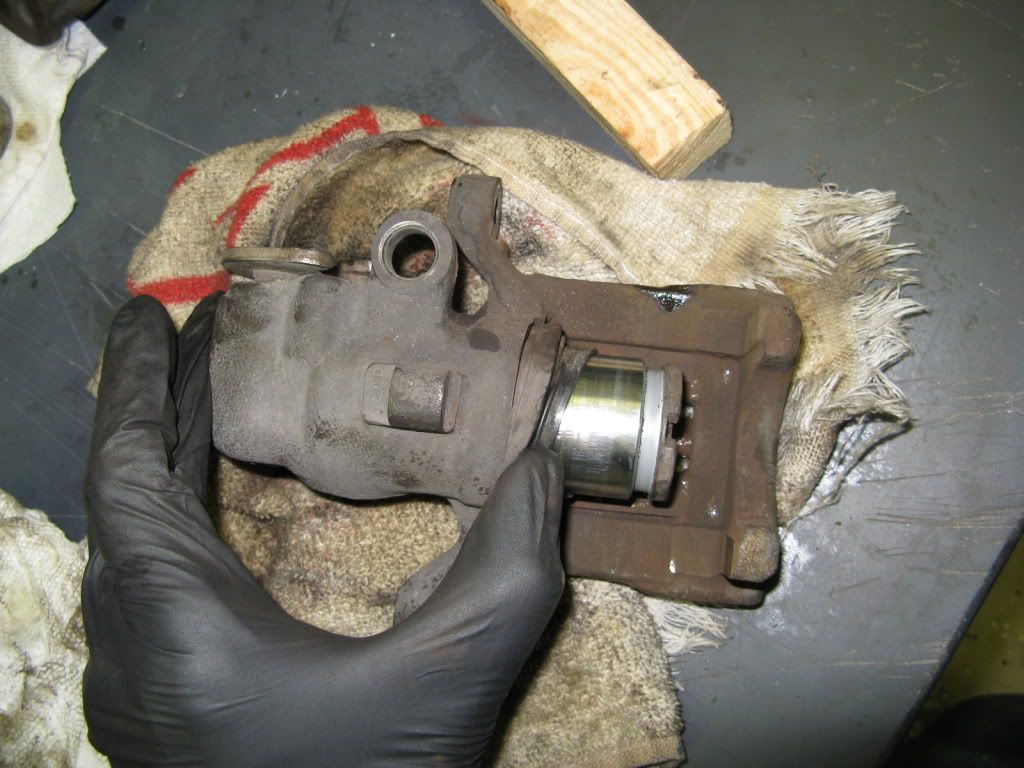

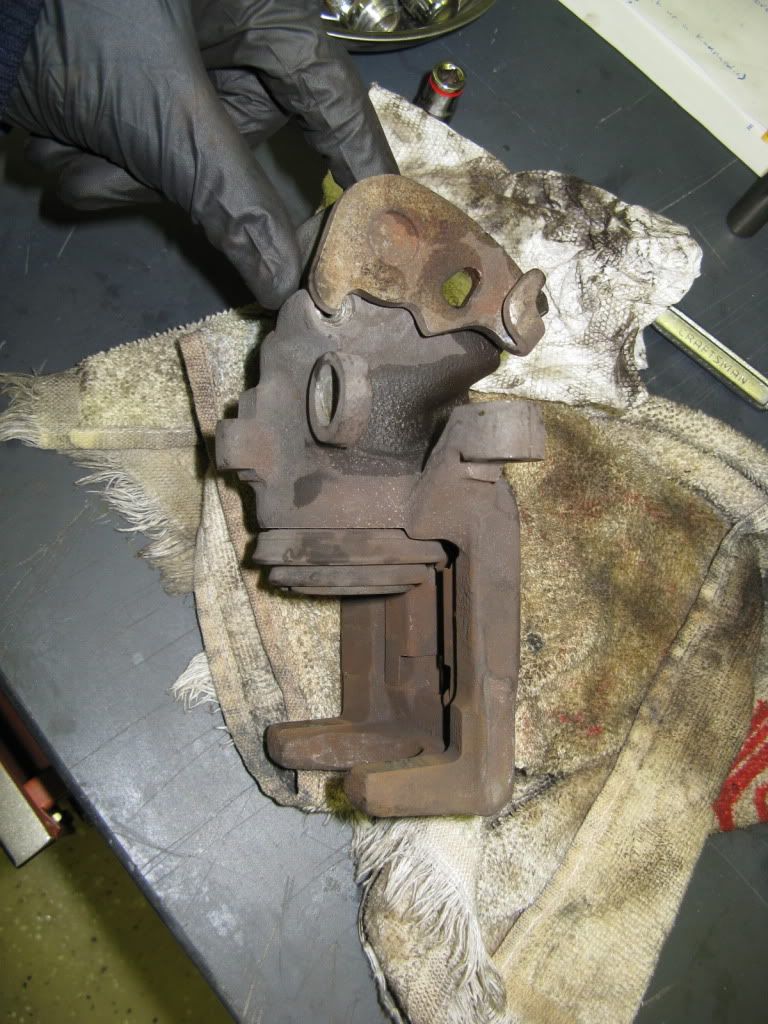

2) Caliper after removal from car



3) After cycling the parking brake "lever" the piston comes all the way out (no need to unscrew or apply air pressure through the bleed screw hole)




4) I had to give the piston a little twist at the very end and then it came right out

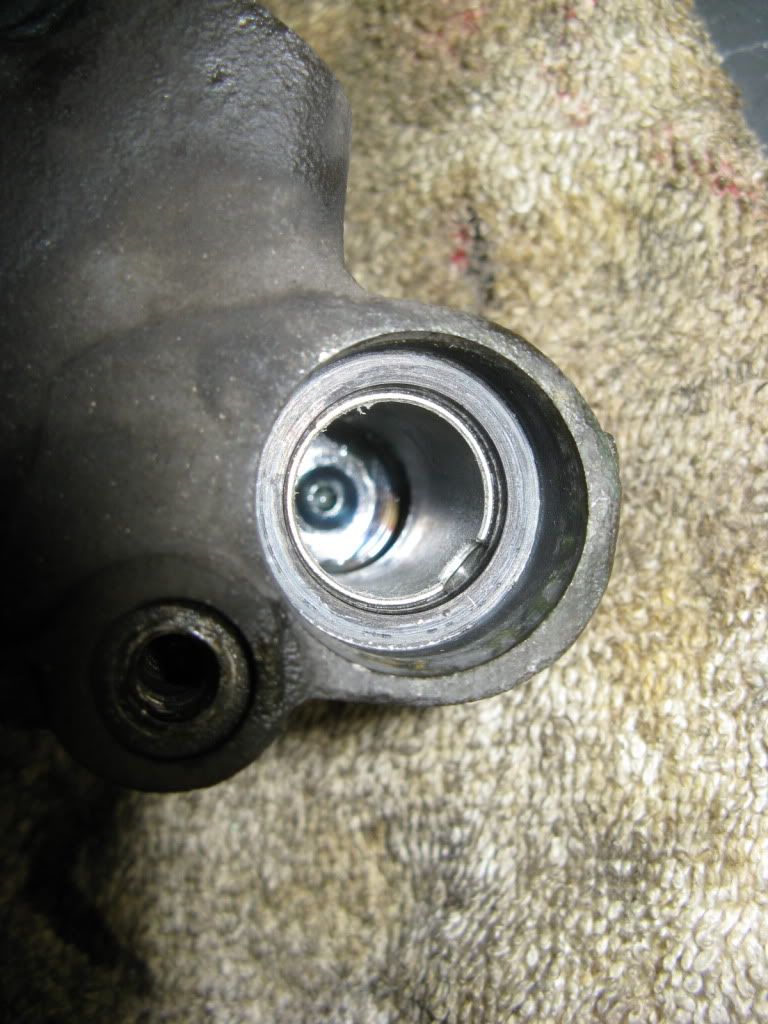

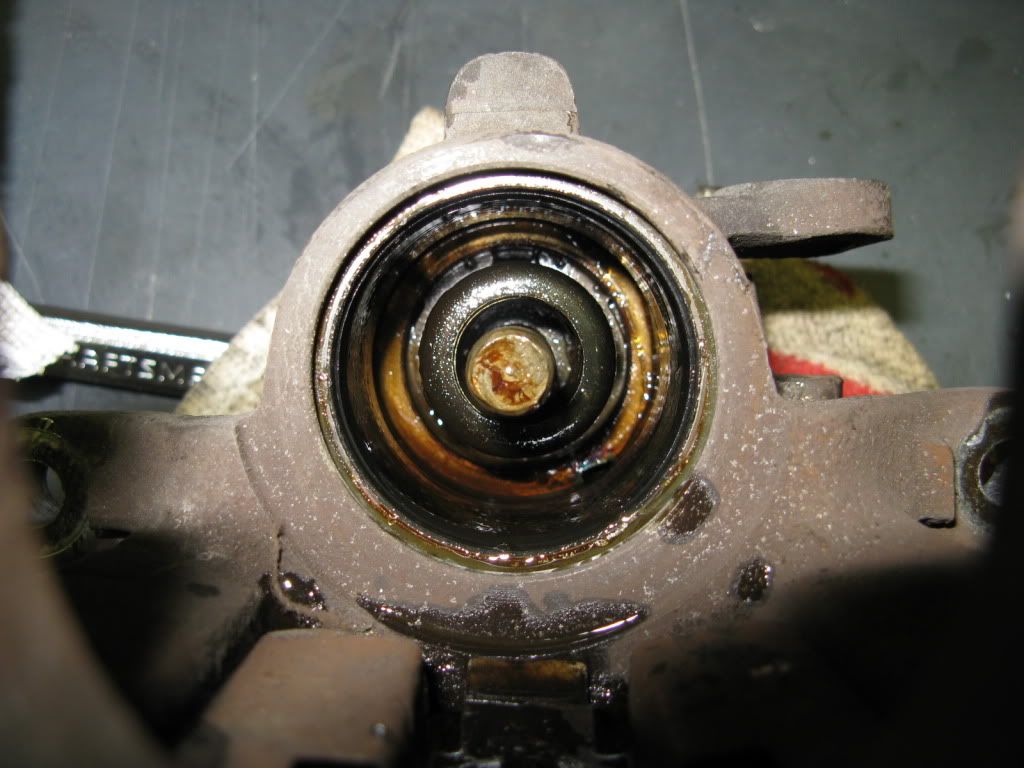

5) Then just pull the dust boot off. And a view down inside the caliper and the back of the piston.

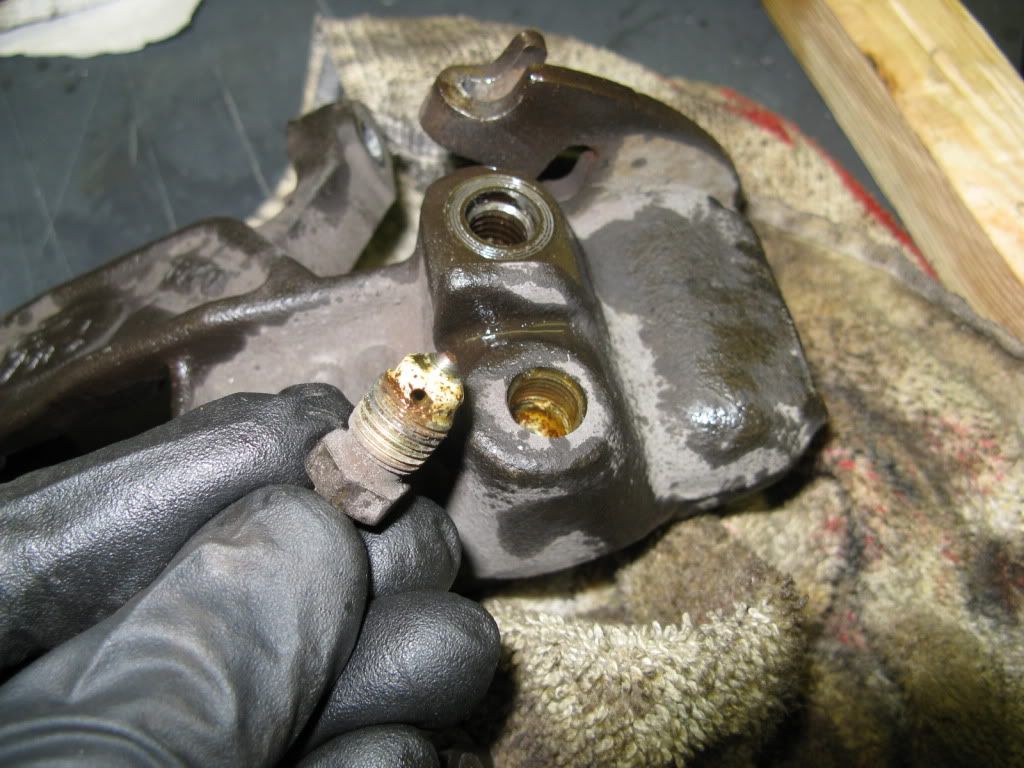

6) Then I removed the bleed screw. It had some corrosion on it and down in the hole of which I cleaned off/out.

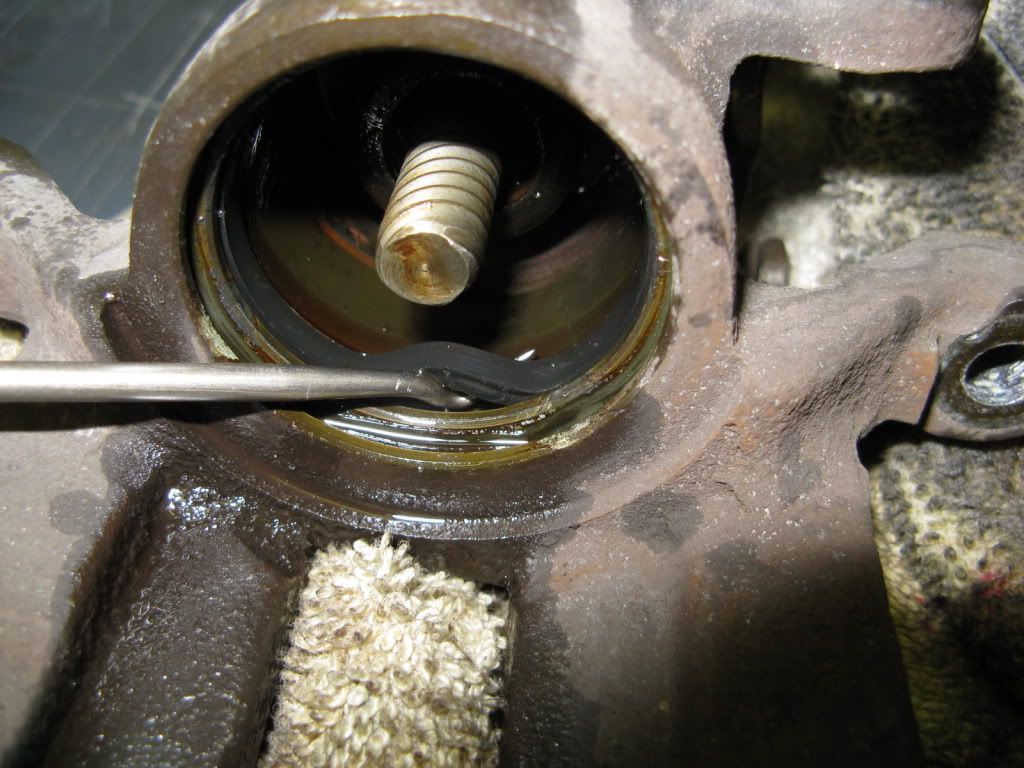

7) Then I removed the inner piston seal.

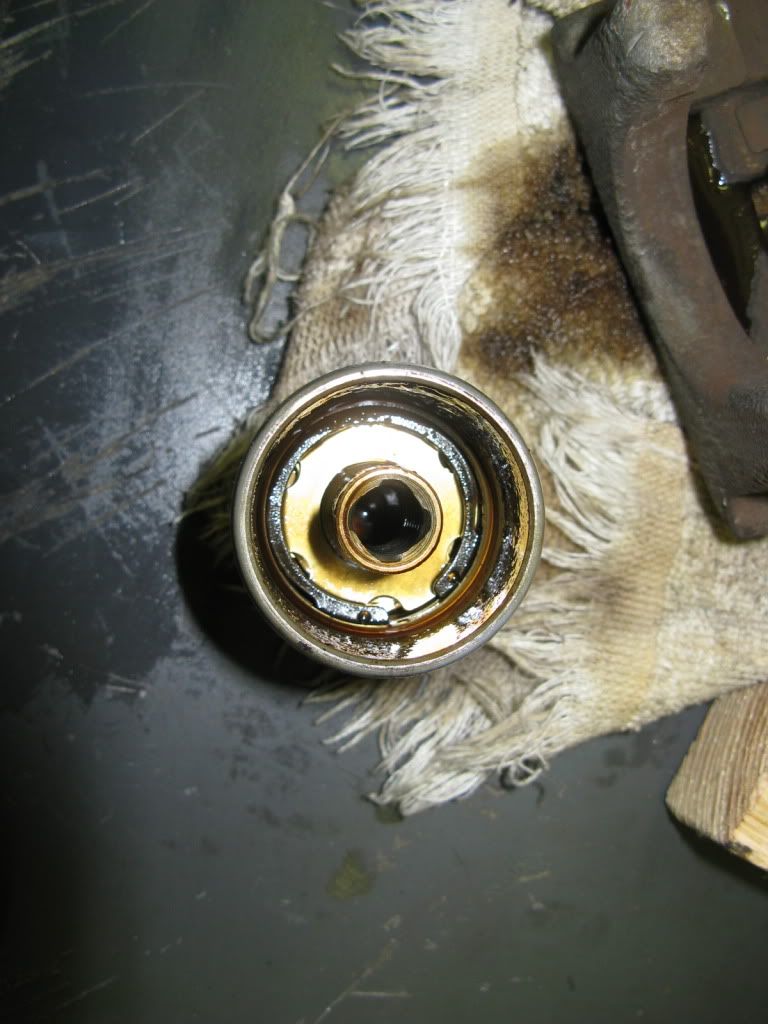

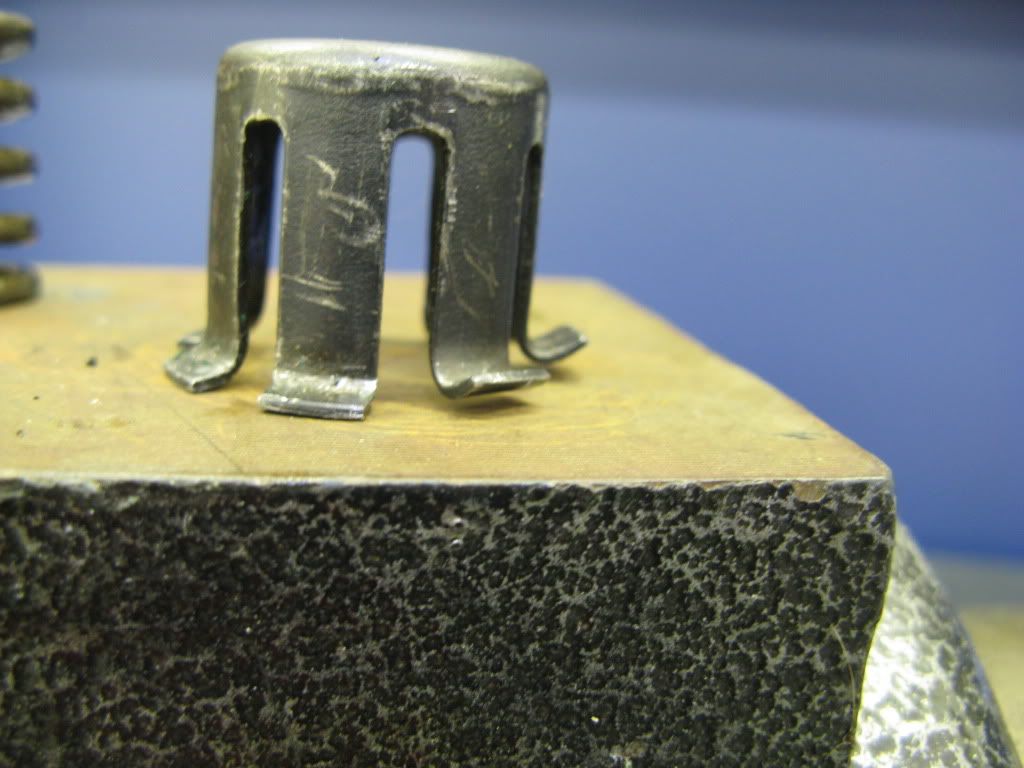

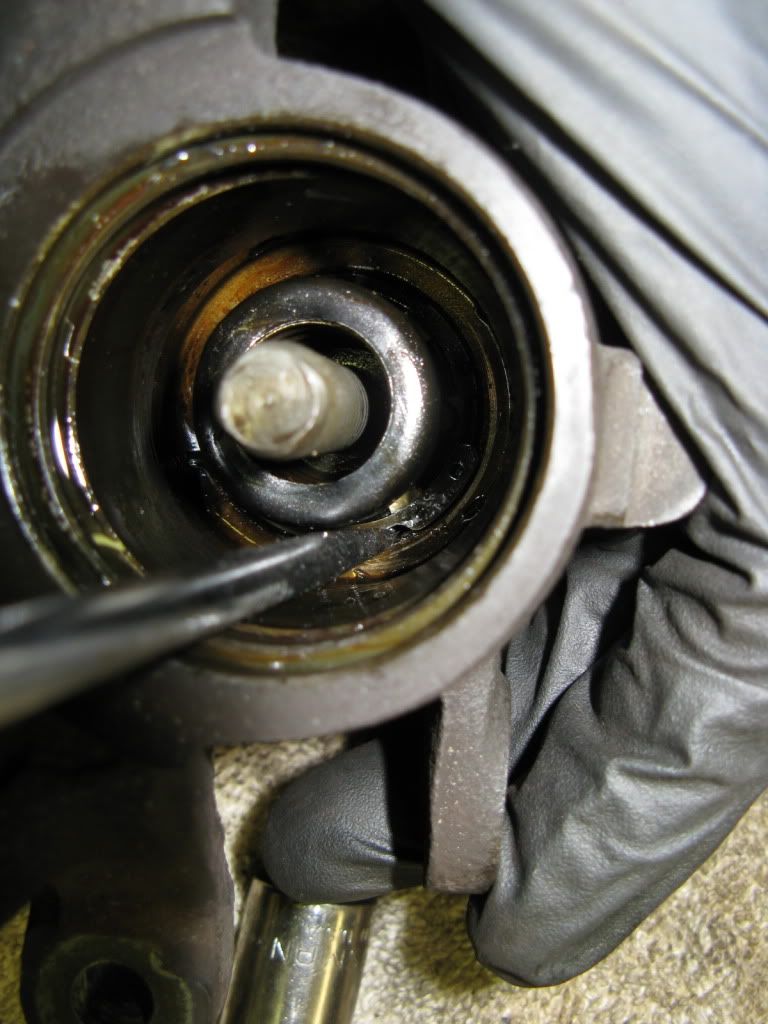

8) Now down inside the piston is a spring with a "cap" over it which is held in place by a snap ring. I could not get my snap ring pliers to fit down inside the piston (hence putting this back together while compressing the spring is going to be a PITA) but I used a small pic and just walked the snap ring around. It was a little difficult but only took a few tries. A warning for anyone that may attempt this... I had one spring/cap that popped out with pretty good force and shot my snap ring into the air, so you might want to wear some safety glasses. My other calipers just made a quick "snap" noise and all pieces stayed inside the caliper. Of course that was the second caliper I did and was prepared for and nothing happened, lol.

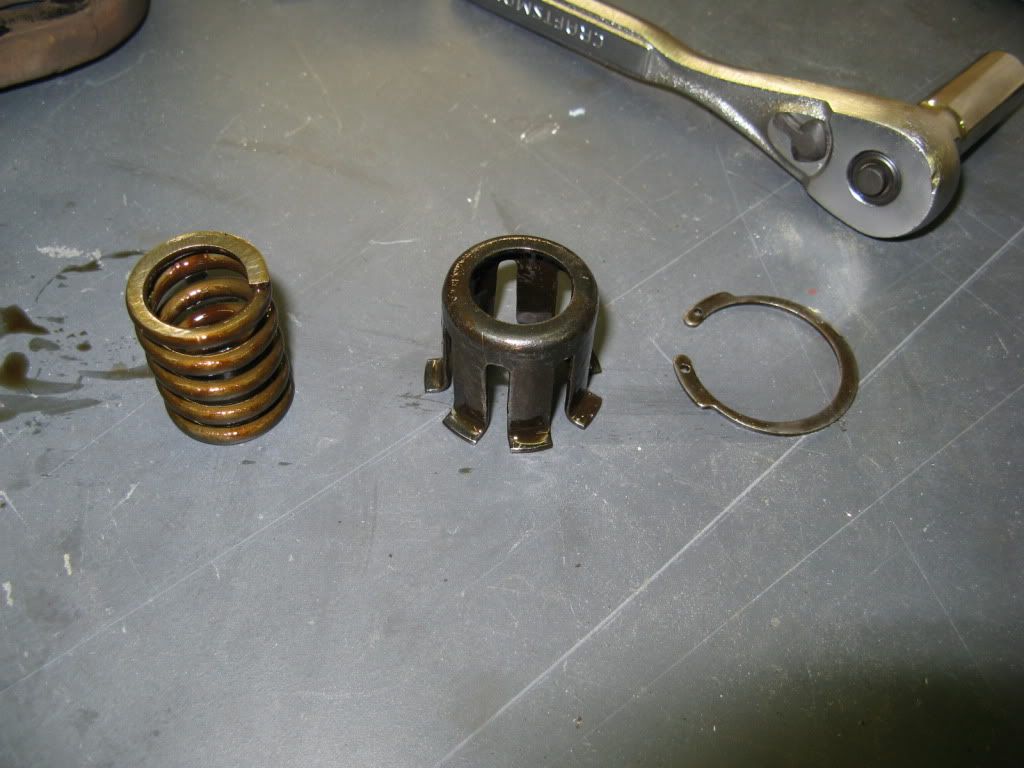

9) First set of parts laid out.

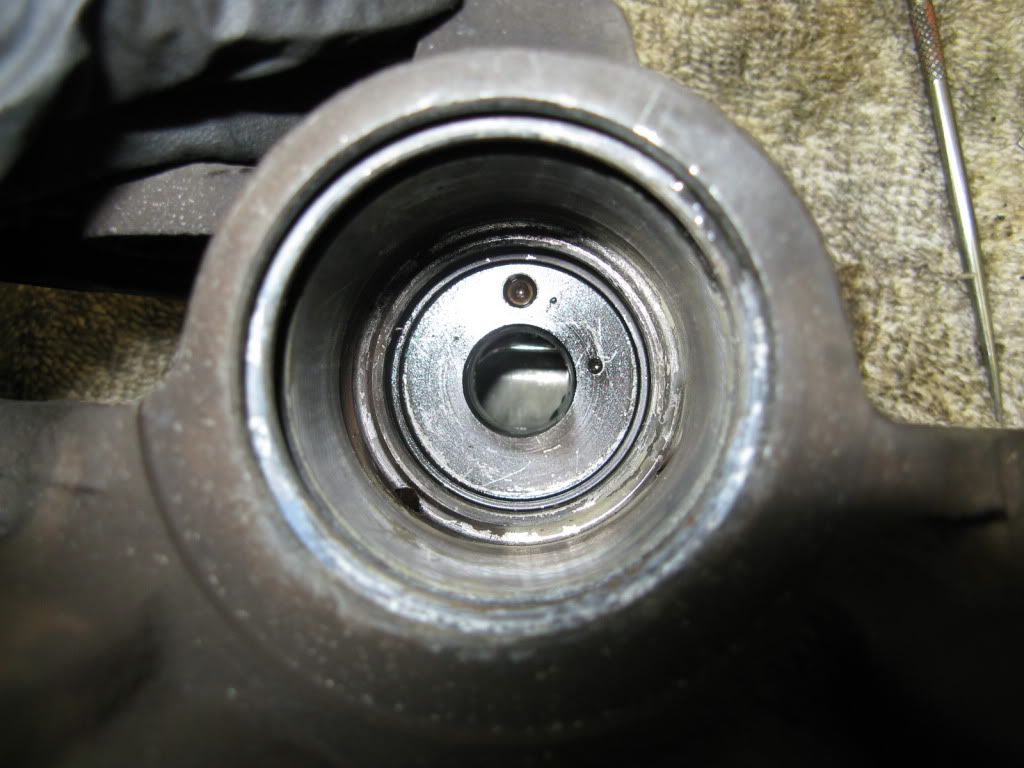

10) After you pulled those parts out then follows a small washer followed by a larger gold/silver washer with some idents in it. These two kind of just dumped out when I turned the caliper upside down.

11) Then came time to remove the screw that the piston rides up and down on. At first I couldn't for the life of me figure out what was keeping it in there and I couldn't yet remove the lever mechanism from the back of the caliper (it was obvious the two were "tied" together some how but I couldn't see what was holding them). Finally I got tired of messing with it and just grabbed it with a set of pliers (with a rag on the end as to not scratch the screw) and sure enough it just popped out. It's got a little O-ring around the base of it that keeps it kind of suctioned into a hole (see pics for a clearer idea of what I am talking about). The screw also has a little swivel rod (don't know what else to call it) that just pulls out of the back of it. The other end of the swivel rod sticks into a hole in the parking brake lever (hence keeping it from being pulled out before).

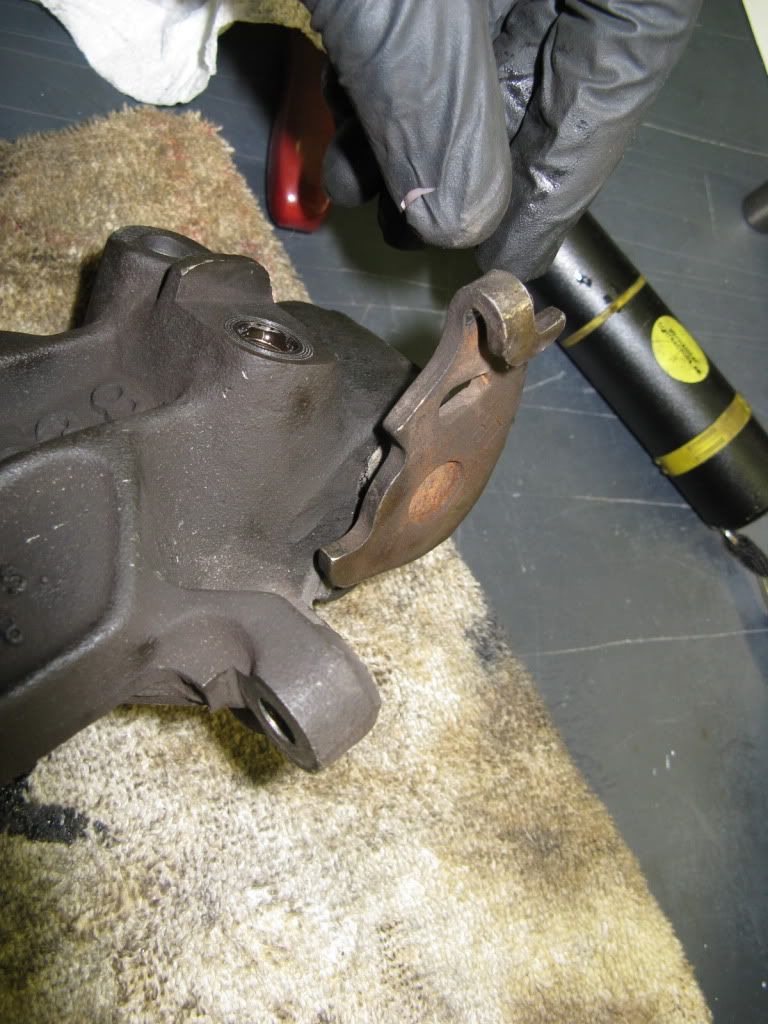

12) Then I just removed the parking brake lever from the back of the caliper.

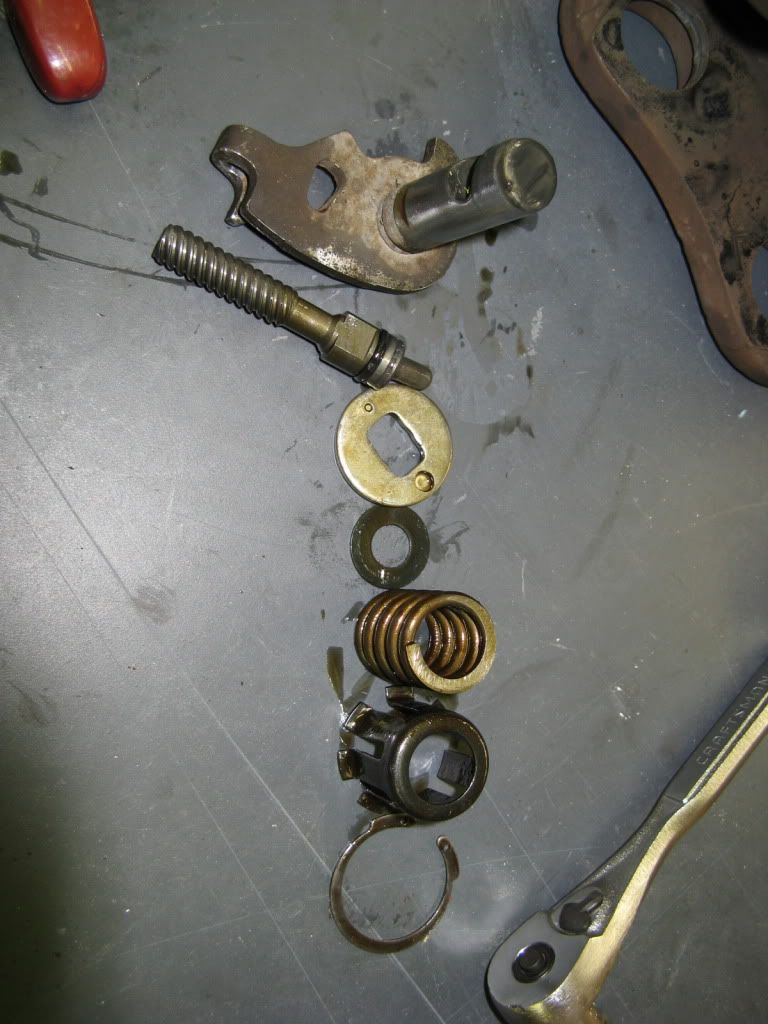

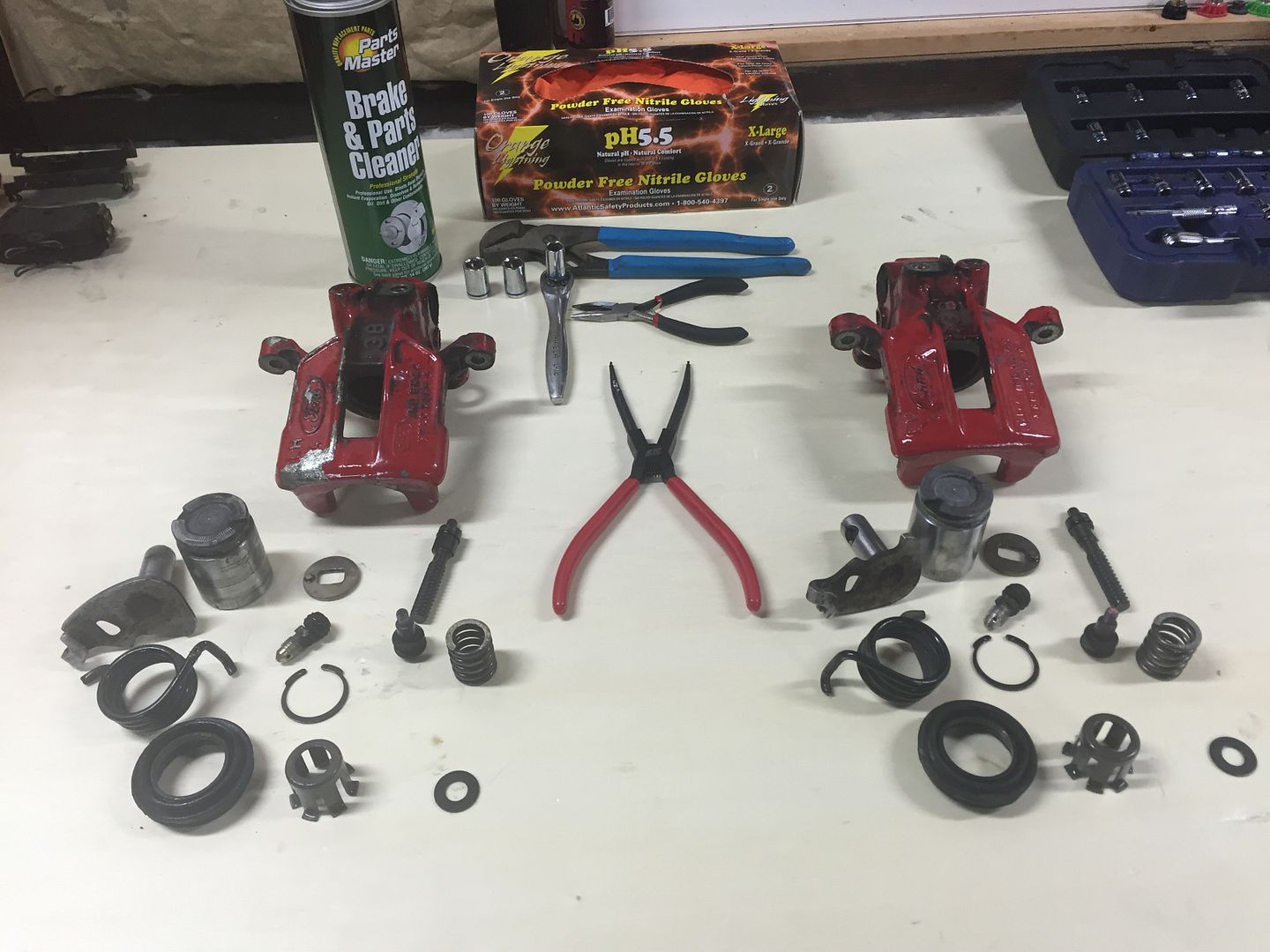

13) Everything laid out.



14) Then the last step was just removing the rubber seal where the lever came out of and taking off the little O-ring that was around the back of the screw. The caliper rebuild kit comes with both of these O-rings (see pics below) Following that I just sprayed some brake cleaner up inside the caliper to clean everything out.





15) Here's how everything goes when together inside the caliper.



16) And this is kind of what I have in mind from trying to put it back together, except I will probably put an extension on the socket and try and put it in my vise so that the clamp won't be in my way and I'll have more room to try and finagle that snap ring back in there. If anyone has any better ideas please let me know! I have a feeling there will be a few four letter words spoken during this re-assembly process, lol. Or I may contact the manufacturer (if someone still makes these crazy integrated parking brake calipers) and see what they do. My guess is they have some sort of jig that holds everything.

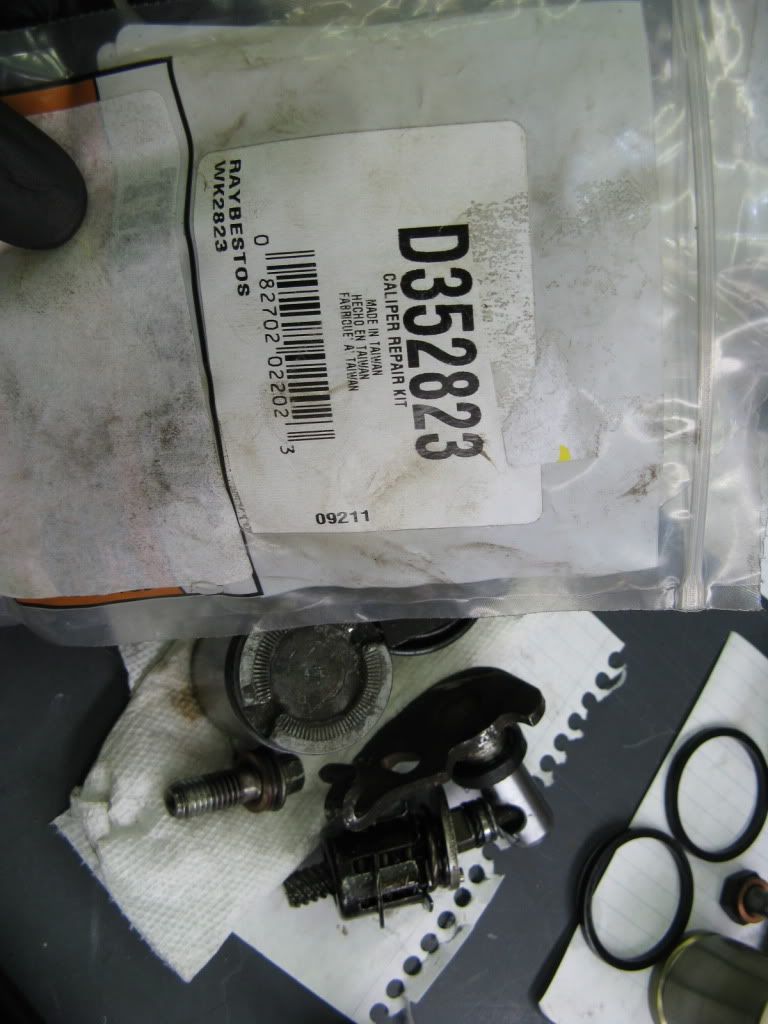

And here are the rebuild kits I bought for the calipers (front set (Cobra) followed by the rear set)...





I'll be sure and update this post after I get the calipers back from powder coating (he was supposed to be done yesterday!!!) and HOPEFULLY back together. And if anyone has done this before please chime in with advice.

Thanks,
Ryan
__________________
1995 Cobra - 331, P/P GT40X, V2-S, 3.73 and more
Dyno & Track #'s to come...
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 04-09-2011, 05:52 PM   #2
Registered User

Mustang5L5's Avatar

Trader Feedback: (6)

Join Date: May 2000
Location: BOSTON, MA
Posts: 6,964

Nice job. About time someone made a thread showing how tom disassemble the rears. I was always too afraid to try and just painted my rears. Now if I pick up a set of spares, I knowmwhat I need to do. Thanks!
__________________
Mike
--1988 Mustang LX 5.0--
--2006 Infiniti G35x--
Mustang5L5 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-11-2011, 02:43 AM   #3
Registered User

stu11926's Avatar

Trader Feedback: (6)

Join Date: Dec 1999
Location: Lexington, SC CSA
Posts: 935

Check out these posts I made on a different forum. BTW, when you go to compress that spring to put the snap ring back in, don't overdo it. That retaining cap that the snap ring fits over WILL bend and distort. I found that out the hard way. I also had a caliper piston that was fubared by a previous owner (they were sourced from a salvage yard for my five lug conversion). I ended up buying one remanufactured caliper, stripping the parts from it, threw my parts back in the box with the perfectly good caliper body, and put the good parts in my powdercoated caliper body.

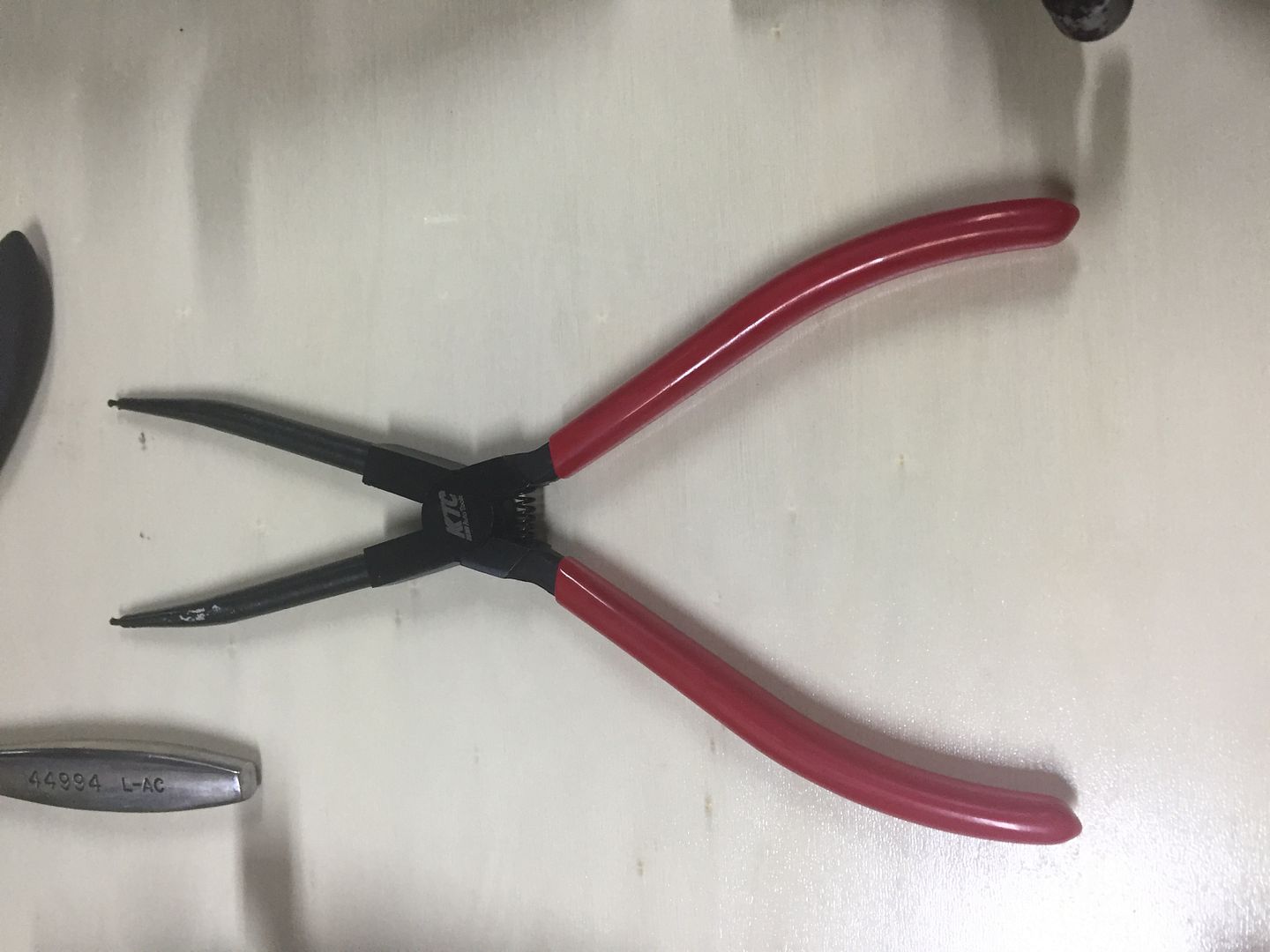

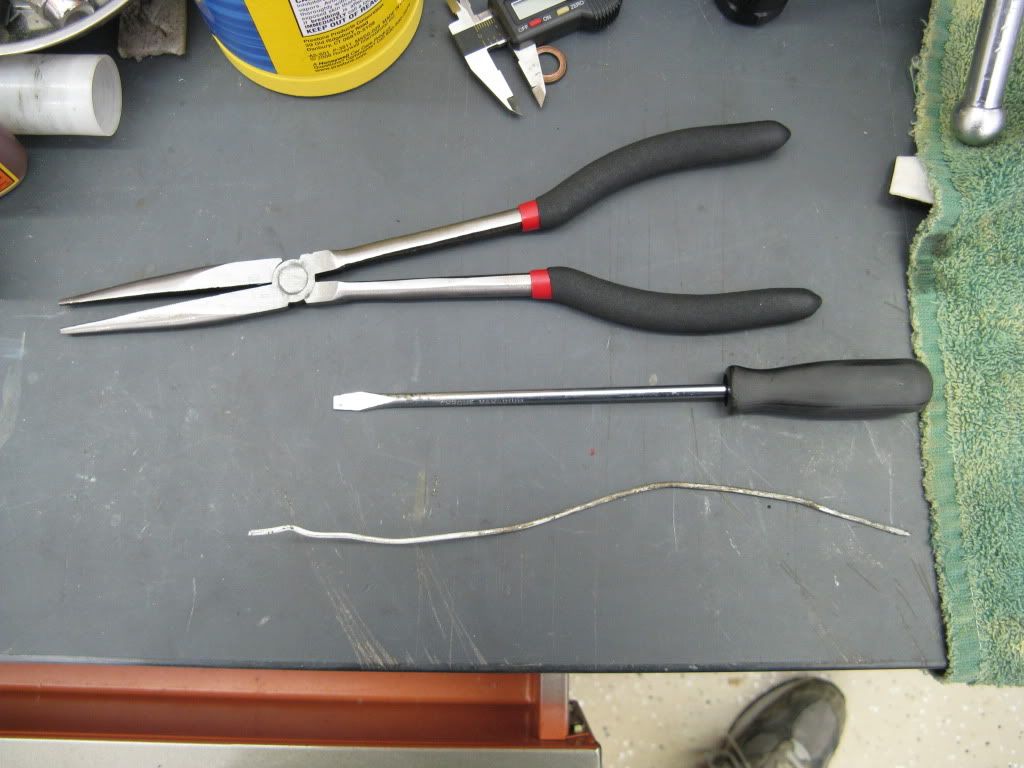

Oh yeah, I used a long pair of precision needle nose pliers and a piece of tig filler rod to get the snap ring back in. I used the pliers to compress it slightly with the snap ring already down in the bore and the spring compressed, and then used the tig rod to push the back end of the snap ring down into the groove. Then I just used the pliers to push down hard on the snap ring until it seated in the groove.

SoutheasternFoxBodies.com Forums - View Single Post - Maximum Motorsports Suspension Installation

Also... SoutheasternFoxBodies.com Forums - View Single Post - Maximum Motorsports Suspension Installation
stu11926 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-11-2011, 09:00 AM   #4
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

Thanks for the info Stu! It's good to see that someone else has successfully done this.

One question though, I didn't see that you specified what you used to compress the spring? As you mentioned though I did slightly distort the spring cap as I was "practicing" re-assembly before I sent the calipers off for powder coating. But it didn't look like anything that would affect functionality.

Thanks again for any additional information. I'm hoping to get my calipers back today so the re-assembly process may start tonight! I may just do the fronts first since I know I can get them cleaned up and back together... that way at least I will feel like I accomplished something.

-Ryan

PS What grease did you use for the little "swivel pin" connection? It felt/looks like some type of graphite grease/lubricant.
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-11-2011, 02:02 PM   #5
Registered User

stu11926's Avatar

Trader Feedback: (6)

Join Date: Dec 1999
Location: Lexington, SC CSA
Posts: 935

My "spring compressor" is basically the same thing you're using, but mine is home made out of a piece of flat stock with a hole drilled and a nut welded to it, and a length of threaded rod with another nut welded to that to turn it. The great thing about it is that being home made, I wasn't worried about it when I had to grind away half of the flat part the get access to the piston bore. If I can find it, I'll snap a picture or two and post it. It's been several weeks since I did this, and I have no idea where I put it and my garage is a disaster area.


As for the grease, everything I did was based on these instructions I found: http://ww2.justanswer.com/uploads/bk...r_overhaul.pdf

It called for this:
Quote:
Lightly grease parking brake lever bore and lever shaft seal with Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A or equivalent meeting
Ford specification ESE-M1C171-A. Press lever shaft seal into caliper bore.
I bought a tube of dielectric grease and used that. It seemed comparable to what was in there originally. In the interest of full disclosure, I don't have my car back on the road yet, so I can not testify as to the functionality of the braking system at this time.
stu11926 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-11-2011, 02:09 PM   #6
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

Thanks again Stu, that's all very good info.
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-13-2011, 10:49 PM   #7
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

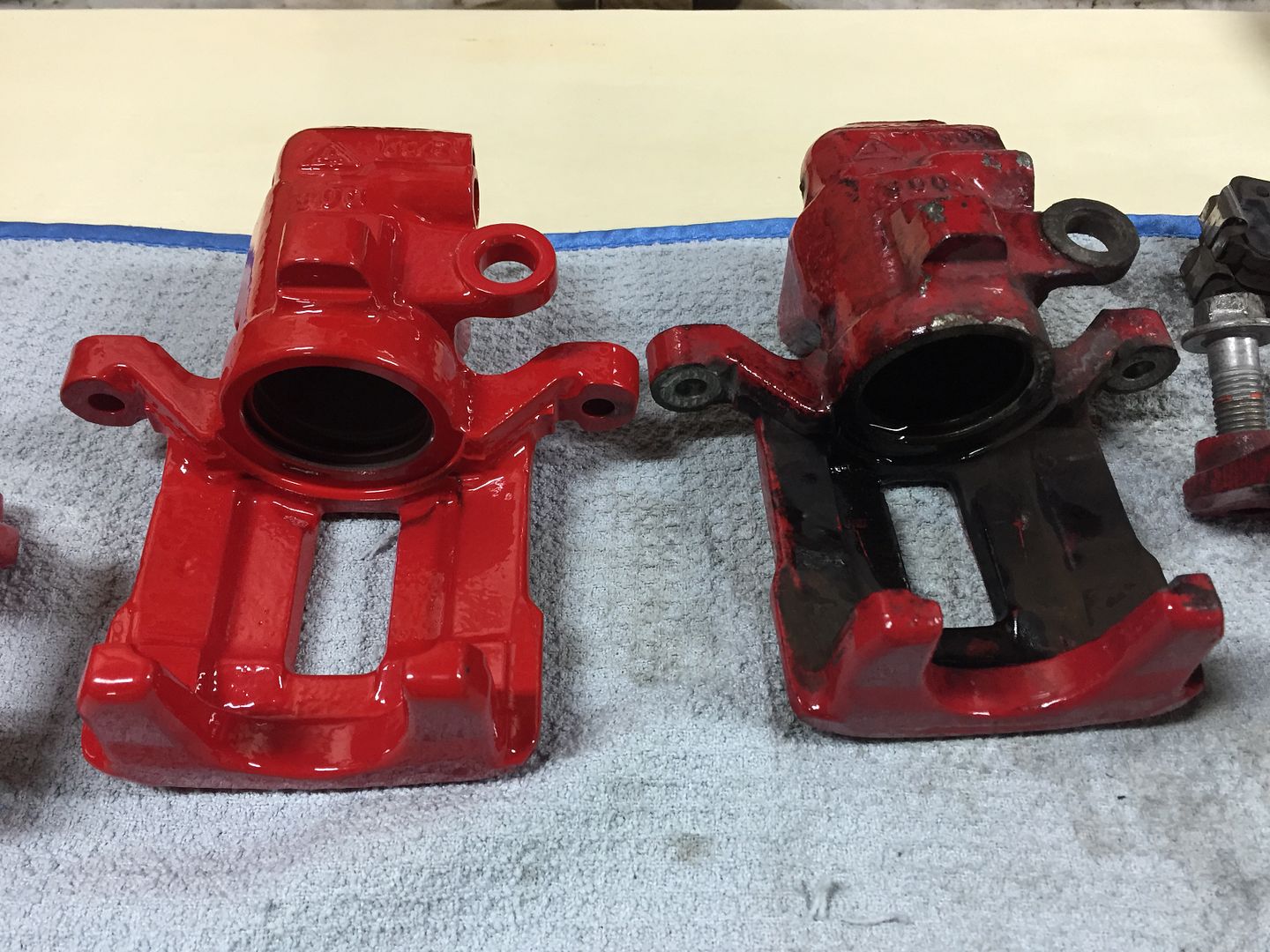

FINALLY got the calipers back from the powder coater. They were worth the wait though, they look awesome! I only re-assembled the fronts tonight (it was too late and I was too tired to mess with the rears) but I took a couple quick pics...






I had the brackets powder coated black too while everything was apart
__________________
1995 Cobra - 331, P/P GT40X, V2-S, 3.73 and more
Dyno & Track #'s to come...
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-14-2011, 10:02 PM   #8
Registered User

Trader Feedback: (5)

Join Date: Oct 2008
Location: Chicago, IL
Posts: 120

Nice.... Been trying to figure out rear calipers for a few weeks now.
slowGstang is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-15-2011, 12:34 AM   #9
Registered User

1oldfox's Avatar

Trader Feedback: (1)

Join Date: Dec 2008
Location: Parsons WV
Posts: 974

Wow nice post
1oldfox is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-16-2011, 07:44 PM   #10
Registered User

Tim89LXvert's Avatar

Trader Feedback: (11)

Join Date: Nov 1999
Location: Toledo, Ohio, USA
Posts: 1,480

Garage
Nice post!

I have mine partially apart, but I am concerned about how I am going to get that parking brake spring re-installed without googering the caliper and or spring finish all up?

Have you done that re-assembly yet? Would love to tear mine all the way down, but took the spring off, then was trying to re-attach and was way too much of a challenge to do it after powdercoating.

Nice work and thanks for the help.
__________________
Bought 10/2/13 2011 GT500 Convertible - Kona blue, stripe delete, SVT Performance pack
Tim89LXvert is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-16-2011, 11:46 PM   #11
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

It can be done!!! Just takes a lot of patience, perseverance and a little bit of luck, lol.

I didn't take any pics with this side b/c I wasn't sure it was going to happen but I will update the post with my "how to re-assemble" once I've done the other side (hopefully tomorrow and hopefully it won't take nearly as long as the first).

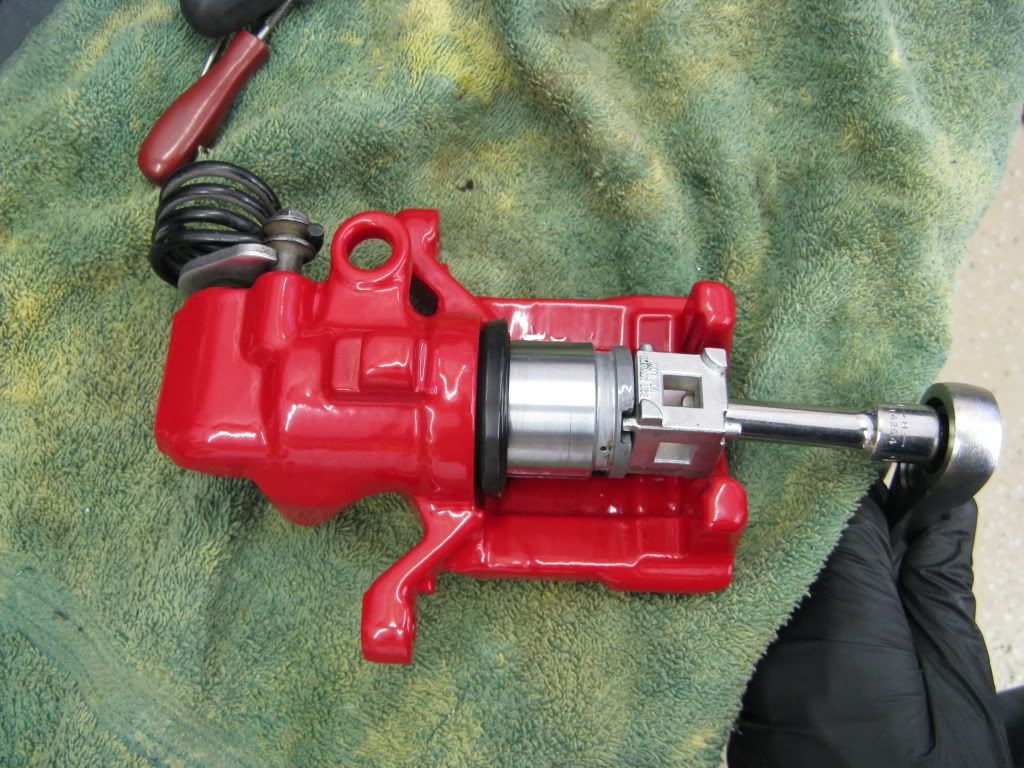

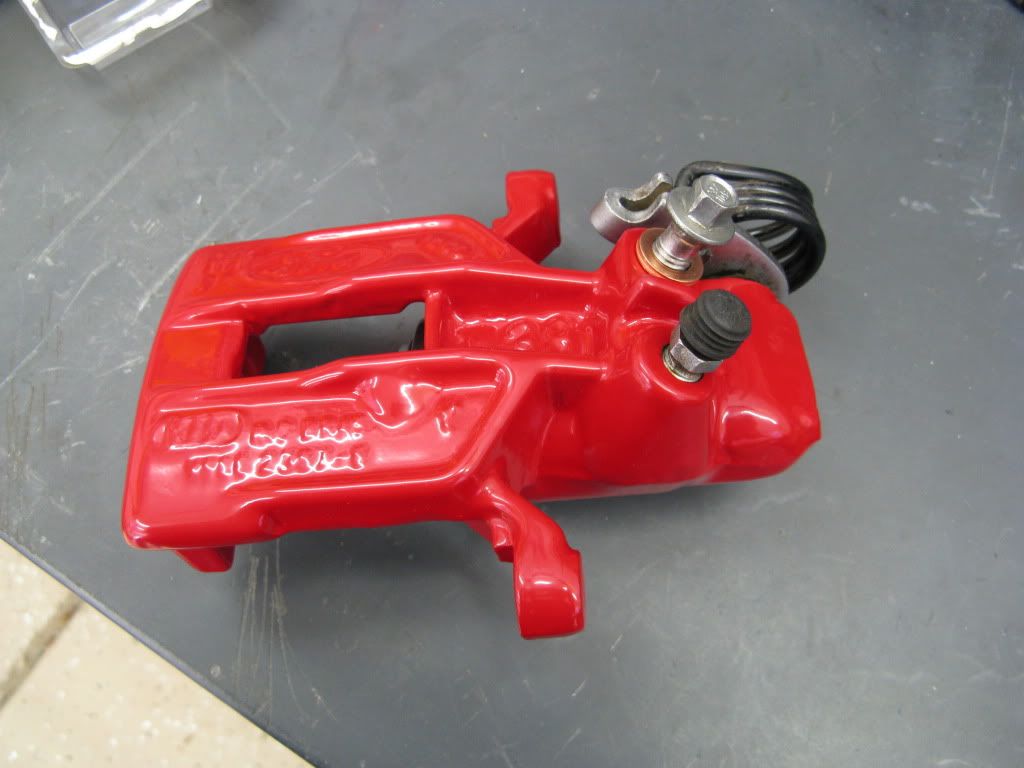

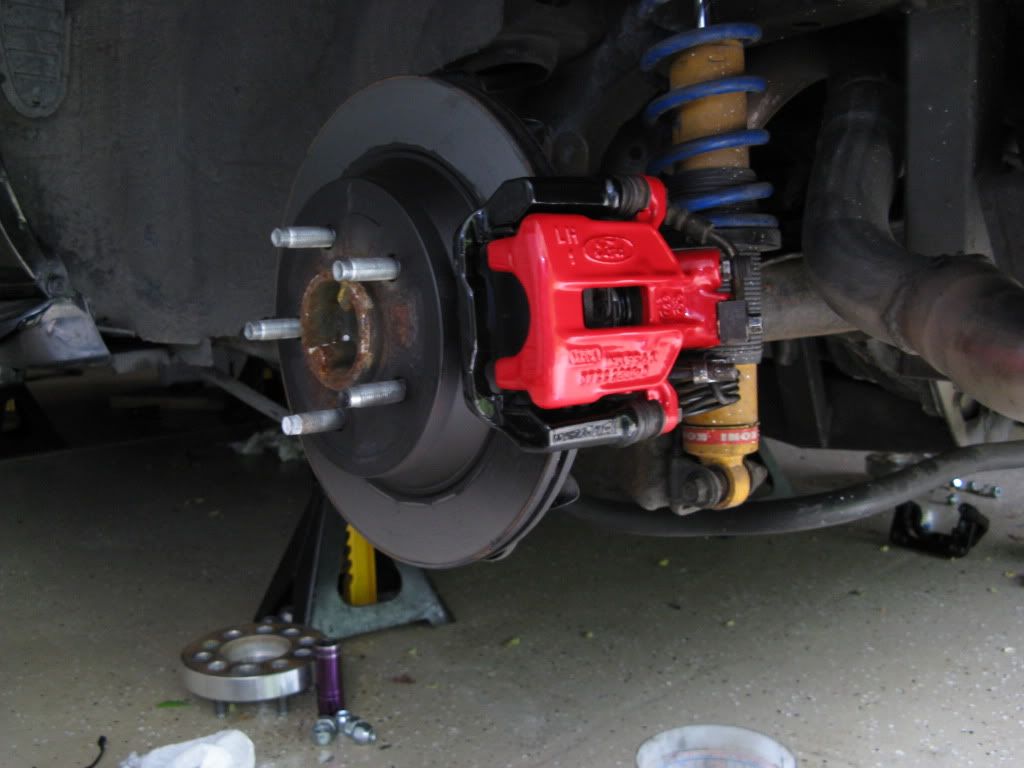

But here she is in all her beauty... lets just hope it actually functions when I step on the brake pedal.

__________________
1995 Cobra - 331, P/P GT40X, V2-S, 3.73 and more
Dyno & Track #'s to come...
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-17-2011, 12:27 AM   #12
Registered User

Trader Feedback: (156)

Join Date: Nov 2007
Location: arlington,wa
Posts: 3,041

Nice..i just put mine back together tonite. not that bad just be slow and it will work,mine went together without a hitch, only part that really gave me a problem was the piston boot..but alls good now..

btw those look awesome..can i ask how much and who did it..
jtmustang91 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-17-2011, 12:30 AM   #13
Registered User

1oldfox's Avatar

Trader Feedback: (1)

Join Date: Dec 2008
Location: Parsons WV
Posts: 974

I vote that this post should be made into a sticky
1oldfox is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-17-2011, 12:39 AM   #14
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

Quote:
Originally Posted by jtmustang91 View Post
Nice..i just put mine back together tonite. not that bad just be slow and it will work,mine went together without a hitch, only part that really gave me a problem was the piston boot..but alls good now..

btw those look awesome..can i ask how much and who did it..

I probably have more time in getting a "jig" & parts together necessary to re-assemble it than I do in actual time putting it back together. It caused me a little stress but after getting it back together I was mucho happy!

I paid $200 for the calipers and the brackets to be done as well as all taping, any deburring and then the sanding of the powder coating back off of the "Cobra" letters. I usually take all my stuff to a local place/guy called Carolina Custom Powder Coating. Sometimes he takes a little long but he does an awesome job, is a really nice guy and his prices are very fair.
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-17-2011, 05:13 PM   #15
Registered User

Tim89LXvert's Avatar

Trader Feedback: (11)

Join Date: Nov 1999
Location: Toledo, Ohio, USA
Posts: 1,480

Garage
Quote:
Originally Posted by NothinButNotch View Post
I didn't take any pics with this side b/c I wasn't sure it was going to happen but I will update the post with my "how to re-assemble" once I've done the other side (hopefully tomorrow and hopefully it won't take nearly as long as the first).
I will look forward to that... looks like I will do a complete disassembly to drop it off to the powder coater tomorrow!
__________________
Bought 10/2/13 2011 GT500 Convertible - Kona blue, stripe delete, SVT Performance pack
Tim89LXvert is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-17-2011, 08:43 PM   #16
Registered User

Tim89LXvert's Avatar

Trader Feedback: (11)

Join Date: Nov 1999
Location: Toledo, Ohio, USA
Posts: 1,480

Garage
I got them all apart tonight... will be very interested to see how you get the snap ring in, as well as the parking brake spring!

Forgot to say very nice looking calipers! Turned out great. Mine are going to be a dark blue, with the calipers and the brackets in the same color rather than black for the brackets.
__________________
Bought 10/2/13 2011 GT500 Convertible - Kona blue, stripe delete, SVT Performance pack
Tim89LXvert is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-19-2011, 08:41 AM   #17
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

Well I got it all finished up last night, had the wife help me bleed the brakes and finally put her back on the ground! It was good to drive it again (I even took her to work today). Everything seemingly functions fine; the rears haven't locked up, not functioned or sprayed fluid everywhere yet so I think we're in the clear.

Anyway, here is the how to process I used. I'm sure there are other ways but after I did the first one using this method the second one went much faster. Three quarters of my time messing with all of this was in acquiring the right "tools" and figuring out a method to make it all work. My disclaimer goes right here... I take no responsibility if your #### falls apart after putting it back together using "my method." :beer:

1) You start with the bare caliper and your rebuild kit. Also, these are some of the very handy tools you will need.





2) First slide in the new parking brake lever seal (put a little grease around the edge of it... Ford's instructions say di-electric grease)

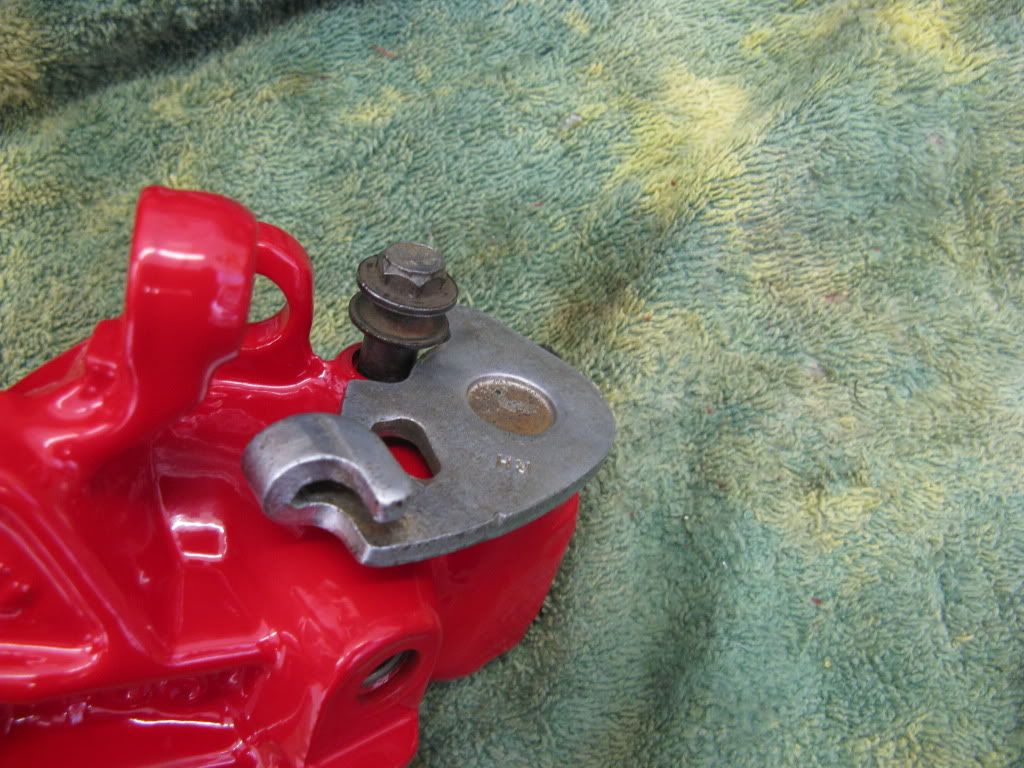

3) Then grease up the parking lever itself and slide it down into the caliper. Then install the spring retainer bolt.

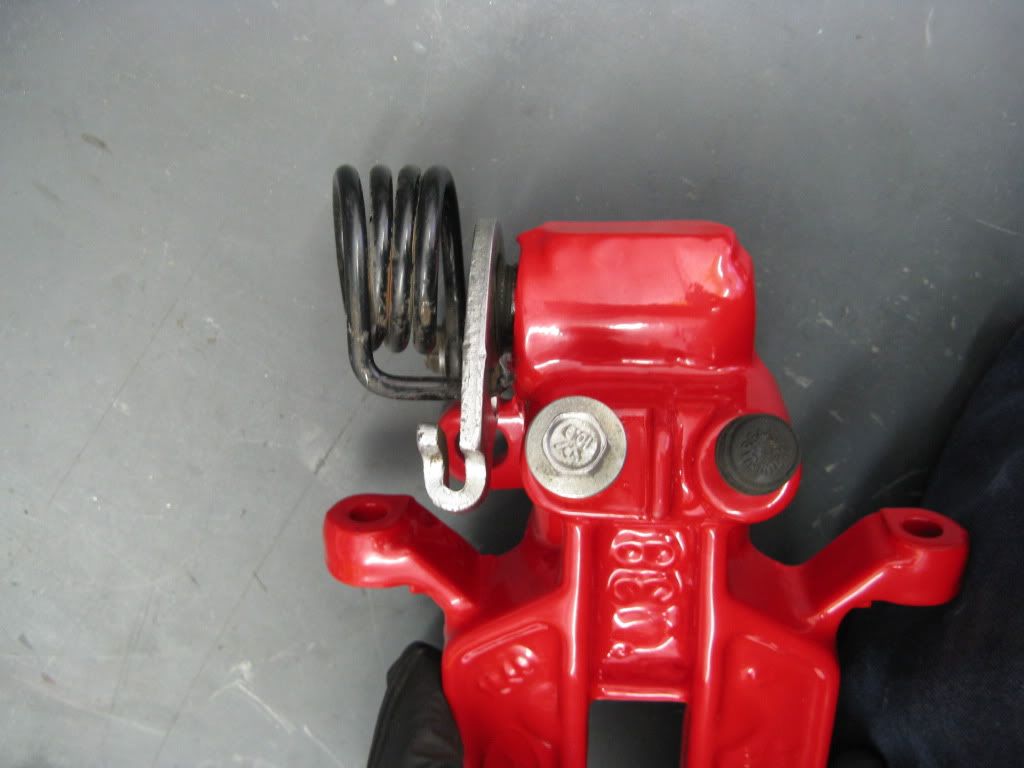

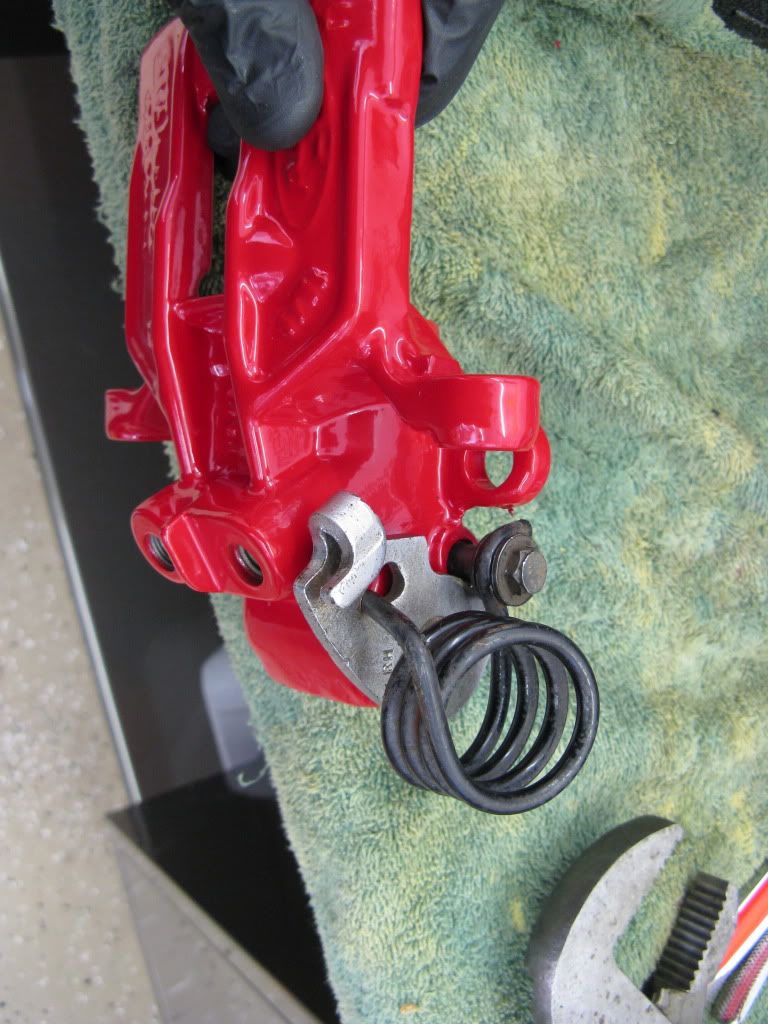

4) Next, per Ford's directions, install the parking brake spring. I debated leaving the spring off here but then decided it would be best, one b/c it would hold the lever in the correct position so the pin/dowel would line up and two b/c it would be a lot easier to put on while the caliper was off the car sitting on the work bench.

I've used this method in the past for getting this PITA spring back on and it's worked quite well. I put the spring in the vice like so (see below) and then get a decent sized zip tie and hold the two compressed ends together. I usually tighten the vice up a little and then pull on the zip tie and then repeat. At least then you'll hold most of the pressure from the spring if it were to slip out. Be VERY CAREFUL here... if that bugger comes flying out of there it could take your eye with it so I'd throw on some goggles and maybe some gloves.




5) Once the spring is compressed I've found it works best to put the end with the "hook" around the retainer bolt and then install the other end into the parking brake lever. I usually still have to grab it with some large pliers and squeeze a little but with the zip tie on there it takes away most of the awkward positioning in the pliers. You're about 1/3 of the way done now! That was the easy part...

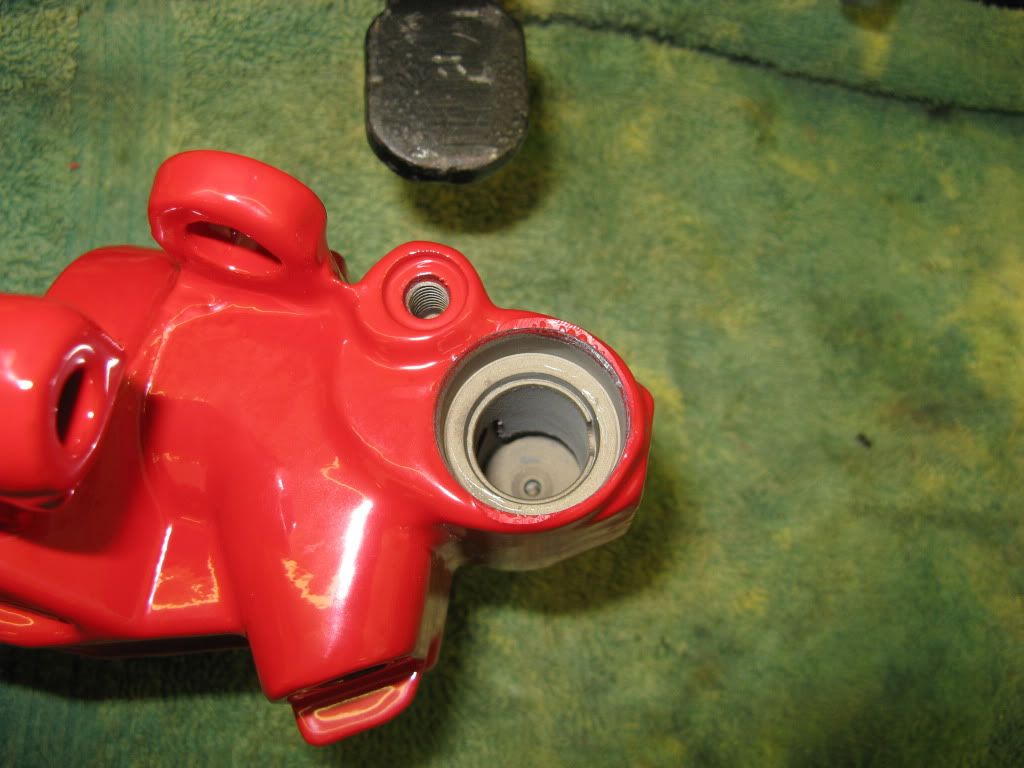

6) Now flip the caliper on its end. The bore should be empty and at the bottom the little notch/hole that was in the parking brake lever arm should be visible.



7) Now grab the screw mechanism and the little dowel pin that goes in the end of it. Make sure to put a new O-ring on the end of it. Grease up the dowel pin and recess in the end of the screw. Then press these two pieces down into the caliper bore. I then chose to pull the screw back out and then double check the alignment of the dowel pin. There is enough grease down in there that you can just sort of stand it up centered in the hole and then put the screw back down on top of it. This just ensures its all centered up. I think you'll know if it isn't though b/c the screw will probably be sticking out past the leading edge of the caliper (it should be recessed just a touch).

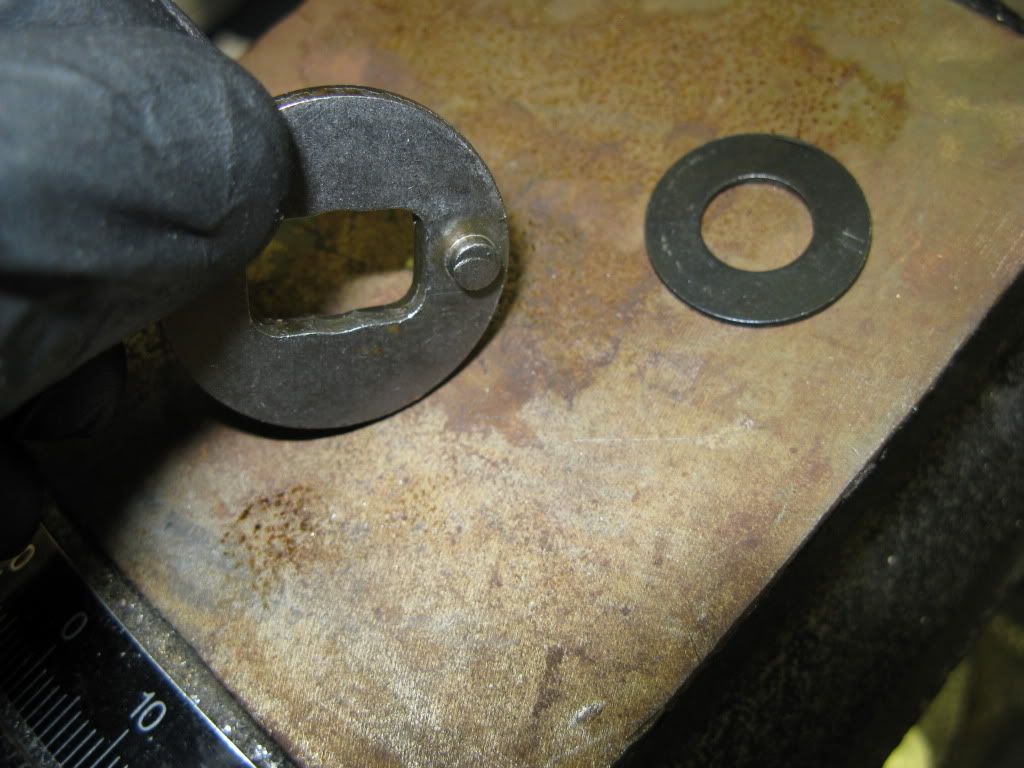

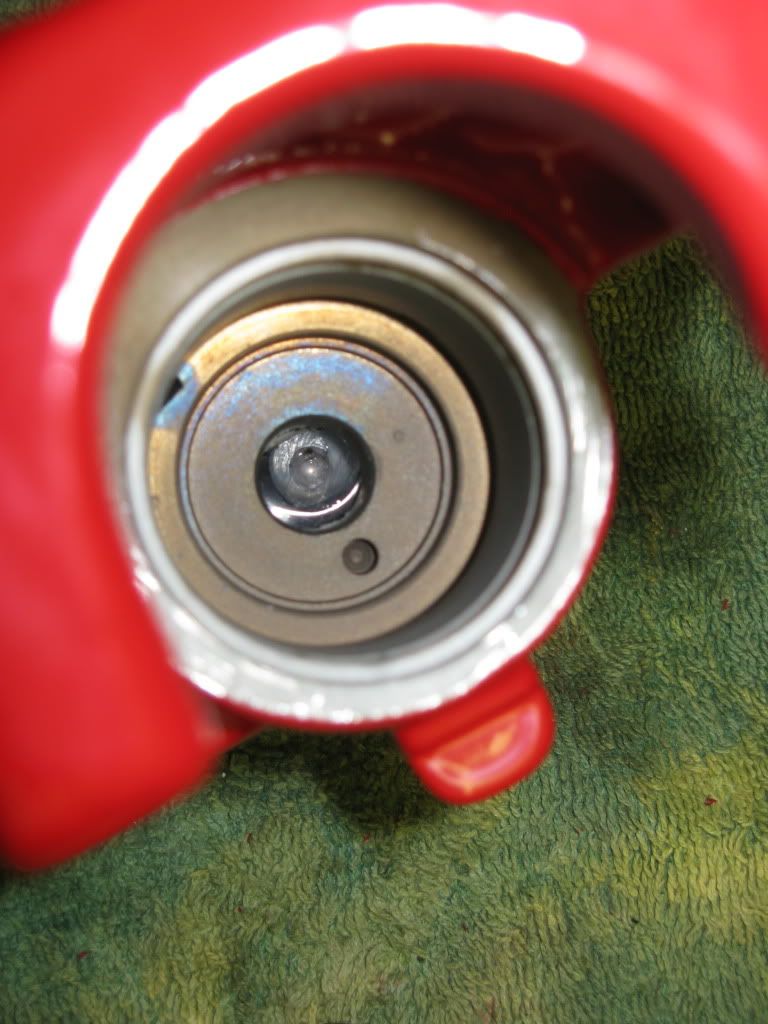

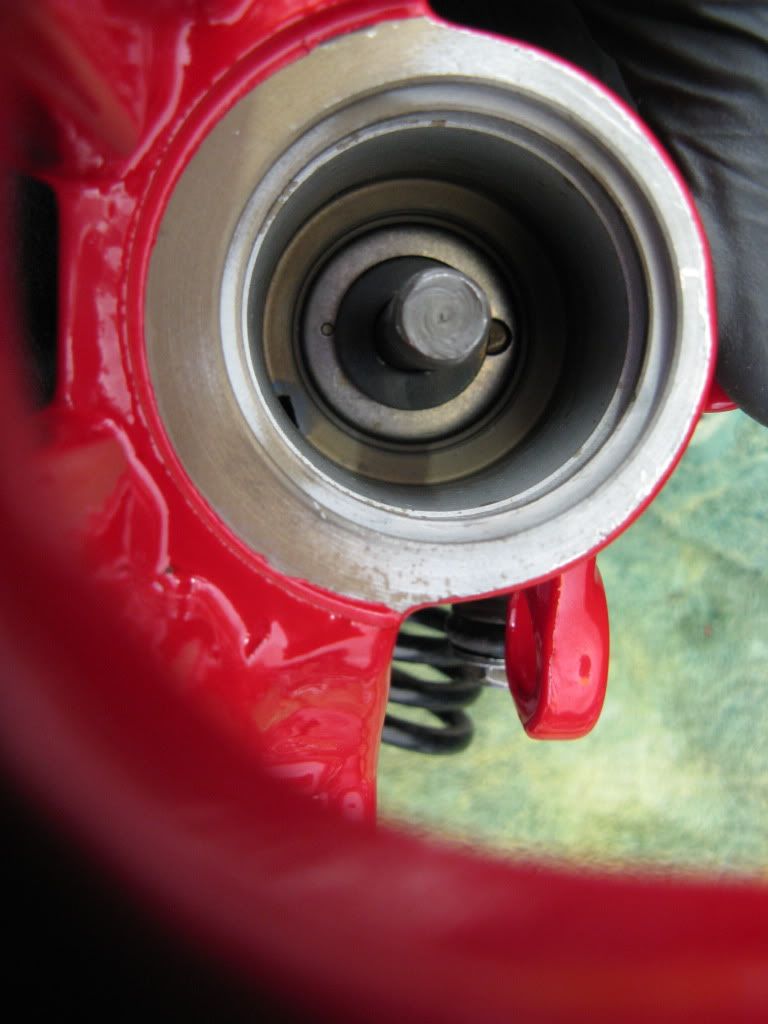

8) Then take the notched washer and drop it over the screw. Make sure to put the little nipple on the back side of it down and then make sure it aligns with the hole in the bottom of the caliper bore. Then put the flat smaller washer on top of it.

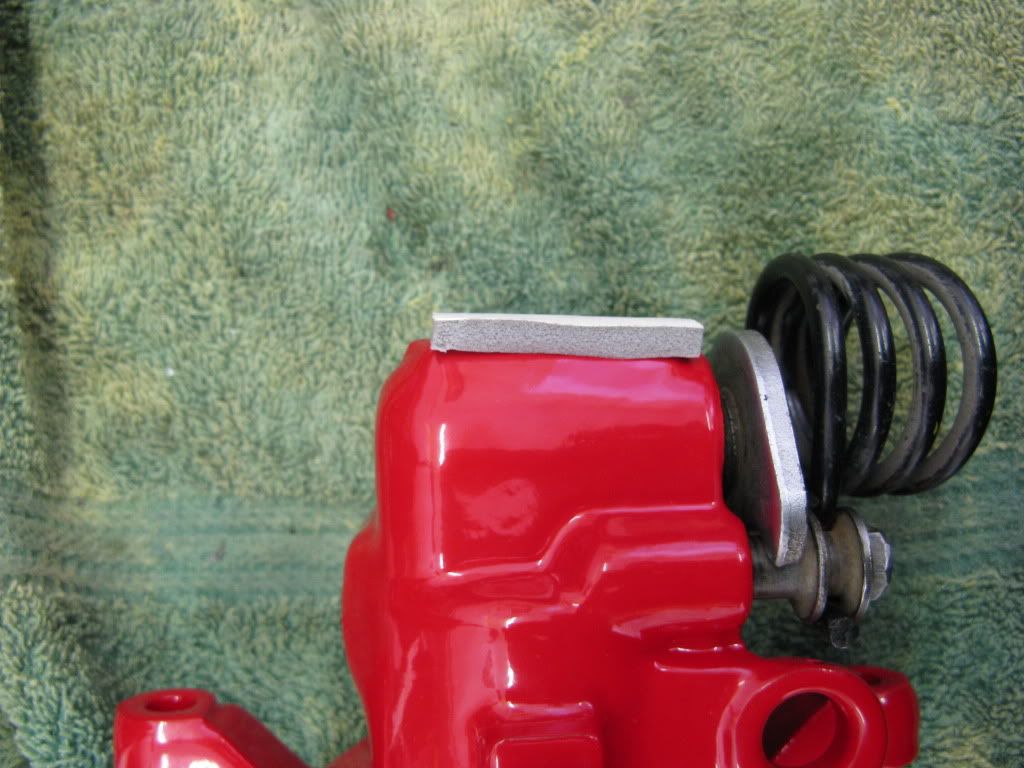

9) Next I put a piece of padded foam tape on the bottom of the caliper b/c you're about to clamp it in a large C-clamp.

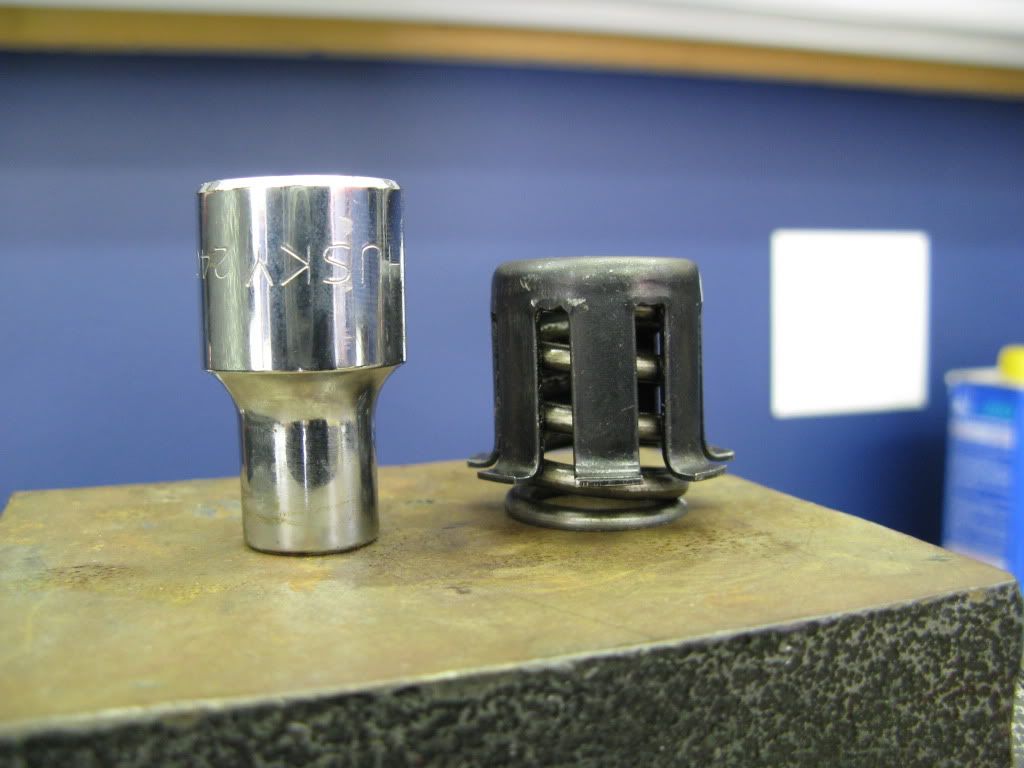

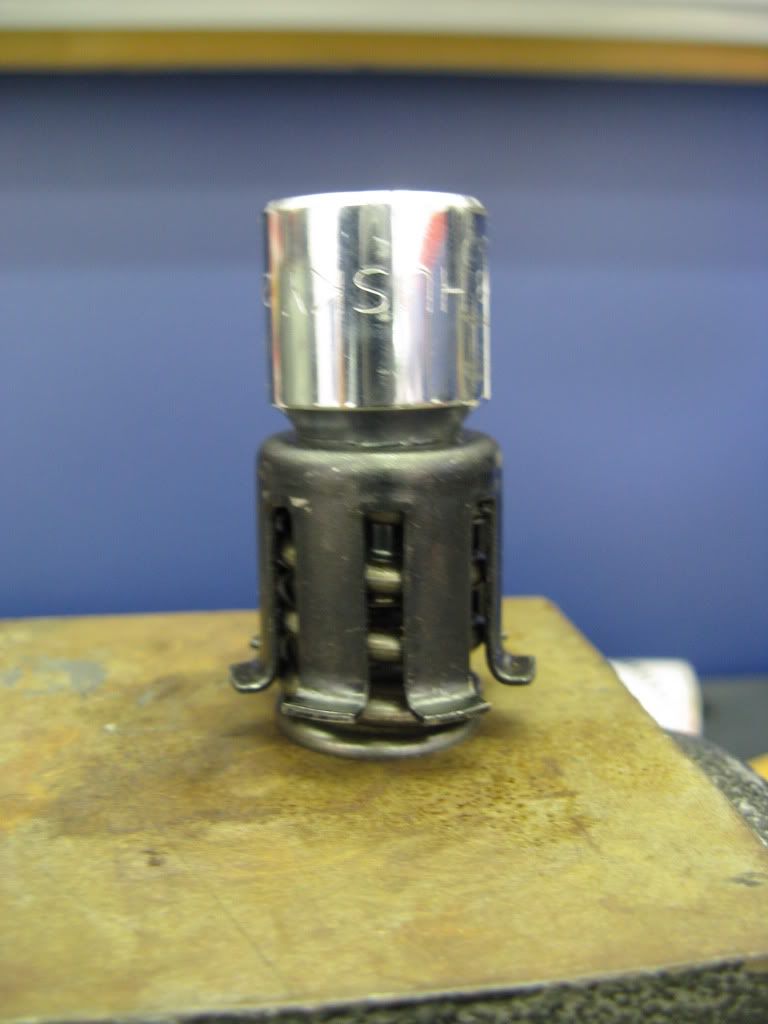

10) Here comes the fun part! :bash: Here is how and what I chose to use as a "tool" to compress the spring and cap. I had to find just the right sized socket (I found a Husky 7/16", I think, socket meant for a 1/2 rachet) that the small end fit down inside the spring/cap but that was large enough up top to allow my C-clamp to press down on. HOWEVER, there are a couple potential hangups here that I found out the hard way.

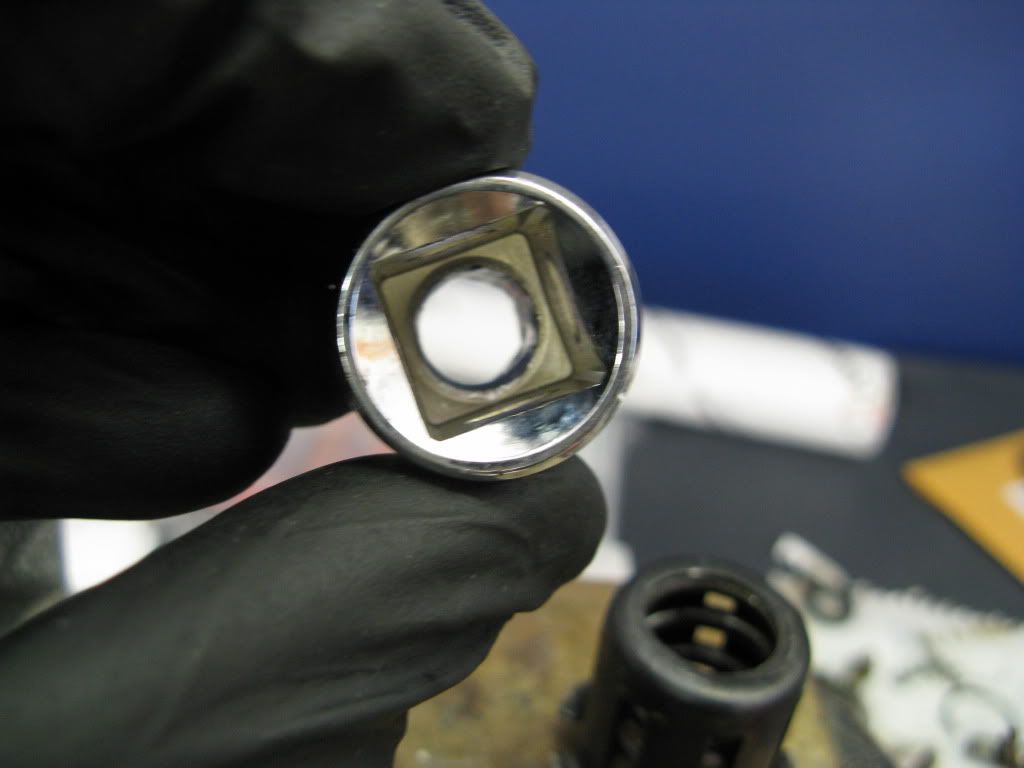

ONE, the hole/bore down the center of the socket has to be big enough for the screw to pass through as you compress the spring (I actually had to drill this socket out just a hair to allow enough clearance). You don't want this to bind up or you'll probably bend/break the screw and then your SOL.

TWO, it also has to be tall enough so that when you compress the spring and the screw starts to come up it doesn't "bottom out" into your C-clamp. I started with a smaller/shorter socket of which wasn't deep enough and the hole in the middle of it was WAY too small. I spent ample time and MANY drill bits (see below) drilling that SOB out just to then discover it wasn't tall enough!!!! :fm: This socket actually still wasn't deep enough but I solved that with one little washer (again with a large enough hole that the screw can pass through the middle of it). I made my washer just a touch concave as well which helped keep it centered in the top of the socket. I first tried gluing it to the C-clamp base but it just kept F-ing up.

But the socket works great for helping to keep the spring/cap centered as you compress it.

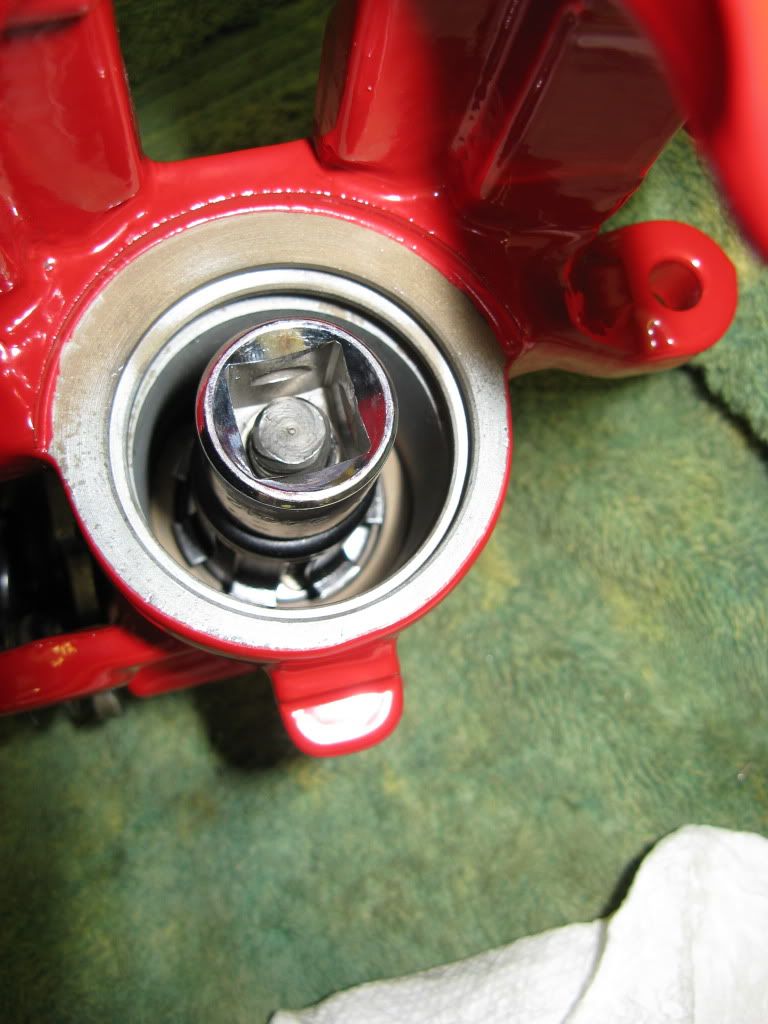

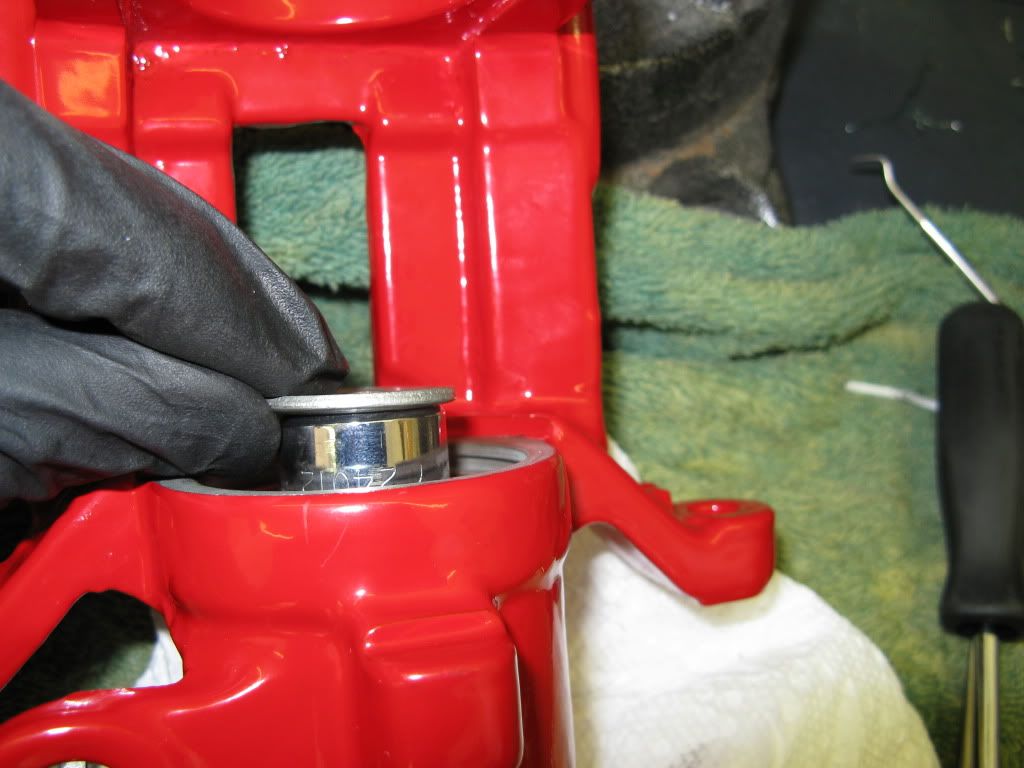

11) Now drop the spring, cap and socket down into the bore of the caliper. And put your washer on top of your socket if it is necessary.

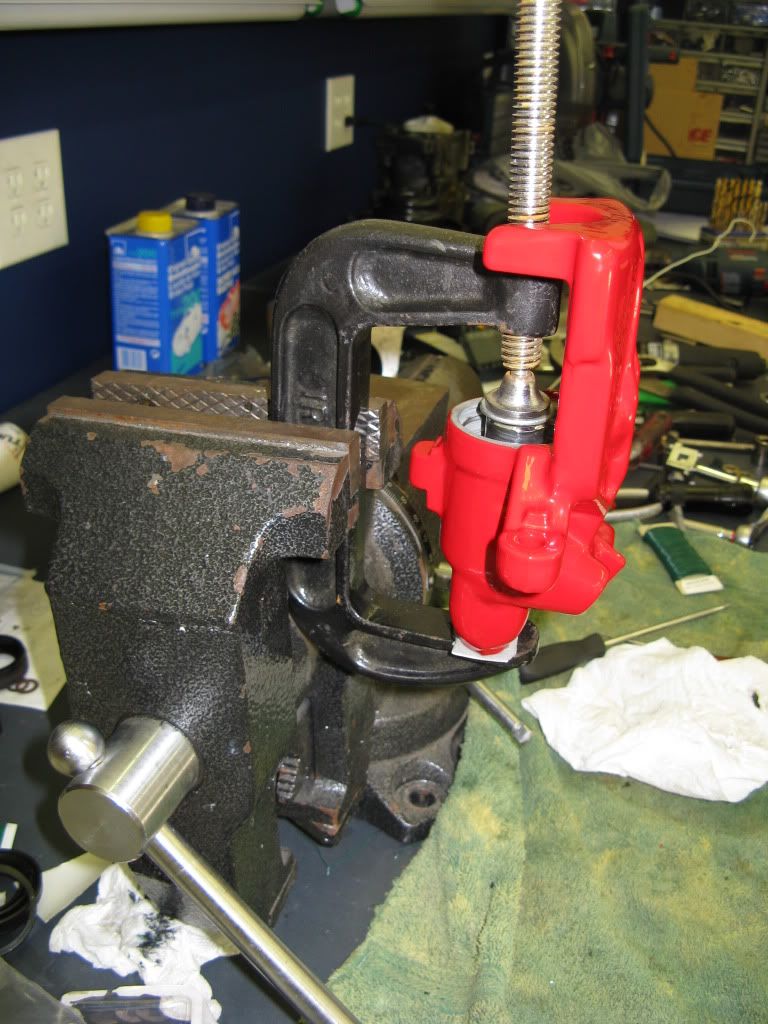

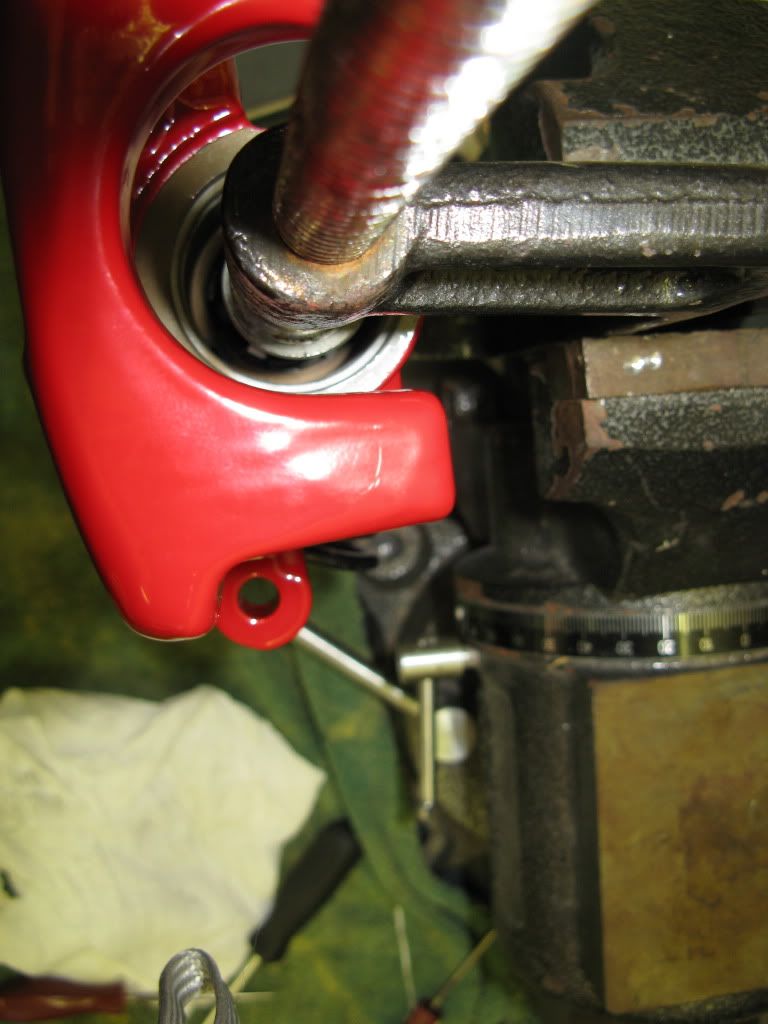

12) Then put it all in the C-clamp (or the C-clamp around all of it). I quickly found putting the C-clamp into my vise made things SOOOOO much easier than just trying to hold onto all of this mess on the work bench. Plus you are going to need both hands, a flashlight and lots of patience for the next part.




13) Next up comes compressing the spring. That part is relatively easy but you have to be very careful b/c of the little tines on around the perimeter of the spring cap. I would screw my C-clamp down until the edge of the tines were just on the lip down inside of the bore of the caliper and then take a long/skinny screw driver and kind of work my way around pressing inward on the tines as I slowly put a little more pressure on the spring via the C-clamp. You will kind of hear some of them "snap" down into the bore/lip. If you compress the spring/cap without getting the tines centered up you'll bend them (see pic below). I had to straighten them out several times, not too big of a deal. But what does becomes aggravating is if you don't know you've bent one or two of up them and then try and get your snap ring to fit down in there and you can't figure out why it won't lay flat or fit all the way in the groove... it will become obvious and you'll figure out how to get the spring cap compressed pretty quickly.

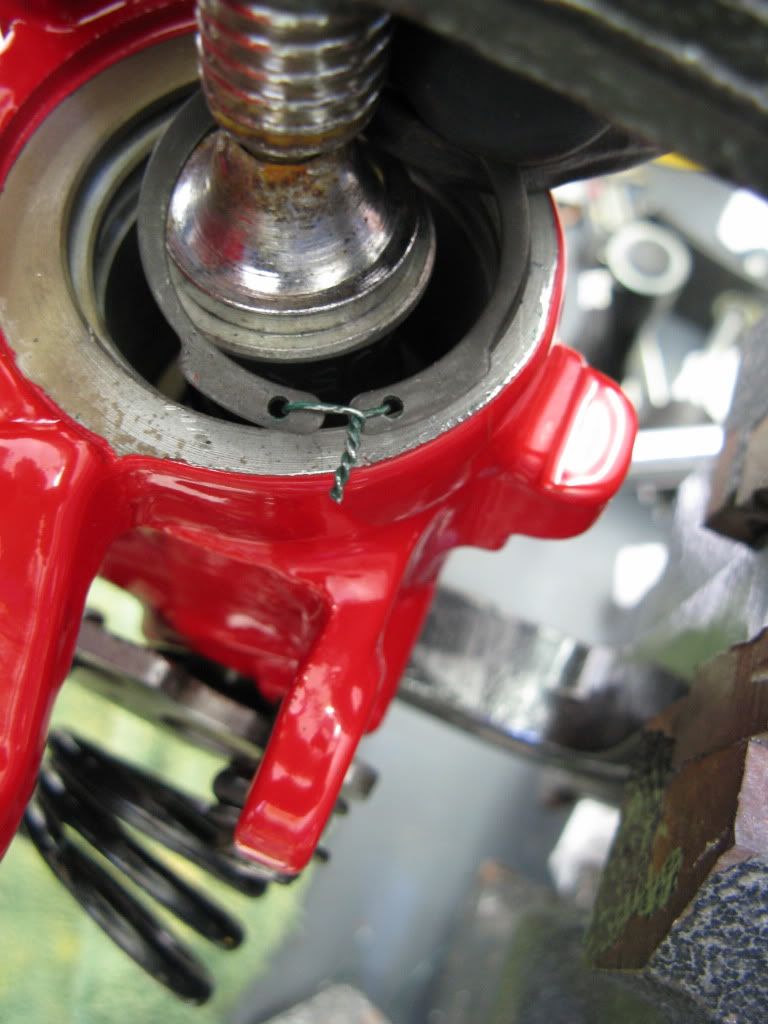

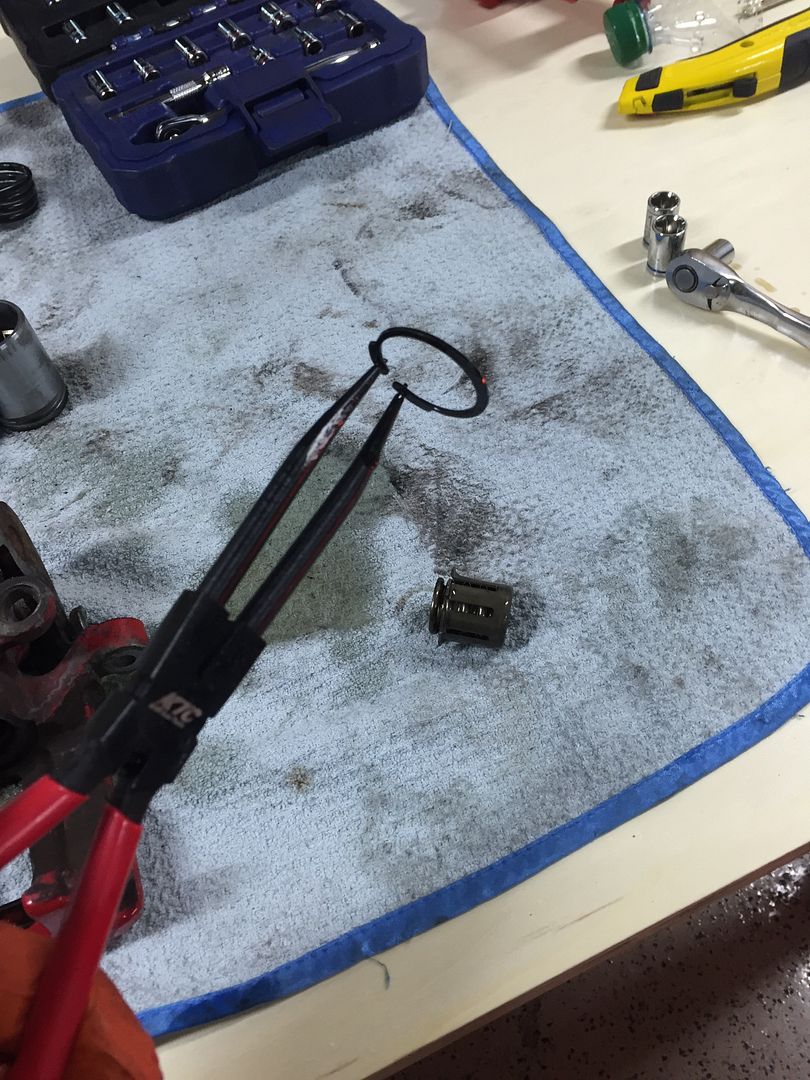

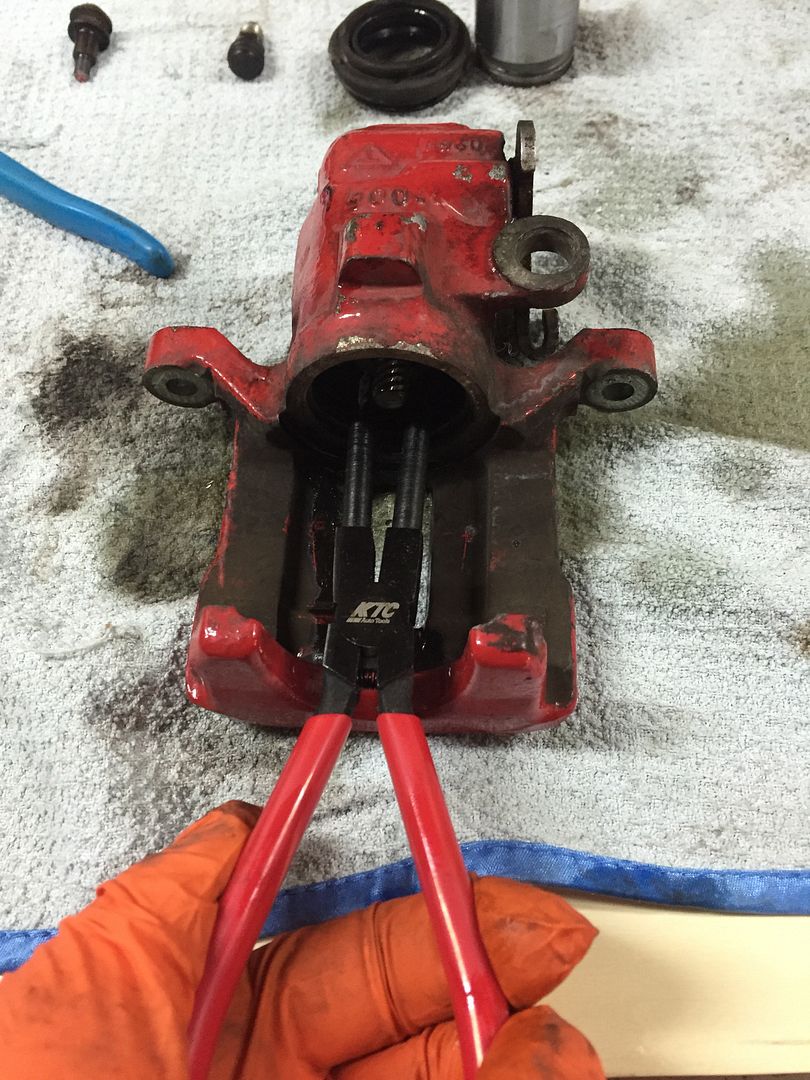

14) Once the spring/cap is compressed all the way down take your snap ring and slide it around the C-clamp shaft. Do this BEFORE you "close" the snap ring and tie it shut (don't ask me how I know)! The tying of the snap ring with some thin but strong wire was what saved me on this whole endeavor. For the life of me I couldn't get my snap ring pliers down in there, not even if I had a smaller socket, and while I think it can be done by just using pressure from a screw driver I think it will take much longer and be much more aggravating. There is very little room to see and maneuver down in the caliper bore once everything is in place so the less you have to be down in there the better.

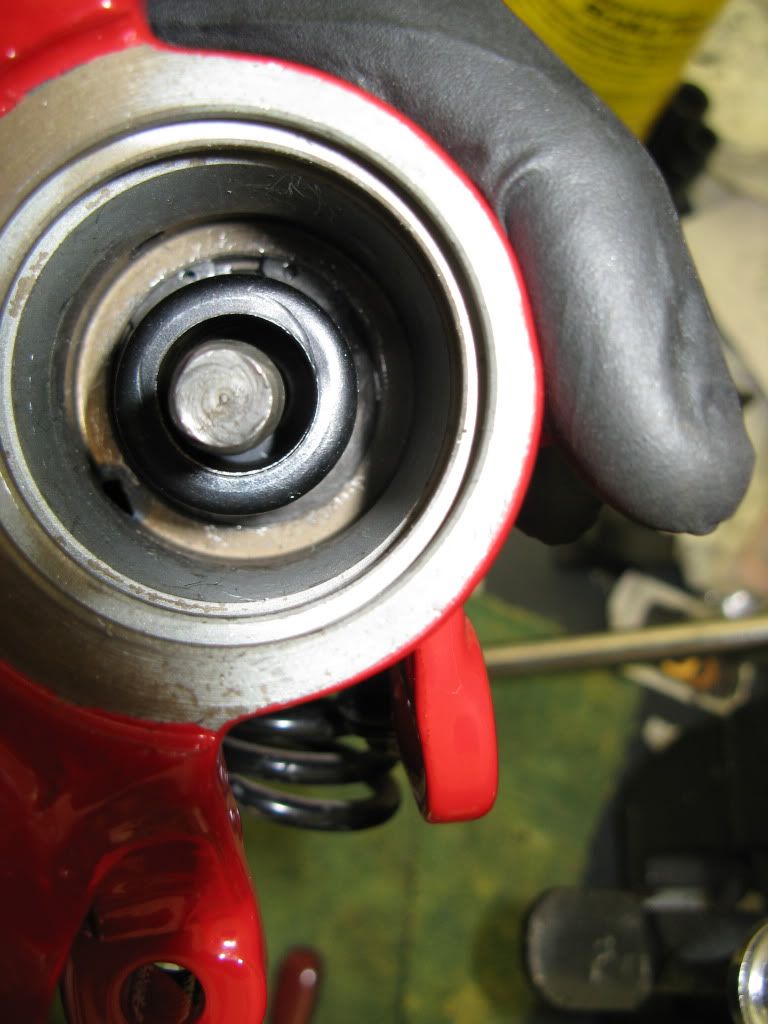

15) Once you've got the snap ring tied off, drop it down into the caliper. Again, make sure you get it tied together BEFORE you drop it down in there (again, I learned from experience) b/c it is a bitch to try and get that snap ring back out of there. I would then work the snap ring around with either my screw driver and/or a piece of coat hanger I had cut off (worked quite well actually). It will eventually lay completely flat down in there and you can usually get one side or the other to slide up underneath the lip that holds the snap ring in place once you release it.

To get the wire undone I found I could just put my screw driver on it, lightly tap it with a hammer or piece of wood etc and the wire would break. At this point you may still need to work the snap ring into place a little more with the screw driver. And some frustration may occur with trying to pull the wire out of the little hole in the snap ring without pulling the snap ring from the groove it is in. I did this a couple times after removing it from the C-clamp jig and thinking I was finally done... pissed me off something fierce. But as long as you get the snap ring mostly in place you can remove the caliper from the C-clamp and then pull the socket out of the way and then you will be able to slide a long nose pair of needle nose down in there (see pic). Just be easy when pulling on the wire ends that are left. And make sure to get all of the wire out.

SUCCESS!!! :rockon:



16) The hard part is finally over! It will take several attempts and it is tedious b/c getting the spring and cap all centered and then the snap ring to fit just doesn't always work and then you basically have to start all over. But once you get it, you will jump with joy!

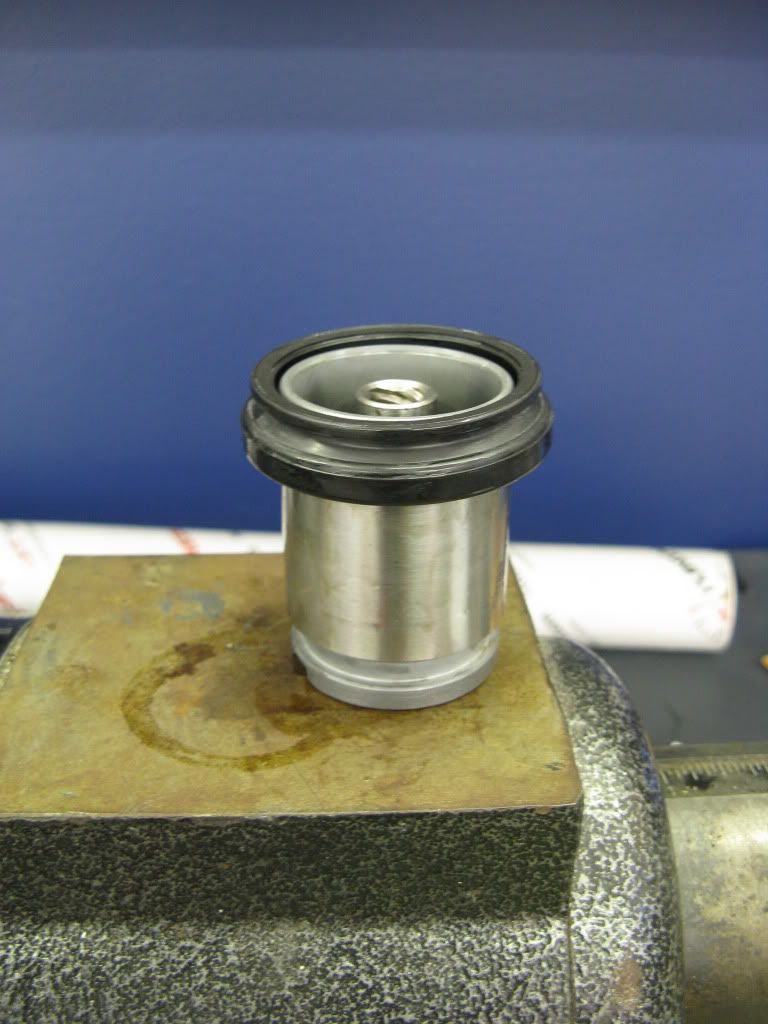

Now just put your new piston seal into the caliper, lube up your piston with some fresh brake fluid and slide your new dust boot on. I first cleaned the surface of the piston with a scotch bright pad (lightly). I found it much easier to put the boot on from the bottom of the piston and leave it right at the edge. Then hold them both together and slip the edge of the boot that goes into the caliper into its recess. It may take a few tries doing it this way but I couldn't get the boot to fit in there if I installed the piston first.





17) Then just screw your piston back into the caliper and you're done!!! Easy as pie, LOL. :rollseyes I found you had to put a lot of pressure on the piston when screwing it back in otherwise the mechanism that is actually in the top of the piston starts to spin and it doesn't screw into the caliper bore.

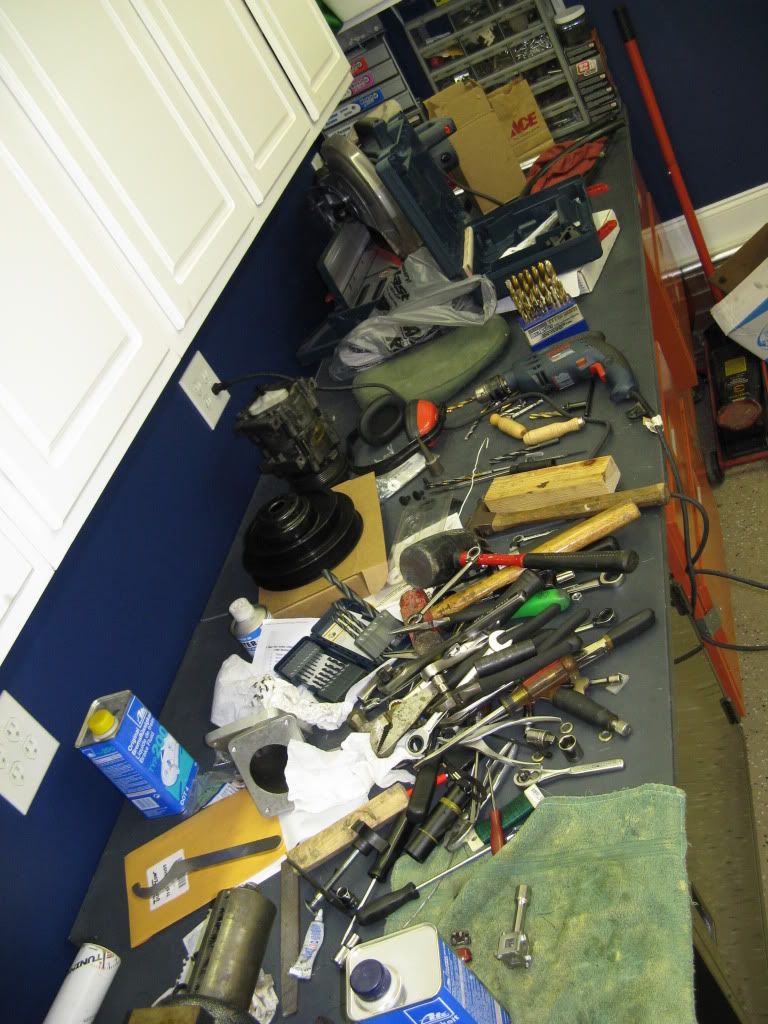

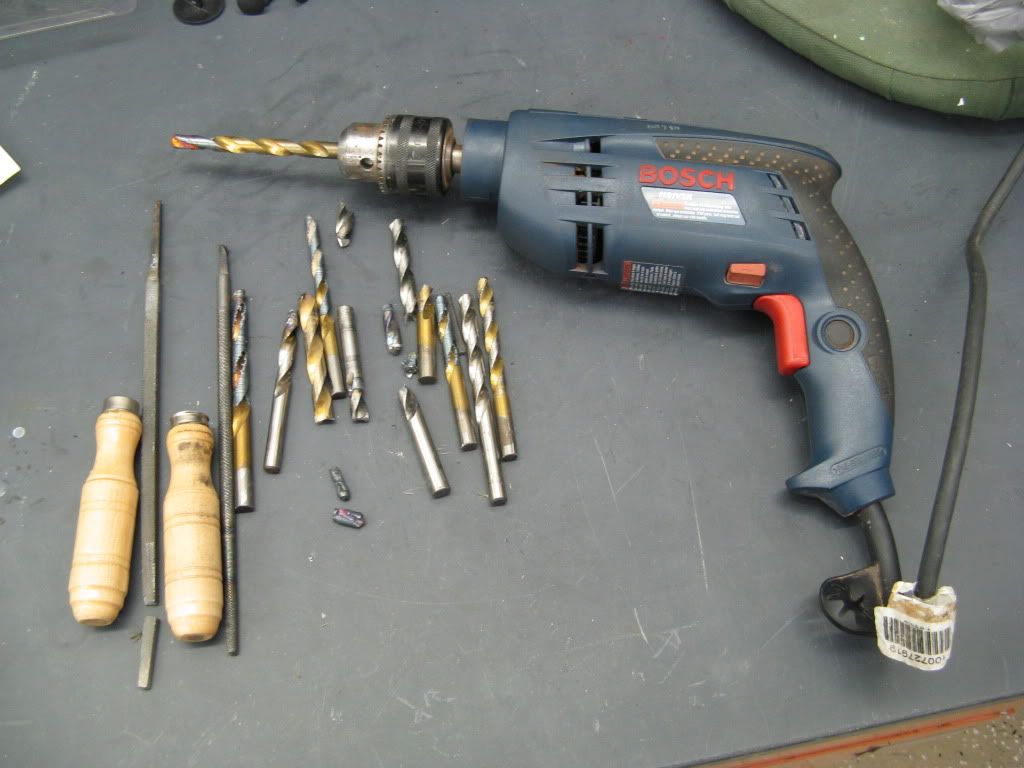

Who knew it would take all these tools and so many drill bits to rebuild some rear calipers?!




This was definitely a lot of work and is not for everyone but it can be done if you so choose. While I can't say it was all enjoyable I did feel like I accomplished something when it was all said and done and it was definitely a learning experience. Let me know if you have any questions or if you think I left anything out.

Thanks for reading this extremely long post!

-Ryan

PS If the mods would like to change the title to "Dis-Assembly and Re-Assembly" I would appreciate it.
__________________
1995 Cobra - 331, P/P GT40X, V2-S, 3.73 and more
Dyno & Track #'s to come...
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-19-2011, 11:58 AM   #18
Registered User

Tim89LXvert's Avatar

Trader Feedback: (11)

Join Date: Nov 1999
Location: Toledo, Ohio, USA
Posts: 1,480

Garage
Thanks Ryan!! That is an awesome post.

Look forward to getting mine coated, then hopefully re-assembling next week.
__________________
Bought 10/2/13 2011 GT500 Convertible - Kona blue, stripe delete, SVT Performance pack
Tim89LXvert is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-19-2011, 01:39 PM   #19
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

NP and best of luck with the re-assembly.
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 04-21-2011, 10:44 PM   #20
Registered User

qikgts's Avatar

Trader Feedback: (2)

Join Date: Dec 1999
Location: Rockledge, FL
Posts: 682

Great post! Thanks for taking the time to put it all together in one place!
__________________
My Hooptie: '85 GT. Just about bone stock and knocks down 24 on the highway... LONG LIVE 7.5's and 2.73's!!!
qikgts is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 05-23-2011, 03:22 AM   #21
Registered User

Trader Feedback: (1)

Join Date: Jan 2005
Location: Toronto
Posts: 19

I'm rebuilding a pair now and came looking for instructions, thanks for sharing!
__________________
66 with a 408
slow-poke is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 12-18-2011, 09:46 PM   #22
Registered User

curtisboyte's Avatar

Trader Feedback: (0)

Join Date: Oct 2011
Location: Mendenhall MS
Posts: 87

best write up i have ever seen great job.
curtisboyte is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 12-18-2011, 09:51 PM   #23
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

Quote:
Originally Posted by curtisboyte View Post
best write up i have ever seen great job.
Thanks. Best one I have ever seen too, lol. Hope it helps.
__________________
1995 Cobra - 331, P/P GT40X, V2-S, 3.73 and more
Dyno & Track #'s to come...
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-04-2012, 10:42 AM   #24
Moderator

eleanorfox's Avatar

Trader Feedback: (53)

Join Date: Mar 2006
Location: Monroe Michigan
Posts: 10,398

subscribed for future reference.

doing this next week.

thanks
__________________
2001 Mustang GT Bullitt (terminated) #2793
2013 Jeep Wrangler Sahara Unlimited
2013 GMC Sierra 1500 4x4
Shout out to Jeff @ JPCoatings.com for awesome work and SUPER FAST turn around
eleanorfox is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-04-2012, 11:35 AM   #25
Registered User

SATURN5's Avatar

Trader Feedback: (4)

Join Date: Sep 2000
Location: Kettering,Oh
Posts: 10,213

Nice write up... Subscribing for later use..
__________________
84 SVO Folvo, Cobra suspended and braked
68 F100 SBFS, DOHC, T45, CVIFS, IRS
96 Mark VIII, RPE chassis bracing, hubswapped
SATURN5 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-04-2012, 02:51 PM   #26
Corral Elite Member

RAP66's Avatar

Trader Feedback: (0)

Join Date: Mar 2007
Location: SF South Bay Area
Posts: 264

Another vote for "sticky"
__________________
1991 Mustang GT: FordStrokers 347, Jay Allen cam, 42#, TFS Heads, GT40, BBK 75mm TB/EGR spacer, 90mm LMAF, T-56, Full MM suspension, SVO brakes, NRC Disc conv., Vortech V3, Kurgan Tune & Meth: 492.4 rwhp/483.1 rwtq @ 12psi
, Phantom II gauges in MC Machine Dash.
RAP66 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-10-2012, 12:00 PM   #27
Moderator

eleanorfox's Avatar

Trader Feedback: (53)

Join Date: Mar 2006
Location: Monroe Michigan
Posts: 10,398

bump for a sticky, this just made my life easier.

Dropped my stuff at the coater 2 days ago.
__________________
2001 Mustang GT Bullitt (terminated) #2793
2013 Jeep Wrangler Sahara Unlimited
2013 GMC Sierra 1500 4x4
Shout out to Jeff @ JPCoatings.com for awesome work and SUPER FAST turn around
eleanorfox is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-13-2012, 04:51 PM   #28
Registered User

Trader Feedback: (8)

Join Date: Mar 2002
Location: Nashville, TN
Posts: 106

Great post. Thought I would post a few pics of mine as I'm sure this thread will be referred and referenced quite a bit.

These are just the highlights and small differences as NothinButNotch write-up above is very thorough.

I elected to go the VHT caliper paint route, as I'm cheap and did not want to spend $$ on powder coating or wait on them.

I was VERY impressed with the paint. Seems very durable and resistant to fluids. However, I believe the key to this is baking as VHT suggests. I used a $5.00 toaster oven I bought at a garage sale and baked them at 200 degrees for 60 min. I did a "before and after" endurance experiment with a test piece of scrap metal and the difference was night and day.

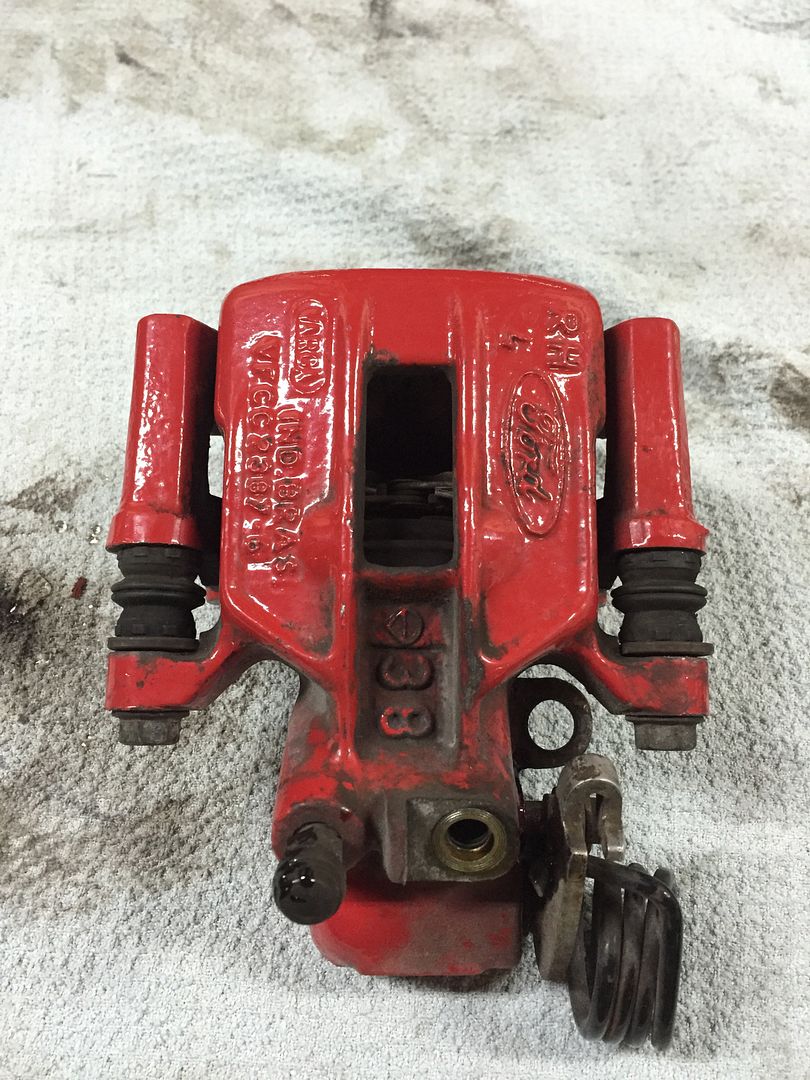

I snagged calipers from a 99 Cobra. Here is how they looked before..The rear caliper in the upper right has been treated to a bath of EvapoRust for a few days.



Close up of the EvapoRust results. For a "green" product, it worked fairly well. However it took eight days of soaking to get to this point. Since it was a test, I only bought two x 1qt bottles and emptied them into a 48oz can. The rear caliper would not quite be submerged. I believe that the product was pretty much spent after the first insertion. If you look closely you can see the line from when I flipped it over, and it did not do quite as good of a job.



So after eight days (four each side) and realizing I would have to buy at least 14 more bottles and wait 24 more days (or buy bigger volume and get a larger container...sandblasting here we come. The results...





Easy way to mask for paint, use old seals and trimmed plastic bags..



Quick tape mask to work on "Cobra" lettering...



Gently peel paint with razor blade, then buff with some 1000 grit sandpaper.



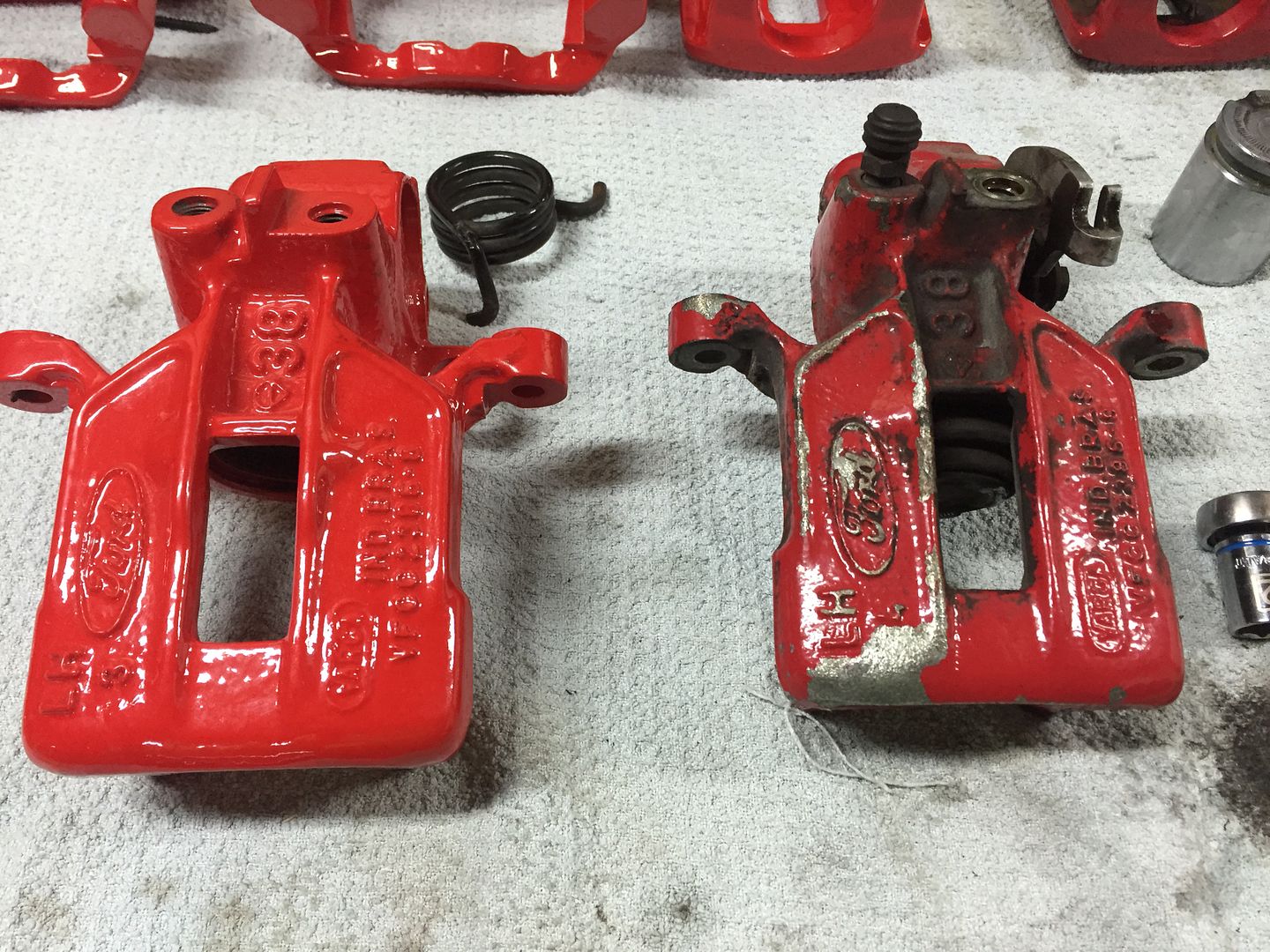

Results...



So to assemble the rears, I found an old dirt bike or atv piston wrist pin laying around that fit over the center shaft in the bore perfectly. I used a 5" c-clamp, and I wanted to leave the clamp as open as I could for more working room. So after measuring how long I would need it I cut the pin and tapered the end...



Which allowed it to keep the spring and carrier perfectly centered while also centered on the post in the caliper bore.





I used a magnet to keep the circlip clear while I compressed the assembly. I really had ample room to work with this setup.



Two long, small flat-bladed screwdrivers and this $1.99 set of pliers I modified from Harbor Freight made seating the circlip a 5min job in each caliper.





And the final results!!

PipeHitter is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-13-2012, 09:02 PM   #29
Registered User

NothinButNotch's Avatar

Trader Feedback: (3)

Join Date: Jul 2003
Location: Raleigh, NC
Posts: 701

I like the modified needle nose, if I ever do another set of these I'll have to try that. Thanks for the addition to the post.
__________________
1995 Cobra - 331, P/P GT40X, V2-S, 3.73 and more
Dyno & Track #'s to come...
NothinButNotch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 01-16-2012, 02:33 PM   #30
Registered User

Trader Feedback: (10)

Join Date: Nov 2011
Location: Atlanta, GA
Posts: 80

great write up!!! i used this post as a guide to rebuild my gf's calipers. i should have taken pictures thru the process like the others did, but i didnt think about it. we couldnt find a vht color she liked so we ended up going with the g2 caliper paint. but heres a few pics of finished product...


ShloogsStang is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Display Modes

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 03:00 PM.



Powered by vBulletin® Copyright ©2000 - 2014, vBulletin Solutions, Inc.
Search Engine Friendly URLs by vBSEO 3.5.2
© 2010-2011 Corral.net

Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
