130amp altERNATOR - what fuse?

a few questions, im going to run 4 gauge wire, where can i get an inline e fuse for the wire? advanced didnt have one that big? can i use one from the car stereo place? also what amp fuse should i run? i was thinking 200
__________________
91 MUSTANG GT
99 EXPLORER DAILY DRIVER
vbstng is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 09-13-2008, 07:33 PM   #2
Registered User

Markus's Avatar

Trader Feedback: (0)

Join Date: Feb 2006
Location: Wittlich/germany
Posts: 191

Hello,
i use on my pa-performance 130 amp alternator a 200 amp fuse. They come original with the alternator.
__________________
331stroker EFI,GT40 intake,AFR185,pro magnum RR,Ed Curtis custom cam,Tremec TKO,3.55:1,Innovate WB,Tweecer RT
Markus is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 07:45 PM   #3
Registered User

godspeed_89's Avatar

Trader Feedback: (2)

Join Date: Aug 2006
Location: Tulsa, Ok
Posts: 379

I use a 150 amp wafer fuse
__________________
331 , afr185's, tfs-r intake, 75mm tb/egr, and b-41 cam, 1.6rr, 50lb injectors, 80mm maf, S-TRIM 10#,6-btm, wideband autometer gauge, msd dizzy, 1 3/4 mac LT, and all the traction goodies
godspeed_89 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 08:15 PM   #4
Registered User

vbstng's Avatar

Trader Feedback: (4)

Join Date: Nov 2006
Location: virginia beach, VA
Posts: 886

i looked and looked, i have the wire, but cant find an inline fuse??
__________________
91 MUSTANG GT
99 EXPLORER DAILY DRIVER
vbstng is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 08:37 PM   #5
Registered User

Trader Feedback: (0)

Join Date: Jan 2002
Location: Baycity
Posts: 127

Quote:
Originally Posted by vbstng View Post
i looked and looked, i have the wire, but cant find an inline fuse??
Look for an ANL fuse and holder.

EDIT:
Here's a complete install package. http://cgi.ebay.com/ebaymotors/87-93...mZ170253001711





.
royalfockhead is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 08:55 PM   #6
Registered User

hotrodder's Avatar

Trader Feedback: (10)

Join Date: Dec 2005
Location: Deer Park Tx.
Posts: 2,356

Don't use a fuse. Autozone sells a 150amp circut breaker for @ 26.00
hotrodder is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 09:56 PM   #7
Registered User

vbstng's Avatar

Trader Feedback: (4)

Join Date: Nov 2006
Location: virginia beach, VA
Posts: 886

ill check out the circuit breaker, whats the difference between the 2?
i have all the wiring and stator wiring and ends, i just needed a fuse?
__________________
91 MUSTANG GT
99 EXPLORER DAILY DRIVER
vbstng is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 10:09 PM   #8
Registered User

Trader Feedback: (5)

Join Date: Dec 2006
Location: Houston
Posts: 1,515

Quote:
Originally Posted by vbstng View Post
ill check out the circuit breaker, whats the difference between the 2?
i have all the wiring and stator wiring and ends, i just needed a fuse?
the circuit breaker is like a reusable fuse. its just like the circuit breakers in your house. it will trip, and you can reset it.
slo895.0 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 10:31 PM   #9
Registered User

Trader Feedback: (1)

Join Date: Aug 2007
Location: elk grove
Posts: 461

a fuse will hold TWICE its rated power for 3-5 seconds before blowing, not many people know this. a short is not part of the equasion (sp?)

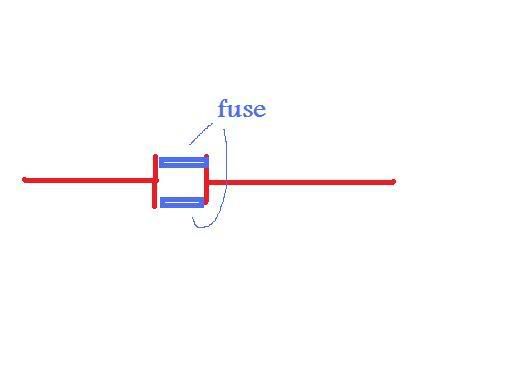

also if you put 2 fuses side by side (see pic) of 100 amps each to make a 200amp connection it will last longer then a single 200 amp fuse when given 400 amps


a 200 amp fuse will hold 200 amps all day long, it will even hold 250 for a long time.

so think about this your 130 amp alt with a 200 amp fuse isnt very protected if the fuse will hold 400 amps for a few seconds.

and do be honest the only reason i know this is from my dads in car stereo competitions, where your classed by your fuse rating. it works out good when you can pull 200 amps on a 100 amp for a spl burp
red89notch is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-13-2008, 11:01 PM   #10
Registered User

Trader Feedback: (0)

Join Date: Feb 2005
Location: -
Posts: 3,455

I used a 175amp Mega Fuse and fuse holder with my 130amp 3g.
Ford used a 175amp fuse on some production vehicles so I went with with that size.

I think the company that makes it is called littlefuse.I ordered it through my local auto parts store when I got the part number off the website.

www.littlefuse.com
8950HO is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 01:06 AM   #11
Registered User

Trader Feedback: (3)

Join Date: Aug 2008
Location: Edinburg
Posts: 157

actually advance does have a battery/alternator 175 amp fuse. i know cause i work there. in my store it's located on the bottom rack in a small box. i think it has a list price of ~$10. don't quote me for the price.

just thought i'd throw that out there. i actually did not use one on my install. -Sam.
__________________
1988 5.0: T-5, Hurst Shifter, March UDP, no A/C, PS, SP, solid motor mounts, aluminum radiator, taurus e-fan, 3G alt., MM clutch cable, UPR speed release quadrant, UPR firewall adjuster, longtubes.
-waiting for install: GT40P heads, mini spool & bearings, Comp. Eng. 8 pt. roll cage, Dynomax bullets
An_88_Monster is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 02:03 AM   #12
Registered User

Trader Feedback: (0)

Join Date: Jan 2002
Location: Baycity
Posts: 127

Quote:
Originally Posted by red89notch View Post
a fuse will hold TWICE its rated power for 3-5 seconds before blowing, not many people know this. a short is not part of the equasion (sp?)

also if you put 2 fuses side by side (see pic) of 100 amps each to make a 200amp connection it will last longer then a single 200 amp fuse when given 400 amps
p://i42.photobucket.com/albums/e318/slc72005/fuse.jpg[/IMG]

a 200 amp fuse will hold 200 amps all day long, it will even hold 250 for a long time.

so think about this your 130 amp alt with a 200 amp fuse isnt very protected if the fuse will hold 400 amps for a few seconds.

and do be honest the only reason i know this is from my dads in car stereo competitions, where your classed by your fuse rating. it works out good when you can pull 200 amps on a 100 amp for a spl burp
Correct me if I'm wrong, but... an alternator's not an audio amp. An amp draws current, an alternator is a source of current. The fuse isn't protecting the alternator, it protects the circuit. Even a small spike can take out alternator diodes. Nothing will protect the alternator, a 175~200a fuse would be good at protecting the circuit from catastrophic failure, like a ground short of that fat 4 gauge wire.
royalfockhead is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 11:32 AM   #13
Registered User

vbstng's Avatar

Trader Feedback: (4)

Join Date: Nov 2006
Location: virginia beach, VA
Posts: 886

Quote:
Originally Posted by royalfockhead View Post
Correct me if I'm wrong, but... an alternator's not an audio amp. An amp draws current, an alternator is a source of current. The fuse isn't protecting the alternator, it protects the circuit. Even a small spike can take out alternator diodes. Nothing will protect the alternator, a 175~200a fuse would be good at protecting the circuit from catastrophic failure, like a ground short of that fat 4 gauge wire.
so in other words the amp is worthless cause the alternator can still fry? what about engine bay fires??
__________________
91 MUSTANG GT
99 EXPLORER DAILY DRIVER
vbstng is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 12:35 PM   #14
Registered User

Trader Feedback: (1)

Join Date: Apr 2007
Location: Skokie, Il
Posts: 1,337

Quote:
Originally Posted by royalfockhead View Post
Correct me if I'm wrong, but... an alternator's not an audio amp. An amp draws current, an alternator is a source of current. The fuse isn't protecting the alternator, it protects the circuit. Even a small spike can take out alternator diodes. Nothing will protect the alternator, a 175~200a fuse would be good at protecting the circuit from catastrophic failure, like a ground short of that fat 4 gauge wire.

You're correct. The fuse is supposed to protect the wiring from a short. The alternator itsself can short and drain the battery. If the alternater has a bad enough short it can cause a fire, and this is really all the fuse is there for, to prevent a fire. The fuse should be as close to the battery as possible, like right on the hot post of the solenoid.
__________________
___________
"Sugartastic E Shizzle"
Fast Eddie D is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 02:08 PM   #15
Registered User

Trader Feedback: (0)

Join Date: Jan 2002
Location: Baycity
Posts: 127

Quote:
Originally Posted by vbstng View Post
so in other words the amp is worthless cause the alternator can still fry? what about engine bay fires??
Engine fire is what the fuse is protecting against. Like said above, you want the fuse close to the battery, because it's the circuit being protected, not the alternator.
You want the fuse rated higher than the alternator's max output (a 130a 3G will put out 170a under full load), but you want it lower than the circuit (the 4 gauge wire).

Think of it like this... If you had the 4 gauge wire from alt to battery without a fuse and some of the insulation rubbed off of the 4g wire and it shorted to ground, it would take out the alternator, the heat would melt insulation and start taking out other circuits and would most likely cause a fire.

If you had the circuit protected with an inline fuse, the alternator would be toast and the fuse would blow.

I'm not an electrical engineer and could be dead wrong, but this is my understanding of how it works.
royalfockhead is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 03:44 PM   #16
Registered User

Trader Feedback: (0)

Join Date: May 2008
Location: NJ
Posts: 283

my 95A PA alt came w/ a 200A fuse. is that to large?
sjd3021 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 07:11 PM   #17
Registered User

Mattstang65's Avatar

Trader Feedback: (7)

Join Date: Mar 2003
Location: Williamstown, WV
Posts: 1,667

Shade tree electricians can be scary. The purpose of the inline fuse is to protect the wire. Diff size wire has different current carrying ability or limitations, amps are the measuring units for current. It was correct as listed above that a 200 amp fuse will pass 200amps of current all day long. That is a problem if your only using 4 ga wire that is rated at around 160 amps full load (not continuous) carrying ability. That basically means that with 4 Ga wire and a 200amp fuse, if you see 200 amps for any length of time the wire will fail (melt, burn) and the fuse wouldn't blow.

Realistically (sp?), a 130 amp or whatever high amp alt you use will not be pumping out that max amp rating at all times. The alt output will vary depending on load needed. The more acc you have (stereo, elec fans, fuel pump, lights, etc) running at the same time, the higher the alt output will be up to it's max ability. The size of charge wire you use should be based on the alt max output ability, and then based on the wire size you choose the correct fuse protection.

A fuse is the safest and fastest way to protect a circuit. They are very accurate and dependable. Circuit breakers work, but they are not as fast or as dependable, I've seen them fail not tripping soon enough, tripping too early (nuisance trips) and some not trip at all.

I personally chose 2 ga wire for my 130 alt install and protect it with a 175 amp mega fuse. The minimal cost and little extra weight are worth protecting the larger investment I have in the rest of the car.

Check out the amp rating table for single core/battery starter cable.
You can also look under the fuses/breakers tab at fuse holders and breakers. I chose the "mega fuses" and their respective holder because the 175 amp fuses are readily available at the salvage yards, alot of late model cars use them.

http://www.12volt.com.au/redirect.ht...cablewire.html


This is the fuse holder that I use. They can be had cheaper through waytekwire.com.

http://www.electricvehiclesusa.com/p..._p/fh-mega.htm

Last edited by Mattstang65; 09-14-2008 at 07:31 PM.
Mattstang65 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 09:56 PM   #18
Registered User

Mattstang65's Avatar

Trader Feedback: (7)

Join Date: Mar 2003
Location: Williamstown, WV
Posts: 1,667

If your dead set on using the 4ga wire, it would be a good idea to use a 150 amp fuse max, 125 would probably work for you as well. You'd need to find a local shop that rebuilds alternators that can "load" test your alt to see how much output it is truely capable of producing and fuse accordingly.

In any short circuit fault such as the wire getting pinched or the insulation wearing through and grounding out will result in an immediate current spike and resulting blown fuse.

Another helpful site:

http://www.the12volt.com/info/recwirsz.asp

Watts or power = amps x volts
__________________
91 notch, 408W, 10.5 comp, Jay Allen cam, Crane linkbars, Scorpion rockers, vic jr intake/heads, Canton pan, Mac longtubes, C4, UPR adj. uppers/lowers, Strange struts/shocks, subframe connectors, wild rides 6pt, Team Z k-member/anti-roll bar, MSD ignition.

Last edited by Mattstang65; 09-14-2008 at 10:10 PM.
Mattstang65 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 10:14 PM   #19
Registered User

Trader Feedback: (0)

Join Date: Jan 2002
Location: Baycity
Posts: 127

Quote:
Originally Posted by Mattstang65 View Post
If your dead set on using the 4ga wire, it would be a good idea to use a 150 amp fuse max, 125 would probably work for you as well. You'd need to find a local shop that rebuilds alternators that can "load" test your alt to see how much output it is truely capable of producing and fuse accordingly.

In any short circuit fault such as the wire getting pinched or the insulation wearing through and grounding out will result in an immediate current spike and resulting blown fuse.
Good stuff, Matt, but Ford uses 175a mega fuses with 6 awg wire, in cars with 130a rated 3G alternators.
Also, why get the alternator load tested? Do people really use the max output, at anything other than idle? Even a 200a alternator, is only capable of around 100a at idle.
Not trying to argue, I'm in no position to. Just thinking aloud and curious


.

Last edited by royalfockhead; 09-14-2008 at 11:32 PM.
royalfockhead is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-14-2008, 10:20 PM   #20
Registered User

ksstang's Avatar

Trader Feedback: (19)

Join Date: Dec 1999
Location: Lawrence, KS
Posts: 2,961

I guess I need to think about getting a fuse. The guy I got the car from did the 3g upgrade, but there isnt a fuse ANYWHERE on the upgrade. So it goes inline with the BIG wire going from the starter solinoid down to the alternator?
__________________
Kyle
1993 LX Coupe
1989 GT (Project Car)
I Understand The Jeep Thing..Thats Why I Drive A Z-71
ksstang is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-15-2008, 07:11 AM   #21
Registered User

Mattstang65's Avatar

Trader Feedback: (7)

Join Date: Mar 2003
Location: Williamstown, WV
Posts: 1,667

Most don't tax the alt to it's limit, especially in stock vehicles. The 175 fuse that ford uses is mainly for fault protection, I believe, not constant full load carrying ability. Short runs also raise a cables current carrying ability, most modified cars have relocated (trunk mount) batteries. There are alot of factors involved. Fire and its potential scares me, so I always lean toward the safer side or overkill when it comes to protecting against it. Do what you like.
__________________
91 notch, 408W, 10.5 comp, Jay Allen cam, Crane linkbars, Scorpion rockers, vic jr intake/heads, Canton pan, Mac longtubes, C4, UPR adj. uppers/lowers, Strange struts/shocks, subframe connectors, wild rides 6pt, Team Z k-member/anti-roll bar, MSD ignition.
Mattstang65 is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 09-15-2008, 07:11 PM   #22
Registered User

vbstng's Avatar

Trader Feedback: (4)

Join Date: Nov 2006
Location: virginia beach, VA
Posts: 886

im going to get the fuse holder and fuse from ELECTRICVEHISLESUSA
thanks everybody, corral has helped once again -)
__________________
91 MUSTANG GT
99 EXPLORER DAILY DRIVER
vbstng is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 10-17-2008, 02:55 AM   #23
Registered User

Frank91lx's Avatar

Trader Feedback: (19)

Join Date: May 2006
Location: Silverdale, WA
Posts: 457

I bought my fuse and holder here. It is the best price I have found.

http://www.keefeperformance.com/high_amp_fuses.html
__________________
US Navy Retired Machinist Mate (Auxiliaryman) Submarines
1983 Ranger 2.3l 5 speed. Beater truck.
1992 Mustang Coupe. 2.3l turbo project.
2002 Expedition. Family car/tow vehicle
Frank91lx is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 10-18-2008, 12:35 PM   #24
Corral Charter Member

RedSE's Avatar

Trader Feedback: (0)

Join Date: Nov 1999
Location: Palo Alto, CA
Posts: 1,042

You may want to look at marine fuses and fuse blocks - here's an example



This one is 32 bucks, and holds up to a 250 amp fuse. It's what I used in my 3g upgrade.

Try West Marine or any boat hardware source.
__________________
Je n'avais pas besoin de cette hypothèse-là

Pierre-Simon Laplace
RedSE is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Old 10-18-2008, 01:26 PM   #25
Registered User

Frank91lx's Avatar

Trader Feedback: (19)

Join Date: May 2006
Location: Silverdale, WA
Posts: 457

Quote:
Originally Posted by RedSE View Post
You may want to look at marine fuses and fuse blocks - here's an example



This one is 32 bucks, and holds up to a 250 amp fuse. It's what I used in my 3g upgrade.

Try West Marine or any boat hardware source.
The same thing is on the website I just posted above for $9.99.
__________________
US Navy Retired Machinist Mate (Auxiliaryman) Submarines
1983 Ranger 2.3l 5 speed. Beater truck.
1992 Mustang Coupe. 2.3l turbo project.
2002 Expedition. Family car/tow vehicle
Frank91lx is offline
Digg this Post!Add Post to del.icio.usBookmark Post in TechnoratiTweet this Post!
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the Ford Mustang Forums : Corral.net Mustang Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Display Modes

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 03:57 AM.



Powered by vBulletin® Copyright ©2000 - 2014, vBulletin Solutions, Inc.
Search Engine Friendly URLs by vBSEO 3.5.2
© 2010-2011 Corral.net

Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
