Modifying Trick Flow Box R Effects on Power???

So I may have finally found a way to get the Box R on my setup, I'll be welding tabs onto the upper to mount it directly to the lower without the 1" spacer, unfortunately that still isn't enough, I may mill 1/8" from the upper and possibly 1/4-1/2" from the lower intake.

The distributor isn't an issue with my setup, I'm going to do a test fit to verify clearance with my fuel rails since I'm going so much lower.

My main concern is what chopping 1.5" off the height of the intake does to the way it makes power now, would it result in more or less power?

turboLXstang is offline
Sponsored Links
Advertisement

post #2 of 13 Old 05-18-2017, 10:48 AM
Registered User

tmoss's Avatar

Trader Feedback: (47)
Join Date: Feb 2001
Location: St Louis, MO
Posts: 10,250
Garage
depends on other things that you haven't shared. Less length is usually associated with power at more rpm but that is affected by everything else in the engine's air path including cam specs. 1.5" is not a huge change, you're going from about 9.75" to 8.25" total intake runner length - then add in port length.


Tom Moss
2010 Shelby GT500 vert with 2.9L 16 psi Whipple and rim upgrade. Rated 750HP/713TQ - 673/620 to the tire

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
src="/forums/images/smilies/salute.gif" border="0" alt="" title="Salute" class="inlineimg" />http://tmoss.efidynotuning.com/
tmoss is offline
post #3 of 13 Old 05-18-2017, 01:54 PM
Old timer

Ed Curtis's Avatar

Trader Feedback: (17)
Join Date: Jul 2000
Location: In the shop - Working 24/7
Posts: 5,161
Garage
Quote:
Originally Posted by tmoss View Post
depends on other things that you haven't shared. Less length is usually associated with power at more rpm but that is affected by everything else in the engine's air path including cam specs. 1.5" is not a huge change, you're going from about 9.75" to 8.25" total intake runner length - then add in port length.
Yeah, agreed - but - he also has to watch the transition between the two pieces. That spacer/adapter allows for a half-way decent transition area for the intersecting runners. Last thing it needs is a sharp dog leg from the plenum to the lower.
tmoss likes this.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


"Haters gonna hate 'cause they just can't replicate."
Ed Curtis is offline

post #4 of 13 Old 05-18-2017, 02:22 PM
Registered User

tmoss's Avatar

Trader Feedback: (47)
Join Date: Feb 2001
Location: St Louis, MO
Posts: 10,250
Garage
Quote:
Originally Posted by Ed Curtis View Post
Yeah, agreed - but - he also has to watch the transition between the two pieces. That spacer/adapter allows for a half-way decent transition area for the intersecting runners. Last thing it needs is a sharp dog leg from the plenum to the lower.
Absolutely !

Tom Moss
2010 Shelby GT500 vert with 2.9L 16 psi Whipple and rim upgrade. Rated 750HP/713TQ - 673/620 to the tire

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
src="/forums/images/smilies/salute.gif" border="0" alt="" title="Salute" class="inlineimg" />http://tmoss.efidynotuning.com/
tmoss is offline
post #5 of 13 Old 05-18-2017, 05:05 PM Thread Starter
Registered User

Trader Feedback: (18)
Join Date: May 2006
Location: California
Posts: 907
So with that being said should I not try it out and just go with a super victor instead, I'm a little concerned about driving with the super victor on the street, I may just try them both and see what happens, ideally I'd like to run the Box R. What's another 1k dollars now after everything it's a drop in the bucket.
turboLXstang is offline
post #6 of 13 Old 05-23-2017, 06:25 PM
Registered User

MSCHLITZKUS's Avatar

Trader Feedback: (2)
Join Date: Feb 2005
Location: Ga.
Posts: 530
Quote:
Originally Posted by turboLXstang View Post
So I may have finally found a way to get the Box R on my setup, I'll be welding tabs onto the upper to mount it directly to the lower without the 1" spacer, unfortunately that still isn't enough, I may mill 1/8" from the upper and possibly 1/4-1/2" from the lower intake.

The distributor isn't an issue with my setup, I'm going to do a test fit to verify clearance with my fuel rails since I'm going so much lower.

My main concern is what chopping 1.5" off the height of the intake does to the way it makes power now, would it result in more or less power?
This subject has been beaten to death on this board and YB. Do a search and you'll find what your looking for.
FYI, not sure how much experience you have with welding cast aluminum.. if you weld tabs on the box there is probably a 99% chance they will break off the first time you tighten it down. Best bet is to mill .5" off the lower, spacer and upper then re-port the center to clean up the angles created.
MSCHLITZKUS is offline
post #7 of 13 Old 05-23-2017, 09:50 PM Thread Starter
Registered User

Trader Feedback: (18)
Join Date: May 2006
Location: California
Posts: 907
I've done plenty of searching on the subject, I can't find anyone to mill the spacer locally for me, but without the spacer I'm still touching the back of my hood. A new hood is out of the question. I need to mill 3/8" - 1/2" off the lower intake and weld the tabs to the upper and eliminate the spacer completely to run the intake without hitting anything. I'm concerned what the resulting runners will do, if it doesn't work I'll try the Super Victor. My welder is really good, I'll make sure he knows it's cast aluminum.
turboLXstang is offline
post #8 of 13 Old 05-24-2017, 11:19 AM
USAF retired

superirish's Avatar

Trader Feedback: (39)
Join Date: Jul 2000
Location: Foht Walt'n Beach Floriduh aka The Redneck Riviera
Posts: 8,709
If hood clearance is an issue get a Holley SMII and be done with it.

1985 LTD LX, small truck motor, painted axle tubes, various mustang stuff.

1990 LX stock porno block, '86 flattops, cobra flywheel, ported GT40s, Vic Jr 4-hole throttle body, DB1 speed density processor, B-cam
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
, 1.7s, 4.30s, stock T5 living on borrowed time.
superirish is offline
post #9 of 13 Old 05-24-2017, 08:06 PM Thread Starter
Registered User

Trader Feedback: (18)
Join Date: May 2006
Location: California
Posts: 907
I decided to bolt the Box R on and I'm going to remove the hood, make a few runs and data log to see what's happening, if I find the time I'll try and dyno the car without the hood on. If I find out that was my issue with my results I'll then remove the intake manifold and here's how I'll accomplish shortening it to clear my hood. I'll mill 1/4" off the upper, 1/2" off of the lower and then I'll weld the 1" adaptor plate to the upper and afterwards I'll mill 5/8" off the upper with the adaptor welded on it and redyno to see the effects shortening the runners had.
turboLXstang is offline
post #10 of 13 Old 05-26-2017, 10:10 AM
Dean Scheidt

SLO 5-OH's Avatar

Trader Feedback: (53)
Join Date: Sep 2006
Location: Sandston, VA
Posts: 3,201
Quote:
Originally Posted by turboLXstang View Post
I decided to bolt the Box R on and I'm going to remove the hood, make a few runs and data log to see what's happening, if I find the time I'll try and dyno the car without the hood on. If I find out that was my issue with my results I'll then remove the intake manifold and here's how I'll accomplish shortening it to clear my hood. I'll mill 1/4" off the upper, 1/2" off of the lower and then I'll weld the 1" adaptor plate to the upper and afterwards I'll mill 5/8" off the upper with the adaptor welded on it and redyno to see the effects shortening the runners had.
So, you're going with option 2 from your other thread. I think that's a good idea.

393w Dyno Results Uncover New Issue (Long Read)

I'm looking forward to the results. Please keep us posted.


1989 Mustang GT - original owner
1/8-mile: 6.57 @ 102.67
1/4-mile: 10.40 @ 128.13 (1.37 60')
425 RWHP:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
, TW 205 heads, tmoss TFS Box-R intake,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
AOD,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
8" converter, 4.10's, Team Z Suspension, M/T 26" ET's, full interior, 3,340 lbs race weight. Tuned by Willie at
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
SLO 5-OH is online now
post #11 of 13 Old 05-26-2017, 11:37 AM Thread Starter
Registered User

Trader Feedback: (18)
Join Date: May 2006
Location: California
Posts: 907
Yeah going to run the box without the hood, I've got the lower manifold at the machine shop getting 1/2" removed from it, I'll be able to run a 1" spacer and still be able to run the regular R Upper if the Box has drivability issues on the street (I don't think it will).

I'm not going to do any milling of the upper or the adaptor plate yet, I'd like to dyno it and get a baseline. If all works well together I will then mill the plate 5/8" (found a way to get it milled, won't have to do any welding) and probably 1/4" from the upper.

The plan is then to re dyno the car to see how the extra 3/4" milling affects the power.

If it works I'll be taking the upper to be mirror polished, I think it looks good under the hood.

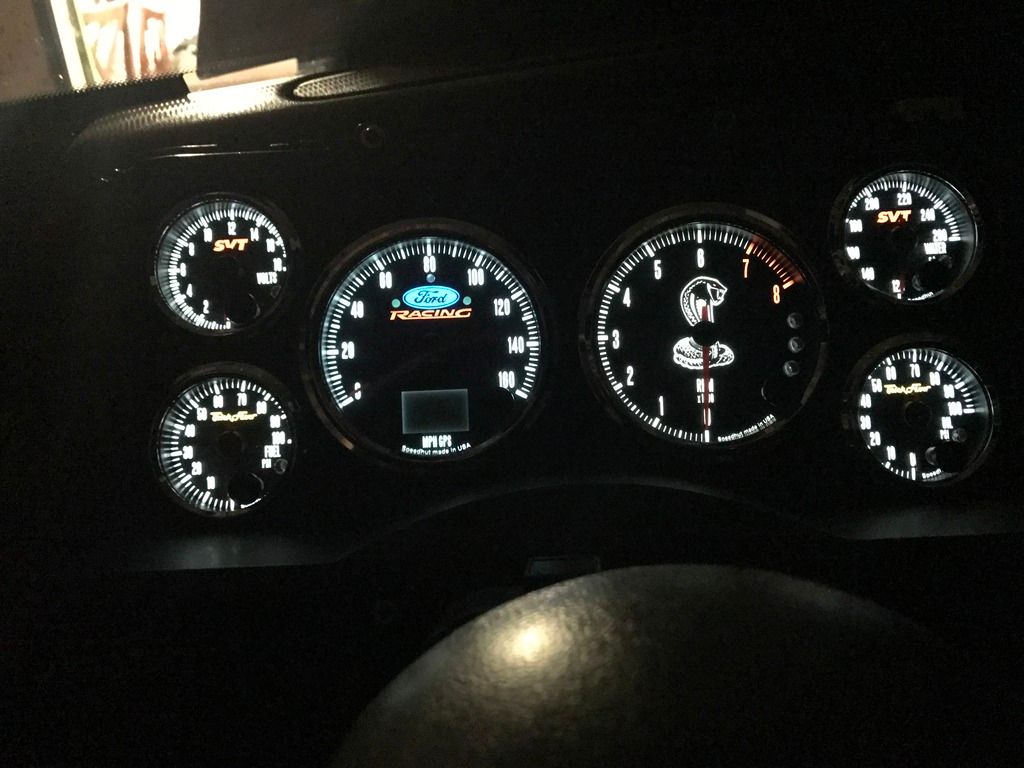

Off topic, I did get my speedhut gauges mocked up, the install for these were really easy, genius product.



turboLXstang is offline
post #12 of 13 Old 05-26-2017, 10:24 PM
Indo-Canuck-Yankee

Shaker666's Avatar

Trader Feedback: (4)
Join Date: Sep 2002
Location: Tucson, AZ
Posts: 2,659
Garage
Gauges and engine look sharp.

'89 5.0L LX hatch: all 90mm 2.2L Blowzilla Dart Iron Eagle 306 @ 8.4:1, ported Vic Jr heads, TMoss ported GT40 lower, Deka 80# injectors, EDIS8, GUFB-A9L2-Moates tuned, Tremec 3550, 3.31 gears w/31-spline TruTrac
'66 GT 2+2 Fastback: carb'd 289, Canfield heads - EFI transformation pending

'71 Mach 1: totaled - R.I.P.
Shaker666 is offline
post #13 of 13 Old 05-26-2017, 10:40 PM
Registered User

Trader Feedback: (0)
Join Date: Dec 2014
Location: Crandall, TX
Posts: 108
That car is sharp and he's a super nice dude. I'm looking forward to seeing his dyno results.
